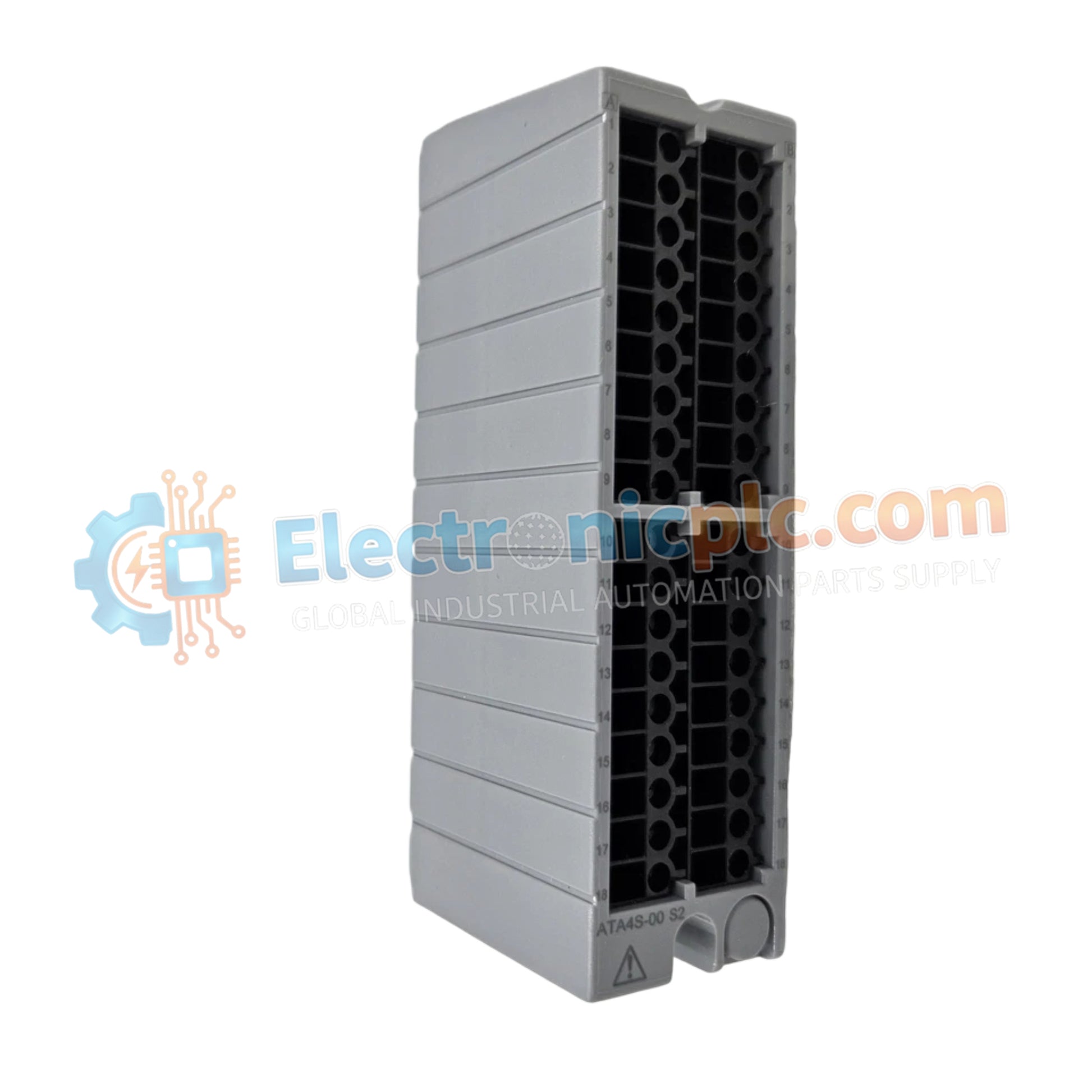

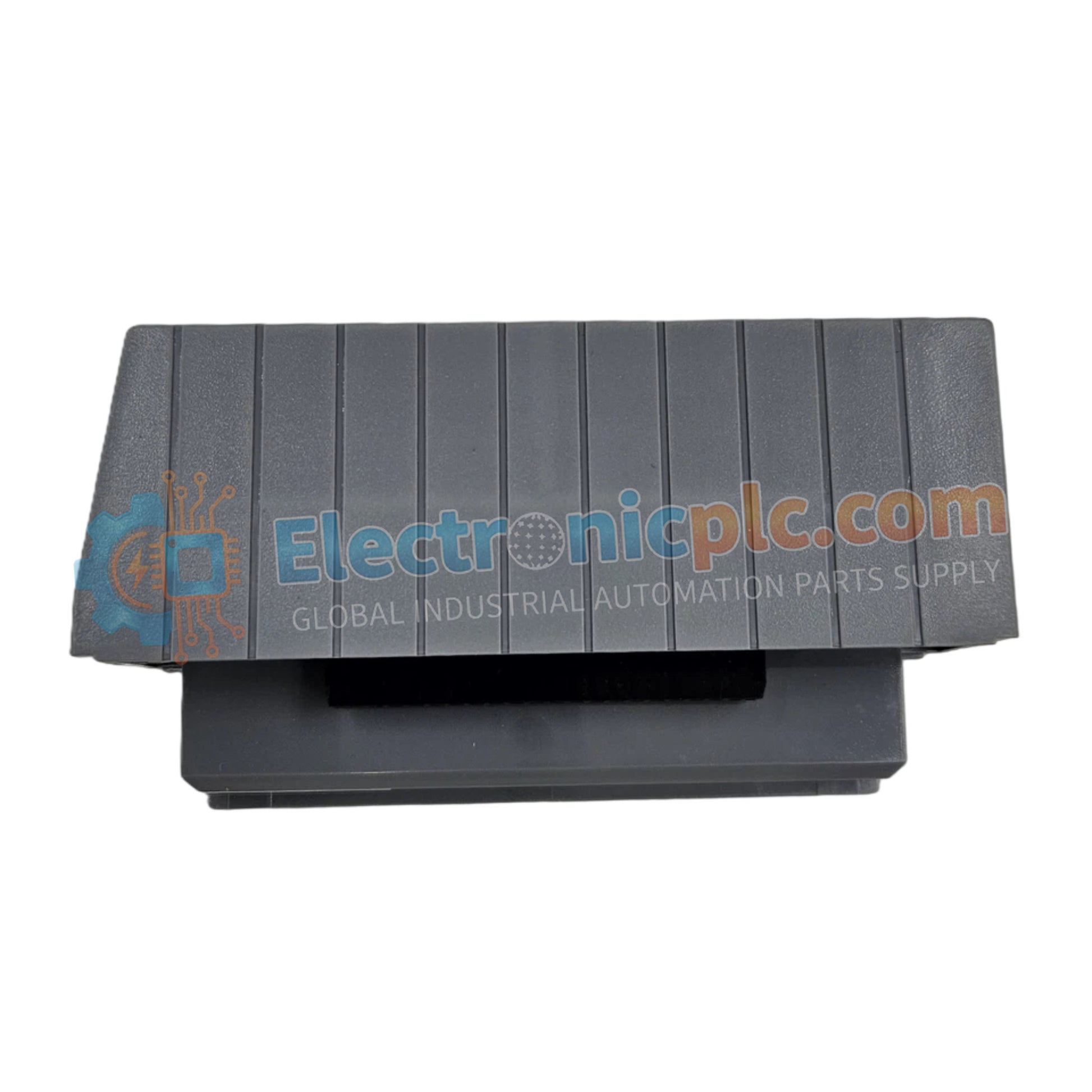

Configured for field-to-controller signal routing, the Yokogawa ATA4S-S00 S2 (ATA4S Pressure Clamp Terminal Block) provides direct physical and electrical execution of multi-channel signal transition within Yokogawa industrial control platforms.

Suffix Breakdown & Model Matrix

• ATA4S: Base model designation for 16-channel pressure clamp terminal blocks.
• S00: Standard configuration code for universal signal routing and contact architecture.
• S2: Revision level identifying specific mechanical iteration and terminal housing material composition.

Hardware Specifications

Signal Transition and Contact Integrity

The ATA4S-S00 S2 utilizes a pressure clamp termination architecture designed to maintain gas-tight electrical contact in environments subject to thermal cycling and mechanical vibration. By eliminating the reliance on screw-tightening cycles, the pressure clamp design ensures consistent contact pressure on the conductor, which is necessary for maintaining low-resistance signal paths in 4-20 mA analog loops or 24 V DC digital switching circuits. This configuration minimizes the risk of signal attenuation caused by contact oxidation over time.

Frequently Asked Questions

Q: Can the ATA4S-S00 S2 be used for both analog and digital signals simultaneously?

A: Yes. The terminal block is a passive signal routing device and does not differentiate between signal types. Ensure that segregation is maintained during field wiring to prevent crosstalk between high-power digital outputs and low-level analog inputs.

Q: Is this terminal block designed for hot-swapping?

A: No. As a passive termination component, the ATA4S-S00 S2 is not a modular electronic device. Any wiring modifications or replacement must be performed while the associated I/O loop is isolated to prevent accidental ground faults or short circuits.

Field Installation Guidelines

• Conductor Preparation: Strip insulation to the manufacturer-specified length to ensure optimal engagement with the pressure clamp. Avoid tinning the stranded wire ends, as pressure clamps rely on the elasticity of the conductor to maintain contact force.
• Wire Routing: Secure cables to the cabinet's cable management system to prevent mechanical strain on the terminal clamp. Tension on the conductor can compromise the pressure clamp's ability to maintain a gas-tight connection.
• Environmental Protection: While the unit is rated for operation up to 70 deg C, avoid installation in high-humidity areas without proper cabinet sealing, as moisture can lead to corrosion on the contact surfaces.
• Grounding: If the application involves shielded signal cabling, ensure the cable drain wires are terminated at the designated cabinet grounding bar rather than the ATA4S-S00 S2 signal terminals themselves.
