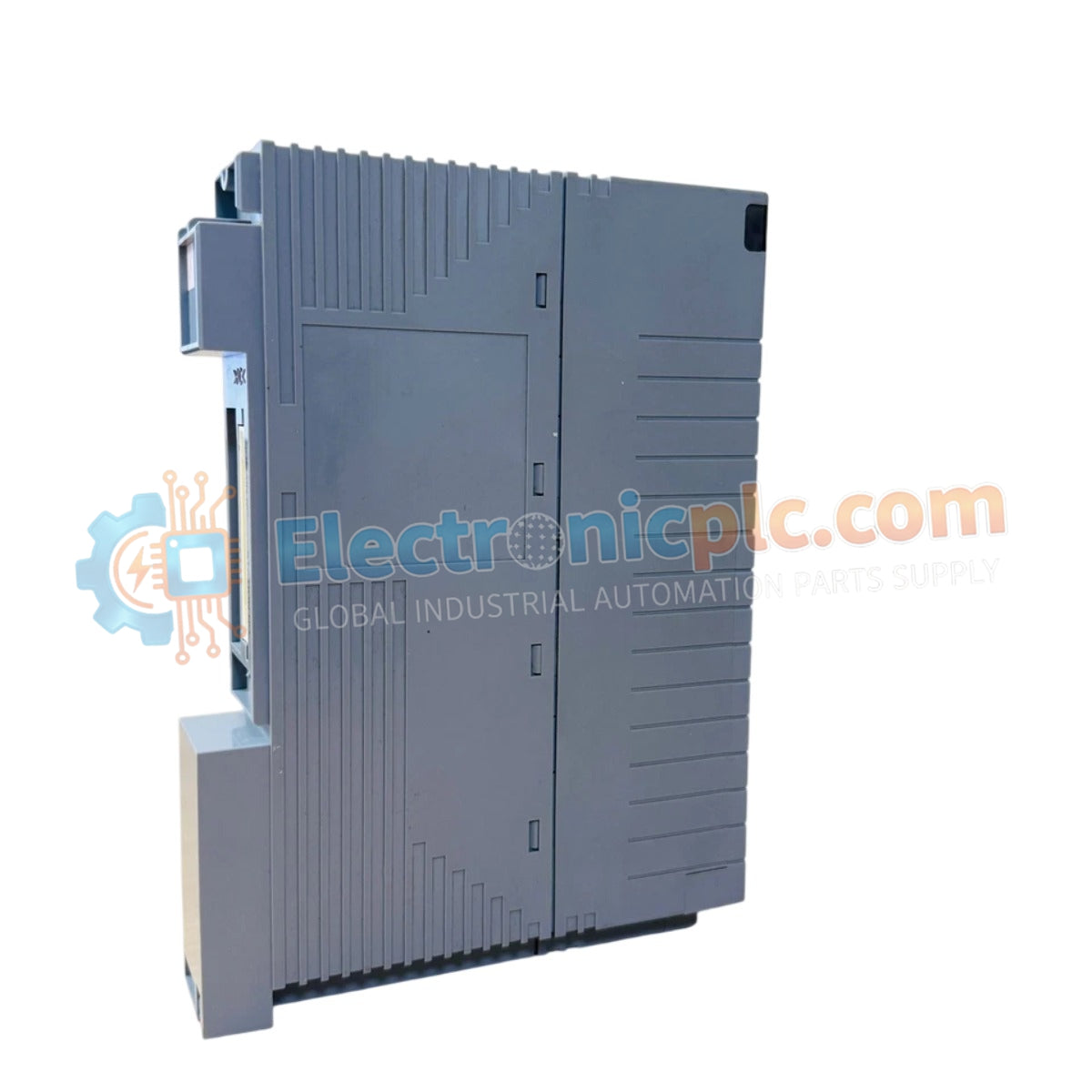

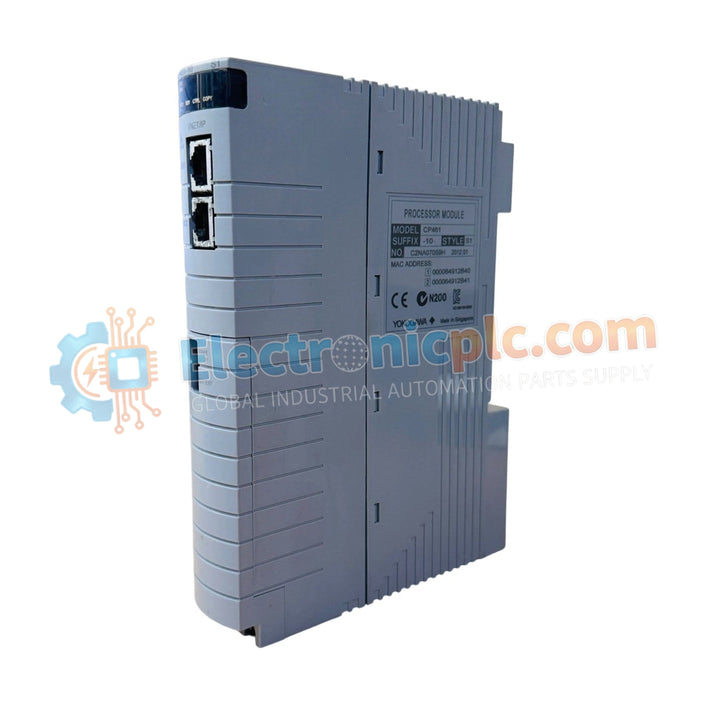

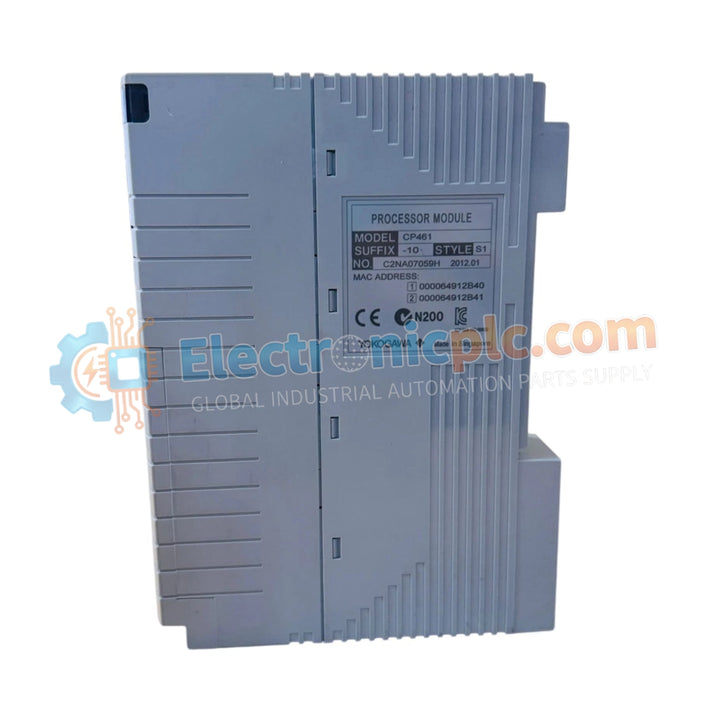

The YOKOGAWA CP461-10 S1, also cataloged as the CP461-10 Processor Module, operates as a dedicated hardware component for core control processing and communication automation within CENTUM CS3000 and CENTUM VP systems.

Hardware Specifications

Process Control Connectivity

The CP461-10 utilizes established DCS instrumentation standards to maintain loop integrity. The module architecture is designed to support 4-20 mA HART loop protocol integration, enabling real-time transmission of process variables. To ensure signal fidelity across complex control architectures, the design incorporates channel-to-channel isolation, which mitigates ground loop interference and cross-channel electrical noise. This structural approach ensures that high-precision control signals are processed with the required accuracy for regulatory loop stability.

Frequently Asked Questions

Q: Can the CP461-10 S1 be hot-swapped while the CENTUM controller is in run mode?

A: Hot-swapping is restricted by the specific backplane configuration. Ensure the controller is in a secondary or standby state prior to module extraction to prevent system-wide I/O communication loss.

Q: How should the communication ports be configured for Modbus RTU integration?

A: Configuration must be defined through the system engineering station. Ensure the baud rate, parity, and stop bit settings match the external slave device requirements to avoid data packet collision on the communication bus.

Field Installation Guidelines

• Verify the rack slot is free of debris before aligning the module with the backplane connector.
• Ensure the module is seated fully and secured using the integrated front-panel locking mechanisms to maintain contact pressure.
• Perform cable routing within the cabinet using designated wire ducts to prevent signal attenuation caused by induction from high-voltage power lines.
• Ground the rack assembly to the cabinet potential equalization bus to ensure compliance with electromagnetic compatibility standards.
• Conduct a visual inspection of the module status LEDs after power-on to verify successful self-diagnostic execution and communication link synchronization.
