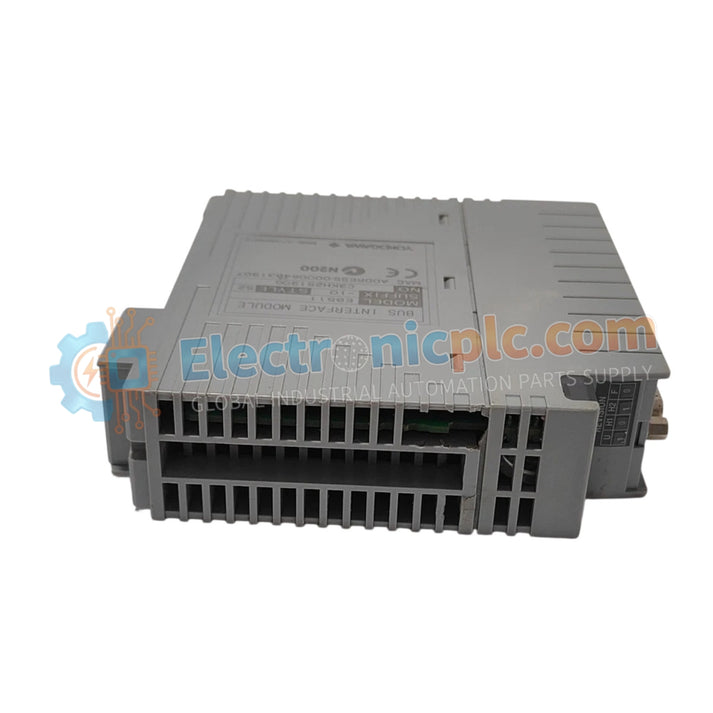

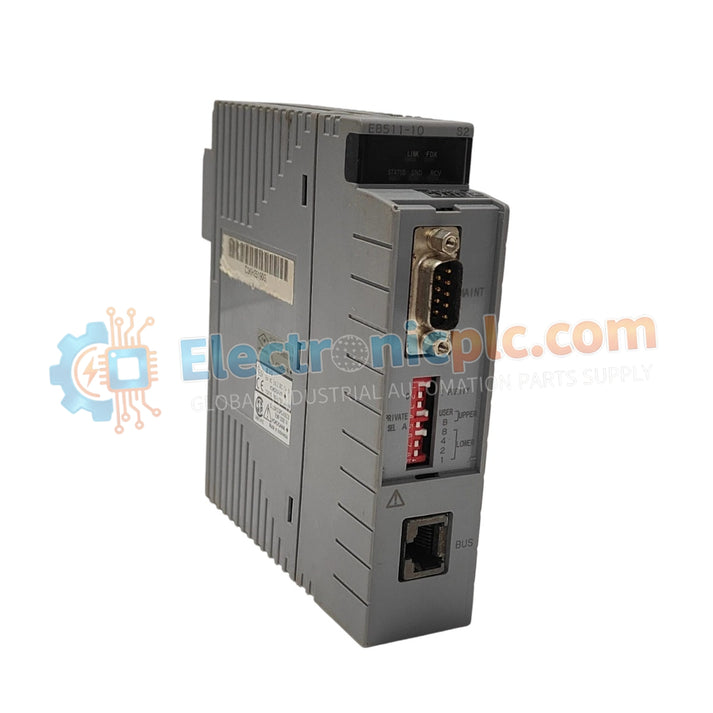

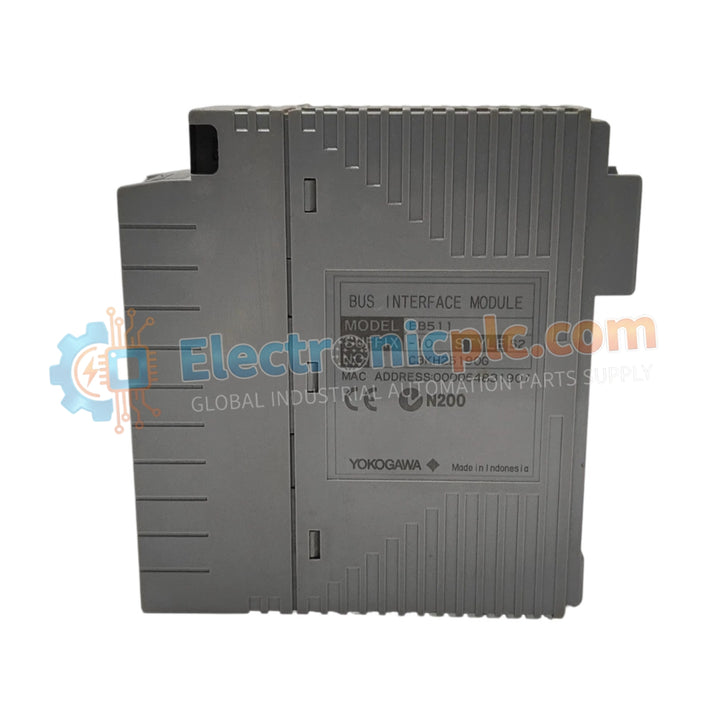

Configured for high-speed digital data exchange within distributed control environments, the Yokogawa EB511-10 (EB511-10 Bus Interface Module) provides direct physical and electrical execution of S2 EB bus communication, linking CENTUM series controllers with field-mounted I/O nodes.

Suffix Breakdown & Model Matrix

• EB511: Base model designation for the S2 EB bus interface series.
• 10: Configuration identifier for standard network transmission speed and protocol compatibility.
• S2: Revision level identifying the hardware iteration and firmware architecture for seamless integration with CENTUM CS and VP platforms.

Hardware Specifications

System Connectivity and Data Integrity

The EB511-10 module serves as the primary communication link, translating control commands from the CENTUM DCS into the S2 EB bus protocol. This architecture is essential for real-time monitoring and deterministic control execution across large-scale industrial installations. By isolating the bus communication logic, the module protects the primary controller backplane from potential ground faults or electrical transients originating in the field communication network.

Frequently Asked Questions

Q: Is the EB511-10 module compatible with older CENTUM CS systems?

A: Yes. The EB511-10 is backward compatible with CENTUM CS architectures, provided the system firmware supports the S2 EB bus protocol. Always verify the current system's engineering documentation and firmware revision before installation.

Q: Does this module support hot-swapping during active operation?

A: No. Similar to other high-density bus interface modules in the Yokogawa range, the EB511-10 must not be inserted or removed while the controller station is powered. Ensure the bus is isolated and system power is OFF before performing maintenance or replacement to avoid data corruption.

Field Installation Guidelines

• Backplane Seating: Ensure the module is fully inserted and the latching mechanism is securely engaged. Loose seating is the most common cause of communication timeouts and bus-level fault alarms.
• Grounding: The module chassis must be bonded to a low-impedance instrument earth point. Proper grounding is critical for maintaining the dielectric strength and electromagnetic compatibility (EMC) required for S2 EB bus communication.
• Cabling: Use only certified S2 EB bus cabling. Route these cables in dedicated, segregated cable trays away from high-voltage AC lines, VFD output cables, or other sources of high-frequency electromagnetic interference.
• Thermal Management: Maintain a 50 mm clearance above and below the module mounting slot to allow for heat dissipation. Operating the module within the specified 0 to 50 deg C range is vital for long-term internal component stability.
