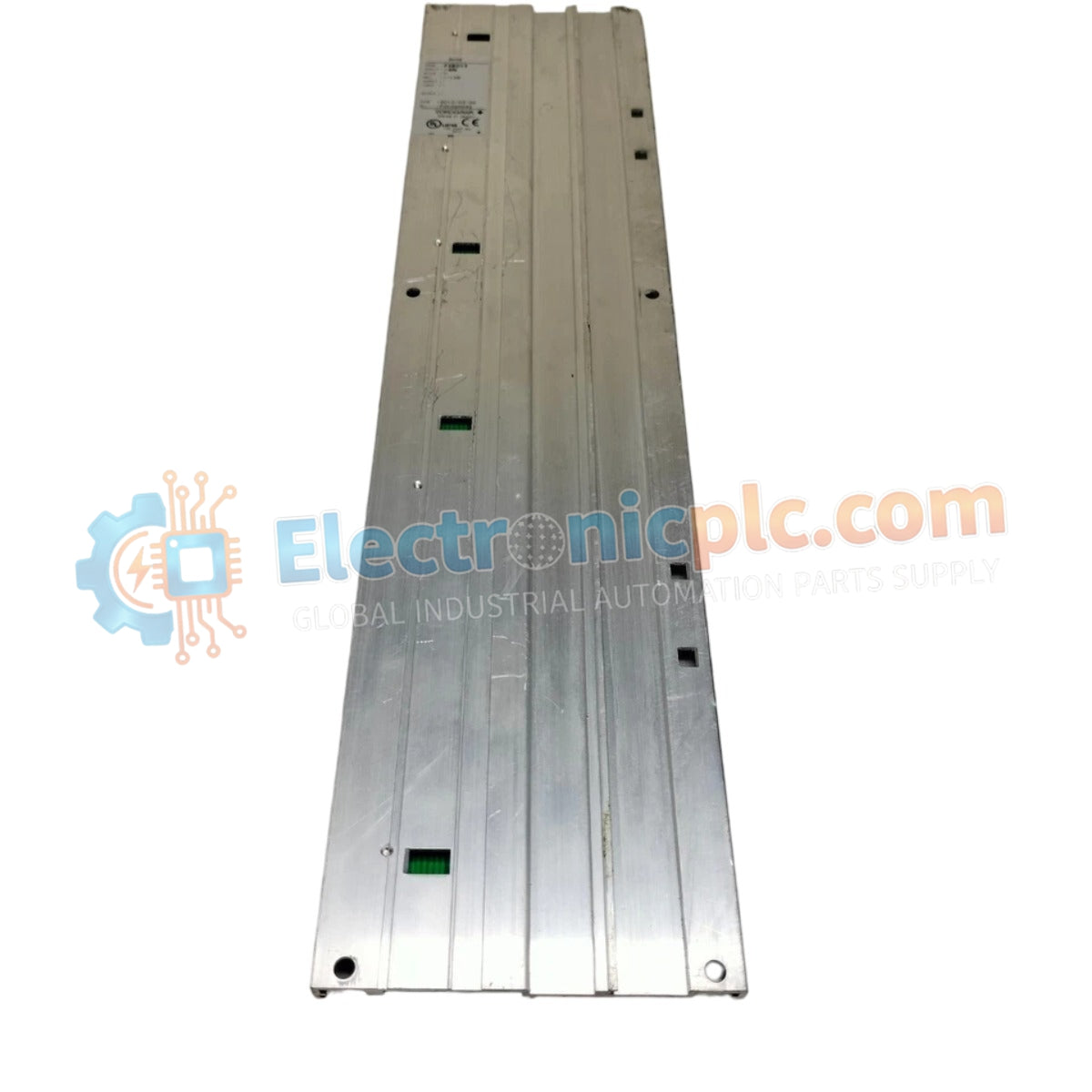

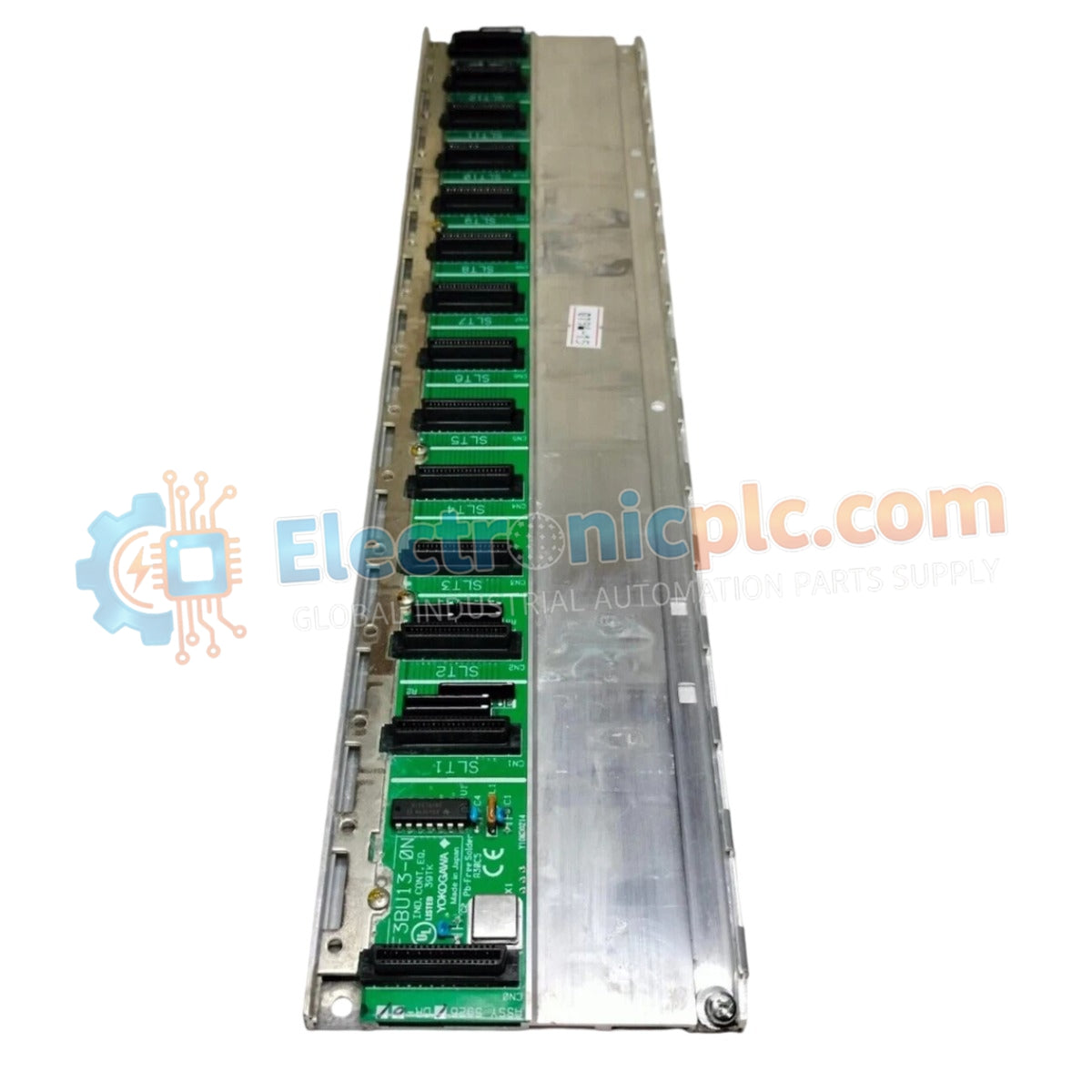

Configured for high-density modular distribution in FA-M3 control networks, the Yokogawa F3BU13-0N/D2 (F3BU13-0N/D2 Base Unit) provides direct physical and backplane electrical execution for system processors and I/O integration across the FA-M3 platform.

Hardware Specifications

Yokogawa DCS and Process Control Connectivity

The F3BU13-0N/D2 serves as the mechanical and electrical interface for Yokogawa FA-M3 series modules, supporting diverse process control requirements. The architecture provides internal signal routing optimized for 4-20 mA HART loop protocol compatibility within the rack environment. Proper integration ensures robust channel-to-channel isolation performance across the installed I/O modules, maintaining signal integrity in proximity to field instrumentation. When configured for complex process loops, the backplane maintains electrical stability for connected signal conditioning and control components.

Frequently Asked Questions

Q: Does the F3BU13-0N/D2 support hot-swapping of modules?

A: No. Standard FA-M3 base units are not rated for hot-insertion or hot-removal of modules. The system must be de-energized to prevent electrical faults on the backplane bus during installation or module maintenance.

Q: What are the grounding requirements for this base module?

A: The chassis must be connected to a low-impedance earth ground to ensure effective noise immunity and operator safety. Use the designated grounding terminal on the unit frame, ensuring the connection is free of oxidation.

Field Installation Guidelines

1. Ensure the mounting surface is flat and capable of supporting the weight of the base unit plus all populated modules.
2. If utilizing DIN-rail installation, confirm that the rail is securely fastened to the backplane panel and aligned horizontally.
3. Maintain a minimum clearance of 50 mm above and below the assembly to ensure adequate thermal airflow.
4. When cabling, use shielded twisted pair wiring for all analog inputs to minimize electromagnetic interference.
5. Verify that all module retaining screws are tightened to ensure full electrical contact between the module connector and the base unit backplane pins.
