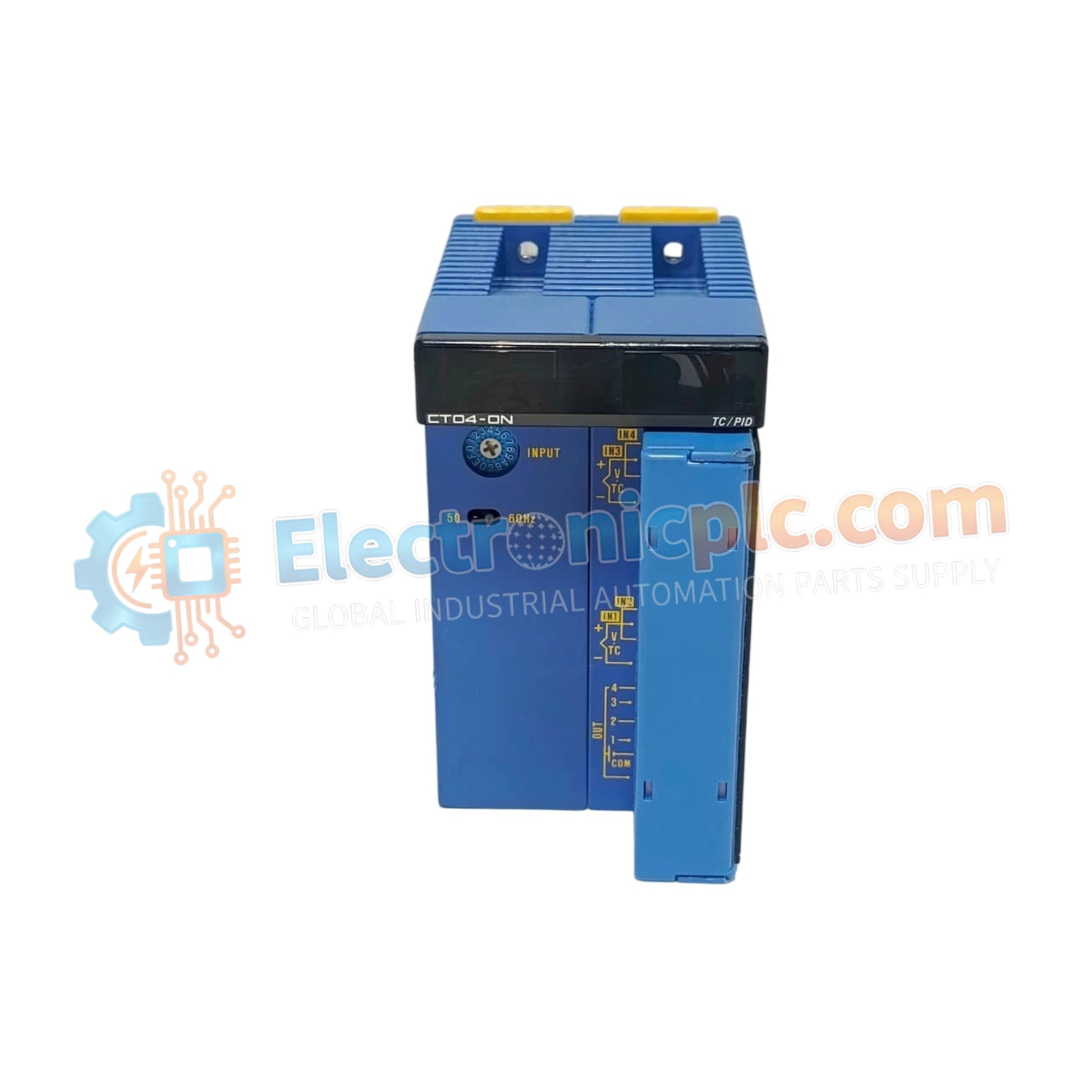

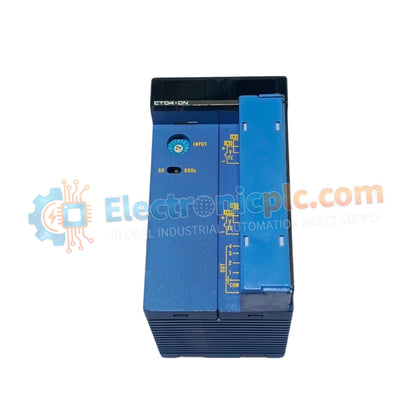

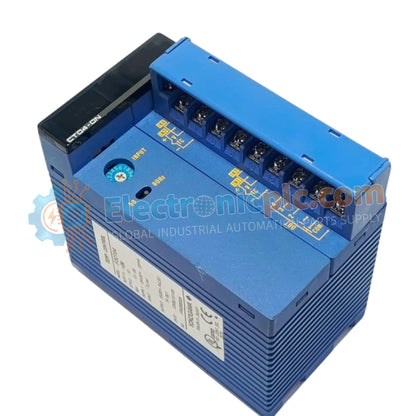

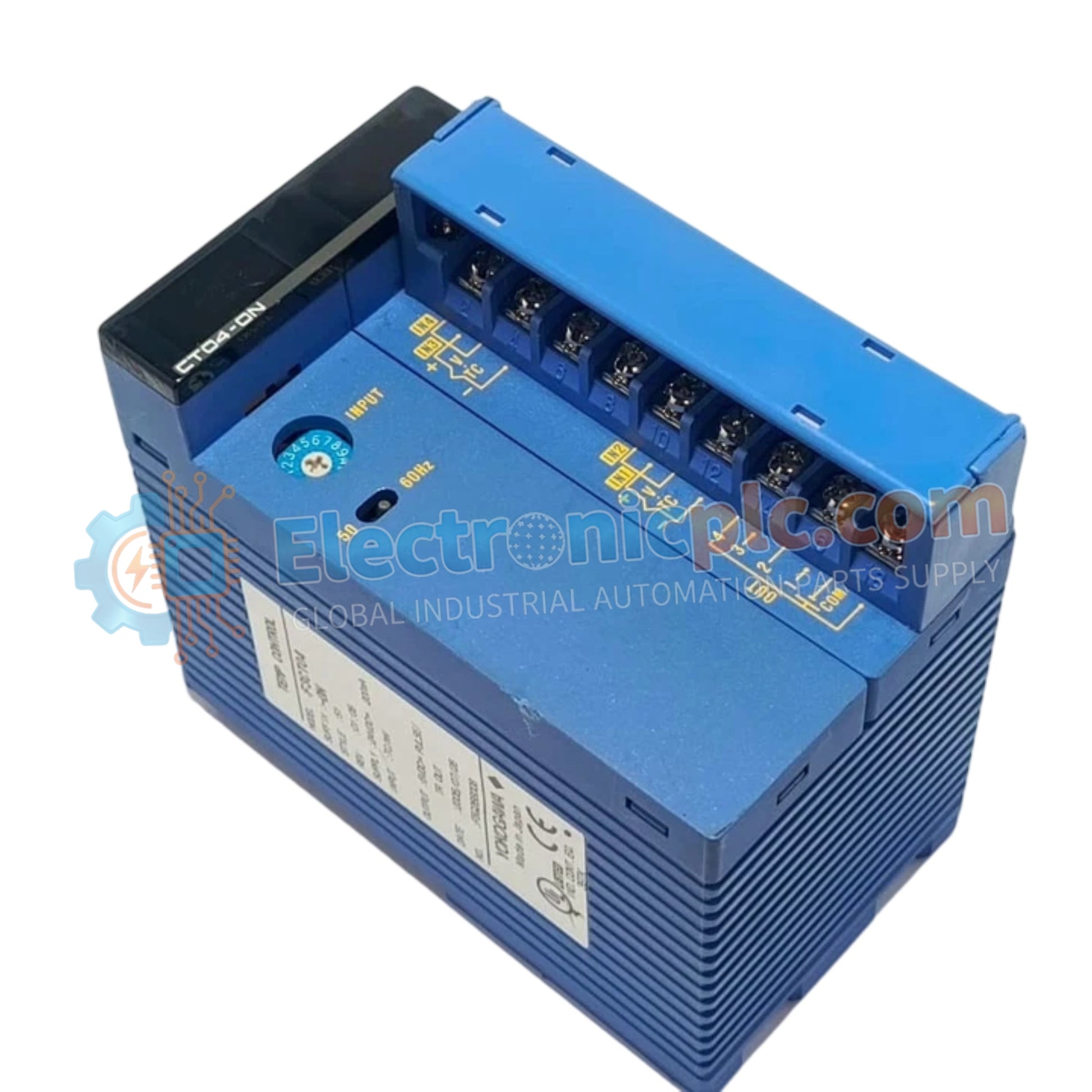

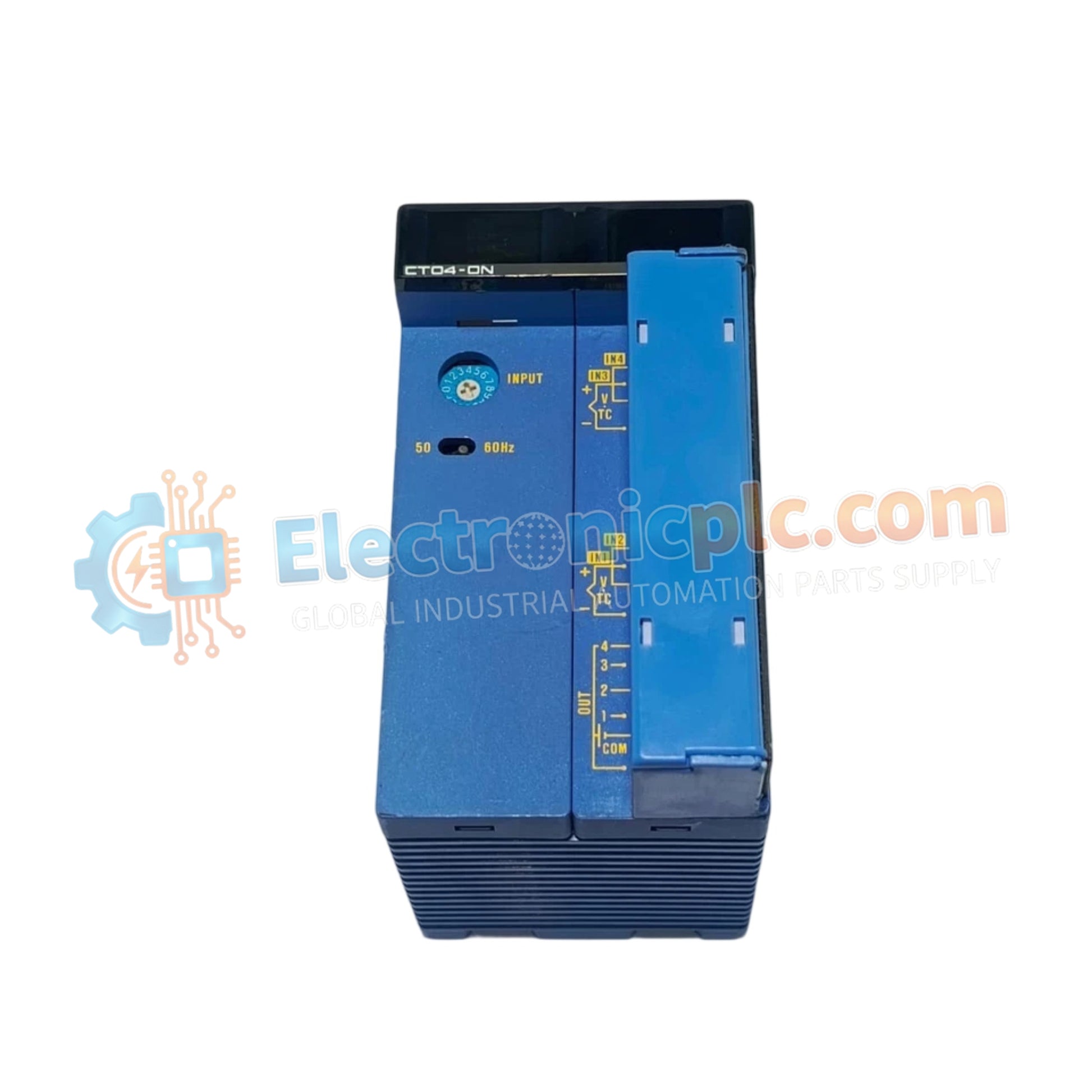

The YOKOGAWA F3CT04-ON (F3CT04-ON) is a high-density, 4-channel temperature control module engineered for the FA-M3 sequence CPU platform. It integrates sophisticated PID and fuzzy logic algorithms to maintain precise thermal regulation in industrial processes.

Hardware Specifications

Advanced Thermal Management

The F3CT04-ON utilizes advanced control algorithms to handle complex thermal dynamics such as overshoot and lag. By employing fuzzy logic in conjunction with standard PID control, the module can adapt to process non-linearities, ensuring stable setpoint tracking even in highly variable load environments. The module also features bumpless transfer between auto and manual modes, which is essential for protecting delicate heater elements during transition states or emergency manual overrides.

Frequently Asked Questions

Q: Can the sampling period be customized for different applications?

A: Yes, the sampling period is dependent on the number of active channels. For high-speed applications, reducing the number of active channels enables a faster sampling rate (down to 125 ms for 1 channel).

Q: Does the module support cold junction compensation (CJC)?

A: Yes, the F3CT04-ON features built-in high-precision CJC for all thermocouple inputs, ensuring accurate temperature readings regardless of ambient terminal block temperature.

Field Installation Guidelines

• Sensor Wiring: Use appropriate thermocouple extension wire of the same type as the sensor to maintain thermoelectric potential accuracy.
• Shielding: To mitigate electromagnetic interference (EMI), use shielded, twisted-pair cabling for all input signals and bond the shield to the cabinet ground at a single, dedicated grounding point.
• Channel Configuration: Ensure that the input type (e.g., K-type thermocouple vs. 1-5V DC) is correctly software-configured for each channel prior to connecting sensors to avoid input stage damage.
• Thermal Environment: Although the operating range extends to 55°C, mount the module in an area with adequate airflow to prevent internal overheating during sustained full-load operation.
• Calibration: Perform periodic checks against a calibrated reference source, especially in pharmaceutical or food-grade applications, to ensure the input accuracy remains within specifications.
