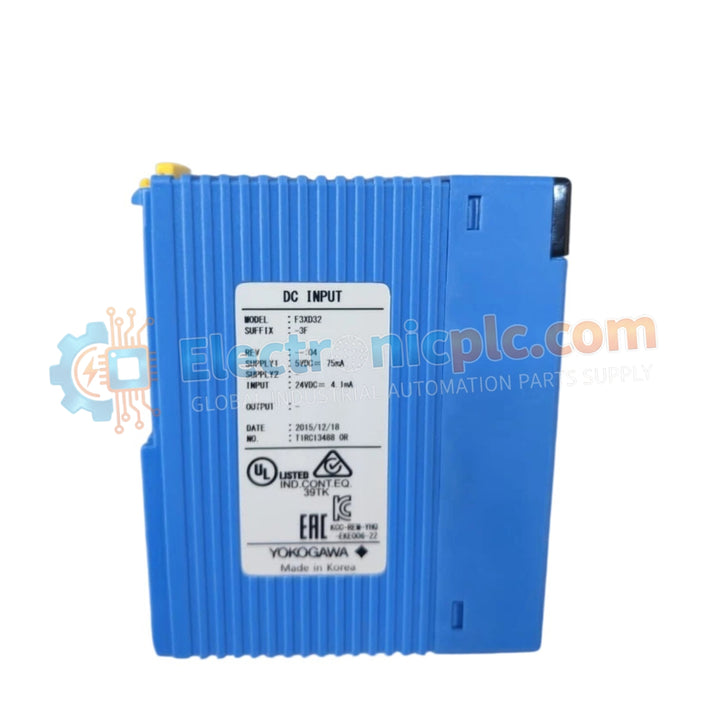

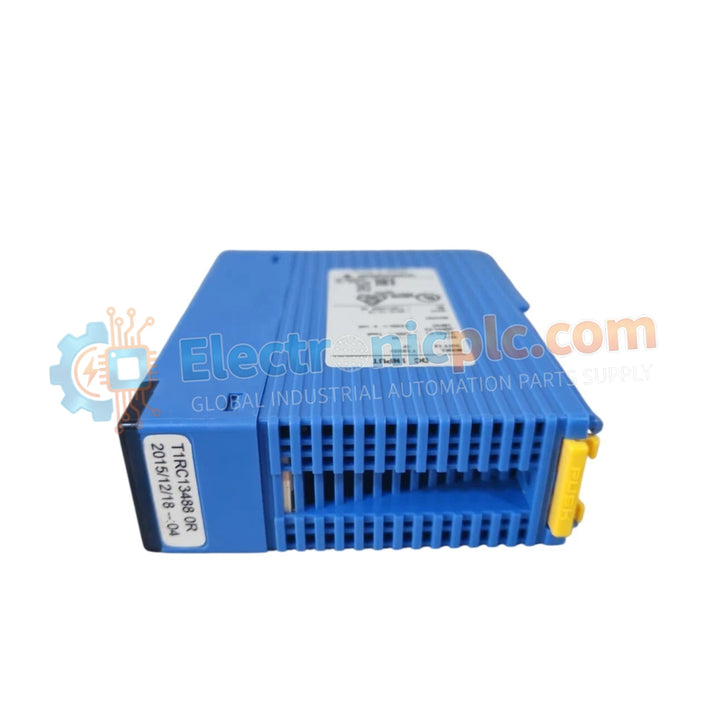

The Yokogawa F3XD32-3F, also cataloged as the F3XD32-3F DC Input Module, operates as a dedicated hardware component for high-density discrete signal acquisition within FA-M3 automation platforms.

Hardware Specifications

Yokogawa DCS and Process Control Connectivity

The F3XD32-3F architecture is engineered for deterministic data transfer across the FA-M3 backplane bus. The module facilitates I/O density scaling, allowing for multiple input banks to be synchronized within a single controller rack. By utilizing photocoupler-based isolation, the module ensures robust channel-to-channel protection against electrical transients originating from field-side sensors and switches. This isolation integrity is required for maintaining consistent scan rates during high-frequency logic execution, ensuring that the 120 V DC signal states are accurately mapped to the CPU control registers.

Frequently Asked Questions

Q: Does this module support both sink and source input wiring?

A: Yes. The F3XD32-3F is designed for versatility, supporting both sink and source input configurations to match the logic requirements of varied industrial field instrumentation.

Q: Are individual input points configurable for interrupts?

A: Yes. Interrupt 2 functionality can be specified for each of the 32 input points, allowing the module to trigger prioritized CPU tasks based on rapid transitions in field signal states.

Field Installation Guidelines

1. Verify that all power sources connected to the input terminals are isolated before beginning the installation process.

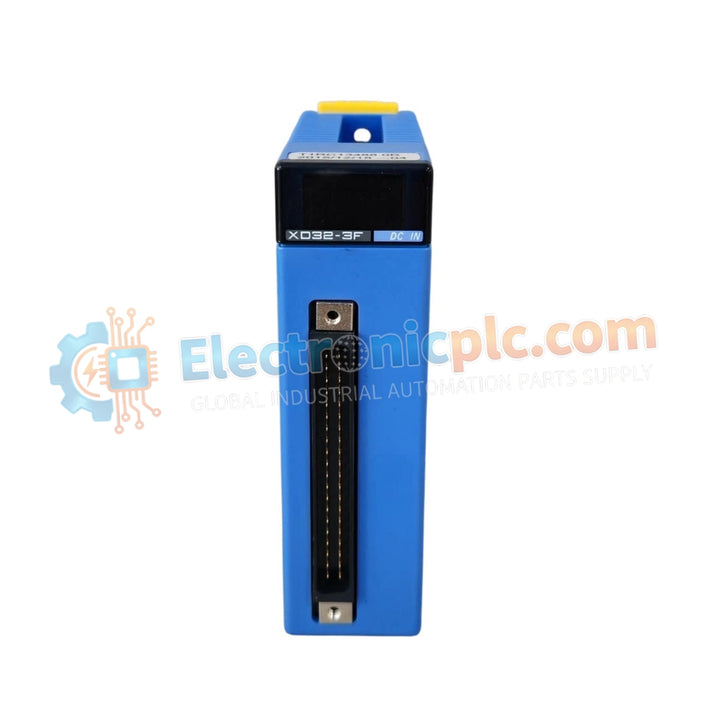

2. Align the 40-pin connector securely to the module front interface; ensure the latching mechanism is fully engaged to prevent accidental signal disconnection.
3. Observe the 8-point-per-common grouping logic strictly during wiring to prevent exceeding the current capacity of the internal module return paths.
4. When routing field signal wires, maintain a physical separation from high-power AC cabling to reduce electromagnetic interference.
5. Confirm that the input voltage levels align with the specified 120 V DC rating to ensure valid logic state detection and prevent damage to the input circuitry.
