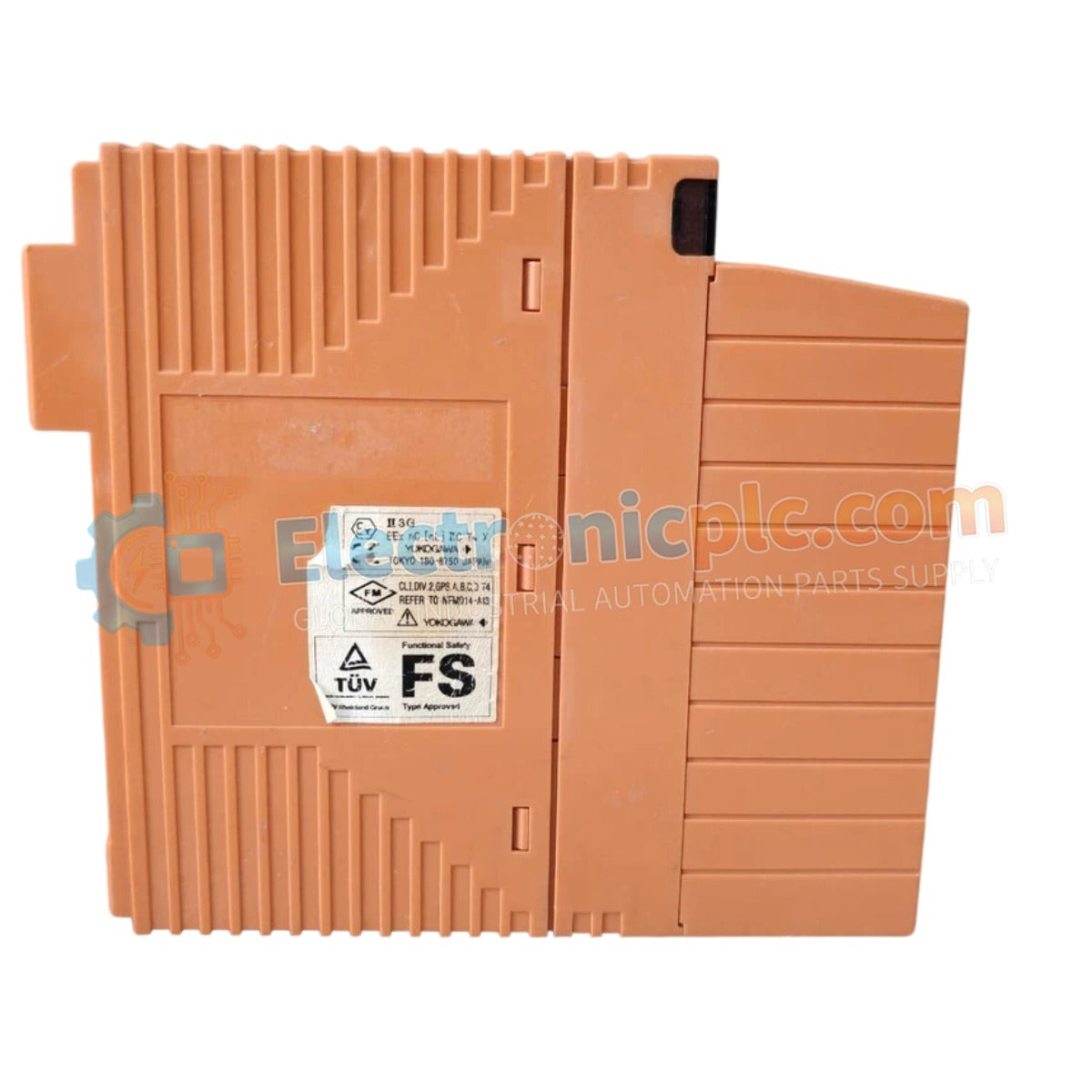

Configured for precision signal acquisition in ProSafe-RS safety instrumented systems, the Yokogawa SAI143-S03 S1 (SAI143-S03 S1 Analog Input Module) provides direct electrical execution of 16-channel analog signal conversion.

Hardware Specifications

Process Control and Signal Integrity

The SAI143-S03 S1 incorporates advanced channel-to-channel isolation to ensure that safety-critical loops remain decoupled from common-mode noise and ground potential differences. By maintaining high-precision monitoring through consistent 4-20 mA HART loop protocol compatibility, the module facilitates stable data throughput. Furthermore, the design implements cold junction compensation (CJC) logic support for thermal stability, ensuring the module adheres to strict accuracy requirements under varying industrial thermal drift conditions.

Frequently Asked Questions

Q: Is the input impedance dependent on the power state of the module?

A: Yes. When powered on, the input impedance is 250 Ohm; when powered off, the impedance increases to equal or greater than 500 kOhm to prevent signal loading on the loop.

Q: Does this module support hot-swapping during active system operation?

A: Yes, provided the system configuration allows for module replacement. However, ensure that the safety application logic is set to maintenance mode to prevent spurious trips during the extraction or insertion of the module.

Field Installation Guidelines

1. Mount the module in a designated ProSafe-RS I/O rack, ensuring that the backplane connector is fully seated to maintain reliable power and bus communication.
2. For field wiring, utilize shielded twisted-pair cables to connect transmitters to the pressure clamp terminals. Ensure the cable shield is grounded at a single point to prevent ground loops.
3. Verify that the transmitter loop voltage falls within the specified 16.15 V to 26.4 V range at the terminal to ensure adequate loop power.
4. Keep signal wiring physically separated from high-voltage AC cabling to prevent inductive coupling and interference with the analog signal resolution.
