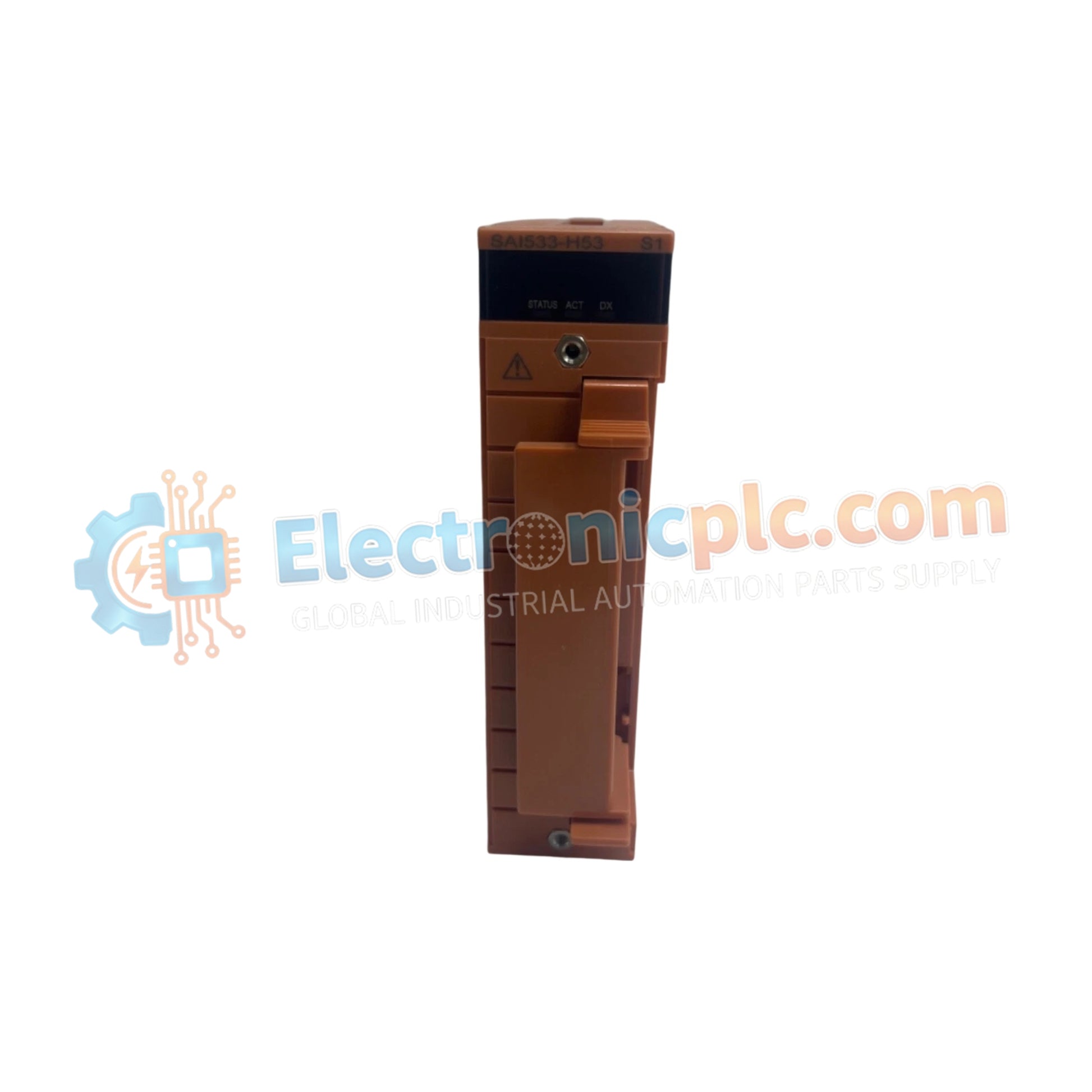

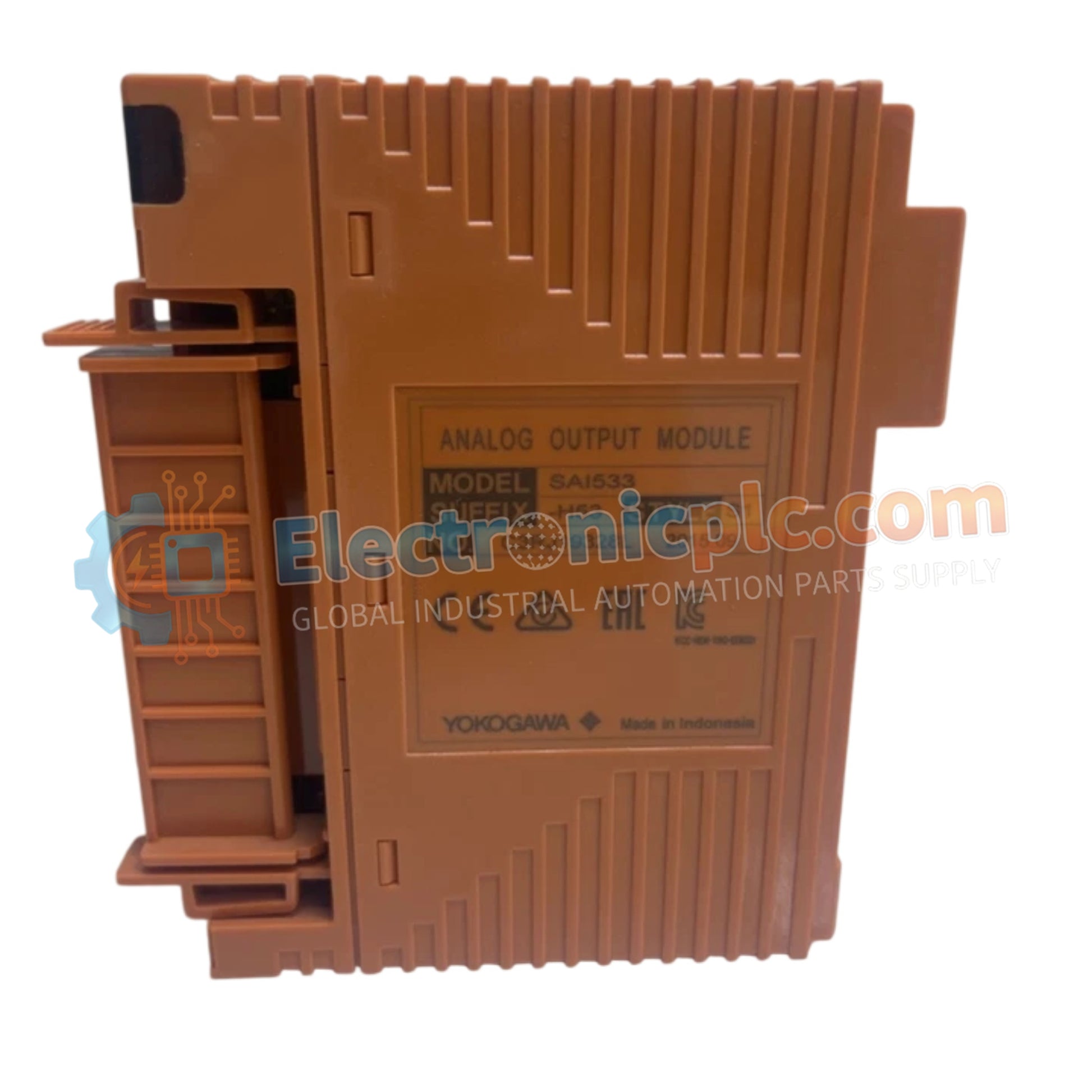

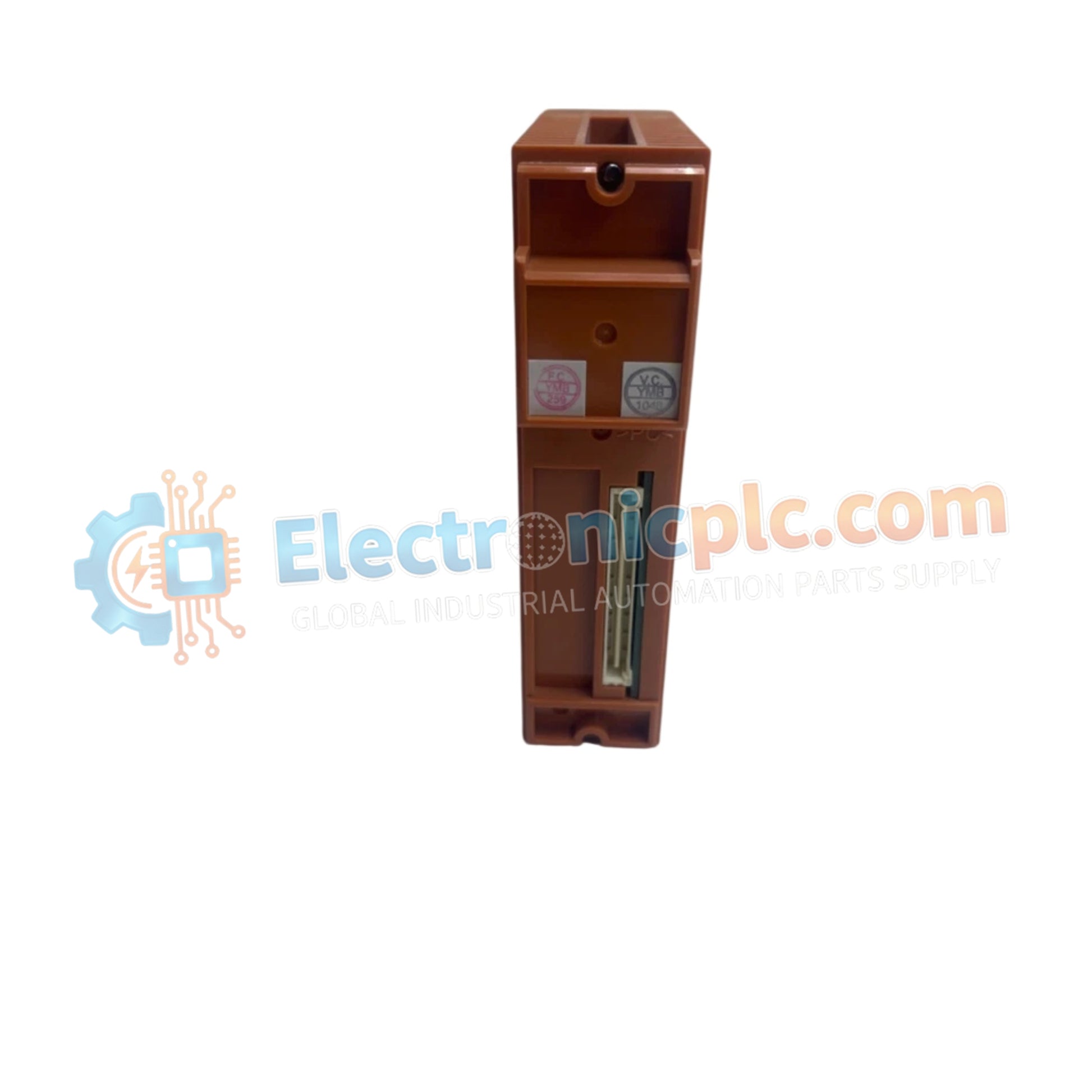

Configured for precision current signal execution in DCS platforms, the YOKOGAWA SAI533-H53 (SAI533-H53 Analog Output Module) provides direct electrical current command output with integrated HART communication capabilities.

Suffix Breakdown & Model Matrix

• SAI533: Base model for 8-channel analog current output.
• -H53: Hardware configuration designating HART communication support and terminal connection interface specifications.
• S1: Series identifier for Yokogawa S1 system compatibility.

Hardware Specifications

DCS Process Control Connectivity

The module utilizes 4-20 mA HART loop protocol integration to facilitate bidirectional communication with intelligent field actuators. Each of the 8 output channels maintains channel-to-channel isolation to prevent ground potential differences across the DCS control loop. The hardware architecture ensures galvanic separation with a withstand voltage of 1.5 kVAC between the output signal and the system bus, preserving data integrity in electrically noisy industrial environments.

Frequently Asked Questions

Q: Does this module support redundant operation configurations?

A: Yes, the SAI533-H53 supports dual-redundancy setups, allowing for seamless failover in critical process control applications when configured via the primary DCS controller.

Q: What is the maximum load resistance supported by this module?

A: The allowable load resistance is 230 to 600 Ohm when operating within the rated 4-20 mA output range. Exceeding this range may induce signal clipping or output voltage errors.

Field Installation Guidelines

• Verify backplane compatibility with the S1 series architecture prior to insertion to prevent bus communication faults.
• Ensure all field wiring utilizes shielded twisted-pair cables to maintain signal fidelity and comply with electromagnetic compatibility standards.
• For applications requiring pressure clamp terminals or MIL-cable interfaces, ensure the cable assembly is securely seated to maintain the specified weight distribution and mechanical stability.
• Ground the system bus correctly to ensure the 1.5 kVAC isolation barrier remains effective against surges and transients.
• Check that total loop impedance does not exceed the 600 Ohm threshold to maintain rated output accuracy.
