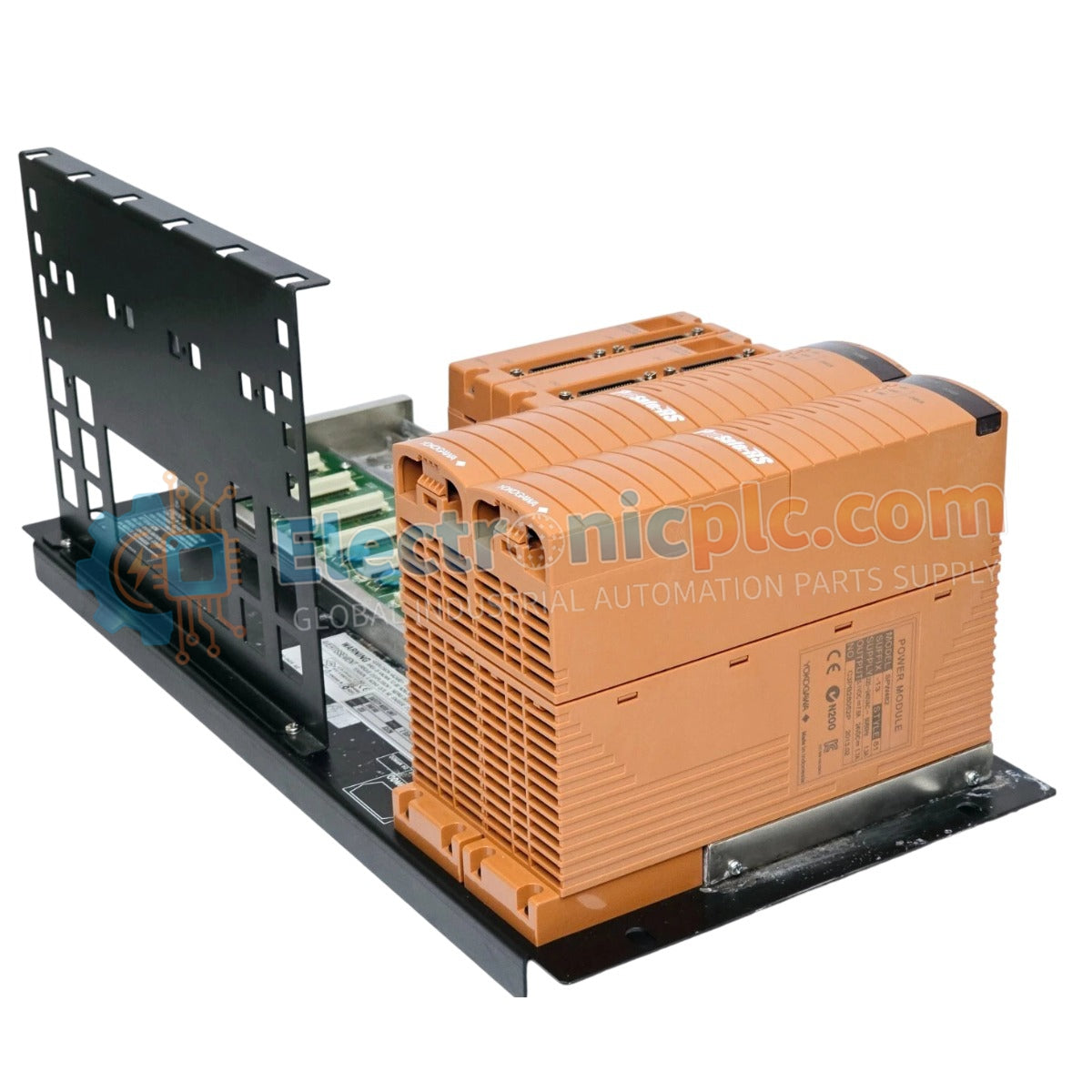

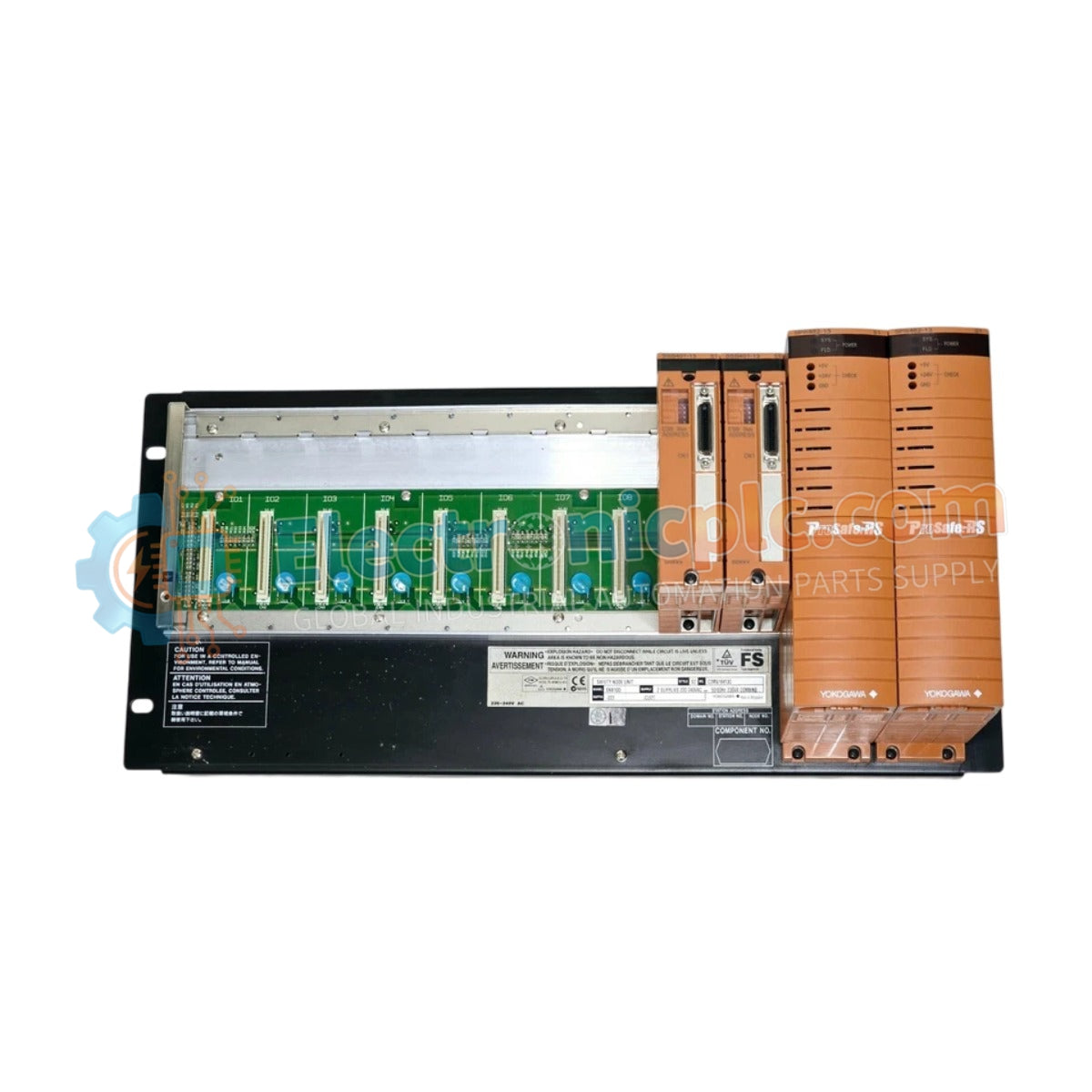

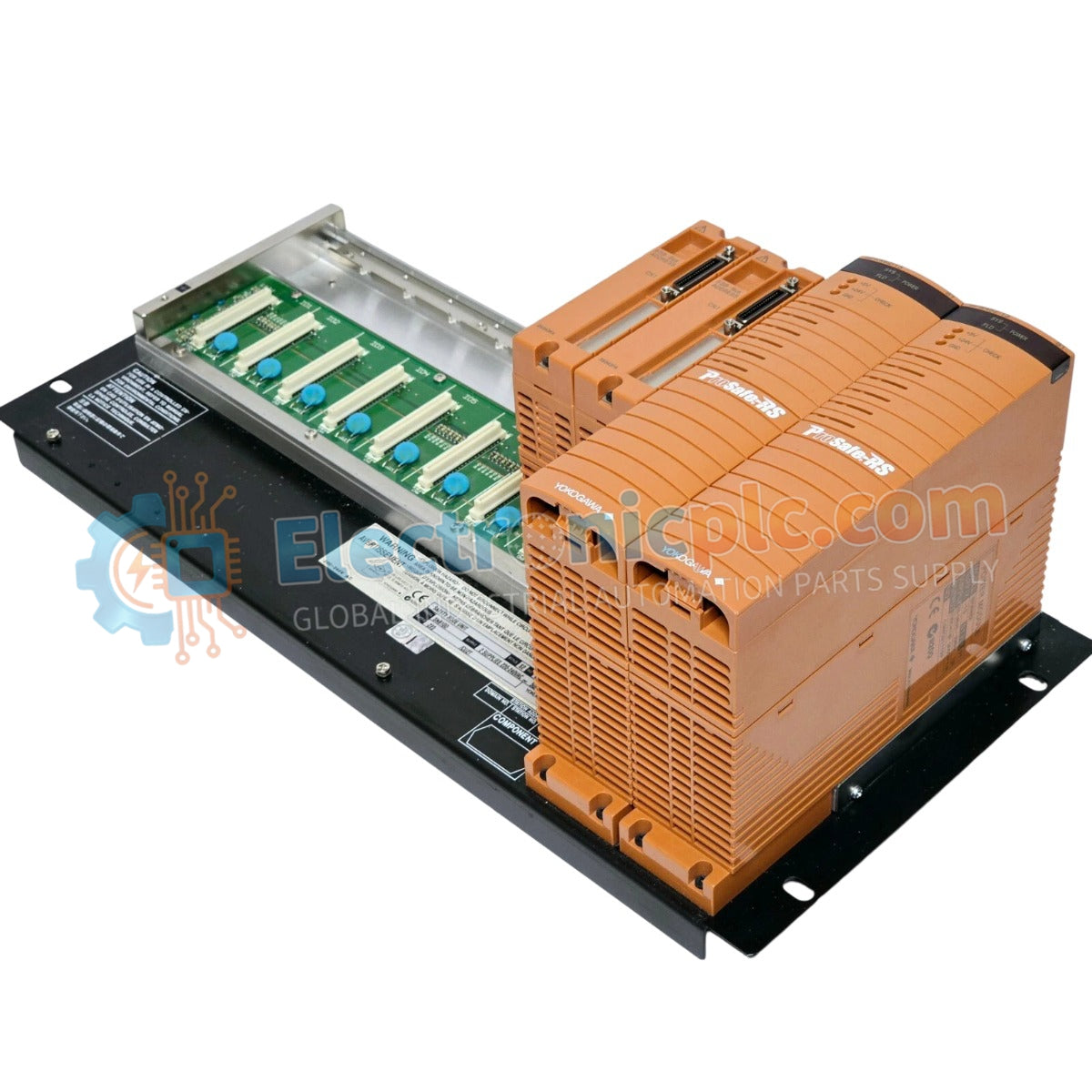

Configured for high-speed network integration in DCS architectures, the Yokogawa SNB10D-223 (SNB10D Node Interface Unit) provides direct physical/electrical execution of proprietary data exchange between control nodes.

Hardware Specifications

System Connectivity and Data Integrity

The SNB10D-223 serves as a dedicated hardware component for bridging process data within Yokogawa automation platforms. The unit supports bidirectional communication at speeds up to 1 Mbps, maintaining synchronization across distributed control nodes. To ensure signal integrity, the interface requires a stable 24 VDC (+/- 10%) input; deviations in supply voltage can introduce jitter in the proprietary communication packets, potentially leading to node timeouts or data synchronization errors. Users should ensure the backplane connection is secure, as the 7 kg weight of the unit requires proper mechanical support to prevent stress on the interface pins.

Frequently Asked Questions

Q: Can the SNB10D-223 be powered by a non-regulated DC supply?

A: No. The internal electronics are sensitive to voltage ripples. Use a regulated 24 VDC power supply that adheres strictly to the specified tolerance to prevent instability in the high-speed data transmission circuitry.

Q: Is the communication protocol accessible for third-party diagnostics?

A: The protocol is proprietary to Yokogawa. Diagnostics should be performed exclusively using the vendor-supplied engineering workstation software or approved field communication checkers to ensure protocol compatibility.

Field Installation Guidelines

1. Ensure the unit is installed in a vertical orientation to facilitate proper convective cooling within the enclosure.
2. Confirm that the mounting bracket supports the 7 kg weight to avoid mechanical deformation of the backplane interface.
3. Keep the unit clear of high-frequency interference sources to prevent corruption of the 1 Mbps data stream.
4. Verify the power supply polarity before connection; reverse polarity protection is provided, but power-up delays may occur.
5. Inspect the enclosure humidity levels (20% to 85% RH) to avoid internal condensation, which can lead to localized short-circuits on the logic boards.
