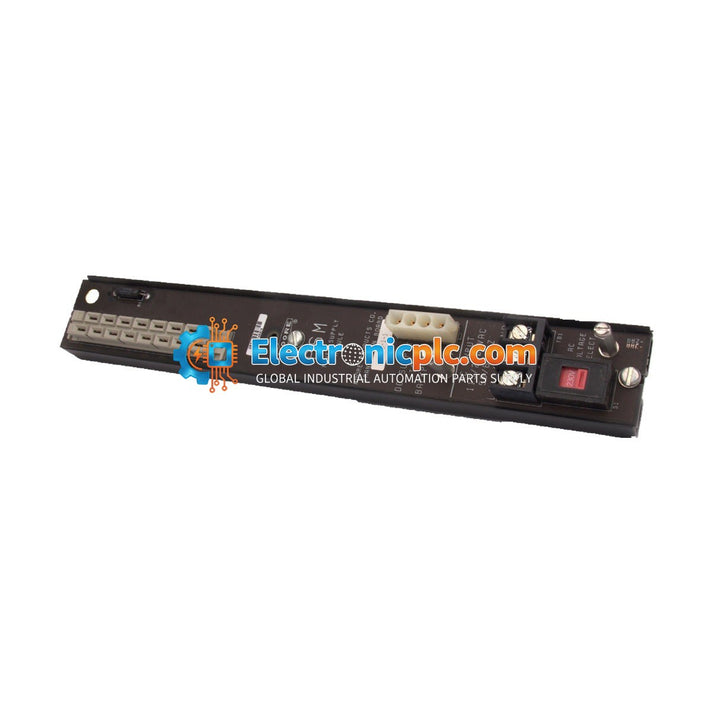

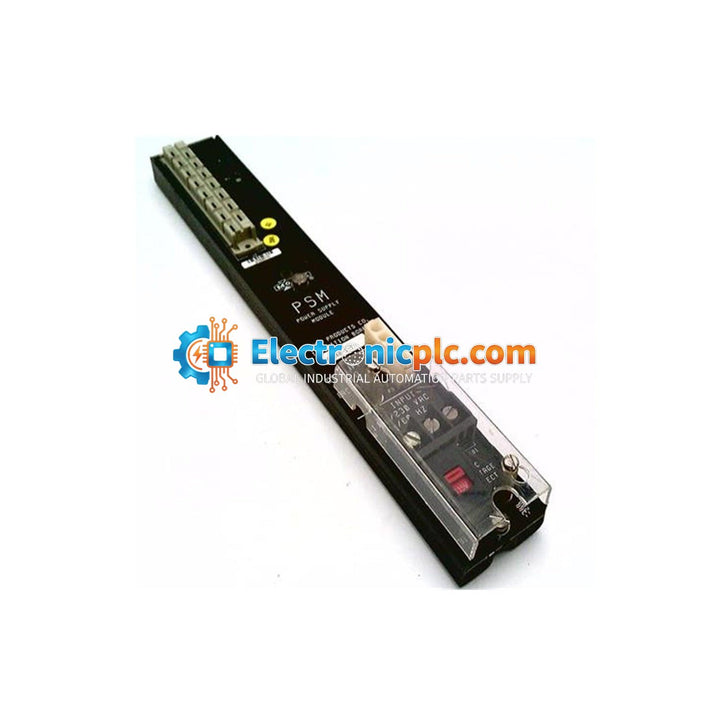

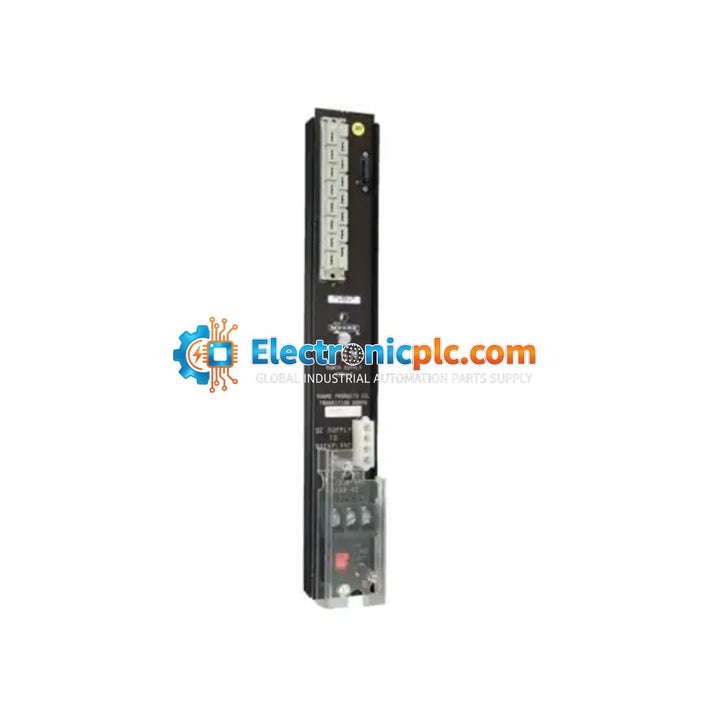

Siemens 16168-1-1 Moore APACS PSM Transmission Board

Siemens 16168-1-1 Moore APACS PSM Transmission Board

Description

The 16168-1-1 (1616811) is a specialized Power Supply Module (PSM) Transmission Board designed for the Moore APACS (Advanced Process Automation Control System) ecosystem, currently supported by Siemens. This board acts...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 16168-1-1
Proveedora: Siemens
tipo: DCS Power Supply Component
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The 16168-1-1 (1616811) is a specialized Power Supply Module (PSM) Transmission Board designed for the Moore APACS (Advanced Process Automation Control System) ecosystem, currently supported by Siemens. This board acts as a critical interface for power signal distribution between the PSM and the backplane of the DCS rack. It ensures reliable voltage delivery to controller modules and supports the redundant power configurations essential for high-availability industrial processes, including oil refineries, power generation, and chemical processing.

Features

  • Facilitates stable power distribution and signal transmission within APACS+ control racks.
  • Supports redundant power supply configurations for seamless failover.
  • High-density PCB layout designed for industrial current load requirements.
  • Industrial-grade connectors minimize contact resistance and thermal buildup.
  • Enables real-time monitoring of power supply module health via diagnostic signal pathways.

Applications

This transmission board is primarily used in legacy DCS maintenance and system migration projects. It is essential for maintaining the integrity of power distribution in APACS and APACS+ control racks, preventing logic failures and system crashes caused by voltage instability in critical control environments.

Technical Specifications

Model 16168-1-1
Brand Siemens / Moore APACS
Module Type PSM Transmission Board
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 percent to 95 percent non-condensing
System Compatibility APACS / APACS+ DCS Racks

Installation Guidelines

  • Ensure the system power is completely disconnected before attempting to install or remove the transmission board.
  • Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
  • Inspect connectors for debris or oxidation before seating the board to ensure low-resistance contact.
  • Verify secure mounting within the rack chassis to prevent vibration-induced signal intermittent faults.
  • Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified 0 to 60 deg C range.

FAQ

What is the primary function of the 16168-1-1 board?

The 16168-1-1 acts as a transmission bridge between the Power Supply Module and the DCS rack backplane, ensuring stable power delivery and enabling diagnostic monitoring of the power supply health.

Is this board compatible with all APACS systems?

This board is designed for the Moore APACS and APACS+ DCS rack configurations. Please verify your specific rack chassis model to ensure compatibility before installation.

How should I maintain this board in an operational cabinet?

Regular maintenance should include inspecting the electrical contacts for signs of thermal stress or corrosion and ensuring that all mounting hardware is tight to maintain proper electrical grounding and signal integrity.
