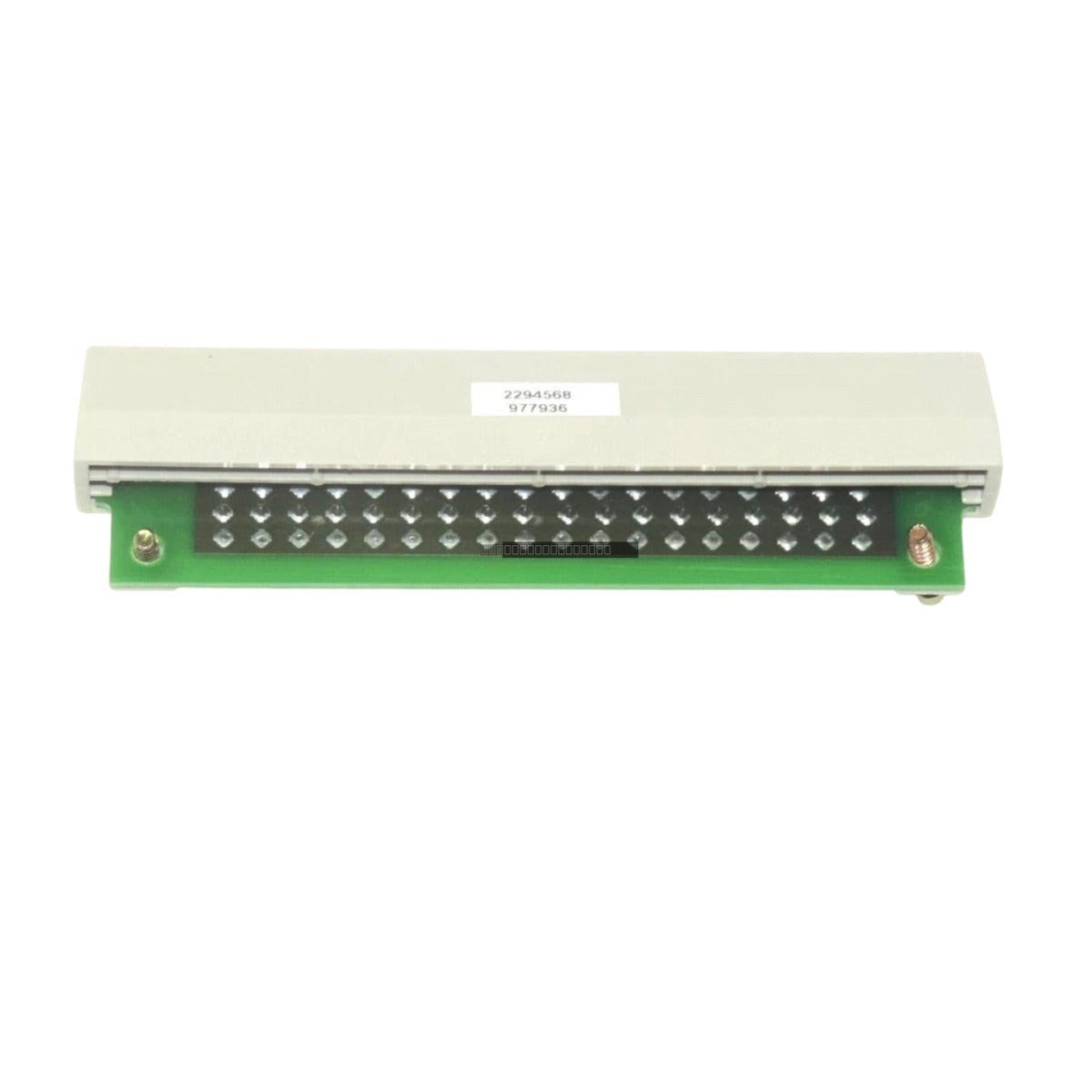

Schneider 170XTS00501 Modicon Momentum Bus Bar

Schneider 170XTS00501 Modicon Momentum Bus Bar

Description

The 170XTS00501 is a specialized bus bar component designed for the Schneider Modicon Momentum automation platform. This hardware accessory provides a reliable electrical distribution and signal bridging interface for backplane...

24 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 170XTS00501
Proveedora: Schneider
tipo: Bus Bar
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The 170XTS00501 is a specialized bus bar component designed for the Schneider Modicon Momentum automation platform. This hardware accessory provides a reliable electrical distribution and signal bridging interface for backplane configurations, ensuring stable connectivity between I/O modules. It is engineered to maintain low contact resistance and prevent signal degradation, which is vital for high-availability industrial control systems.

Features

  • Designed for seamless integration with Modicon Momentum I/O bases.
  • Features a dual-row terminal layout for efficient wiring in compact control cabinets.
  • Utilizes high-pressure screw-type terminals to resist vibration-induced loosening.
  • Rigid construction facilitates rapid maintenance and field wire replacement.
  • Supports stable power and communication signal cascading across the backplane.

Applications

This bus bar is commonly utilized in various industrial automation sectors, including:

  • Water and wastewater treatment facilities.
  • Automated packaging and material handling lines.
  • Distributed power monitoring and management systems.
  • General-purpose industrial process control infrastructures.

Technical Specifications

Model 170XTS00501
Brand Schneider Electric
Product Line Modicon Momentum
Component Type Bus Bar
Interface 2-row screw terminal
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the system power is completely disconnected before attempting to install or remove the bus bar.
  • Verify that the I/O base is properly seated before securing the bus bar connections.
  • Ensure all screw terminals are tightened to the appropriate torque to maintain a secure electrical connection.
  • Maintain a clean, dry environment within the control cabinet to prevent oxidation of the terminal contacts.
  • Route field wiring away from high-EMI sources to maintain signal integrity.
  • Handle with care to avoid damage to the insulation or contact pins during assembly.

FAQ

What is the primary function of the 170XTS00501?

The 170XTS00501 acts as a bus bar for the Modicon Momentum system, enabling electrical distribution and signal bridging between I/O modules on the backplane.

Is this component compatible with all Modicon Momentum bases?

This model is specifically designed for the Modicon Momentum platform. Please verify your specific I/O base part number to ensure mechanical and electrical compatibility.

What type of wiring does this bus bar support?

The unit features a 2-row screw-type terminal interface, which is designed to accommodate standard industrial field wiring.
