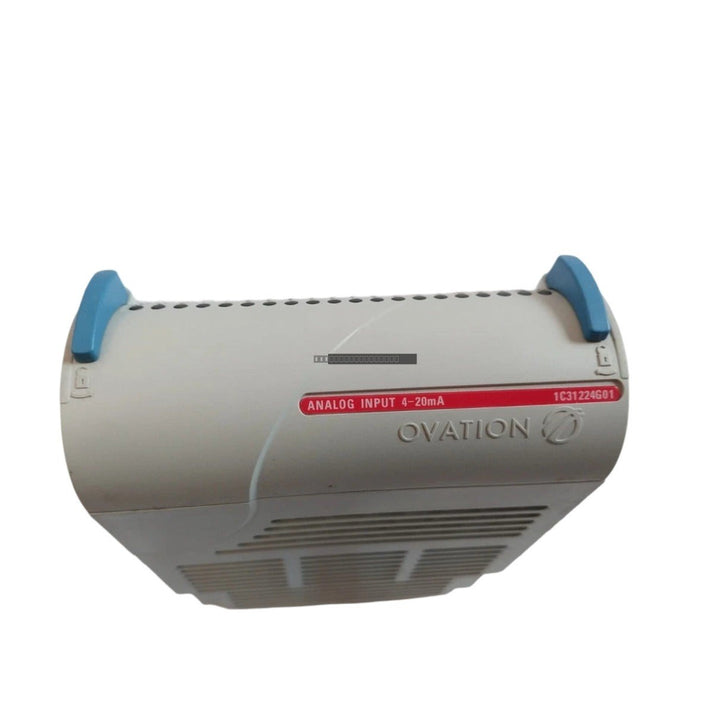

The Emerson 1C31224G01 is an 8-channel analog input module designed for the Ovation distributed control system (DCS). This module is engineered to process 4-20 mA current loop signals, providing high-resolution data acquisition for industrial monitoring and control applications.

Features

• 8-channel analog input capacity for high-density signal monitoring.
• Supports standard 4-20 mA industrial current loop inputs.
• 14-bit resolution for precise signal conversion and data accuracy.
• Designed specifically for integration within the Ovation control platform architecture.

Applications

This analog input module is typically deployed in power generation and heavy industrial process control environments. It is used to interface field instrumentation—such as pressure, flow, and level transmitters—with the Ovation controller to facilitate real-time data acquisition and loop monitoring.

Technical Specifications

Installation Guidelines

• Ensure the Ovation controller rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify that all field wiring is properly shielded and grounded to minimize electromagnetic interference (EMI) in the analog signal path.
• Ensure the module is fully seated in the designated backplane slot and secured using the integrated locking mechanisms.
• Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range.
• Handle with standard ESD precautions to protect sensitive internal circuitry.

FAQ

What is the primary function of the 1C31224G01?
This module acts as an interface between field-mounted 4-20 mA instrumentation and the Ovation DCS, converting analog current signals into digital values for system processing.

Is this module compatible with other DCS platforms?
No, the 1C31224G01 is specifically designed for use with the Emerson Ovation system architecture.
