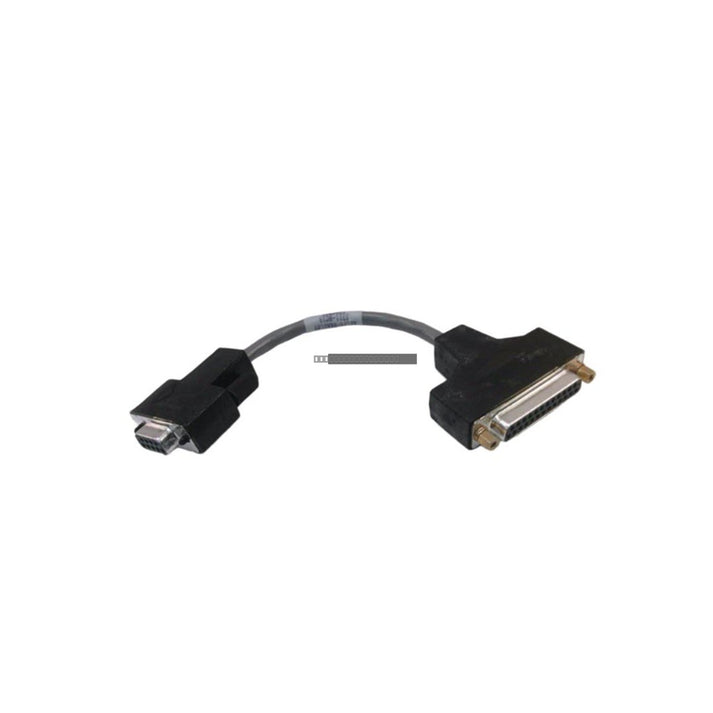

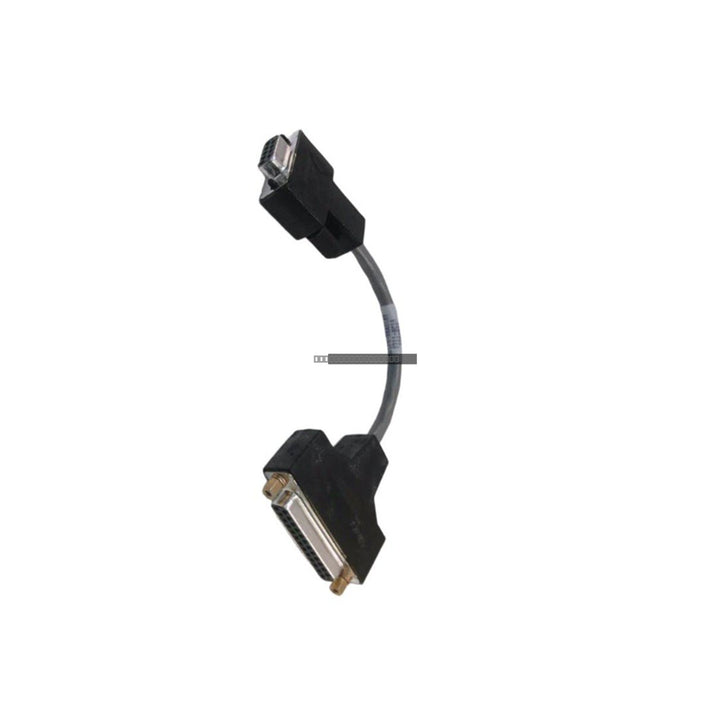

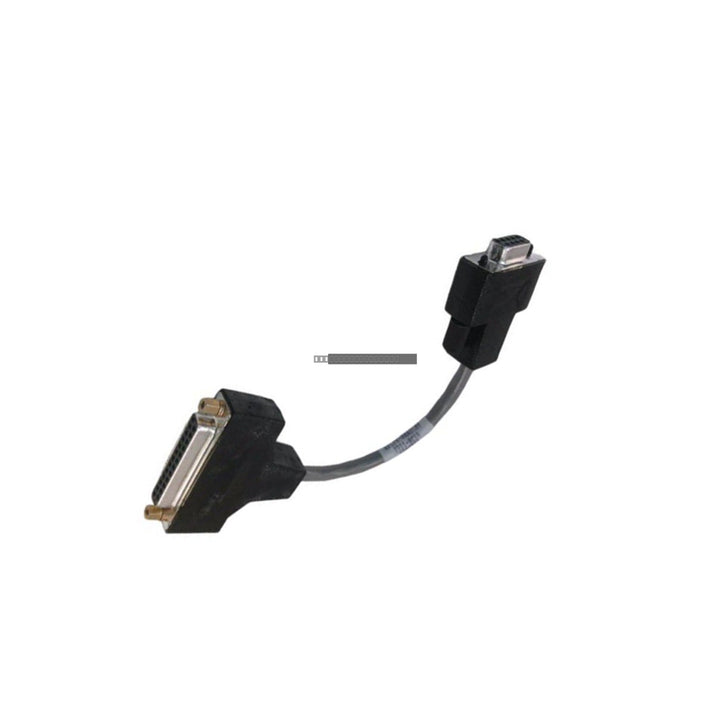

Allen-Bradley 2711-NC18 RS-232 Download Cable Adapter

Allen-Bradley 2711-NC18 RS-232 Download Cable Adapter

The 2711-NC18 is a specialized RS-232 communication adapter manufactured by Allen-Bradley, designed specifically for use with PanelView operator terminals. This adapter serves as a critical interface component for maintenance and...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 2711-NC18
Proveedora: Allen-Bradley
tipo: Communication Adapter
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The 2711-NC18 is a specialized RS-232 communication adapter manufactured by Allen-Bradley, designed specifically for use with PanelView operator terminals. This adapter serves as a critical interface component for maintenance and programming tasks, ensuring reliable connectivity between programming hardware and industrial HMI units.

Features

  • Facilitates secure RS-232 serial communication for firmware updates and program downloads.
  • Engineered for compatibility with legacy PanelView 1000e and 1400e terminals (Series F or later).
  • Robust physical design featuring a 25-pin D-shell female connector and a 9-pin D-shell female connector.
  • Passive adapter architecture requiring no external power supply.
  • Ensures correct pinout translation to prevent data transmission errors during configuration.

Applications

This adapter is primarily utilized in industrial automation environments for the configuration and maintenance of Allen-Bradley PanelView HMI systems. It is essential for field engineers performing routine firmware upgrades, application transfers, or system diagnostics on legacy PanelView hardware.

Technical Specifications

Model 2711-NC18
Brand Allen-Bradley
Communication Protocol RS-232
Connector A 25-pin DB Female
Connector B 9-pin DB Female
Operating Temperature 0 to 55 degC
Device Type Passive Interface Adapter

Installation Guidelines

  • Ensure the PanelView terminal and the programming device are powered down before connecting or disconnecting the cable adapter.
  • Verify that the serial port settings on the host computer match the requirements of the PanelView terminal.
  • Route communication cables away from high-voltage power lines or high-EMI sources to prevent signal interference.
  • Inspect connectors for bent pins or debris before insertion to ensure a secure, low-resistance connection.
  • Use only in environments within the specified operating temperature range to maintain signal integrity.

FAQ

Is the 2711-NC18 an active or passive device?
The 2711-NC18 is a passive adapter component; it does not require external power and functions solely as a physical pinout translator for RS-232 signals.

Which terminals are compatible with this adapter?
This adapter is specifically designed for use with PanelView 1000e and 1400e operator terminals, specifically Series F or later.
