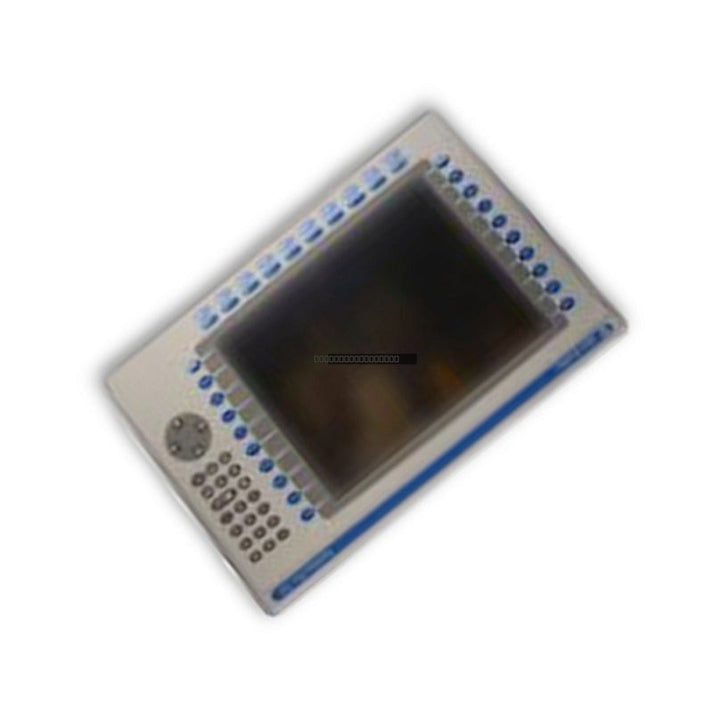

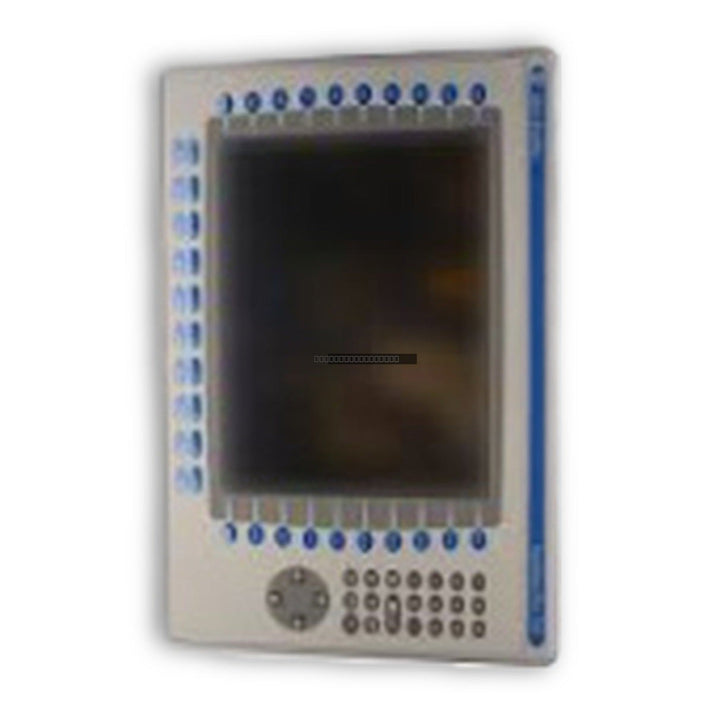

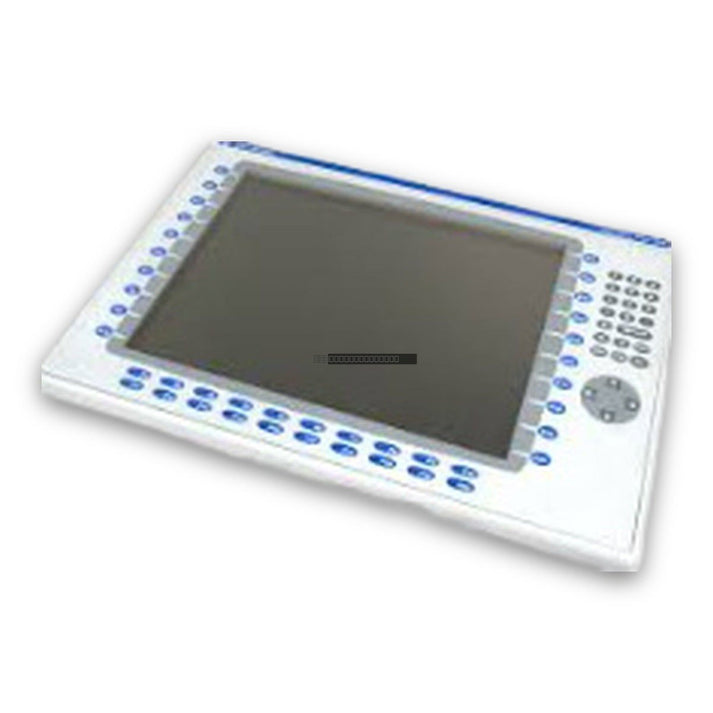

Allen-Bradley 2711P-K10C6D6 PanelView Plus 1000 HMI Terminal

Allen-Bradley 2711P-K10C6D6 PanelView Plus 1000 HMI Terminal

The Allen-Bradley 2711P-K10C6D6 is a high-performance PanelView Plus 1000 operator terminal engineered for reliable human-machine interface (HMI) control in demanding industrial sectors such as power generation, mining, and petrochemical processing....

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 2711P-K10C6D6
Proveedora: Allen-Bradley
tipo: HMI Operator Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 2711P-K10C6D6 is a high-performance PanelView Plus 1000 operator terminal engineered for reliable human-machine interface (HMI) control in demanding industrial sectors such as power generation, mining, and petrochemical processing. This unit features a 10.4-inch color display and a dedicated keypad input interface, allowing operators to interact directly with controller data and monitor real-time process variables efficiently.

Features

  • 10.4-inch color display for clear visualization of process data and diagnostic information.
  • Dedicated keypad interface for robust input control in industrial environments.
  • Integrated support for legacy DH+ and DH-485 communication protocols.
  • 128 MB of internal memory for runtime operations, alarm logging, and screen development.
  • PC memory card slot for efficient firmware updates and data management.
  • Field-replaceable backlight (2711P-RL10C) to extend operational lifespan.

Applications

This HMI terminal is designed for integration into legacy Allen-Bradley control architectures. It is suitable for applications requiring point-to-point or multi-node networking, providing immediate diagnostic feedback and reliable input handling to reduce system downtime in critical automation environments.

Technical Specifications

Brand Allen-Bradley
Model 2711P-K10C6D6
Product Line PanelView Plus 1000
Display Size 10.4 in.
Input Type Keypad
Power Input 18-32 VDC
Memory 128 MB
Communication DH+, DH-485
Operating Temperature 0-55 degC
Status Discontinued / Obsolete

Installation Guidelines

  • Ensure the unit is mounted in a panel cutout that allows for adequate ventilation and access to the rear communication ports.
  • Verify that the power supply is within the 18-32 VDC range and properly fused before connection.
  • Use shielded cables (e.g., 1770-CD or 1761-CBL-ASO3) for DH+ and DH-485 communication to minimize EMI interference.
  • Power down the system before inserting or removing memory cards or performing maintenance on the backlight assembly.
  • Maintain proper grounding practices to protect the terminal from electrical surges and noise.

FAQ

Is the backlight on this unit replaceable?

Yes, the 2711P-K10C6D6 utilizes a field-replaceable backlight, part number 2711P-RL10C, which supports maintenance across various hardware revisions.

What communication protocols does this HMI support?

This model is specifically designed for legacy network support, featuring integrated DH+ and DH-485 communication ports for direct controller connectivity.

Is this unit still in production?

No, the 2711P-K10C6D6 is classified as a discontinued or obsolete product by the manufacturer. We provide these units as reliable replacements for existing legacy systems.
