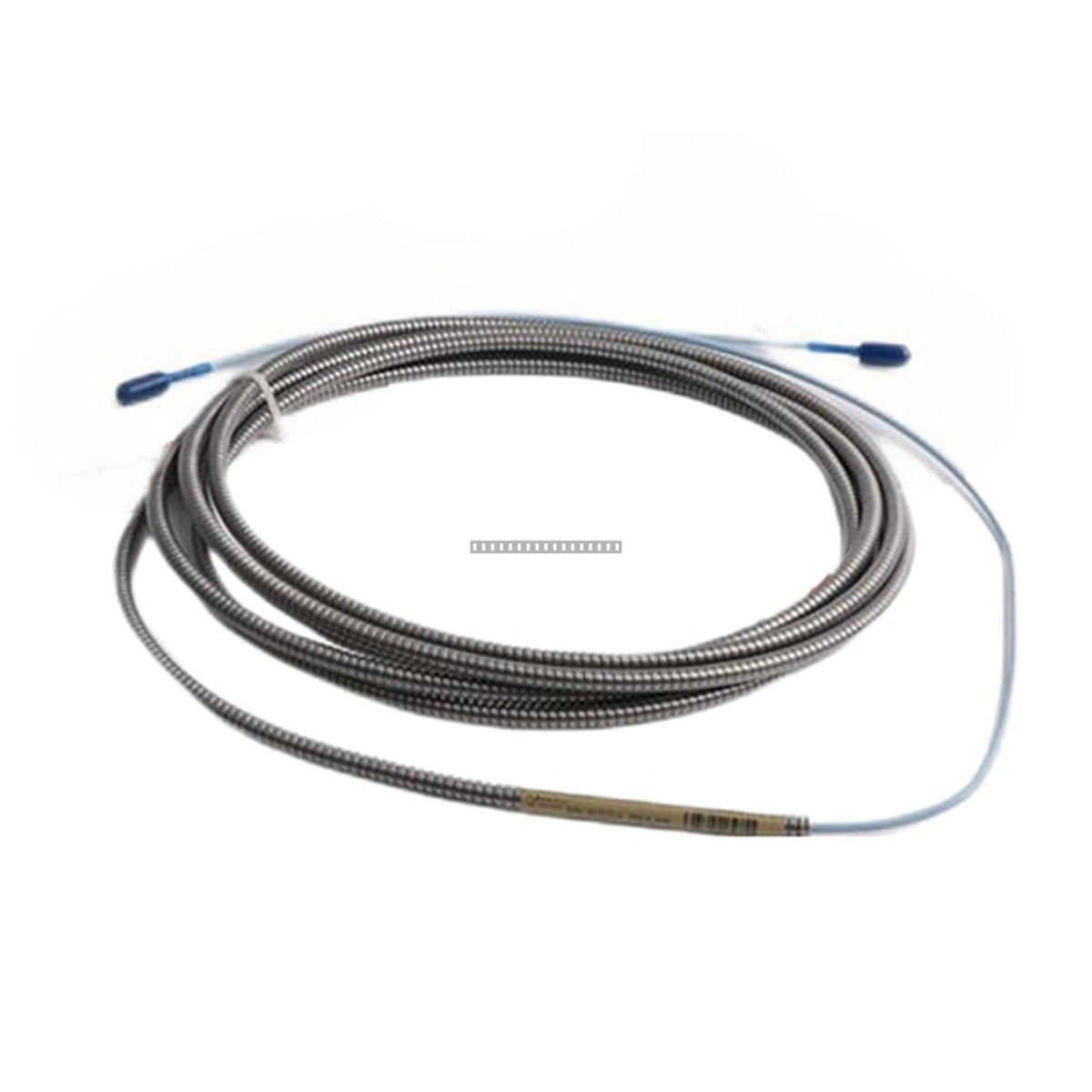

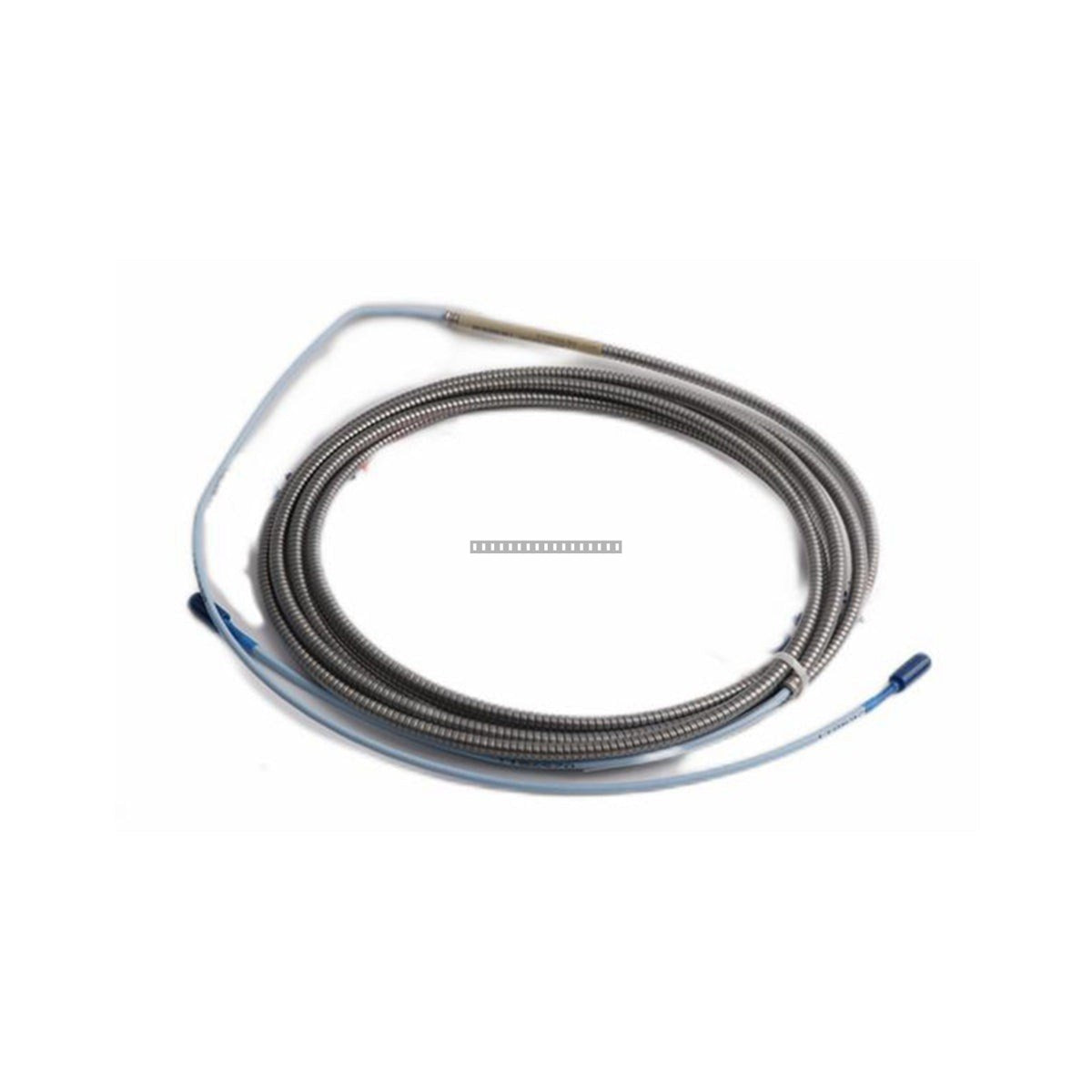

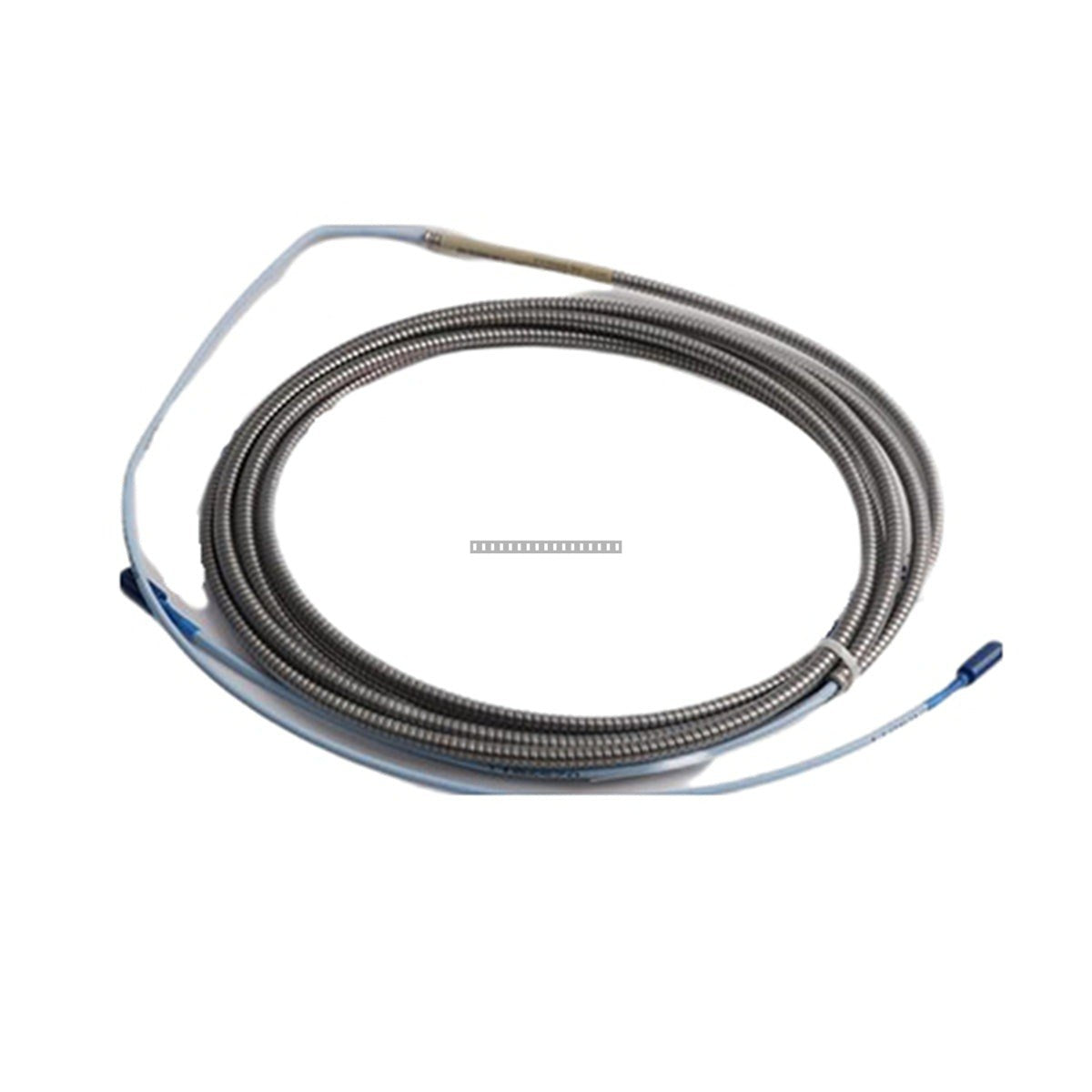

The Bently Nevada 330130-045-00-00 is a 3300 XL standard extension cable designed for use with Bently Nevada proximity transducer systems. This extension cable provides a reliable connection between the proximity probe and the proximitor sensor, ensuring accurate signal transmission for vibration and position monitoring applications.

Features

• Designed for 3300 XL Proximity Transducer Systems
• Cable length of 4.5 meters (14.8 feet)
• Standard cable configuration for industrial environments
• High-quality shielding to minimize electromagnetic interference
• Robust connector design for secure, vibration-resistant mating

Applications

• Turbomachinery vibration monitoring
• Shaft position and displacement measurement
• Industrial rotating equipment protection systems

Technical Specifications

Installation Guidelines

• Ensure the cable is routed away from high-voltage power lines and sources of significant electromagnetic interference (EMI) to maintain signal integrity.
• Use appropriate cable ties or conduits to secure the cable, ensuring that the minimum bend radius is maintained to prevent damage to the internal conductors.
• Inspect connectors for debris or moisture before mating; ensure the connection is fully seated and tightened to the specified torque if applicable.
• Verify that the total system length (probe cable + extension cable) matches the calibration requirements of the proximitor sensor.
• Handle with care to avoid kinking or crushing the cable jacket, which can affect the impedance and overall system performance.

FAQ

What is the total length of this extension cable?

This specific model, 330130-045-00-00, has a length of 4.5 meters (14.8 feet).

Is this cable compatible with all Bently Nevada systems?

This cable is specifically designed for the 3300 XL series. Please verify your system documentation to ensure compatibility with your specific probe and proximitor sensor models.
