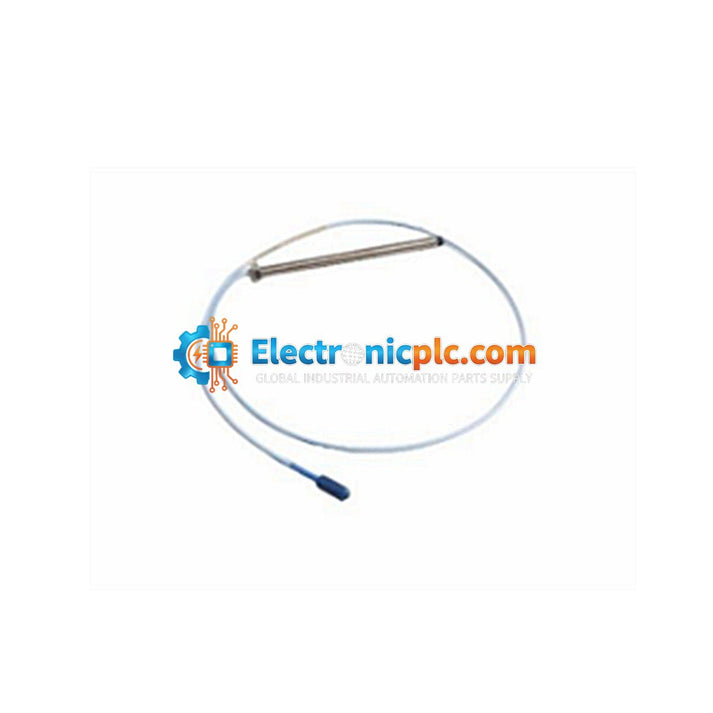

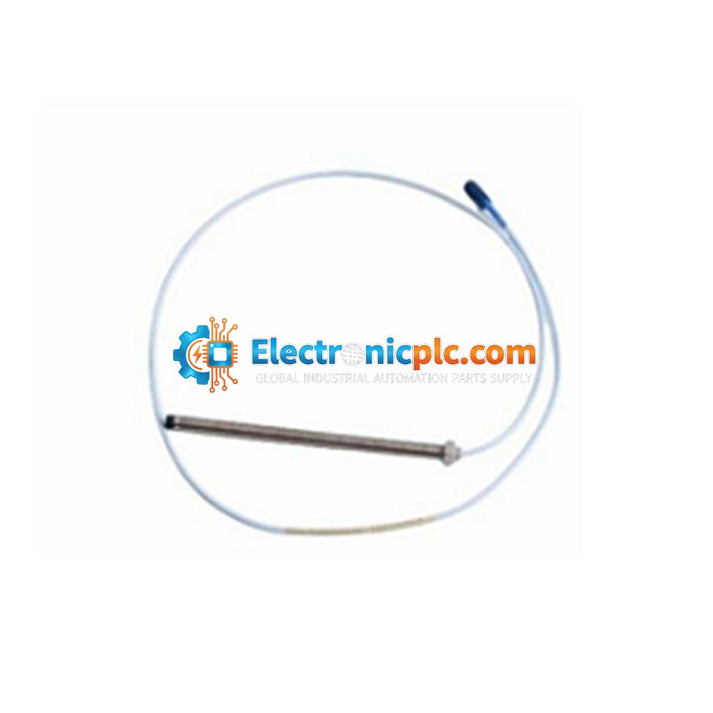

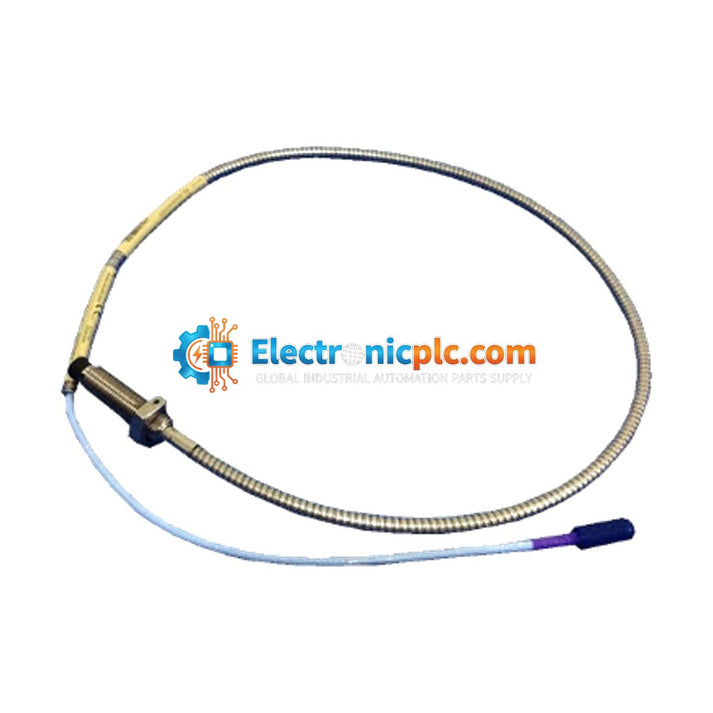

Bently Nevada 330703-000-060-10-02-00 3300 XL 11 mm Proximity Probe

Bently Nevada 330703-000-060-10-02-00 3300 XL 11 mm Proximity Probe

Description

The Bently Nevada 330703-000-060-10-02-00 is a high-performance 3300 XL 11 mm proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. This probe is part of the...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: 330703-000-060-10-02-00
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330703-000-060-10-02-00 is a high-performance 3300 XL 11 mm proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. This probe is part of the 3300 XL transducer system, which provides accurate, non-contact measurement of shaft displacement and vibration in demanding environments. The 11 mm probe design offers an extended linear range compared to standard 8 mm probes, making it suitable for applications requiring higher clearance or larger measurement gaps.

Features

  • Non-contact measurement technology for reliable shaft monitoring.
  • 11 mm probe tip diameter for extended linear range.
  • M14 x 1.5 thread configuration for secure mounting.
  • Equipped with a miniature coaxial ClickLoc connector for robust signal integrity.
  • Standard cable construction for industrial durability.

Applications

This proximity probe is typically utilized in Bently Nevada 3300 XL monitoring systems to measure radial vibration, axial position (thrust), and speed on critical rotating equipment such as steam turbines, gas turbines, compressors, and large centrifugal pumps.

Technical Specifications

Model 330703-000-060-10-02-00
Probe Diameter 11 mm
Thread Size M14 x 1.5
Unthreaded Length 0 mm
Case Length 60 mm
Cable Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial ClickLoc
Armor None
Agency Approval Not required

Installation Guidelines

  • Ensure the probe is mounted in a rigid, vibration-free bracket to prevent false readings.
  • When installing, verify that the probe tip is not in contact with the target surface; maintain the specified gap as per the system calibration.
  • Route the coaxial cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal quality.
  • Use caution when tightening the M14 mounting nuts to avoid damaging the probe threads or the probe body.
  • Always power down the associated monitoring system before connecting or disconnecting the probe cable to prevent potential damage to the transducer or the monitor input.

FAQ

What is the primary function of the 330703 probe?

The 330703 is a proximity probe used to detect the distance between the probe tip and a conductive target, typically a rotating shaft, to monitor vibration and position.

Is this probe compatible with standard 3300 XL extension cables?

Yes, this probe is designed for use within the Bently Nevada 3300 XL transducer system and is compatible with standard 3300 XL extension cables featuring matching ClickLoc connectors.
