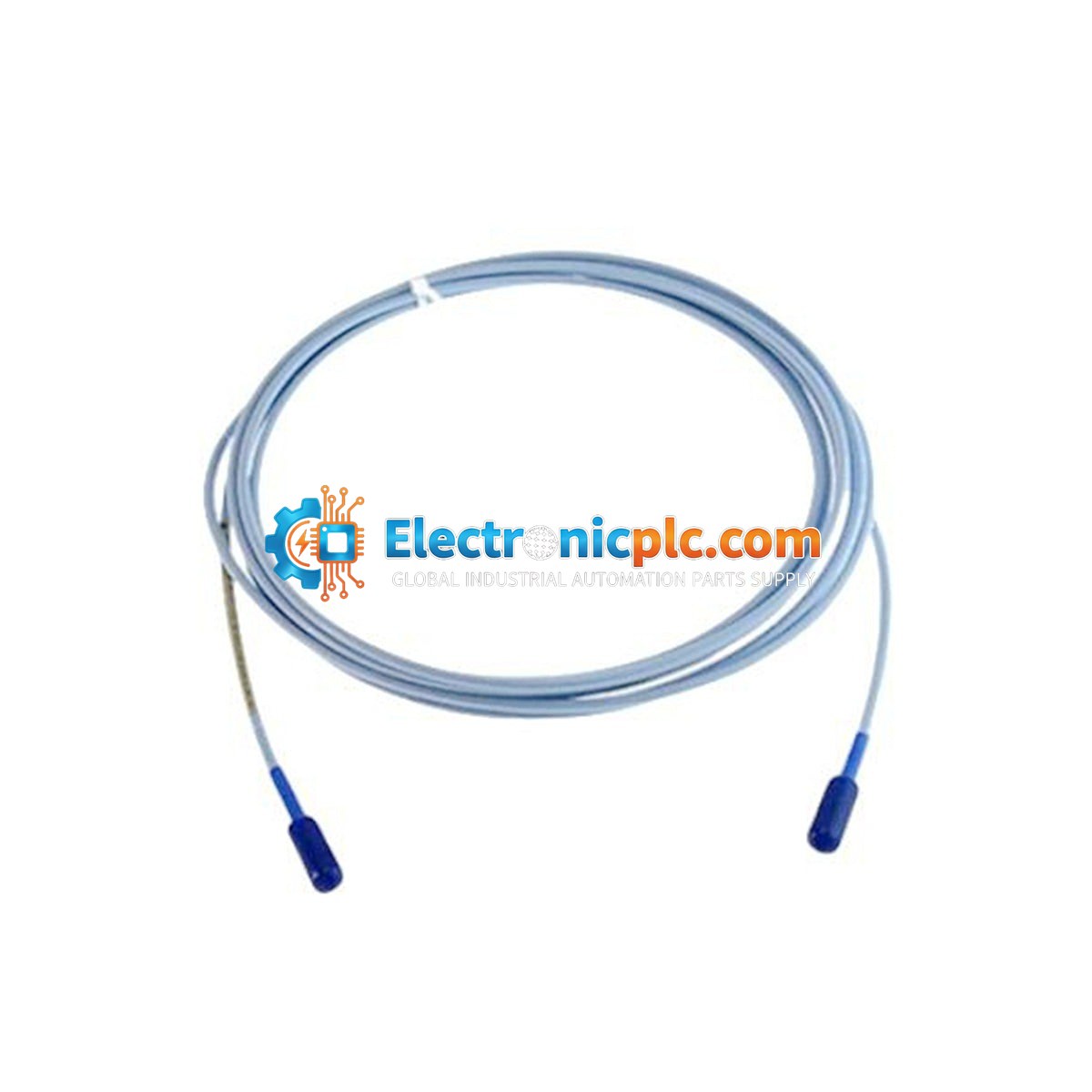

Bently Nevada 330730-040-03-00 3300 XL 11 mm Extension Cable

Bently Nevada 330730-040-03-00 3300 XL 11 mm Extension Cable

Description

The Bently Nevada 330730-040-03-00 is a 4.0-meter extension cable designed for the 3300 XL 11 mm Transducer System. This cable provides a reliable connection between the 11 mm proximity probe...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 330730-040-03-00
Proveedora: Bently Nevada
tipo: Extension Cable
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330730-040-03-00 is a 4.0-meter extension cable designed for the 3300 XL 11 mm Transducer System. This cable provides a reliable connection between the 11 mm proximity probe and the Proximitor sensor, ensuring high-accuracy transmission of eddy current signals for vibration and displacement monitoring in critical rotating machinery.

Features

  • Designed for 3300 XL 11 mm transducer systems
  • 4.0-meter (13.1 feet) total length
  • Armored cable construction with connector protector for enhanced durability in harsh industrial environments
  • ClickLoc connector design for secure, reliable signal transmission
  • Improved RFI/EMI immunity compared to legacy systems
  • Complete interchangeability without requiring individual bench calibration

Applications

  • Axial (thrust) position measurements
  • Ramp differential expansion measurements on steam turbines
  • Rod position or rod drop measurements on reciprocating compressors
  • Tachometer and zero speed measurements
  • Phase reference (Keyphasor) signals

Technical Specifications

Model 330730-040-03-00
System Type 3300 XL 11 mm
Cable Length 4.0 meters (13.1 feet)
Cable Option Armored with connector protector
Output Resistance 50 Ohm
Operating Temperature -40 degC to +85 degC
Storage Temperature -52 degC to +105 degC
Probe Case Material AISI 304 Stainless Steel

Installation Guidelines

  • Ensure the system is powered down before connecting or disconnecting any transducer components.
  • Use ClickLoc connectors to ensure a secure fit; tighten to finger-tight, with a maximum torque of 0.565 N-m (5 in-lb).
  • Route cables away from high-power lines or high-EMI sources to maintain signal integrity.
  • Ensure the cable is properly supported and protected from mechanical stress or excessive vibration at the connection points.
  • When upgrading from 7200-series systems, all components (probe, extension cable, and Proximitor) must be replaced with 3300 XL 11 mm compatible parts.

FAQs

What is the primary function of this extension cable?

It acts as the signal transmission link between the 11 mm proximity probe and the Proximitor sensor, allowing the monitoring system to detect critical faults such as shaft cracks, bearing failures, and rotor-to-stator rubs.

Is this cable compatible with non-XL 3300 series components?

The 3300 XL series is generally backward compatible with older 3300 series 11 mm components, but it is not compatible with the 7200-series transducer systems.

What does the 03 option code indicate?

The 03 option code specifies that the cable is armored and includes a connector protector for added physical protection in industrial settings.
