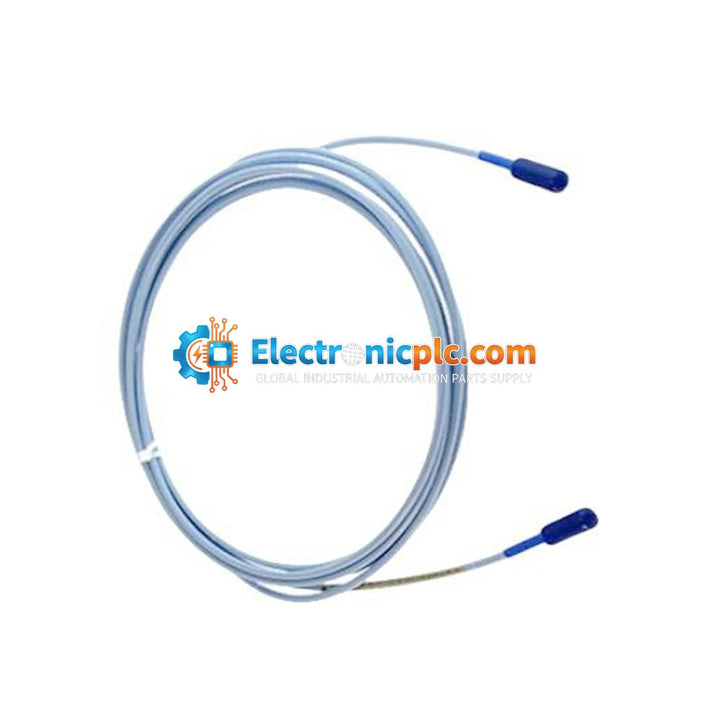

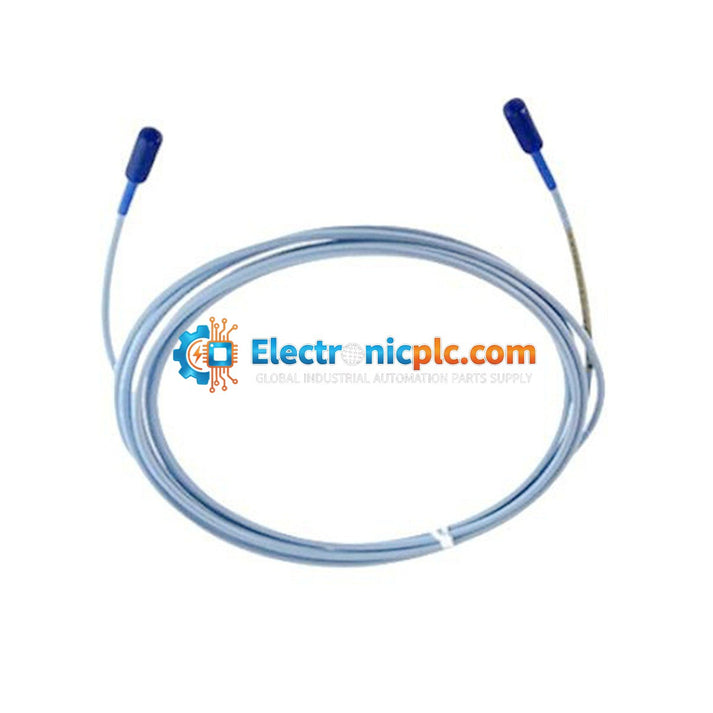

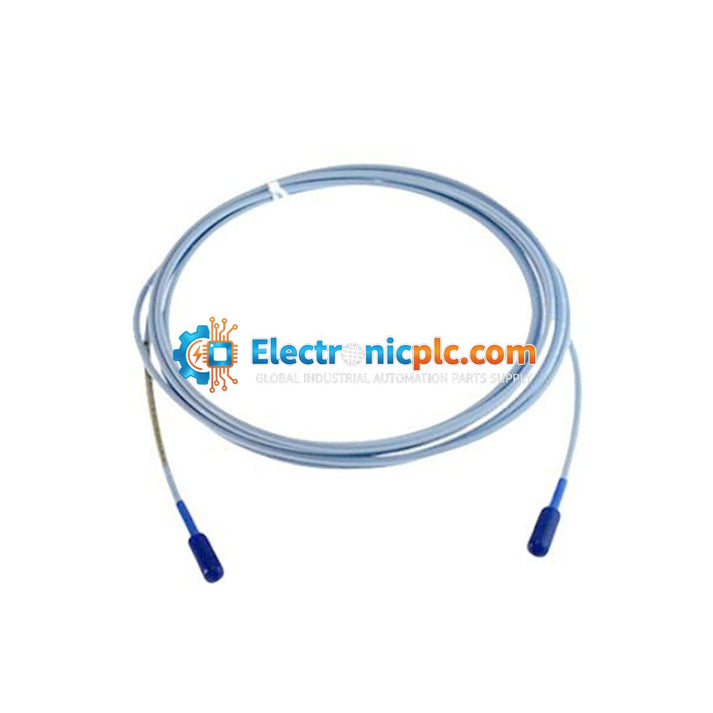

Bently Nevada 330730-080-02-00 3300 XL 11mm Extension Cable

Bently Nevada 330730-080-02-00 3300 XL 11mm Extension Cable

Description

The Bently Nevada 330730-080-02-00 is a high-performance 3300 XL 11mm extension cable, engineered as a critical component of the 3300 XL 11mm Proximity Transducer System. This cable provides the necessary...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 330730-080-02-00
Proveedora: Bently Nevada
tipo: Vibration Monitor Cable
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 330730-080-02-00 is a high-performance 3300 XL 11mm extension cable, engineered as a critical component of the 3300 XL 11mm Proximity Transducer System. This cable provides the necessary link between the 11mm proximity probe and the Proximitor sensor, facilitating precise, non-contacting vibration and displacement measurements in fluid film bearing machinery. The system is designed to ensure signal integrity and accurate monitoring in demanding industrial environments.

Features

  • ClickLoc Connectors: Features gold-plated brass ClickLoc connectors that lock into place, preventing accidental disconnection and ensuring reliable electrical continuity.
  • Robust Construction: Utilizes 75 Ohm triaxial cable with fluoroethylenepropylene (FEP) insulation for superior durability and chemical resistance.
  • System Compatibility: Specifically calibrated for the 3300 XL 11mm transducer system; ensures total system length matching for maintained accuracy.
  • Connector Protection: Includes connector protectors to provide an environmentally sealed joint, preventing contamination from dust or moisture.

Applications

  • Radial Vibration and Position: Monitors side-to-side shaft movement within bearings.
  • Axial (Thrust) Position: Measures shaft axis movement to prevent internal contact.
  • Differential Expansion: Monitors rotor-casing growth differences in steam turbines.
  • Speed and Phase Reference: Functions as a Keyphasor sensor for tacho and zero-speed applications.
  • Rod Drop/Position: Monitors reciprocating compressors for rider band wear.

Technical Specifications

Model 330730-080-02-00
Cable Length 8.0 meters (26.2 feet)
Cable Type 75 Ohm Triaxial, FEP Insulated
Connector Type ClickLoc (Gold-plated brass)
Operating Temperature -52 degC to +177 degC (-62 degF to +351 degF)
Weight 0.25 kg

Installation Guidelines

  • System Matching: Ensure the total length of the probe and extension cable matches the calibrated Proximitor sensor system length to maintain measurement accuracy.
  • Handling: Use caution when routing the cable to avoid sharp bends or mechanical stress that could damage the FEP insulation.
  • Connection: Ensure ClickLoc connectors are fully seated and locked. Use connector protectors to seal the junction against environmental contaminants.
  • EMI/RFI: While the 3300 XL system features improved immunity, avoid routing signal cables in parallel with high-voltage power lines or near high-frequency radio sources.
  • Maintenance: Power down the monitoring system before disconnecting or replacing transducer components to prevent electrical transients.

FAQ

What is the 330730-080-02-00?

The 330730-080-02-00 is an 8.0-meter extension cable specifically designed for the Bently Nevada 3300 XL 11mm Proximity Transducer System used in critical machinery monitoring.

Can this cable be used with 8mm probes?

No. This cable is specifically engineered and calibrated for the 11mm transducer system. It is not interchangeable with 8mm or 5mm probe systems.

What is the purpose of the connector protectors?

The connector protectors (included in the -02 option) provide an environmentally sealed joint at the probe-to-cable connection, protecting the interface from moisture, oil, and dust ingress.
