Description

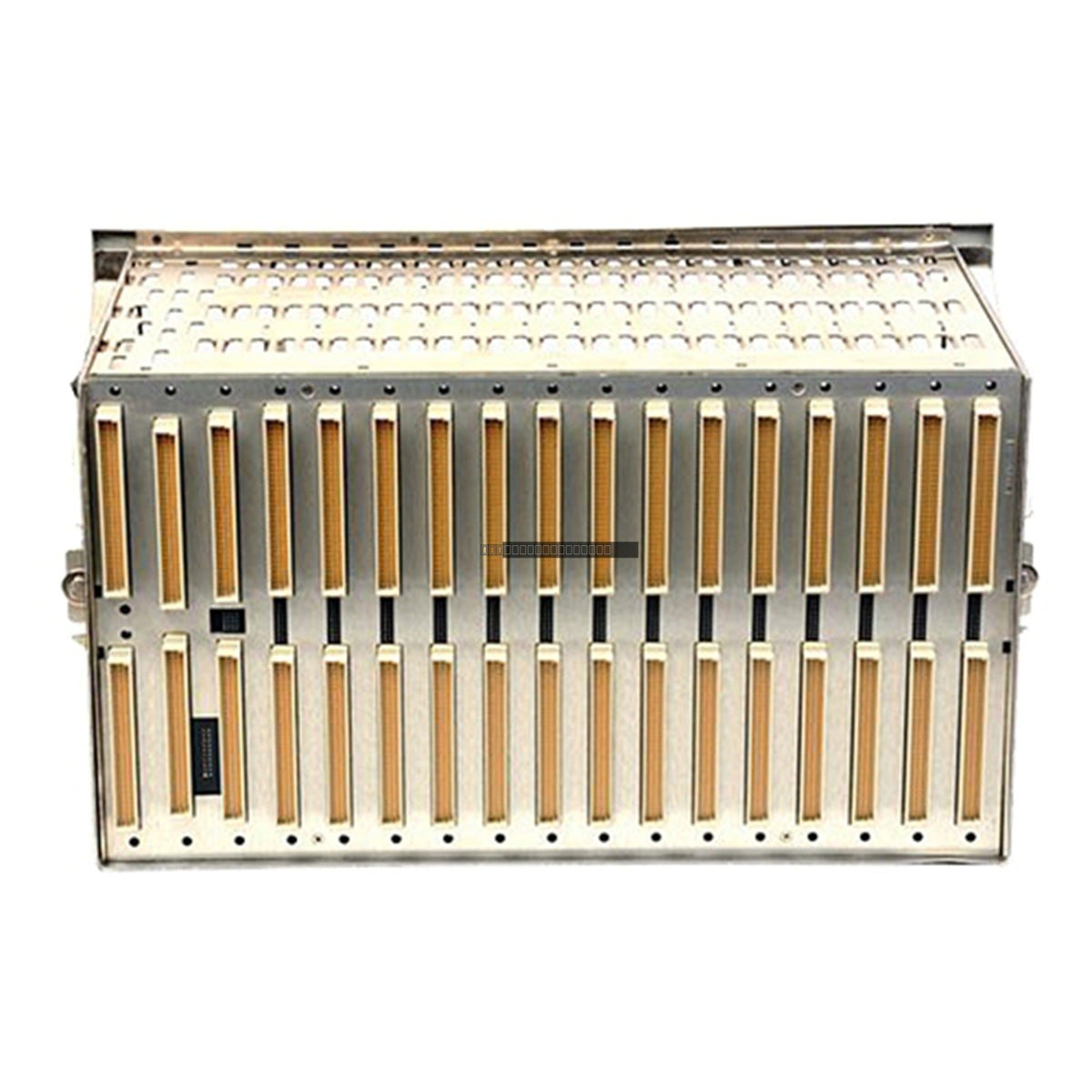

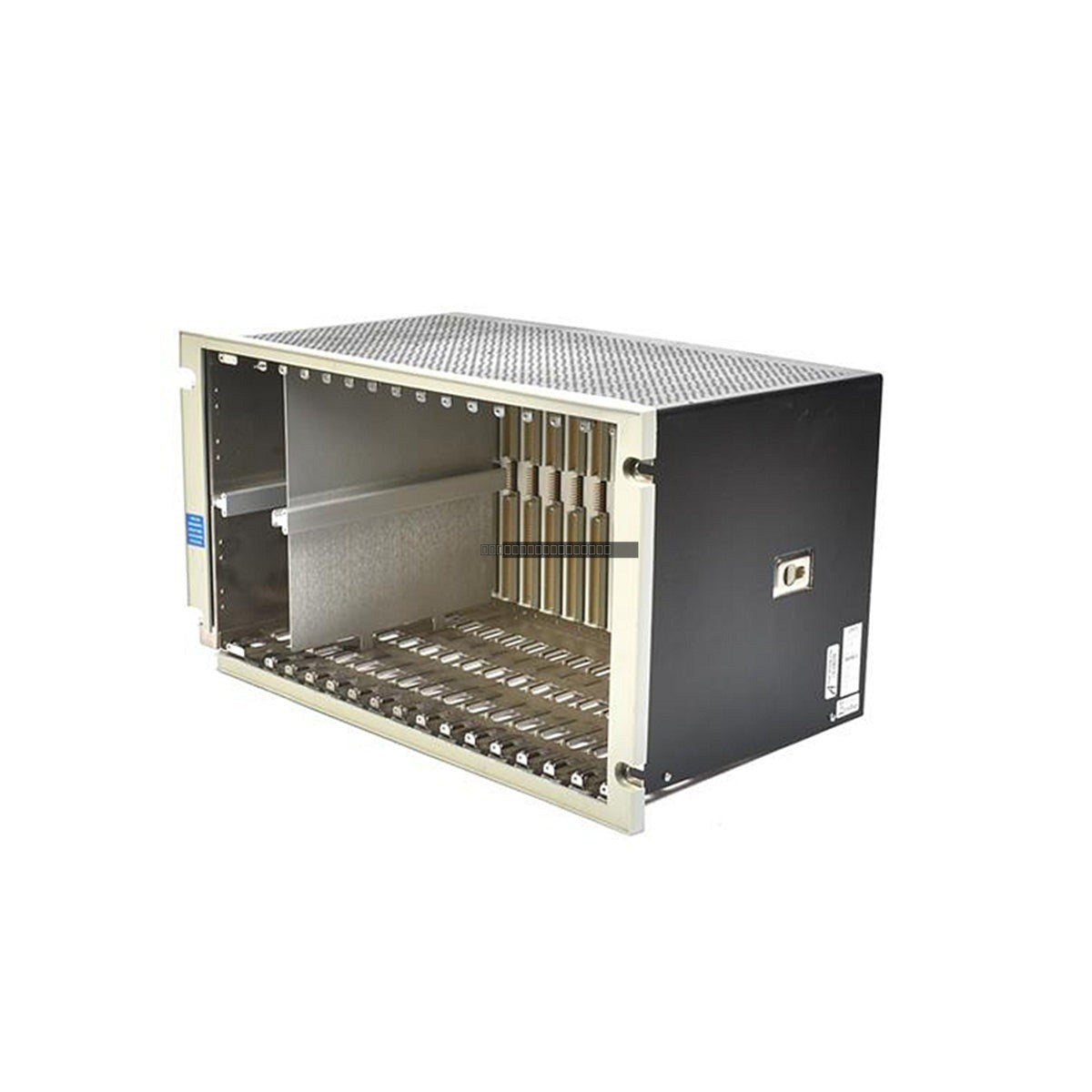

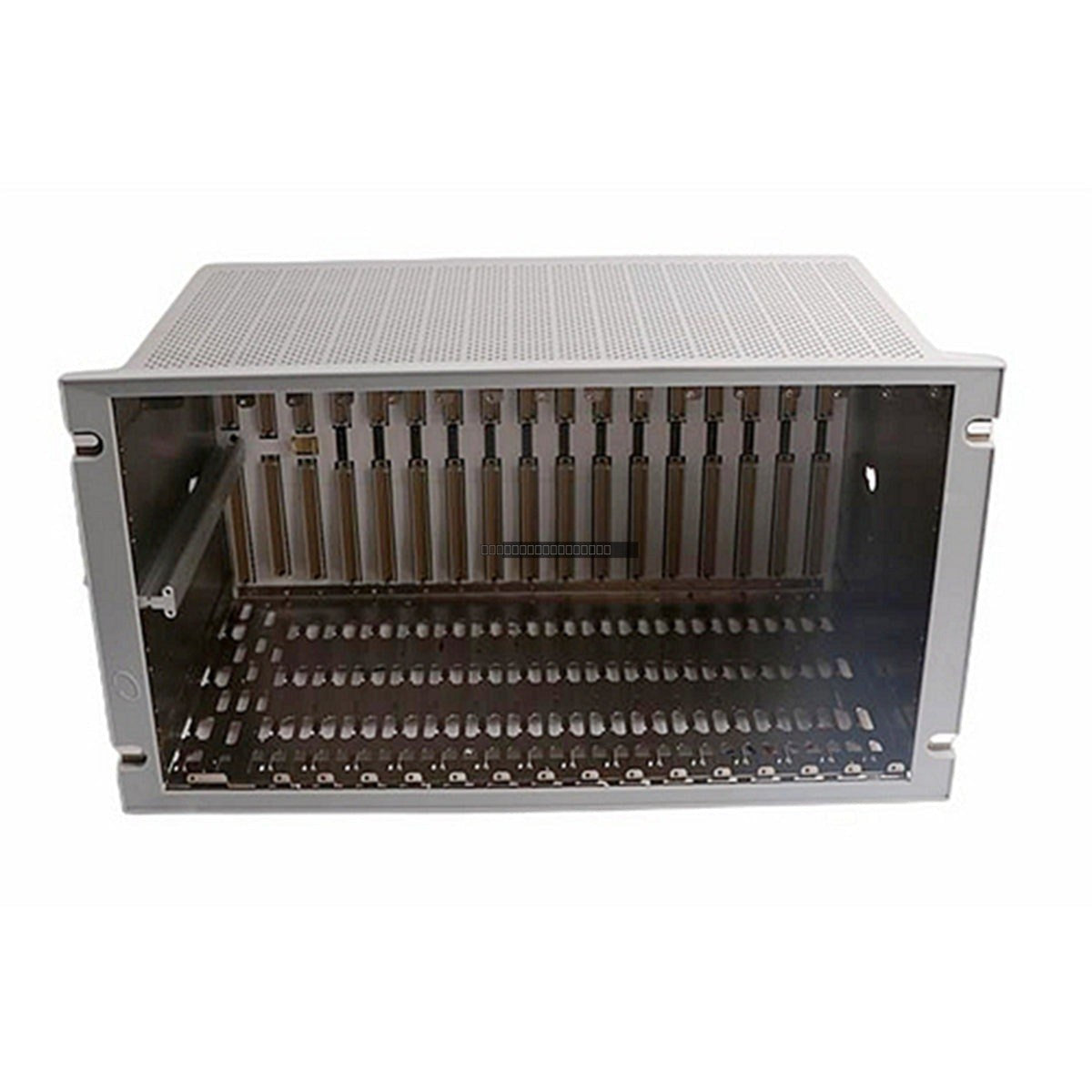

The Bently Nevada 3500/05 System Rack serves as the foundational mechanical and electrical housing for the 3500 Series Machinery Protection System. This rack assembly provides the necessary structural support and backplane interconnections for all 3500 series monitoring modules, power supplies, and communication gateways. Designed for industrial reliability, the rack facilitates secure module seating, consistent electrical backplane communication, and flexible mounting configurations to suit diverse plant requirements.

Features

• Supports high-density configurations with up to 14 module slots in full-size versions or 7 slots in mini-size versions.
• Robust mechanical frame engineered for stability in high-vibration industrial environments.
• Integrated backplane ensures reliable data communication between installed monitoring modules and interface cards.
• Supports redundant power supply installations to maintain system availability.
• Compatible with standard panel-mount or rack-mount hardware for versatile installation.

Applications

The 3500/05 rack is essential for housing Bently Nevada 3500 series monitoring systems used in critical rotating machinery protection, including gas turbines, steam turbines, compressors, pumps, and motors. It acts as the central chassis for vibration monitoring, position measurement, and speed sensing applications.

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted in a location free from excessive dust, moisture, and corrosive gases.
• Verify that the mounting surface is rigid and capable of supporting the weight of the fully populated rack.
• Use proper grounding techniques to connect the rack chassis to the plant earth to minimize EMI/RFI interference.
• Power down the system before inserting or removing any modules or power supplies to prevent electrical damage.
• Ensure adequate ventilation space around the rack to maintain operating temperatures within the specified 0 degC to +60 degC range.
• Check that all module connectors are fully seated into the backplane to ensure reliable communication.

FAQ

What is the difference between the full-size and mini-size 3500/05 racks?

The full-size rack provides 14 slots for modules, while the mini-size rack provides 7 slots. Both versions utilize the same backplane technology and support the full range of 3500 series modules.

Can I install redundant power supplies in this rack?

Yes, the 3500/05 rack is designed to accommodate redundant power supply configurations to ensure continuous operation of the monitoring system.
