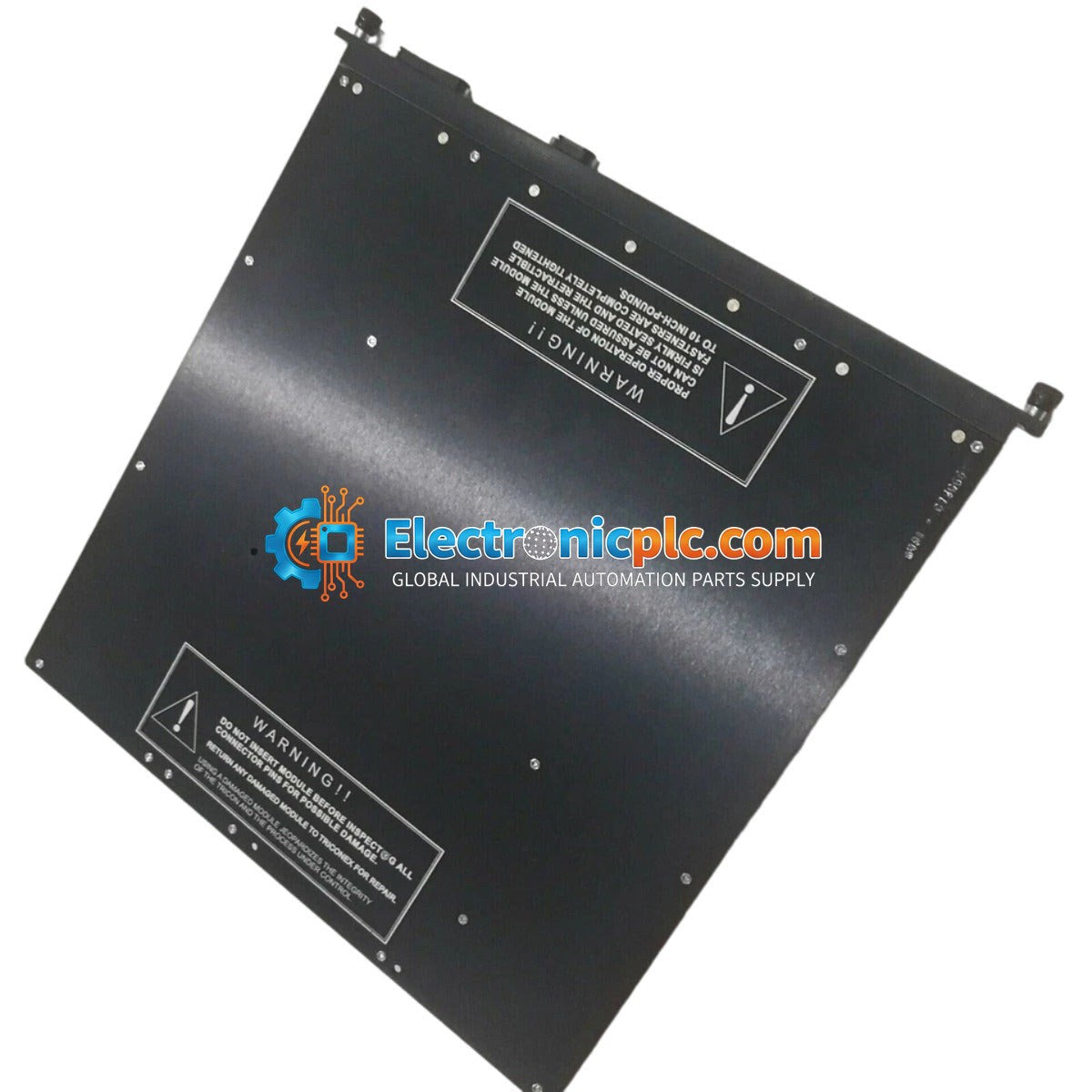

Triconex 3664 Digital Output Module

Triconex 3664 Digital Output Module

Description

The Triconex 3664 digital output module is a high-performance, fault-tolerant interface designed for safety-instrumented systems (SIS). Utilizing a Dual Digital Output (DDO) architecture combined with a 2-out-of-3 (2oo3) voting process,...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 3664
Proveedora: Triconex
tipo: Digital Output Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Triconex 3664 digital output module is a high-performance, fault-tolerant interface designed for safety-instrumented systems (SIS). Utilizing a Dual Digital Output (DDO) architecture combined with a 2-out-of-3 (2oo3) voting process, the module effectively eliminates single-point failures to ensure reliable safety loop execution. It is engineered for demanding industrial environments, including oil refining, power generation, and chemical processing, where it provides secure management of high field currents and helps prevent false trips.

Features

  • 2oo3 Voting Logic: Hardware-based voting mechanism ensures signal validity and system integrity.
  • Fault Tolerance: Designed to prevent single-point failures in critical safety applications.
  • High Isolation: Features 1500 VDC minimum point-to-point isolation to protect internal logic from field transients.
  • Hot-Swappable: Supports replacement under live system conditions to minimize downtime.
  • High Capacity: 32 commoned output lines with a maximum current capacity of 2 A per point.

Applications

This module is primarily utilized in emergency shutdown (ESD) systems, burner management systems (BMS), and fire and gas detection systems. Its robust design makes it suitable for hazardous locations requiring high-reliability control and safety-critical signal output.

Technical Specifications

Model 3664
Brand Triconex
Nominal Voltage 24 VDC
Operating Voltage Range 16-30 VDC
Maximum Peak Voltage 36 VDC
Output Channels 32 (commoned)
Max Current per Point 2 A
Surge Current Rating 10 A per 10 ms
Max Load Leakage 2 mA
Typical Voltage Drop < 1.5 VDC
Point Isolation 1500 VDC
Power Consumption < 10 W
Operating Temperature 0 to +60 deg C

Installation Guidelines

  • Ensure the Triconex chassis is properly grounded before module insertion.
  • The module is hot-swappable; however, ensure the surrounding environment is free of conductive debris before installation.
  • Use appropriate shielded cabling for field connections to maintain EMI/RFI immunity.
  • Verify that the field power supply is within the 16-30 VDC operating range to prevent module damage.
  • Handle with standard ESD precautions to protect sensitive internal circuitry.

FAQ

Is this module compatible with all Triconex systems?

The 3664 is designed for specific Triconex safety controller architectures. Please verify your system's hardware revision and compatibility requirements before installation.

Does the module require external cooling?

The module is designed for standard convection cooling within a Triconex rack. Ensure that the cabinet ventilation is clear and that the ambient temperature remains within the 0 to +60 deg C range.
