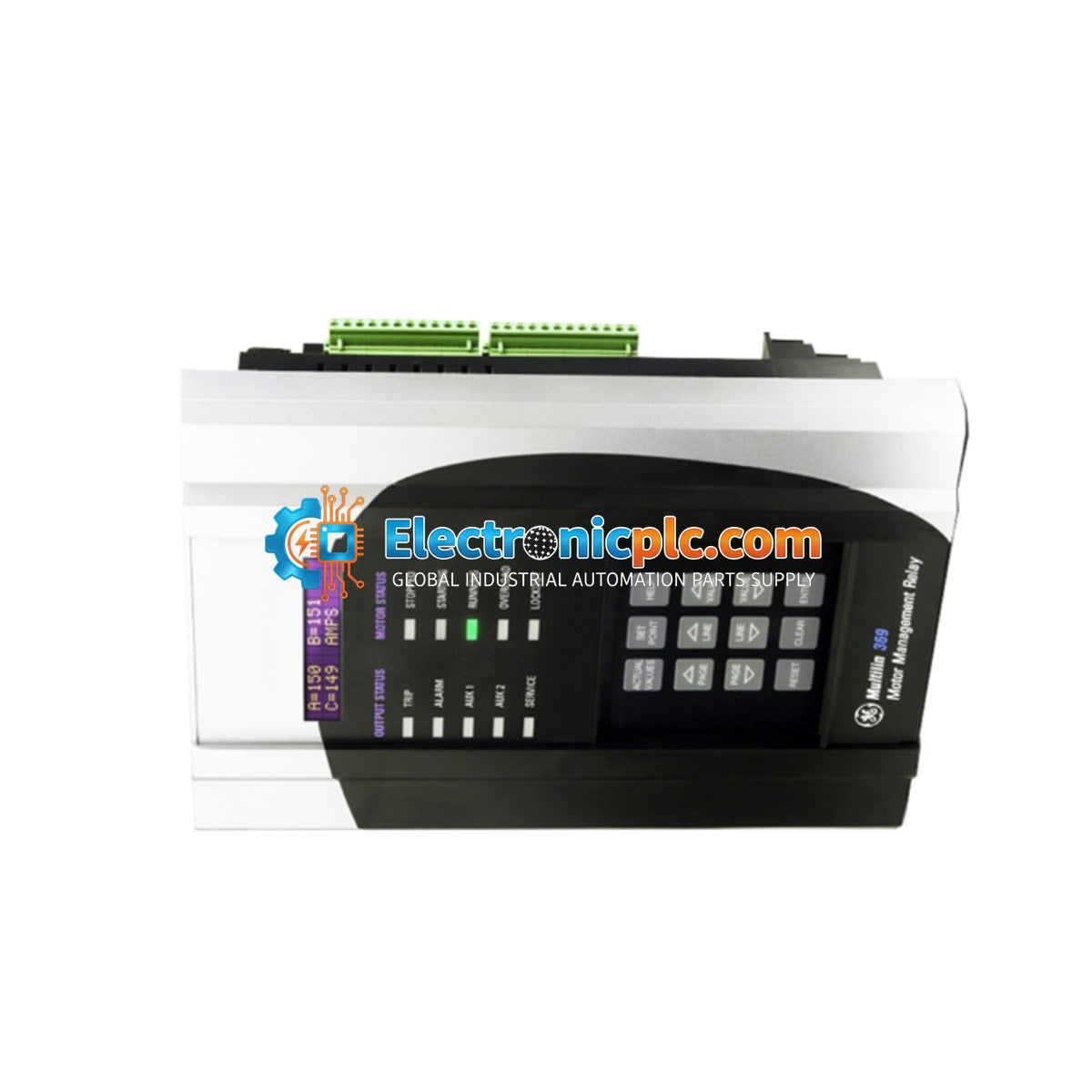

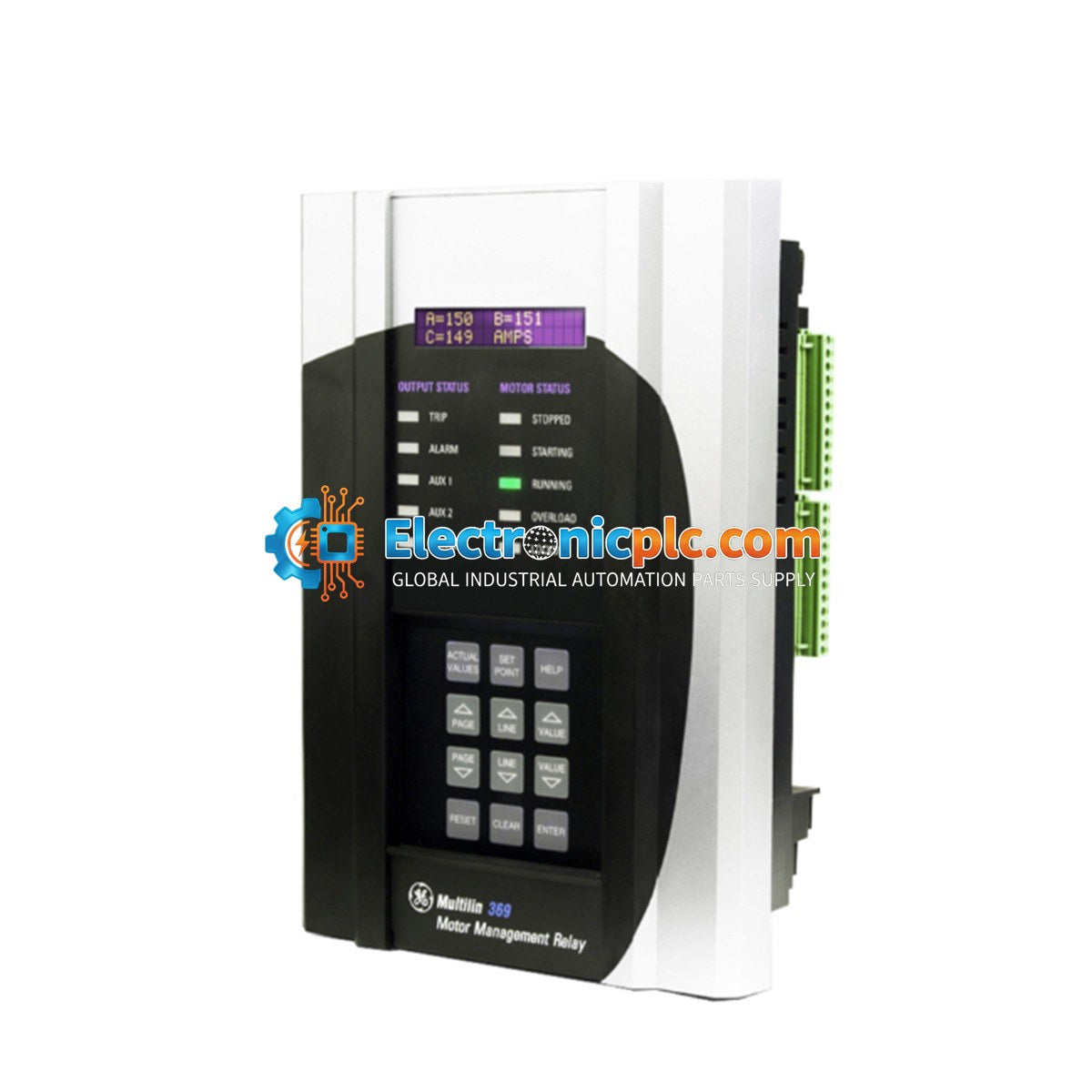

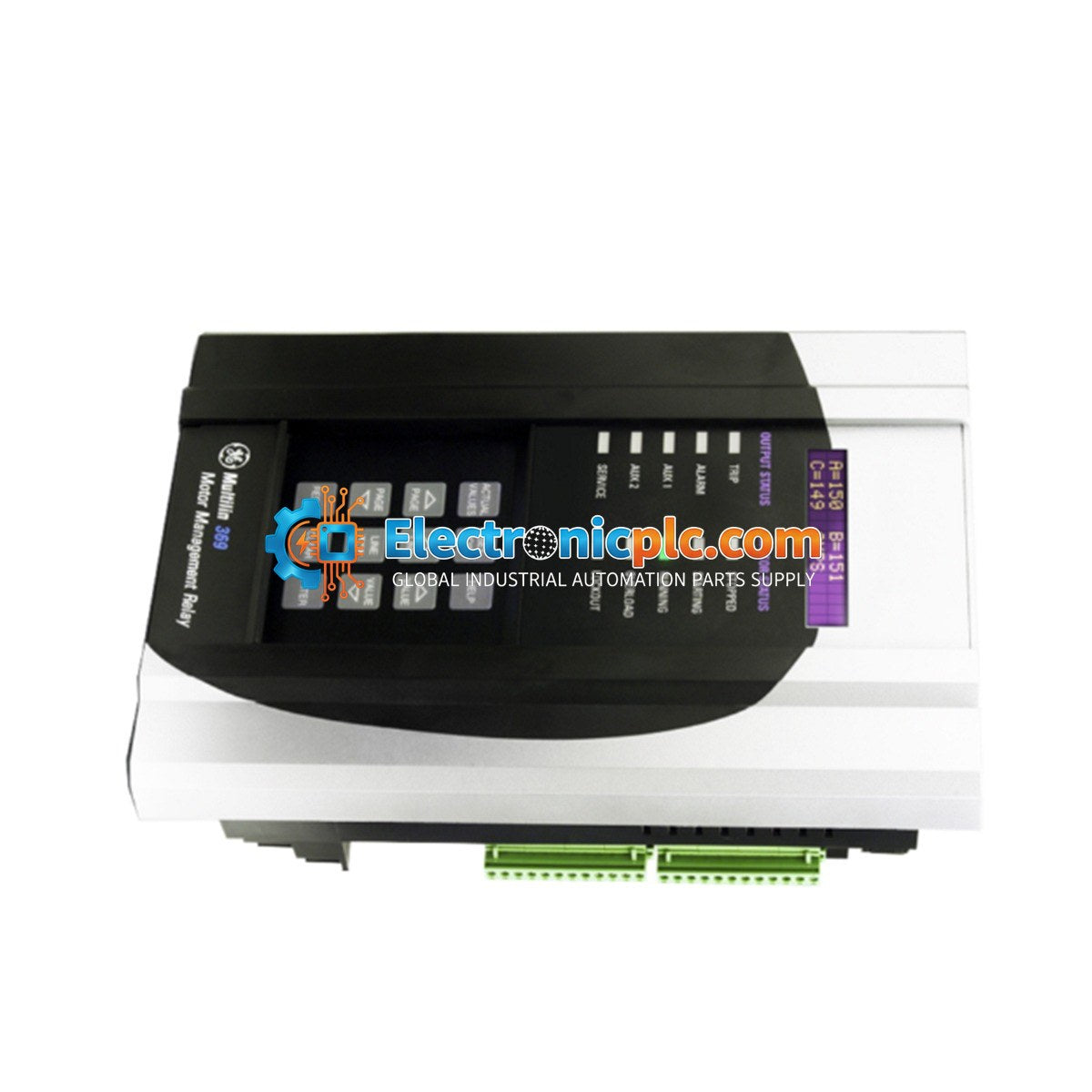

GE Multilin 369-HI-R-M-0-0-H-E Motor Management Relay

GE Multilin 369-HI-R-M-0-0-H-E Motor Management Relay

Description

The GE Multilin 369-HI-R-M-0-0-H-E is a high-performance motor protection and management relay designed for the comprehensive safeguarding of medium-sized motors. By utilizing advanced adaptive learning algorithms, the relay calibrates protection...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 369-HI-R-M-0-0-H-E
Proveedora: GE FANUC
tipo: Motor Management Relay
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The GE Multilin 369-HI-R-M-0-0-H-E is a high-performance motor protection and management relay designed for the comprehensive safeguarding of medium-sized motors. By utilizing advanced adaptive learning algorithms, the relay calibrates protection parameters based on specific motor performance profiles. This unit is widely deployed in demanding industrial environments, including oil refineries, power plants, and mining operations, where it serves to minimize unplanned downtime through predictive fault detection and detailed operational data logging.

Features

  • Adaptive Protection: Utilizes intelligent algorithms to tailor protection settings to individual motor characteristics.
  • Comprehensive Diagnostics: Tracks energy consumption (MWh), total motor starts, and cumulative running hours.
  • Fault Analysis: Includes waveform capture and event recording triggered by power failures, alarms, or self-test routines.
  • Communication Interfaces: Equipped with a non-isolated RS232 port and a high-speed RS485 port supporting Modbus RTU for SCADA integration.
  • High-Speed Switching: Features differential switching with a time delay of less than 200 ms.

Applications

The 369 series is engineered for critical motor control applications, providing essential protection against thermal overload, current imbalance, and phase-related faults. It is suitable for integration into medium-voltage and low-voltage motor control centers (MCCs) in heavy industrial sectors.

Technical Specifications

Model 369-HI-R-M-0-0-H-E
Brand GE Multilin
Control Power Input 110-250 VDC / 100-240 VAC (50/60 Hz)
Differential Switch Delay < 200 ms
Operating Temperature -40 deg C to +60 deg C
Storage Temperature -40 deg C to +80 deg C
Humidity 95% non-condensing
Communication RS232, RS485 (Modbus RTU)

Installation Guidelines

  • Mounting: Ensure the unit is mounted in a clean, dry environment with adequate clearance for ventilation.
  • Grounding: Always connect the chassis ground terminal to a reliable earth ground to ensure proper EMI/RFI shielding.
  • Wiring: Use shielded twisted-pair cabling for RS485 communication lines to prevent signal interference. Ensure all power connections are tightened to the specified torque values provided in the manual.
  • Safety: Isolate all power sources before performing installation, wiring, or maintenance.
  • ESD Handling: Use standard electrostatic discharge (ESD) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What communication protocols does the 369-HI-R-M-0-0-H-E support?

The unit supports serial communication via RS232 and RS485 ports, utilizing the Modbus RTU protocol for integration with external SCADA or PLC systems.

Is this relay suitable for high-temperature environments?

The relay is rated for an operating temperature range of -40 deg C to +60 deg C, making it suitable for most industrial environments, though it should not be installed in areas exceeding these limits without proper climate control.
