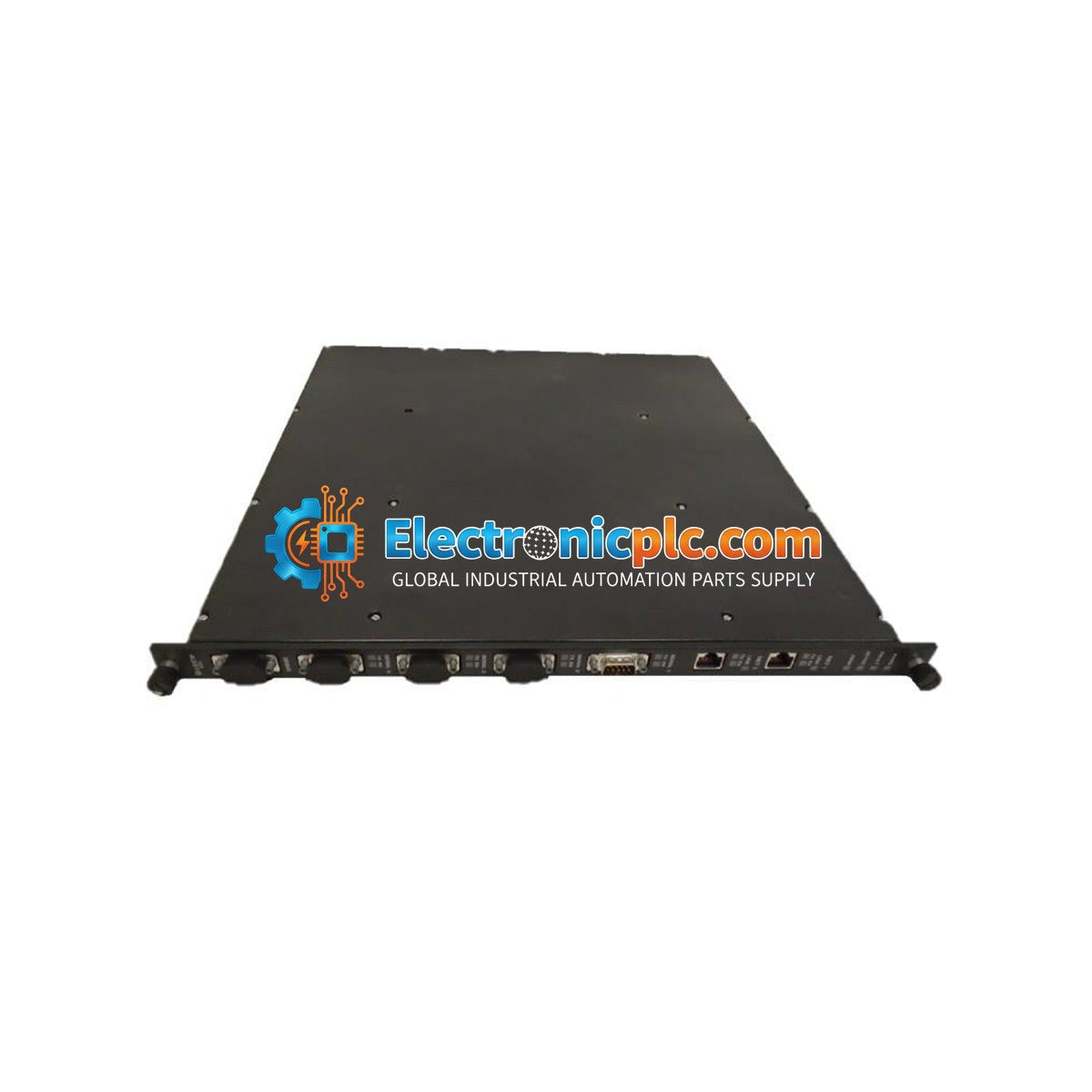

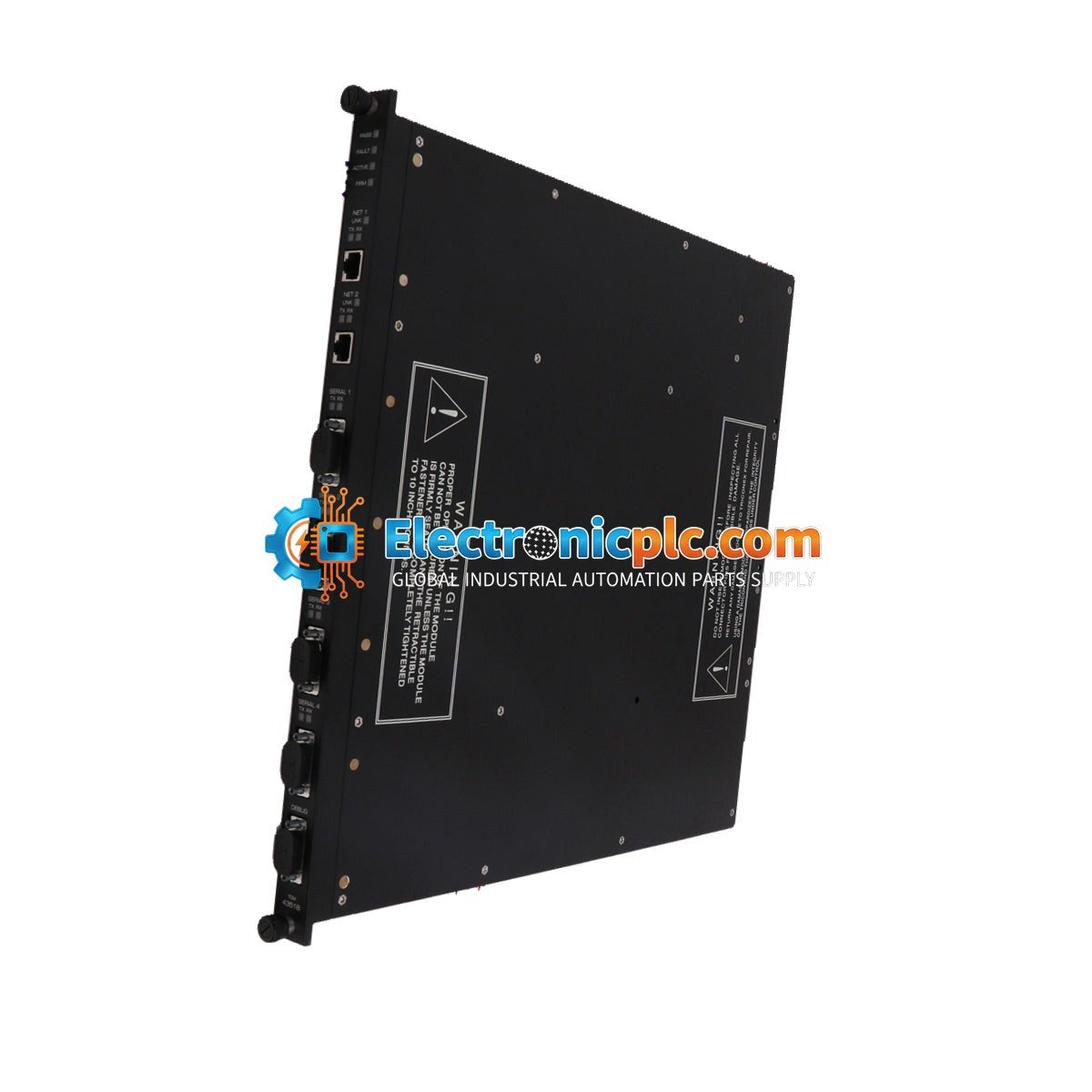

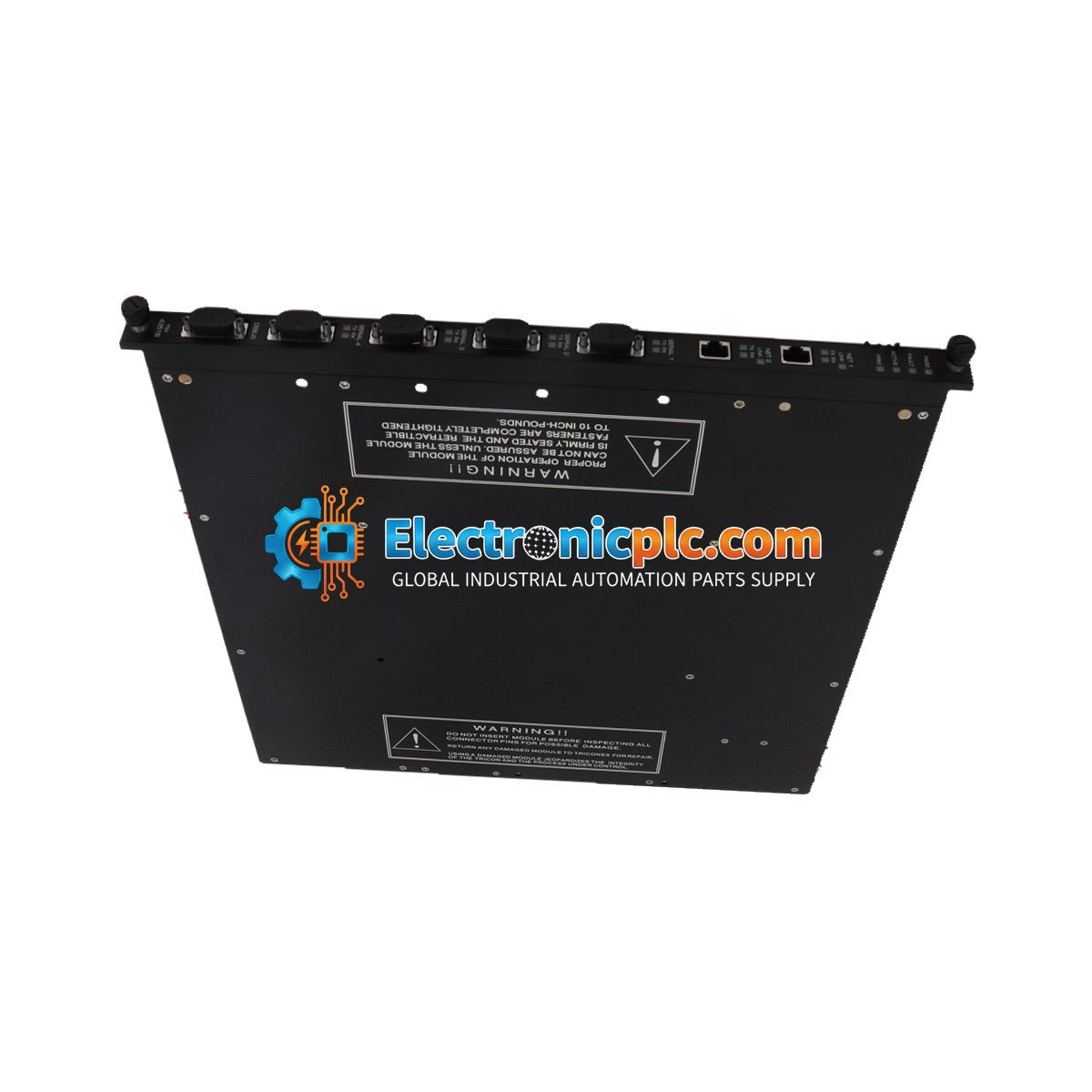

Invensys Triconex 4351B Tricon Communication Module (TCM)

Invensys Triconex 4351B Tricon Communication Module (TCM)

Description

The 4351B Tricon Communication Module (TCM) serves as a high-performance interface for the Invensys Triconex Triple Modular Redundant (TMR) safety system. It facilitates deterministic communication between the Tricon controller and...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 4351B
Proveedora: 数据库
tipo: Communication Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The 4351B Tricon Communication Module (TCM) serves as a high-performance interface for the Invensys Triconex Triple Modular Redundant (TMR) safety system. It facilitates deterministic communication between the Tricon controller and external systems, supporting both serial and Ethernet-based protocols. The 4351B is engineered for mission-critical safety applications in industries such as oil and gas, nuclear power, and chemical processing, ensuring reliable data exchange with DCS and SCADA systems while maintaining the integrity of the TMR safety architecture.

Features

  • Supports redundant communication pathways for high-availability safety applications.
  • Hybrid port configuration featuring serial and Ethernet interfaces.
  • Hardened internal processing logic designed to maintain communication availability during high CPU load conditions.
  • Dedicated buffers to prevent data loss and frame collisions in high-traffic networks.
  • Comprehensive status monitoring via front-panel LED indicators (Pass, Fault, Active, Port Link/Activity).

Applications

The 4351B TCM is typically deployed in safety-instrumented systems (SIS) where reliable, deterministic communication is required for:

  • Integration with Distributed Control Systems (DCS) and Supervisory Control and Data Acquisition (SCADA) platforms.
  • Legacy instrument integration via RS-232/RS-485 serial ports.
  • Long-distance, EMI-resistant communication using fiber optic Ethernet links.
  • Modbus TCP/IP and serial network communication in industrial safety environments.

Technical Specifications

Model 4351B
Brand Invensys (Triconex)
Series Tricon TCM
Serial Ports 4 x RS-232/RS-485 (Modbus Support)
Ethernet Ports 2 x Fiber Optic, 1 x Copper RJ45
Protocols Modbus TCP/IP, Modbus Serial, TSAA, TCP/IP, UDP/IP
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5-95% (non-condensing)

Installation Guidelines

  • Ensure the Tricon system is powered down before inserting or removing the TCM module to prevent electrical damage.
  • Verify that the module is correctly seated in the designated Tricon chassis slot; secure the module using the integrated locking mechanisms.
  • Use shielded cables for all serial and Ethernet connections to minimize EMI interference, especially when routing near high-voltage lines.
  • Ensure proper grounding of the Tricon chassis to a common plant ground to maintain signal integrity.
  • Maintain adequate airflow around the module to ensure operating temperatures remain within the 0-60 deg C range.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal components.

FAQ

Is the 4351B compatible with all Tricon systems?

The 4351B is designed for use within the Triconex TMR safety system. Compatibility depends on the specific Tricon controller firmware and hardware revision; please consult your system documentation or the Triconex technical manual to verify compatibility with your specific controller version.

Does this module support redundant configurations?

Yes, the TCM is designed to support the redundant communication requirements of the Triconex TMR architecture, ensuring that safety-critical data remains available even if a single path fails.
