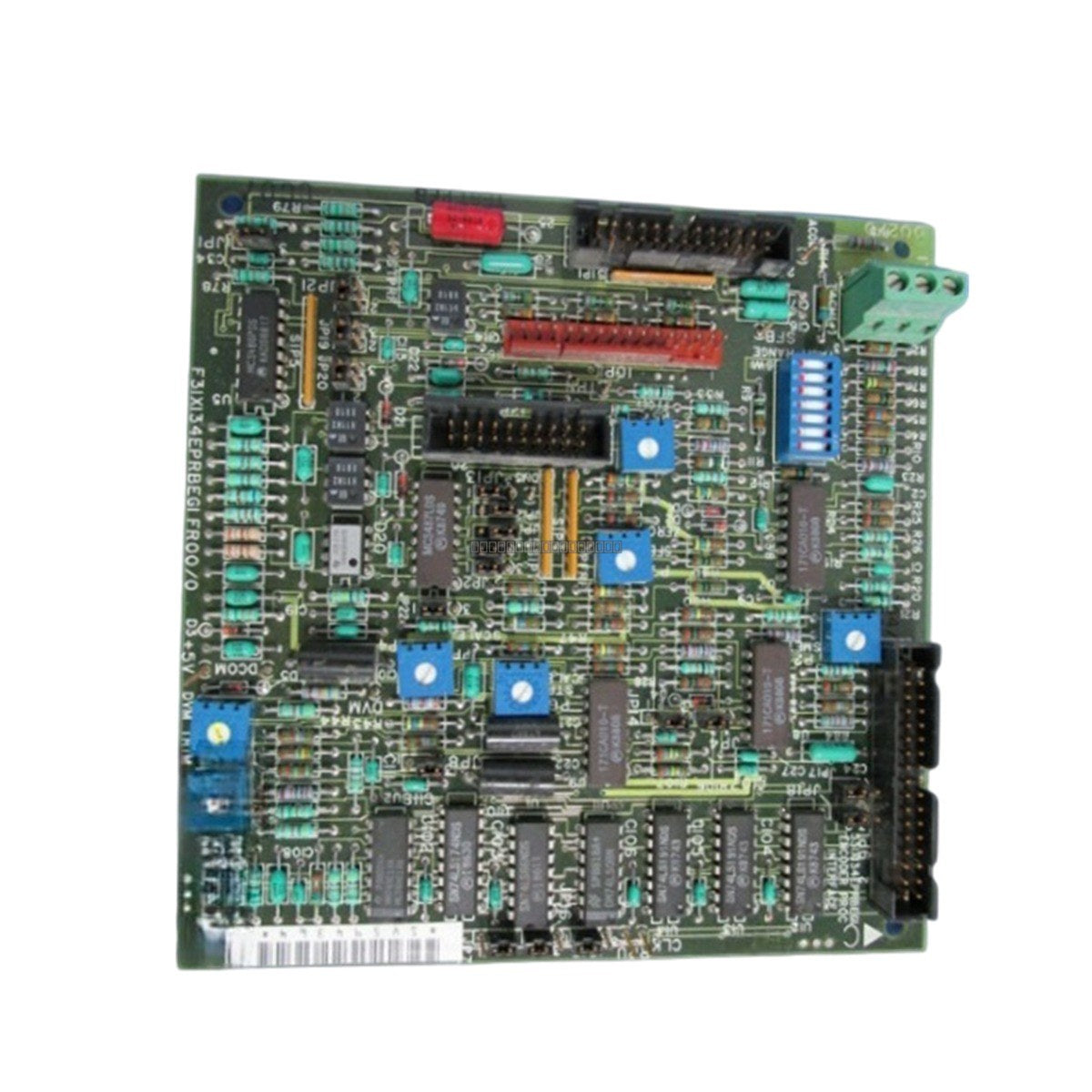

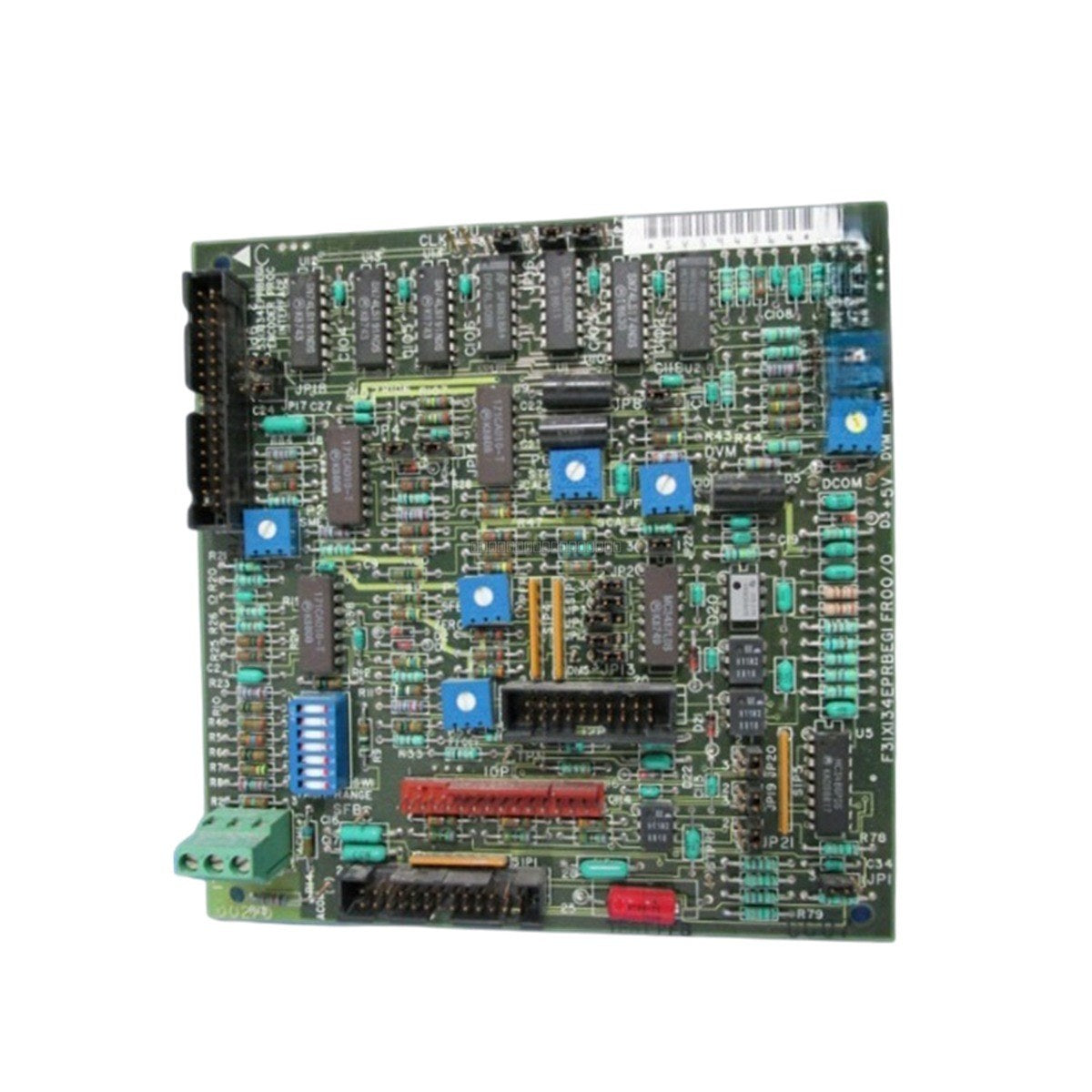

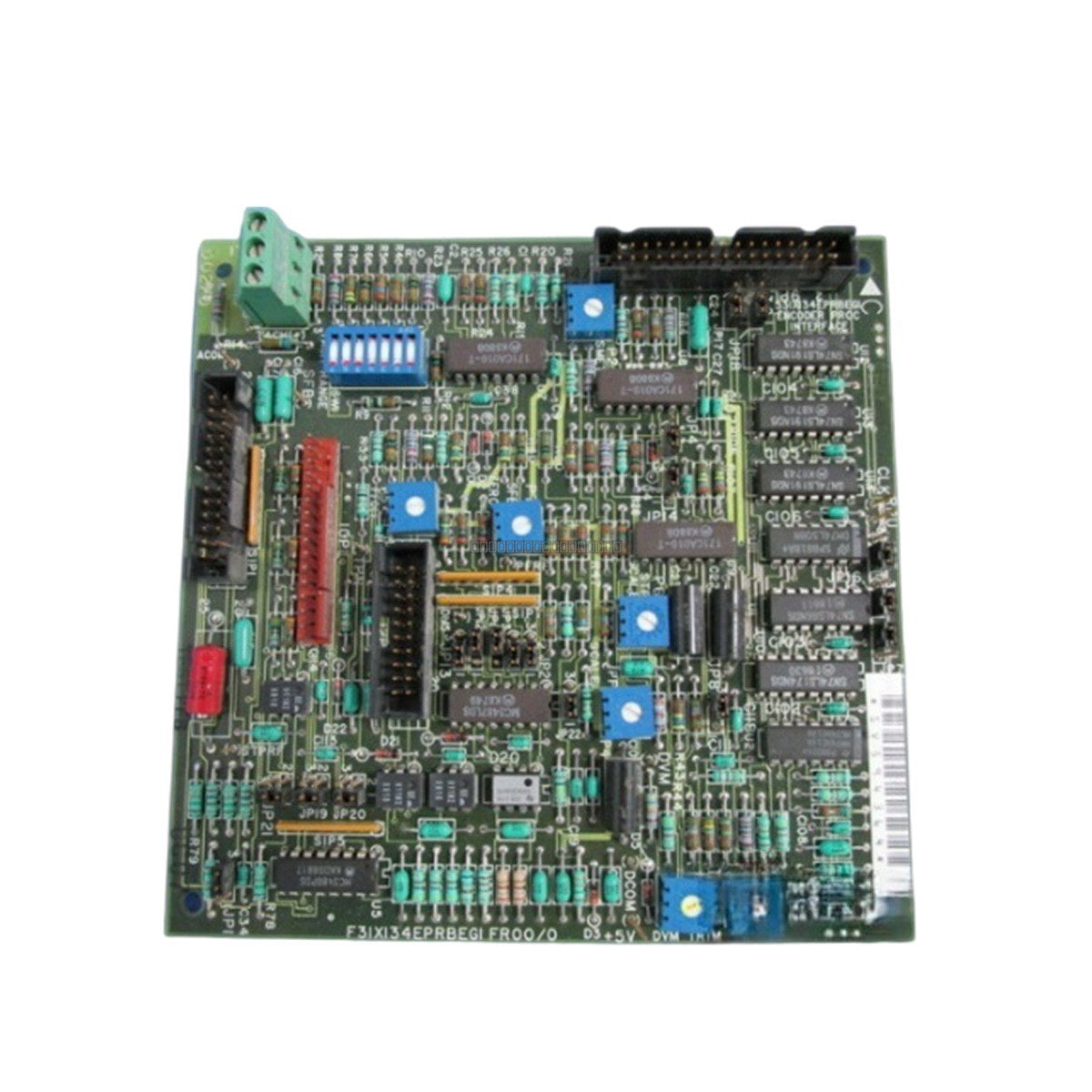

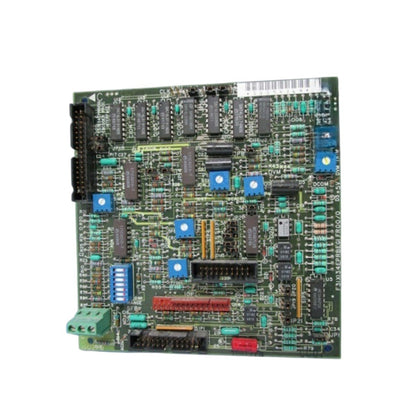

GE Fanuc F31X134EPRBEG1 Encoder Process Board

GE Fanuc F31X134EPRBEG1 Encoder Process Board

Description

The F31X134EPRBEG1 is an Encoder Process Board and Processor Interface Card engineered by General Electric for use within general-purpose drive systems, specifically compatible with the DC-300 drive series. This board...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: F31X134EPRBEG1
Proveedora: GE FANUC
tipo: Encoder Process Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The F31X134EPRBEG1 is an Encoder Process Board and Processor Interface Card engineered by General Electric for use within general-purpose drive systems, specifically compatible with the DC-300 drive series. This board is designed to manage high-speed feedback and tachometer scaling, providing the precise motor speed telemetry required for accurate velocity loop control in industrial automation environments, such as metal processing and assembly lines.

Features

  • Facilitates real-time motor speed tracking and signal conditioning.
  • Integrated diagnostic interface via a 3-screw terminal strip for live voltage measurement.
  • Supports PI-tach scale calibration, allowing for precise scaling adjustments at 50 percent of total motor speed capacity.
  • Designed for seamless integration within the 531X series drive architecture.

Applications

This board is utilized in industrial drive control systems, particularly within manufacturing plants and metal processing facilities where precise speed regulation and feedback monitoring are critical to maintaining machine stability and reducing operational downtime.

Technical Specifications

Model F31X134EPRBEG1
Brand General Electric (GE)
Product Line 531X Boards Series
Secondary Board Number 531X134EPRBEG1
Factory Edge Code FR00/0
Compatibility GE DC-300 Drive Series
Operating Temperature 0 to 55 deg C

Installation Guidelines

  • Ensure the drive system is fully powered down and locked out before attempting to install or remove the board.
  • Handle the PCB by its edges; avoid touching components or solder joints to prevent electrostatic discharge (ESD) damage.
  • Verify that the board is correctly seated in the designated 531X series drive slot.
  • Use a standard voltmeter to monitor voltage across terminals 1 TB-1 and 1 TB-3 for diagnostic evaluation.
  • Ensure all connections to the 3-screw terminal strip are secure and properly torqued to prevent signal noise or intermittent feedback.

FAQ

What is the primary function of the F31X134EPRBEG1 board?

This board acts as an encoder process and interface card that handles high-speed feedback and tachometer scaling for GE DC-300 drives, ensuring accurate velocity loop performance.

How do I calibrate the tachometer scaling?

Calibration is performed using the 3-screw terminal strip located on the card. By measuring voltage between terminals 1 TB-1 and 1 TB-3, technicians can scale the PI-tach parameters to 50 percent of the motor's total speed capacity.
