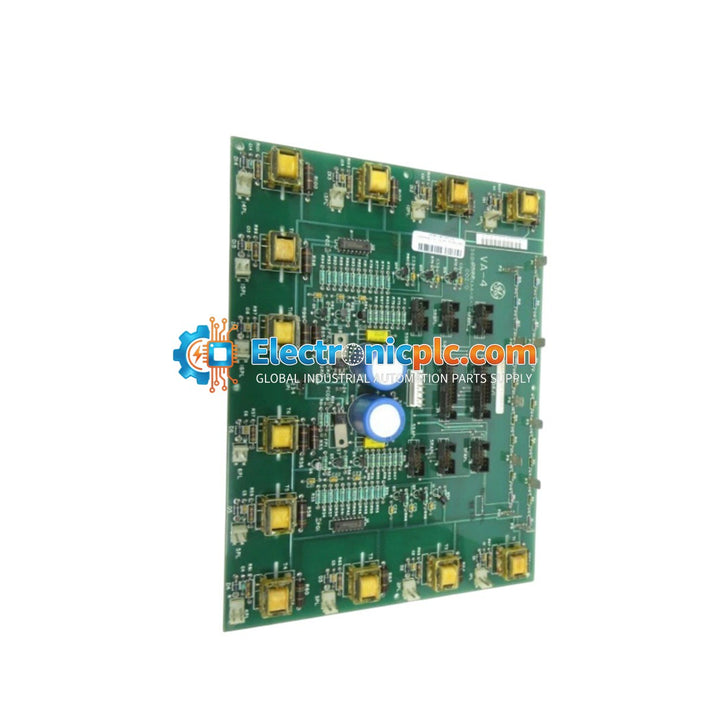

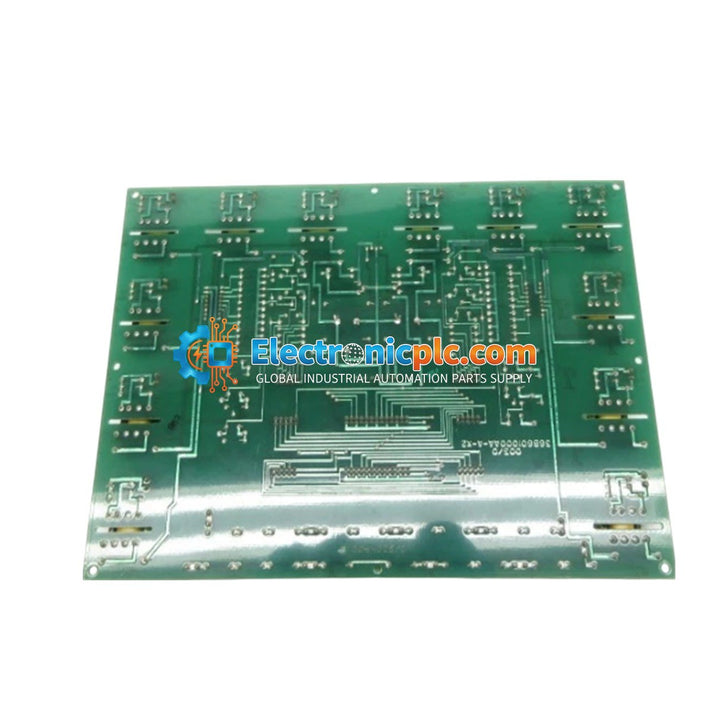

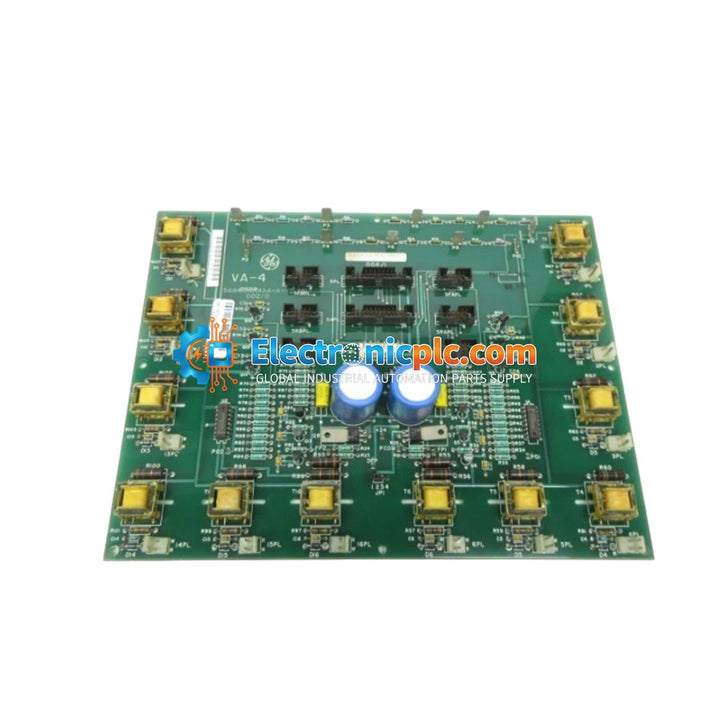

GE Fanuc 531X123PCHACG1 Power Connection Board

GE Fanuc 531X123PCHACG1 Power Connection Board

Description

The 531X123PCHACG1 is a specialized Power Connection Board manufactured by GE Fanuc as a critical renewal component for industrial drive systems. This board is engineered to facilitate reliable power distribution...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 531X123PCHACG1
Proveedora: GE FANUC
tipo: Power Connection Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The 531X123PCHACG1 is a specialized Power Connection Board manufactured by GE Fanuc as a critical renewal component for industrial drive systems. This board is engineered to facilitate reliable power distribution within the internal architecture of high-voltage drive units. Designed for heavy-duty industrial environments, including steel mills, mining operations, and paper processing facilities, this component ensures electrical stability and system integrity. Replacing legacy or failing boards with this unit helps mitigate the risk of drive failure and supports consistent operational throughput.

Features

  • Designed for high-voltage power path management within GE 531X series drive systems.
  • Provides secure mounting and optimized trace routing to maintain dielectric strength.
  • Engineered to prevent arcing in high-temperature drive cabinet environments.
  • Compatible as a renewal part for various legacy power connection board configurations.
  • Standard industrial PCB coating for enhanced durability in harsh environments.

Applications

This power connection board is primarily utilized in large-scale industrial drive systems where high-current and high-voltage stability are required. It is commonly found in motor control centers, heavy-duty processing machinery, and automated industrial manufacturing lines.

Technical Specifications

Model 531X123PCHACG1
Brand GE Fanuc
Series 531X
Board Type Power Connection Board
Mounting Type Internal Drive Chassis
Operating Temperature 0 to 55 deg C
Storage Temperature -40 to 70 deg C

Installation Guidelines

  • Safety First: Always perform a complete lockout-tagout (LOTO) procedure on the drive system before attempting installation or removal.
  • Tooling: Use only verified, insulated hand tools when working on high-potential circuits.
  • Grounding: Verify system grounding integrity before energizing the board to protect control hardware and personnel.
  • Handling: Handle the PCB by its edges to prevent electrostatic discharge (ESD) damage; ensure the mounting area is clean and free of debris.
  • Verification: Inspect all terminal connections for tightness and proper seating before restoring power to the drive cabinet.

FAQ

Is this board compatible with all 531X series drives?

The 531X123PCHACG1 is designed as a renewal part for specific 531X series power connection board variations. Please verify your original part number and drive system documentation to ensure full compatibility.

What precautions should be taken during installation?

Because this board is part of a high-voltage circuit, strict adherence to electrical safety protocols, including LOTO and proper grounding, is mandatory. Ensure the drive is fully de-energized and capacitors have been discharged according to the manufacturer's manual.
