Description

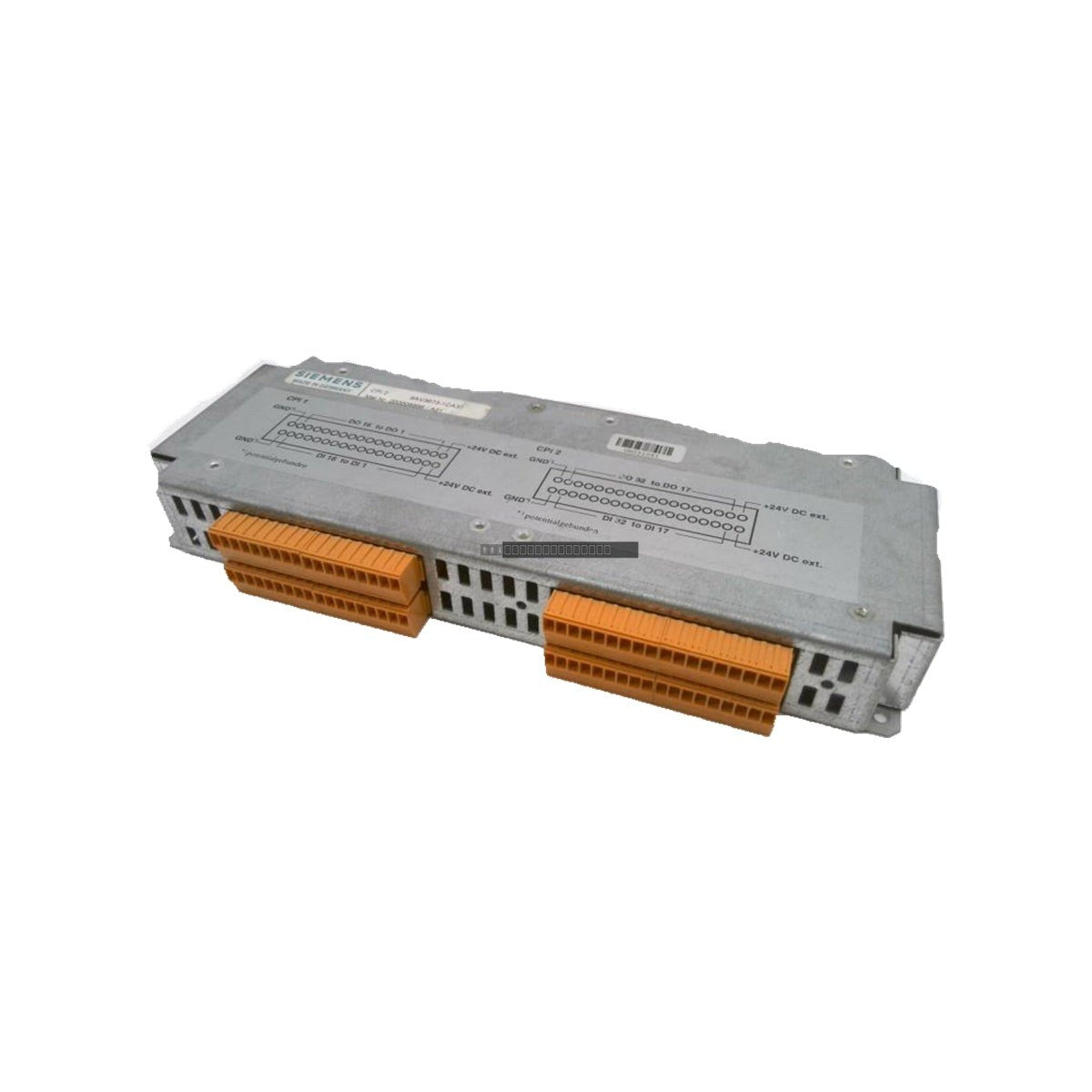

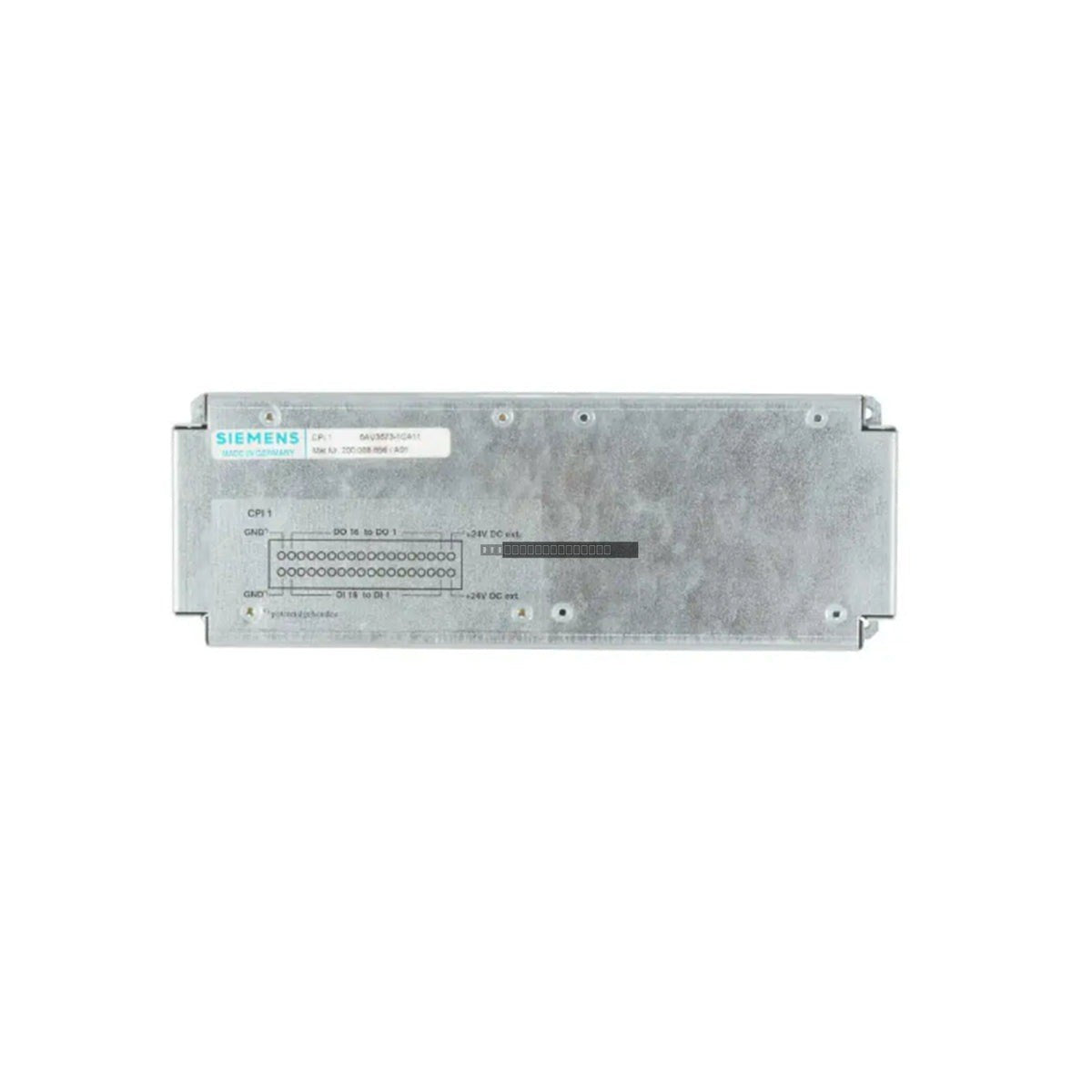

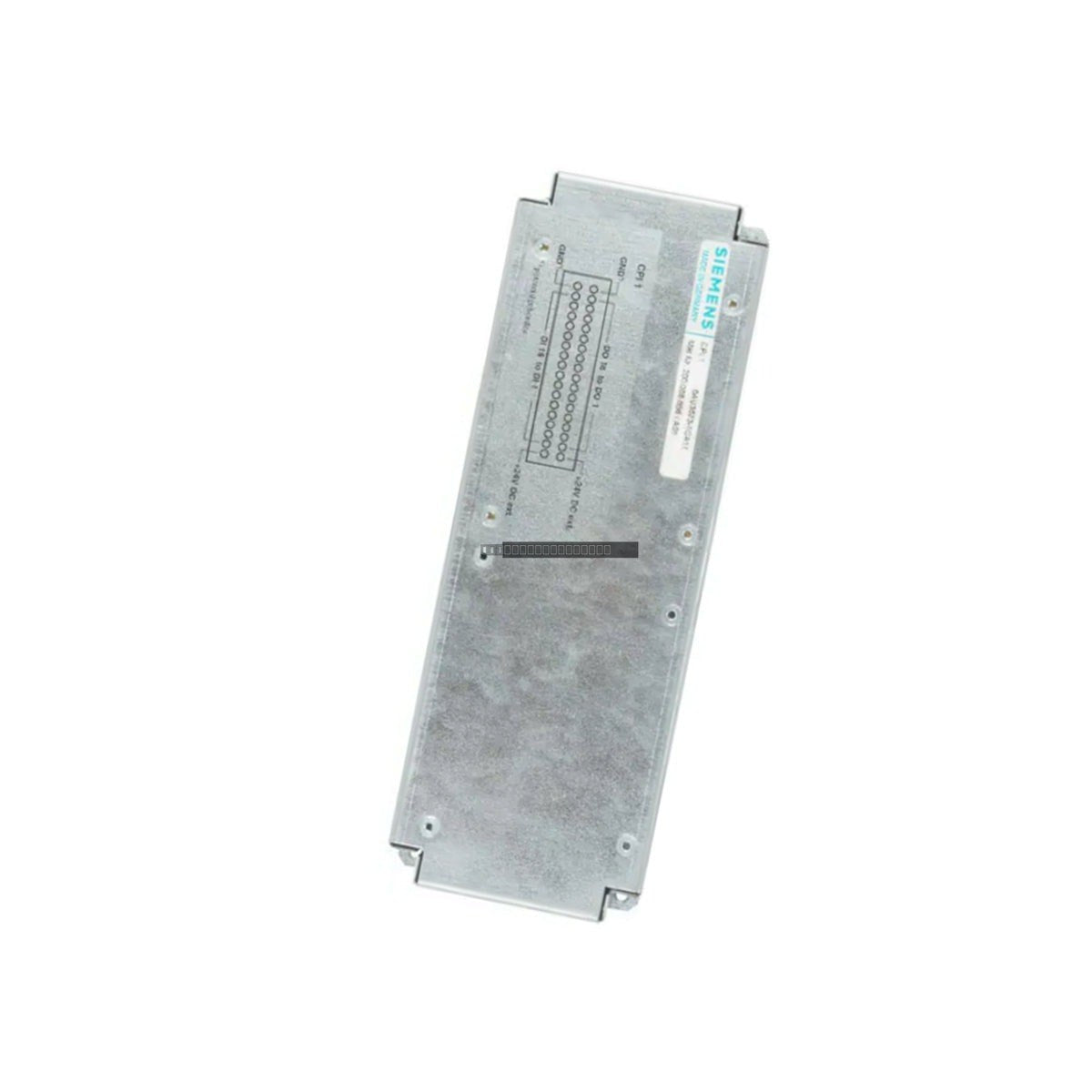

The Siemens 6AV3673-1CA11 is a Direct Control Key Module designed for seamless integration with Siemens Simatic S5 HMI platforms, including the OP37, OP47, and TP27-10/37 series. This module enhances operator interface responsiveness by mapping physical keystrokes directly to the controller's cyclic image table, effectively bypassing standard serial bus latency. It is ideal for time-critical industrial applications such as mining, chemical processing, and automated manufacturing, where immediate operator feedback and control execution are essential for system safety and performance.

Features

• Direct mapping of 16 discrete outputs to the processor cyclic image table.
• Optical isolation for all channels to protect against industrial voltage transients.
• Integrated diagnostic monitoring for link continuity and power status.
• Designed for high-speed synchronization between physical operator inputs and the controller backplane.
• Robust construction suitable for demanding industrial environments.

Applications

This key module is primarily utilized in high-throughput automation environments where rapid, reliable operator input is required. Common applications include:

• Chemical separation and processing units.
• Mining and aggregate crushing control systems.
• Automated glass fabrication and assembly lines.
• Complex HMI operator stations requiring dedicated physical control inputs.

Technical Specifications

Installation Guidelines

• Power Isolation: Always disconnect the 24 VDC power supply from the HMI terminal before installing or removing the module to prevent electrical damage to the motherboard or optical array.
• Ribbon Cable Handling: Ensure proper alignment of the multi-pin ribbon cable with the module header. Apply uniform pressure until the retention brackets are fully engaged to prevent intermittent connections caused by machine vibration.
• Grounding: Connect the HMI enclosure chassis to the plant common earth bus to mitigate static discharge and EMI, which could otherwise interfere with signal integrity on the output channels.

FAQ

Is this module compatible with all Simatic S5 HMI panels?
No, it is specifically engineered for the OP37, OP47, and TP27 series. Please verify your specific terminal model before installation.

Does this module require external power?
Yes, the module operates on a 24 VDC nominal supply. Ensure the power source is stable and properly isolated as per the installation guidelines.
