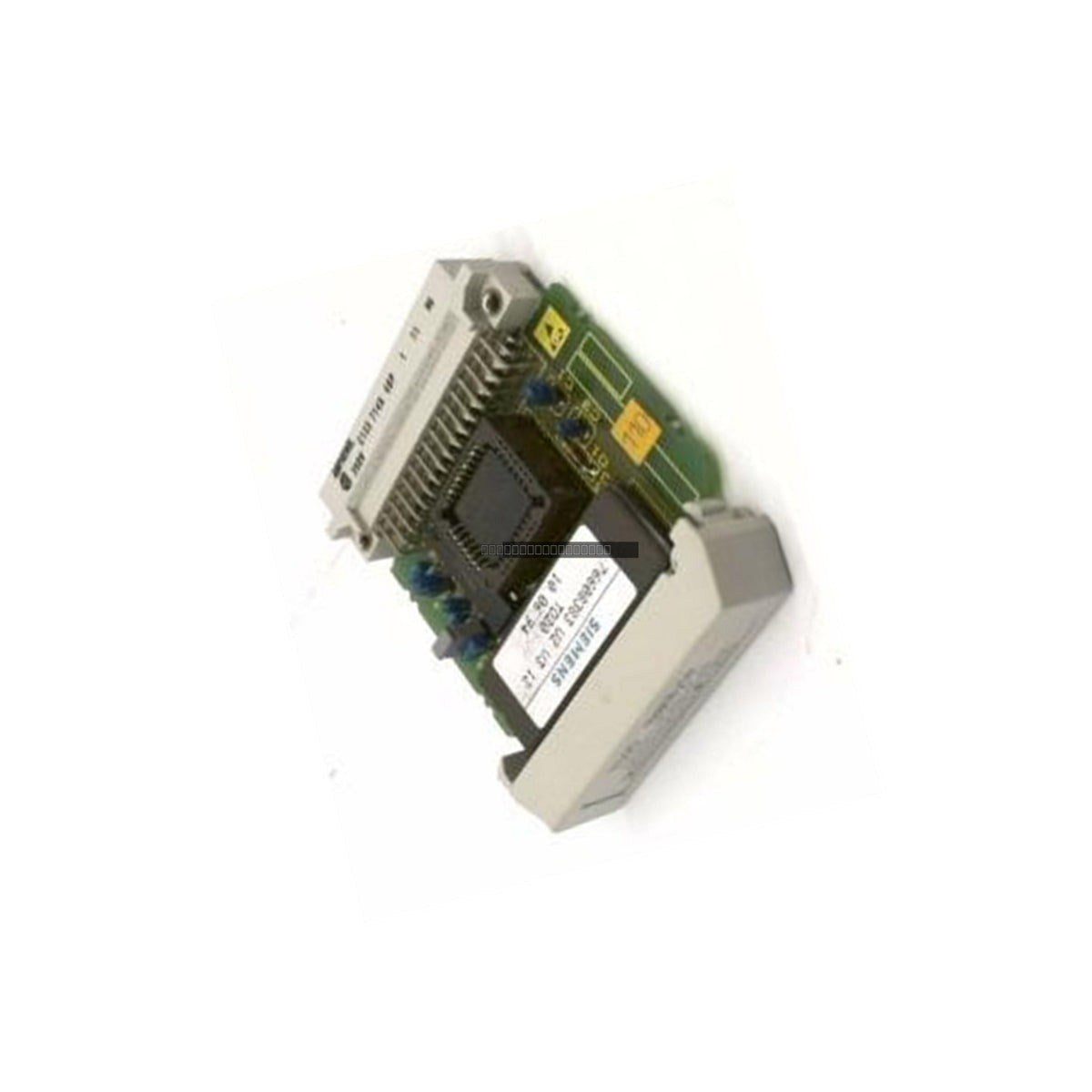

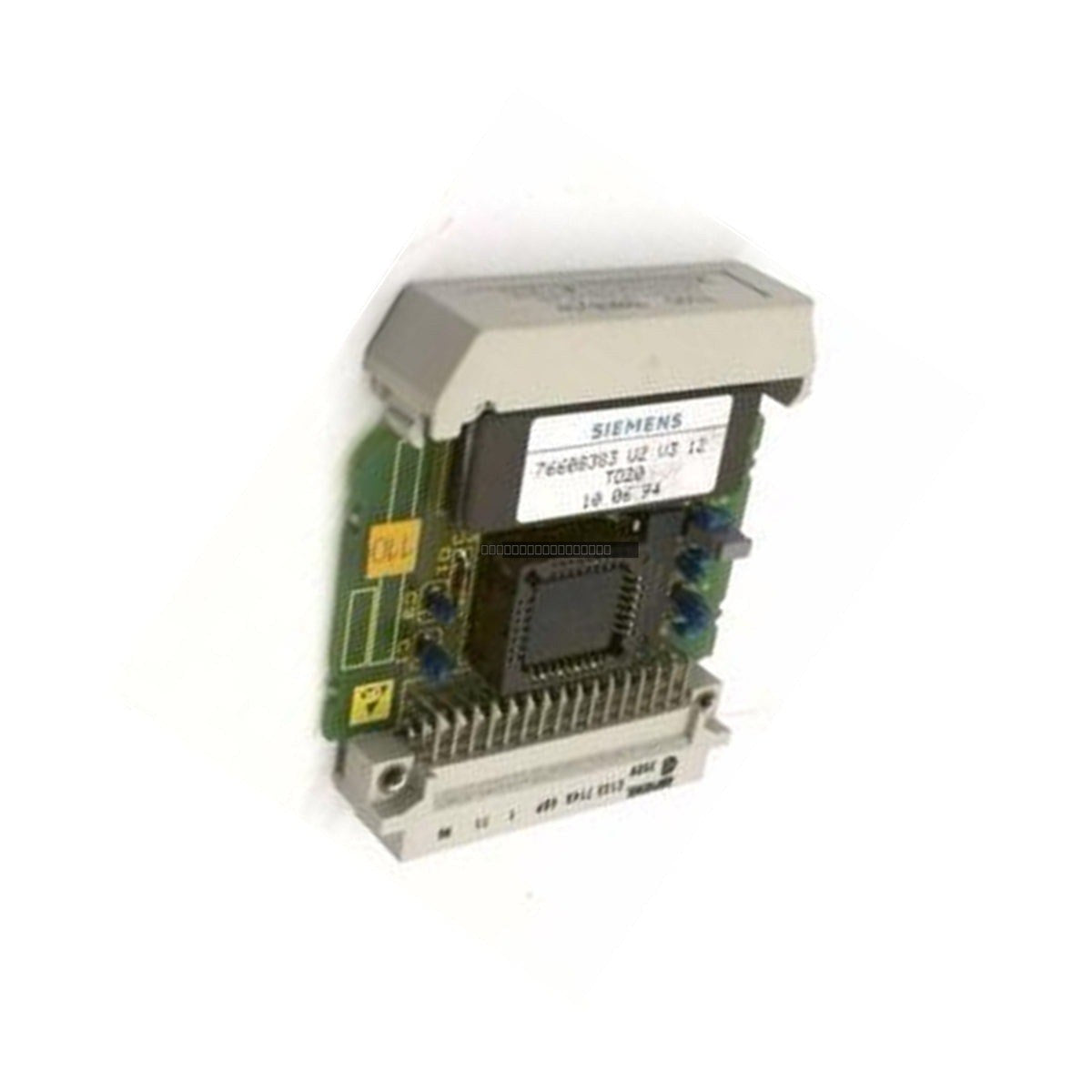

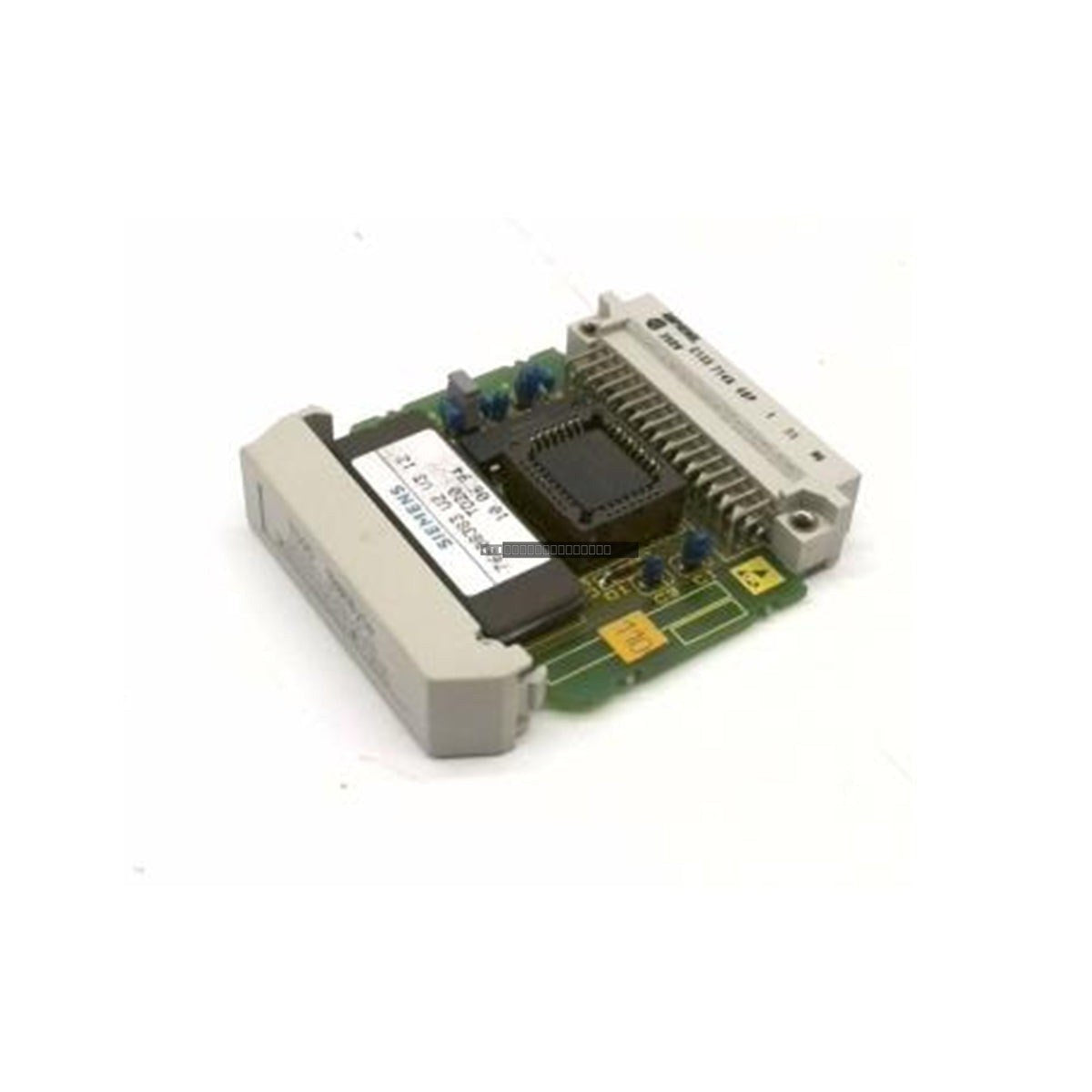

Siemens 6AV3971-1CA02-0CA0 Simatic TD20 Memory Submodule

Siemens 6AV3971-1CA02-0CA0 Simatic TD20 Memory Submodule

Description

The Siemens 6AV3971-1CA02-0CA0 is a specialized 128 Kbyte memory submodule engineered for the legacy Simatic TD20 operator interface terminal. This module features pre-installed firmware configured for the AS511 communication protocol,...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 6AV3971-1CA02-0CA0
Proveedora: Siemens
tipo: Memory Submodule
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6AV3971-1CA02-0CA0 is a specialized 128 Kbyte memory submodule engineered for the legacy Simatic TD20 operator interface terminal. This module features pre-installed firmware configured for the AS511 communication protocol, enabling reliable data exchange between the TD20 text display and the host programmable logic controller. As a critical component for legacy systems, it ensures the persistence of screen text configurations, system parameters, and variable mappings. Since the official discontinuation of this product in 2005, this module remains an essential spare for maintaining the operational continuity of legacy HMI installations in industrial environments.

Features

  • Non-volatile EEPROM storage architecture for reliable data retention without battery backup.
  • Factory-flashed firmware optimized for AS511 point-to-point communication.
  • Compact plug-in design utilizing a standard 48-pin header interface.
  • Direct power supply via the host terminal connection (5 VDC).
  • Designed specifically for compatibility with the Simatic TD20 series terminals.

Applications

This submodule is primarily utilized in legacy automation systems where TD20 terminals are deployed for local process monitoring. Typical applications include mining machinery control, power station HMI interfaces, and legacy manufacturing production lines requiring consistent operator prompt and alarm display functionality.

Technical Specifications

Model 6AV3971-1CA02-0CA0
Brand Siemens
Product Series Simatic TD20
Memory Capacity 128 Kbytes
Interface 48-Pin Header
Operating Temperature 0 to 50 deg C
Storage Temperature -20 to 70 deg C
Power Supply 5 VDC (via host)

Installation Guidelines

  • Ensure the TD20 terminal is completely powered down before attempting to insert or remove the memory submodule.
  • Handle the module by its edges to prevent electrostatic discharge (ESD) damage to the internal EEPROM components.
  • Align the 48-pin header carefully with the expansion slot on the TD20 terminal to avoid bending pins.
  • Verify that the module is fully seated in the slot to ensure reliable electrical contact.
  • Store in a dry, temperature-controlled environment when not in use to maintain long-term component integrity.

FAQ

Q: Is this memory module compatible with newer Siemens HMI panels?
A: No, this module is specifically designed for the legacy Simatic TD20 terminal and utilizes the AS511 protocol, which is not supported by modern Siemens HMI hardware.

Q: Does this module require a battery for data retention?
A: No, the module uses non-volatile EEPROM memory, which retains data even during extended power outages without the need for a battery.
