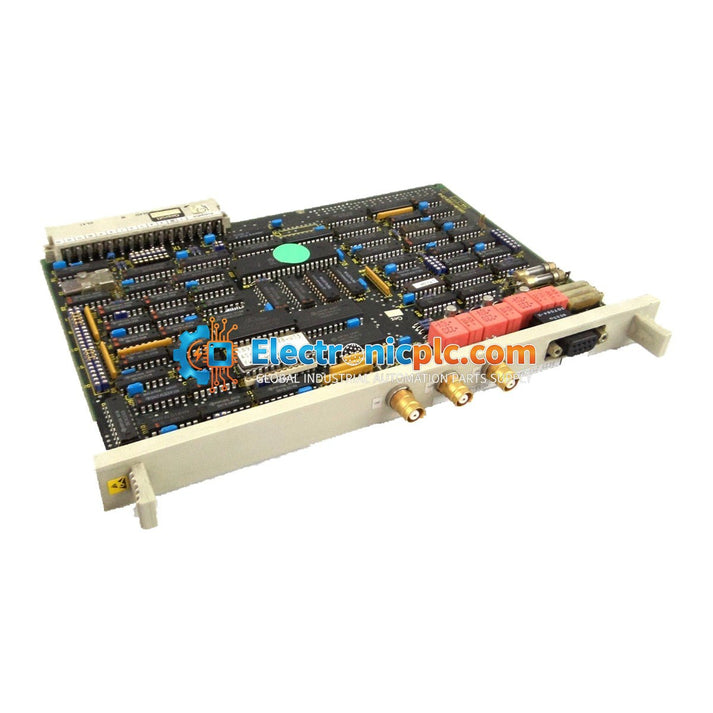

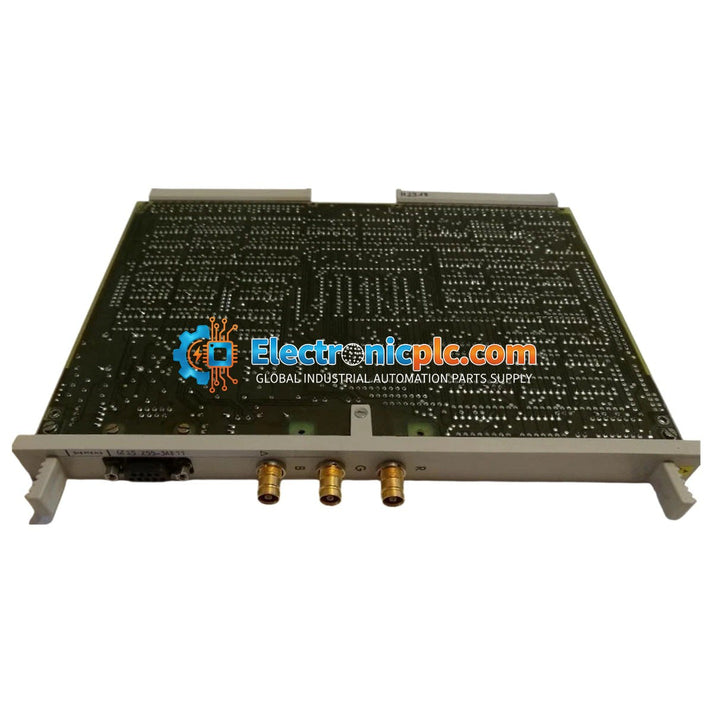

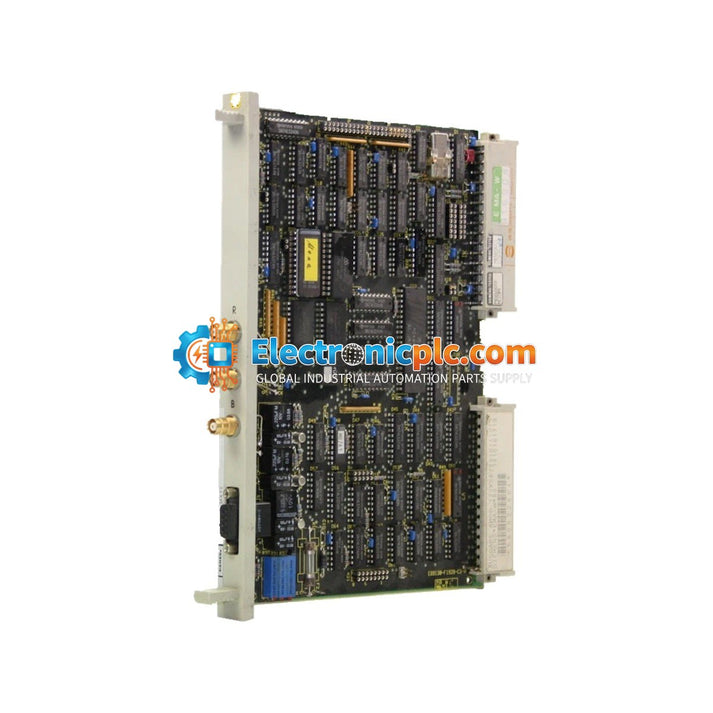

Siemens 6ES5255-3AA11 Simatic S5 Interface Module

Siemens 6ES5255-3AA11 Simatic S5 Interface Module

Description

The Siemens 6ES5255-3AA11 is an intelligent interface processor submodule belonging to the MONA IP255 series for Simatic S5 industrial controllers. This module is engineered to process specialized high-frequency signals and...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: 6ES5255-3AA11
Proveedora: Siemens
tipo: Interface Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6ES5255-3AA11 is an intelligent interface processor submodule belonging to the MONA IP255 series for Simatic S5 industrial controllers. This module is engineered to process specialized high-frequency signals and coordinate field data communication with the host central processing unit. It is widely utilized in automation networks within continuous production sectors, such as chemical processing, thermal power generation, and mining operations, to ensure stable signal telemetry and prevent data loss.

Features

  • Designed for integration with Simatic S5 automation systems.
  • High-frequency signal processing capabilities with impedance matching.
  • Robust metal housing for industrial rack-mount environments.
  • Standard backplane bus interface for power and data synchronization.
  • Reliable serial protocol routing and diagnostic support.

Applications

This module is typically deployed in industrial environments requiring precise high-frequency signal acquisition and stable communication between field devices and the S5 controller. Common applications include data telemetry in power plants, process monitoring in chemical facilities, and signal conditioning in heavy industrial automation.

Technical Specifications

Model 6ES5255-3AA11
Brand Siemens
Series Simatic S5 / MONA IP255
Inputs 3 x Coaxial
Communication Port 1 x 9-Pin Male Sub-D
Operating Temperature 0 to 55 deg C

Installation Guidelines

  • Ensure the S5 rack is powered down before inserting or removing the module to prevent electrical damage.
  • Slide the module into the designated S5 rack slot, ensuring the backplane connector is fully seated.
  • Use shielded coaxial cabling for the three signal inputs to maintain signal integrity and minimize EMI.
  • Ensure the 9-pin Sub-D connector is securely fastened and that the cable routing is kept clear of high-voltage lines.
  • Verify that the module is properly grounded through the rack chassis to maintain noise immunity.

FAQ

What is the primary function of the 6ES5255-3AA11?

This module acts as an intelligent interface processor for the Simatic S5 system, specifically designed to handle high-frequency signal processing and serial data communication between field instruments and the PLC.

Is this module compatible with other Simatic series?

The 6ES5255-3AA11 is specifically designed for the Simatic S5 MONA IP255 architecture and is not directly compatible with S7 or later generation Siemens controller platforms.
