Description

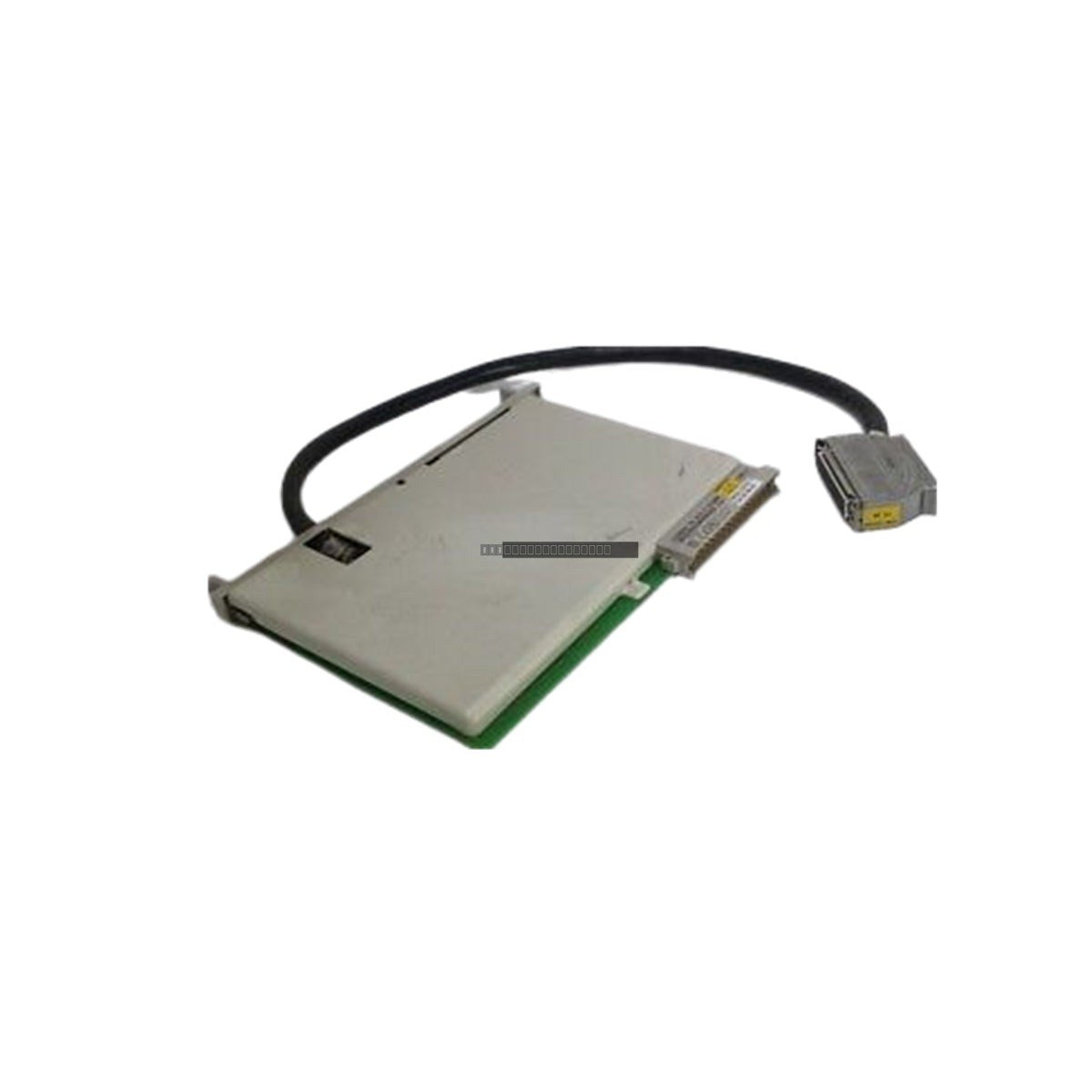

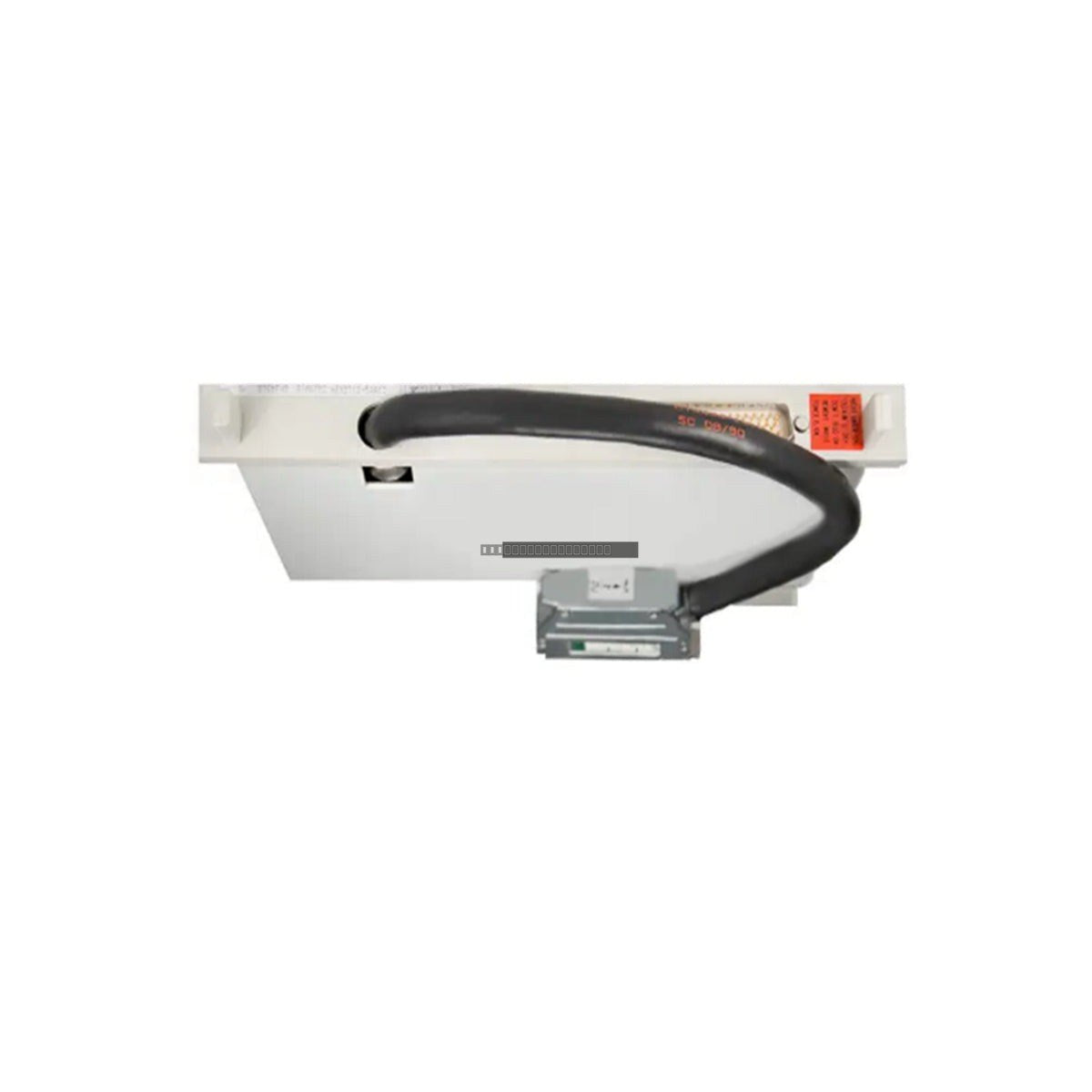

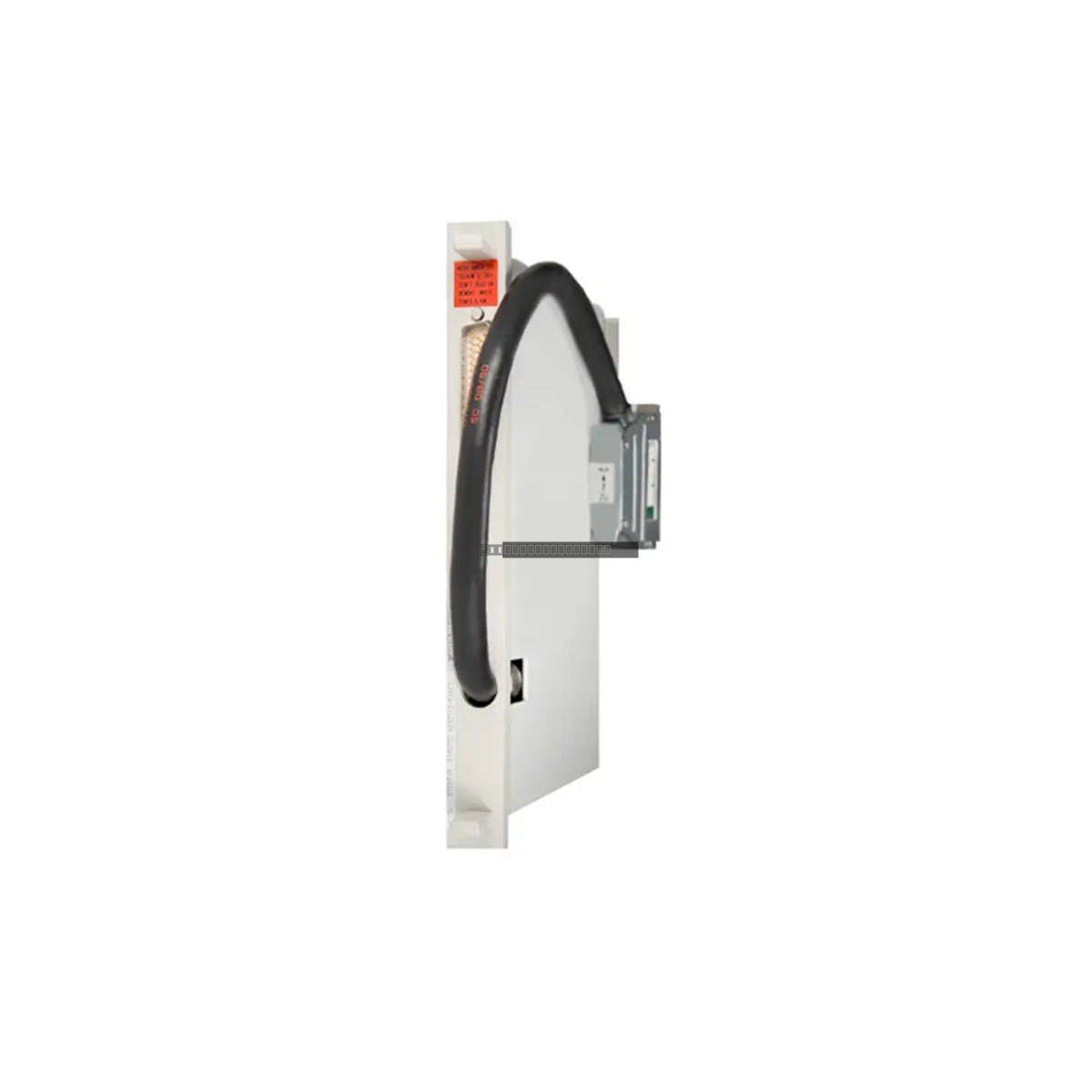

The Siemens Simatic S5 6ES5312-5AA13, also known as the IM 312, is a specialized interface module designed for integration within the Simatic S5-135 and S5-155 programmable controller families. This module acts as the primary communication link between the central processing unit and remote peripheral expansion racks. By ensuring high-speed, synchronized data transmission, it allows for the expansion of I/O capacity while maintaining the strict timing requirements necessary for complex industrial control loops.

Features

• Designed for seamless integration with S5-135 and S5-155 backplane bus architectures.
• Includes a factory-integrated 0.5-meter shielded cable to ensure signal integrity and minimize EMI impact.
• Facilitates reliable data exchange between the central controller and distributed I/O units.
• Supports robust handshaking and parity checking to ensure accurate process image mapping.
• Engineered for high-availability environments, supporting continuous 24/7 operation.

Applications

The IM 312 interface module is widely utilized in legacy automation systems where distributed I/O expansion is required. Typical applications include heavy metal processing lines, chemical synthesis facilities, and large-scale material handling systems where maintaining low-latency communication between rack segments is critical for process stability.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the module from the backplane.
• Handle the module by its housing to avoid electrostatic discharge (ESD) damage to internal components.
• Route the integrated 0.5m shielded cable away from high-voltage power lines or high-frequency noise sources to prevent signal interference.
• Verify that the module is firmly seated in the correct rack slot to ensure proper backplane bus contact.
• Maintain adequate ventilation around the expansion rack to ensure operating temperatures remain within the specified 0 to 60 degC range.

FAQ

Is this module compatible with S5-115U systems?

No, the 6ES5312-5AA13 is specifically designed for the S5-135 and S5-155 controller families. It is not electrically or mechanically compatible with the S5-115U series.

Can the integrated cable be extended?

The module is supplied with a fixed 0.5-meter cable. Modifying or extending this cable is not recommended as it may degrade signal integrity and violate the electrical specifications of the interface.
