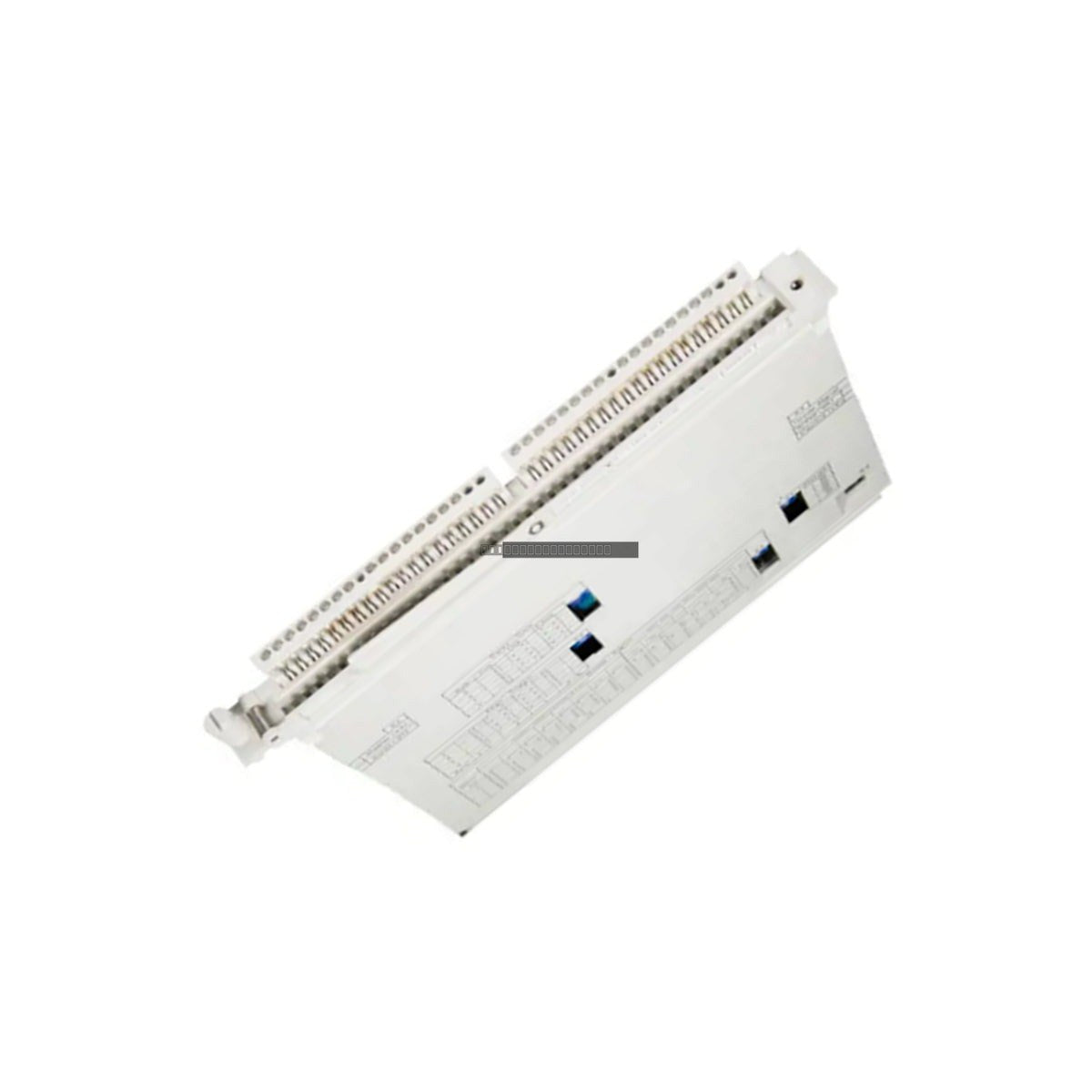

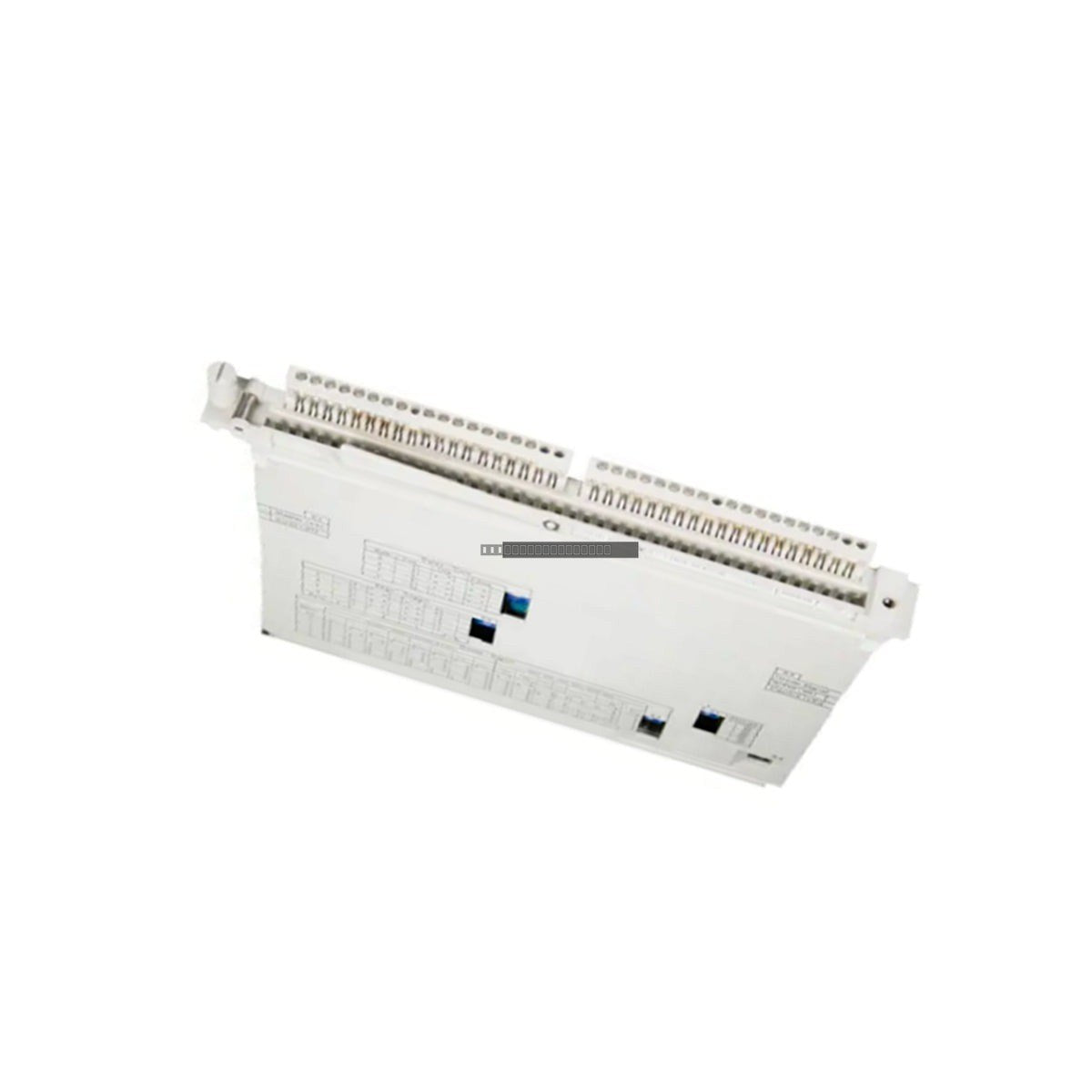

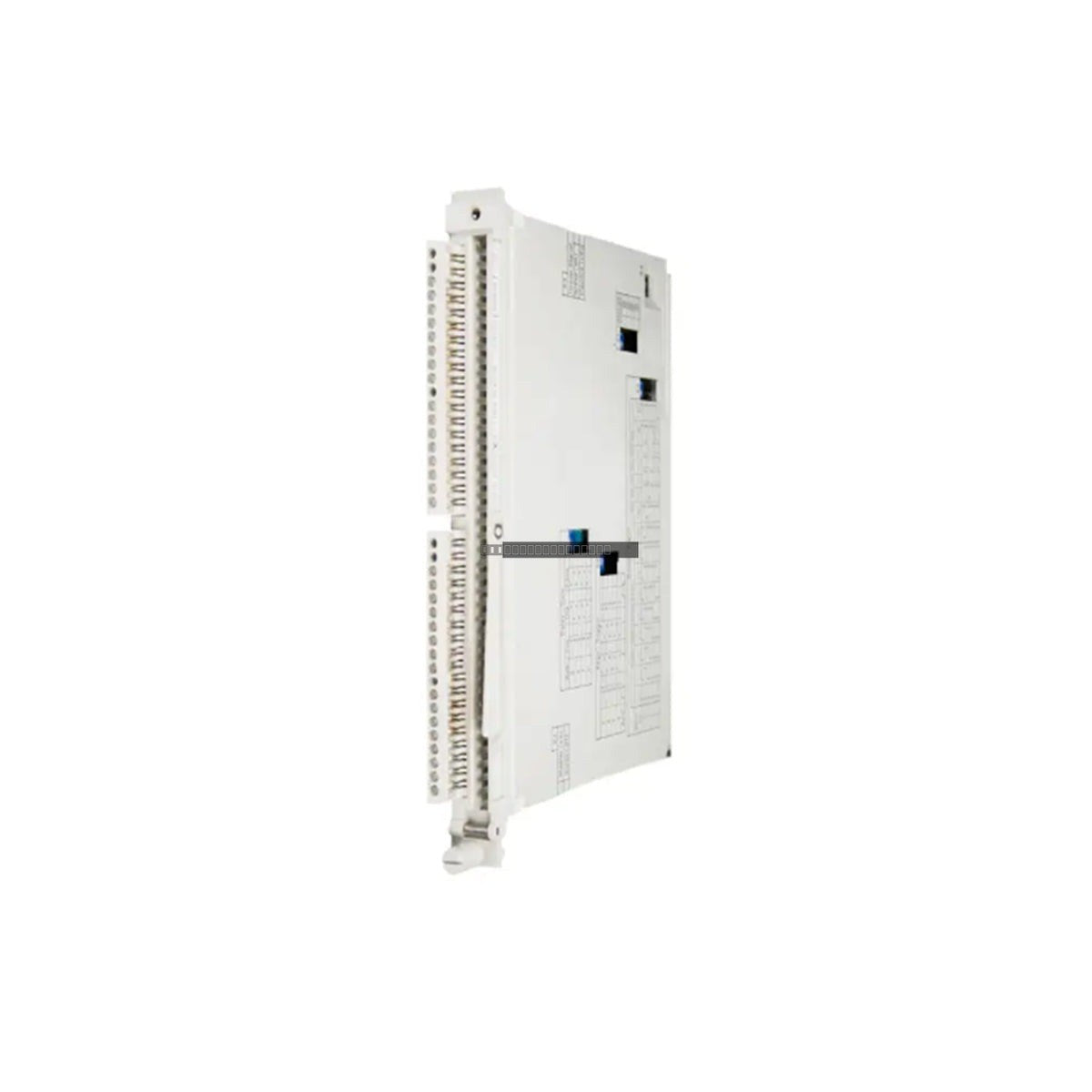

The Siemens 6ES5432-4UA11 is a robust digital input module designed for integration within the Simatic S5 PLC product family. This unit provides 32 galvanically isolated input channels designed to interface with 24 VDC field signals, such as limit switches, proximity sensors, and operator control devices. Engineered for reliability in demanding industrial environments, the module incorporates optical isolation to protect the internal backplane logic from electrical noise, transient surges, and potential ground loops commonly found in heavy-duty factory automation.

Features

• 32 floating (galvanically isolated) input channels for flexible field wiring.
• Integrated group error signal monitoring for enhanced diagnostic capability.
• Optical isolation between field-side signals and the PLC backplane to prevent crosstalk and electrical interference.
• Hardware-level input filtering to mitigate contact bounce and high-frequency signal noise.
• Compatible with standard Simatic S5 rack-based architectures.

Applications

This module is suitable for a wide range of industrial sensing tasks, including process monitoring in petrochemical plants, automated material handling systems, and large-scale manufacturing lines requiring high-density input capacity. The galvanic isolation makes it particularly effective in systems where field wiring spans long distances or operates in environments with significant electromagnetic interference.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that field wiring is properly shielded and grounded to maintain the integrity of the galvanic isolation.
• Maintain adequate spacing within the cabinet to allow for proper airflow and cooling, as the module is rated for operation up to 60 degC.
• Check that input voltage levels remain within the specified 24 VDC range to avoid hardware degradation.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal components.

FAQ

Is the 6ES5432-4UA11 compatible with all Simatic S5 racks?
This module is designed for the standard Simatic S5 system. Please ensure your specific backplane configuration and power supply capacity support the addition of this 32-channel module.

What is the purpose of the group error signal?
The group error signal provides a collective status bit to the CPU, allowing for faster fault detection and simplified diagnostic programming when a channel error or wire break is detected.
