Description

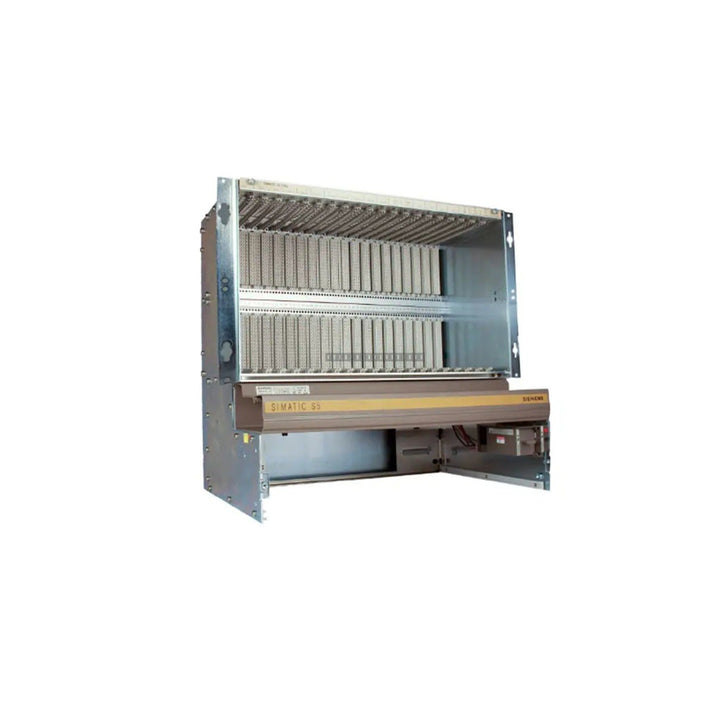

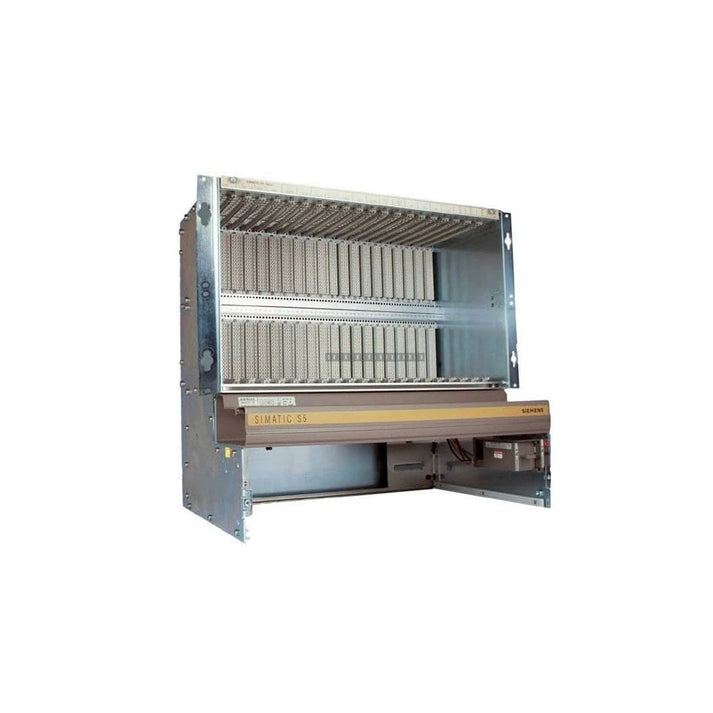

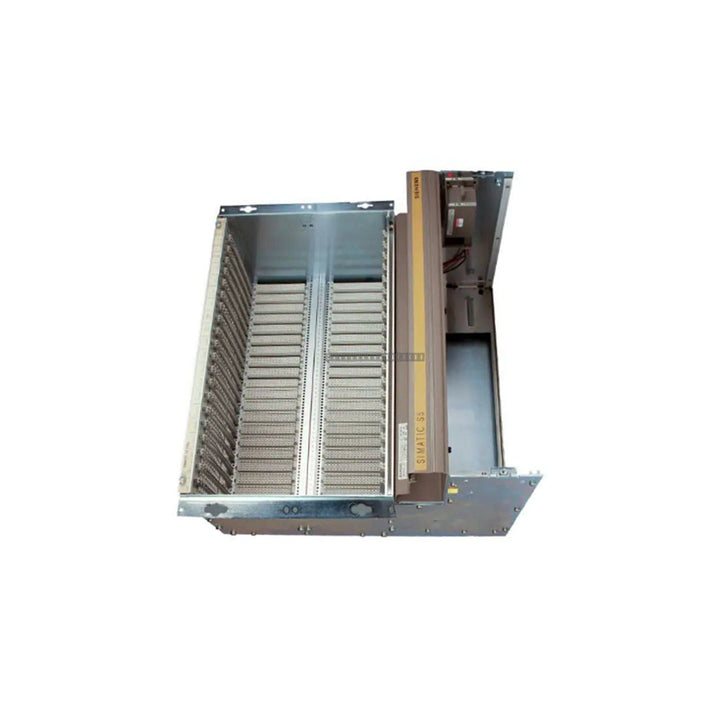

The Siemens 6ES5155-3UA21 is a 21-slot rack unit designed for the Simatic S5-135/155 automation series. This centralized housing system serves as the structural and electrical backbone for industrial controllers, providing a stable, modular environment for CPU, I/O, and communication modules. It is engineered for large-scale applications in heavy industry sectors, including steel production, automotive assembly, and chemical refining. The robust mechanical design minimizes vibrational stress on internal components, while the expansive slot configuration facilitates complex, multi-processor automation tasks and simplifies maintenance through modular component accessibility.

Features

• 21-slot capacity for high-density module integration
• Designed for Simatic S5-135/155 controller architecture
• Robust chassis for industrial environments
• Optimized for thermal dissipation within control cabinets
• Integrated backplane bus for 5 VDC logic and 24 VDC peripheral power distribution
• Supports redundant and distributed control strategies

Applications

This rack unit is intended for use in large-scale industrial automation systems requiring high-density I/O and multi-processor configurations. It is a critical component for maintaining legacy Simatic S5 control infrastructures in sectors such as chemical processing, automotive manufacturing, and heavy metal production.

Technical Specifications

Installation Guidelines

• Ensure the rack is mounted in a clean, dry environment within an industrial control cabinet.
• Maintain adequate clearance around the unit to allow for proper airflow and thermal dissipation.
• Verify that the power supply is disconnected before inserting or removing any modules from the rack.
• Ensure all modules are fully seated and secured to the backplane to prevent intermittent connections.
• Follow standard ESD (Electrostatic Discharge) precautions when handling modules to prevent damage to sensitive electronic components.
• Route signal and power cables separately to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the 6ES5155-3UA21 rack?

The rack serves as the physical and electrical mounting chassis for Siemens Simatic S5-135/155 series modules, providing the necessary backplane communication and power distribution for the controller system.

Is this rack compatible with other S5 series?

This unit is specifically designed for the S5-135/155 series. Please verify your specific controller model requirements before installation.

What is the maximum current capacity of the backplane?

The backplane is rated for a maximum current of 40 A, supporting the power requirements of high-density module configurations.
