Description

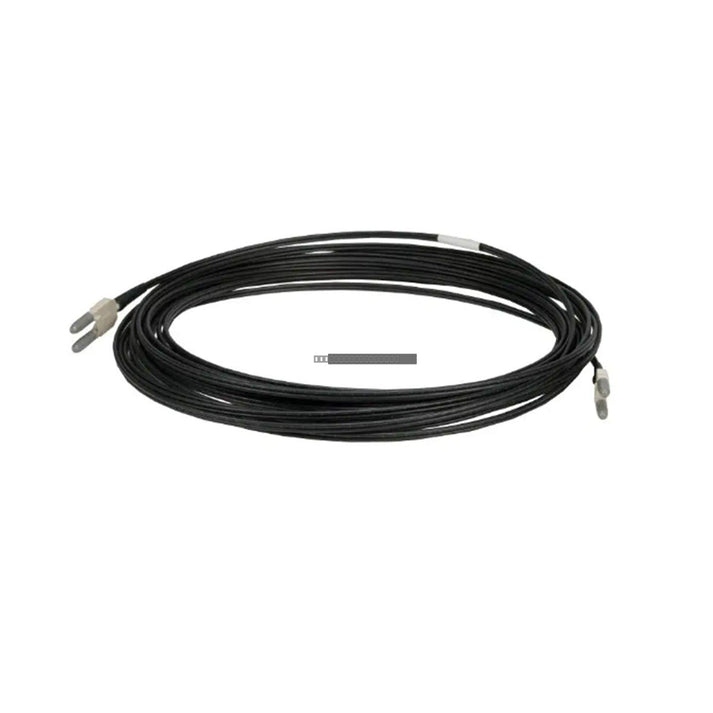

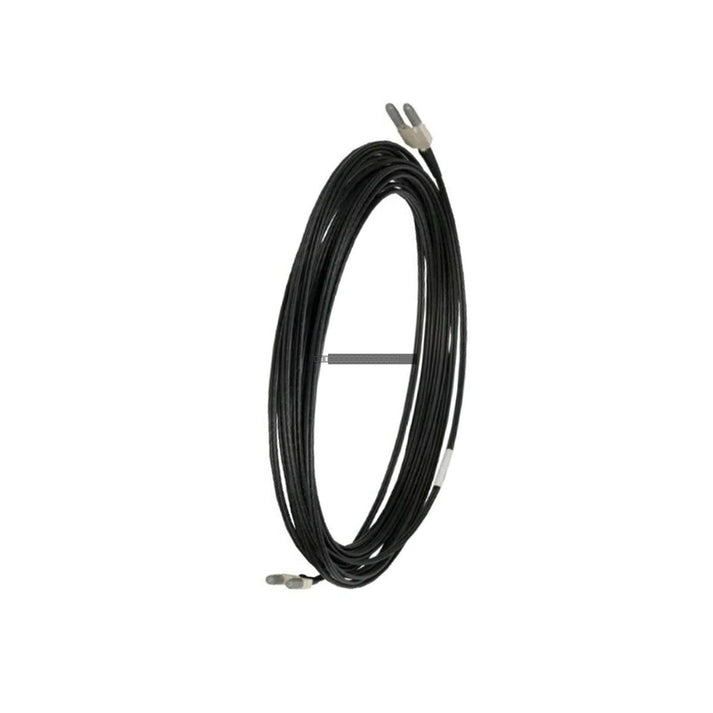

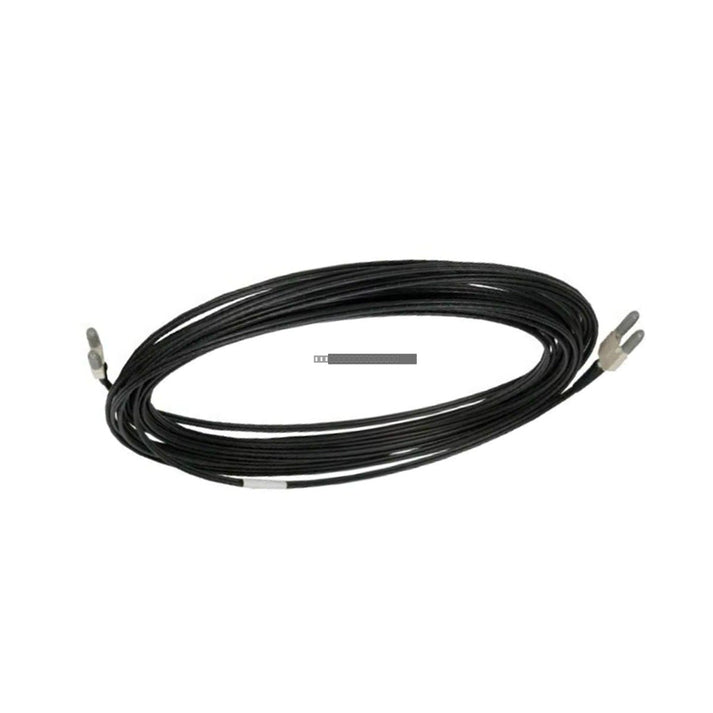

The Siemens 6ES5733-8CB00 is a dedicated interface cable engineered for connecting Simatic S5 series programmable logic controllers to compatible programming devices. This 10-meter cable assembly is essential for performing system diagnostics, configuration updates, and routine maintenance on legacy S5 automation hardware. By providing a stable, high-integrity communication path, this cable helps technicians perform critical tasks while minimizing the risk of data corruption or intermittent link failures in demanding industrial settings.

Features

• Designed specifically for Simatic S5 processor programming ports.
• Extended 10-meter (32.8 ft) length for flexible positioning of programming equipment.
• Integrated high-density shielding to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI).
• Rugged connector housings featuring retention screws for secure, vibration-resistant mechanical coupling.
• Engineered for reliability in high-noise industrial environments such as manufacturing and processing plants.

Applications

This interface cable is widely used in legacy control system maintenance, including automotive assembly, chemical processing, and material handling facilities where Siemens S5 PLCs remain in operation. It is an indispensable tool for field engineers requiring safe access to controller ports while maintaining distance from high-voltage switchgear and motor control centers.

Technical Specifications

Installation Guidelines

• Ensure the PLC is in a safe state before connecting or disconnecting the interface cable from the programming port.
• Route the cable away from high-voltage power lines and heavy-current cables to prevent induced noise.
• Secure the connector using the integrated retention screws to prevent accidental disconnection caused by machine vibration.
• Avoid sharp bends or excessive tension on the cable to maintain the integrity of the internal shielding and conductors.
• Store the cable in a clean, dry environment when not in use to prevent oxidation of the connector pins.

FAQ

Is this cable compatible with modern TIA Portal programming?
No, the 6ES5733-8CB00 is specifically designed for the legacy Simatic S5 family and requires appropriate S5-compatible programming software and hardware interfaces.

Can the cable be used in high-temperature environments?
The cable is rated for an operating temperature range of 0 to 60 deg C. Ensure the installation area does not exceed these limits to prevent insulation degradation.
