Description

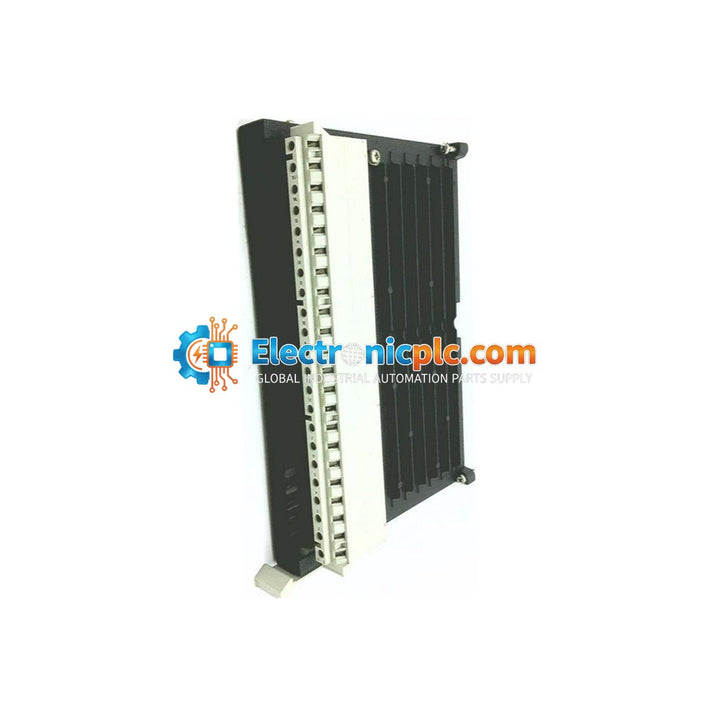

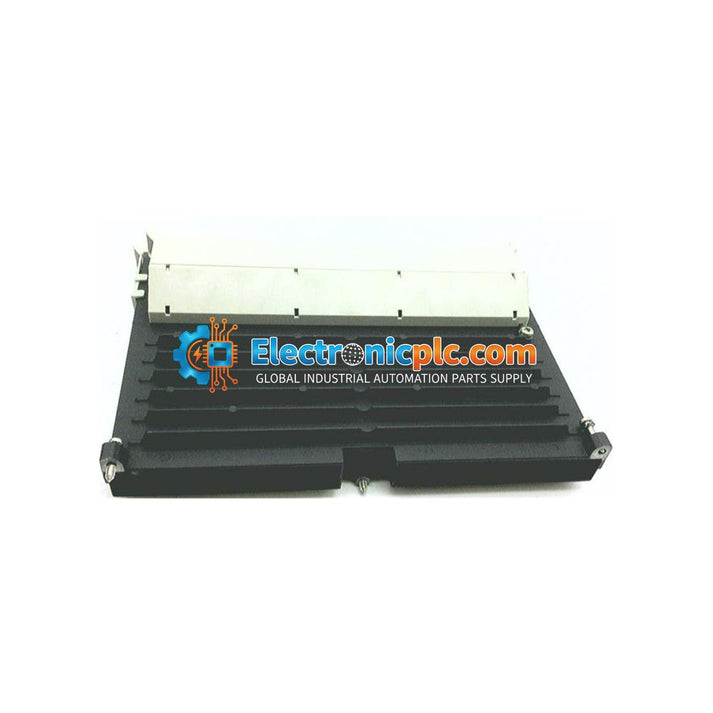

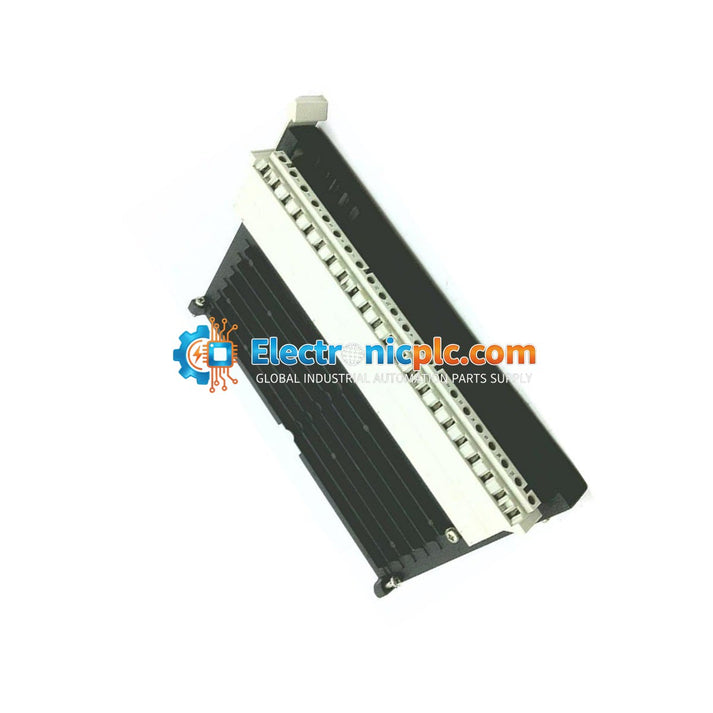

The Siemens 6ES5741-0AB21 is a robust PLC module holder designed for the legacy Simatic S5 automation architecture. This mechanical and electrical interfacing rack provides secure structural mounting and backplane connectivity for critical I/O and processing modules. It is engineered for demanding industrial environments, ensuring consistent signal routing in continuous-process applications such as automotive assembly, chemical processing, and metal smelting. By maintaining connection integrity under thermal and mechanical stress, this component helps prevent intermittent backplane communication faults and reduces unscheduled system downtime.

Features

• Ruggedized mechanical chassis designed for secure alignment and support of Simatic S5 modules.
• Gold-plated backplane connector pins to minimize contact resistance and prevent oxidation.
• Passive trace routing design to sustain high-speed parallel bus communication without signal degradation.
• Mechanical locking mechanism that distributes insertion forces evenly to protect pin infrastructure.
• Designed for high-vibration and electrically noisy industrial environments.

Applications

This module holder is intended for use in legacy Simatic S5 control systems. It is suitable for industrial automation environments requiring reliable backplane connectivity for I/O modules, including heavy manufacturing, chemical processing, and power distribution control loops.

Technical Specifications

Installation Guidelines

• Ensure the mounting surface is rigid and free from excessive vibration to maintain long-term backplane integrity.
• Power down the entire PLC rack assembly before inserting or removing any modules from the holder.
• Handle with care to avoid bending or damaging the gold-plated connector pins.
• Ensure proper alignment of modules within the holder slots before engaging the mechanical locking mechanism.
• Maintain adequate clearance around the unit to allow for natural convection cooling.
• Verify that the environment is within the specified temperature and humidity ranges to prevent oxidation and signal degradation.

FAQ

Is this module holder compatible with all Simatic S5 modules?

The 6ES5741-0AB21 is designed specifically for the Simatic S5 series. Please verify your specific module dimensions and pin configurations against the S5 system documentation to ensure compatibility.

Does this holder contain any active electronic components?

No, this is a passive mechanical and electrical interface rack. It facilitates communication between modules via internal trace routing and does not require external power or configuration.
