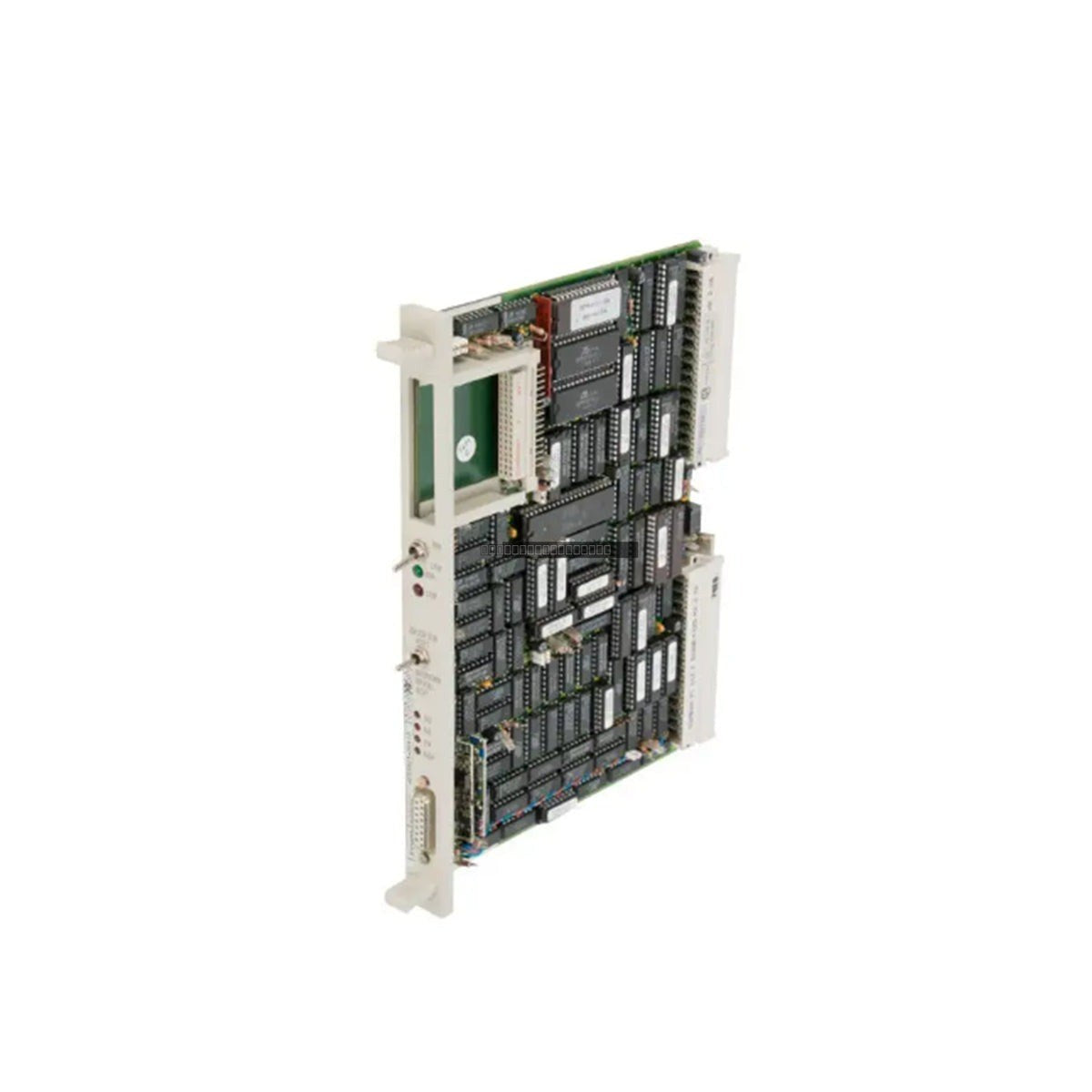

Siemens 6ES5921-3UA12 SIMATIC S5 CPU Module

Siemens 6ES5921-3UA12 SIMATIC S5 CPU Module

Description

The Siemens 6ES5921-3UA12 is a central processing unit designed for the legacy SIMATIC S5 programmable logic controller (PLC) platform. This module serves as the primary logic engine for industrial automation...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 6ES5921-3UA12
Proveedora: Siemens
tipo: PLC CPU Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6ES5921-3UA12 is a central processing unit designed for the legacy SIMATIC S5 programmable logic controller (PLC) platform. This module serves as the primary logic engine for industrial automation systems, managing complex discrete and analog control sequences. It is engineered to provide deterministic scan times and reliable execution of control logic in demanding environments, including heavy manufacturing, petrochemical processing, and metal smelting facilities.

Features

  • Memory Configuration: Equipped with 64 KB of internal RAM for program instruction execution and a dedicated 7.4 KB of RAM specifically for data block (DB) management.
  • Storage Expansion: Features an integrated interface slot compatible with EPROM 921 storage modules, facilitating firmware backup and non-volatile memory retention during power loss.
  • System Integration: Designed for seamless operation within the standard S5 backplane architecture, coordinating data exchange across connected digital and analog I/O modules.
  • Operational Stability: Built to maintain consistent performance under continuous load cycles, reducing the risk of system coordination errors.

Applications

This CPU module is suitable for legacy automation systems requiring reliable, cyclic logic control. It is commonly deployed in infrastructure and industrial utilities where S5-based control architectures remain in operation, providing the necessary processing power for process monitoring and machine sequence management.

Technical Specifications

Model 6ES5921-3UA12
Brand Siemens
Series SIMATIC S5
Program RAM 64 KB
Data Block RAM 7.4 KB
Operating Temperature 0 to 55 deg C
Power Supply Standard S5 Backplane Bus

Installation Guidelines

  • Power Down: Always disconnect power from the S5 rack before inserting or removing the CPU module to prevent electrical damage.
  • Handling: This module contains sensitive electronic components; use proper ESD (electrostatic discharge) protection during handling and installation.
  • Seating: Ensure the module is fully seated in the designated CPU slot of the S5 rack and that the locking mechanism is engaged to maintain backplane connectivity.
  • Environment: Install in a clean, dry environment within the specified temperature range to ensure long-term operational reliability.
  • Cable Routing: Keep communication and I/O signal cables separated from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

Is this module compatible with all S5 racks?

The 6ES5921-3UA12 is designed for the standard SIMATIC S5 architecture. Please verify your specific rack configuration and backplane requirements before installation.

Does this module require an external backup battery?

The module supports EPROM 921 storage for non-volatile memory. Ensure your system configuration is correctly set up for the specific memory type being used to prevent data loss during power cycles.
