Description

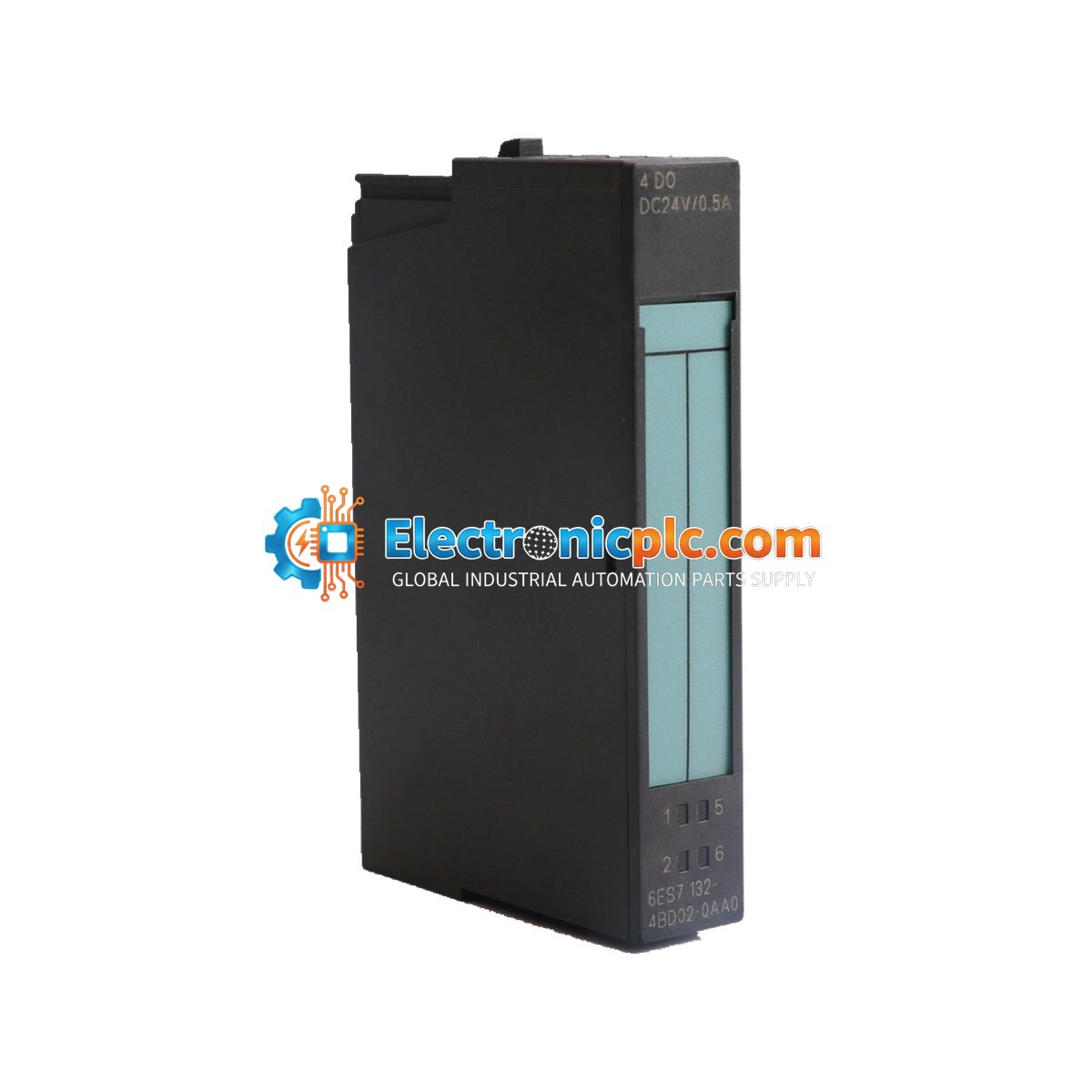

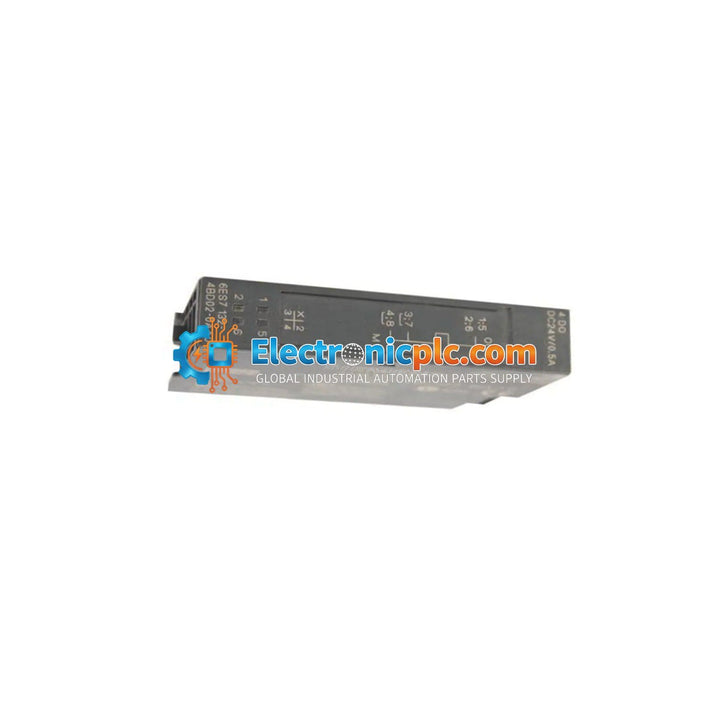

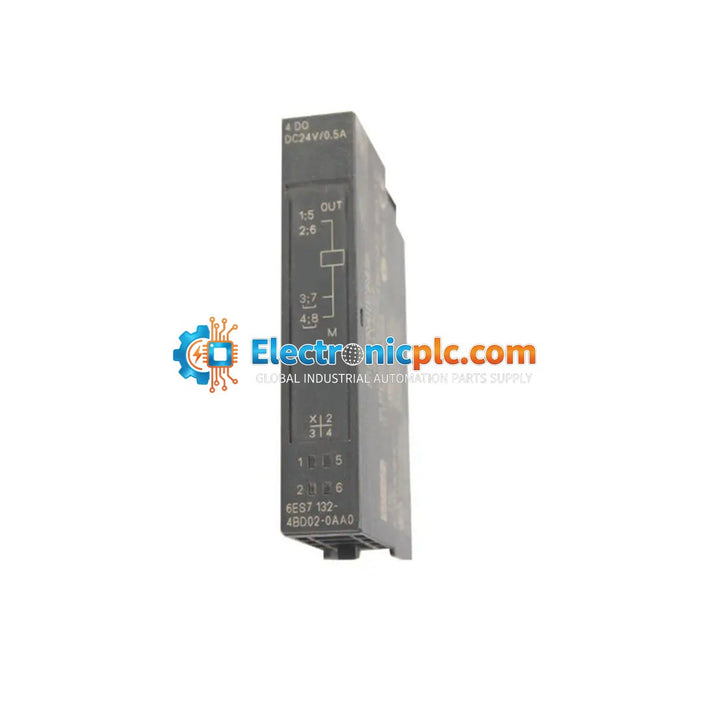

The Siemens 6ES7132-4BD02-0AA0 is a SIMATIC DP electronic module designed for the ET 200S distributed I/O system. This module provides 4 digital output channels, each rated for 24 V DC at 0.5 A. Engineered with a compact 15 mm width, it integrates seamlessly into ET 200S stations to provide reliable switching for industrial field devices such as solenoid valves, contactors, and indicator lamps.

Features

• 4-channel digital output module for ET 200S distributed I/O
• 24 VDC / 0.5 A per channel output configuration
• Integrated short-circuit protection with a typical response threshold of 1 to 1.5 A
• Inductive shutdown voltage limitation (L+ minus 55 V to 60 V) for spike suppression
• Supports resistive, inductive, and lamp loads
• Compact 15 mm module width for high-density I/O configurations

Applications

• Manufacturing and assembly lines requiring deterministic timing
• Automotive industry conveyors, robotics, and testing stations
• Energy and power distribution management systems
• Process control in chemical and water treatment facilities
• High-speed packaging, sorting, and palletizing systems

Technical Specifications

Installation Guidelines

• Ensure the ET 200S terminal module (Type A or B) is securely mounted on a standard 35 mm DIN rail (EN 60715) before inserting the electronic module.
• Power down the ET 200S station before inserting or removing any electronic modules to prevent electrical arcing or backplane bus damage.
• Align the electronic module with the terminal module guide rails and press firmly until the mechanical latch clicks, ensuring proper connection to the backplane bus.
• Use shielded cabling for field wiring to minimize EMI in high-noise industrial environments.
• Verify that the load voltage L+ is correctly applied to the terminal module to enable reverse polarity protection features.

FAQ

What is the 6ES7132-4BD02-0AA0?

The Siemens 6ES7132-4BD02-0AA0 is a 4-channel digital output electronic module used within the SIMATIC ET 200S distributed I/O system.

What terminal module is required for this electronic module?

This module requires a compatible ET 200S terminal module (such as those of type A or type B) to provide the necessary physical wiring connection points.

Does the module support short-circuit protection?

Yes, the module features built-in electronic short-circuit protection to safeguard your system against overcurrents.

What loads can it safely drive?

It is built for solenoid valves, DC contactors, and indicator lights. The maximum switching frequency varies by load type, with up to 800 Hz for resistive loads, 2 Hz for inductive loads, and 10 Hz for lamp loads (up to 5 W).
