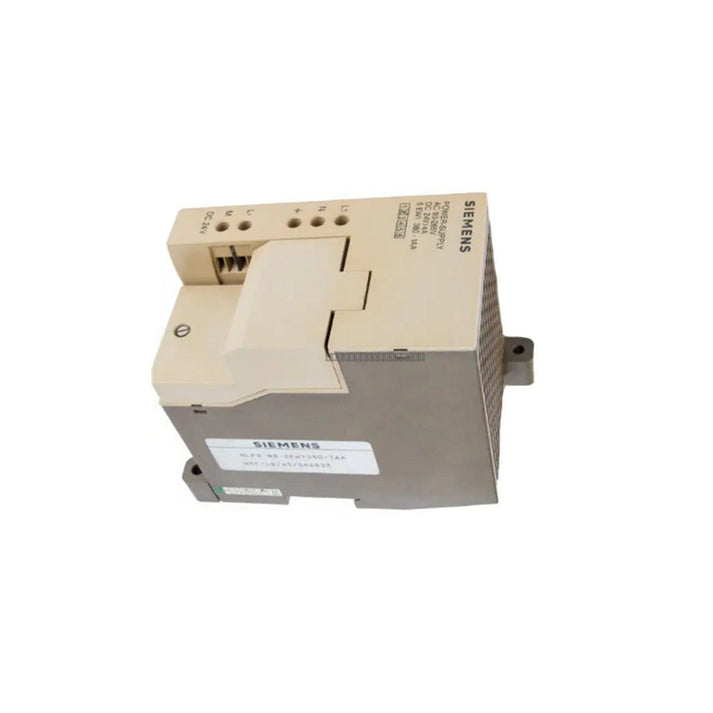

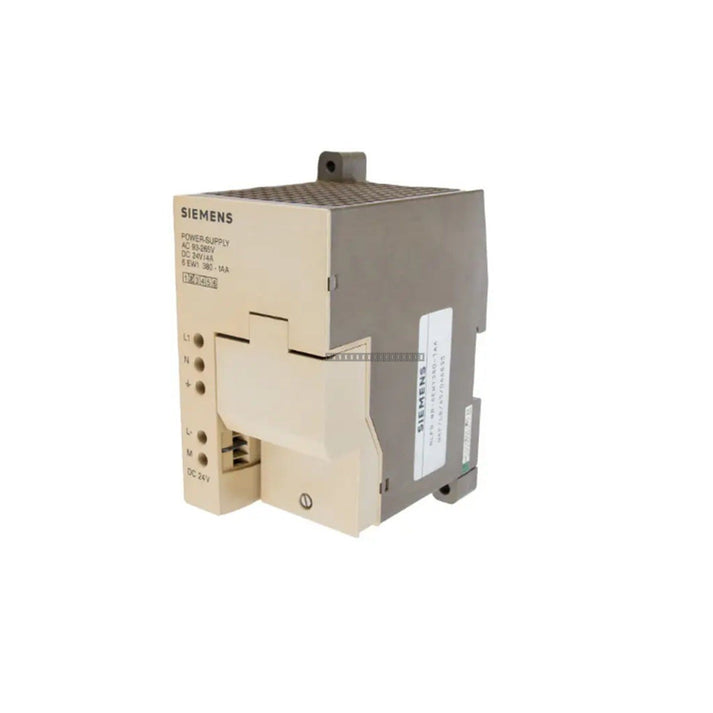

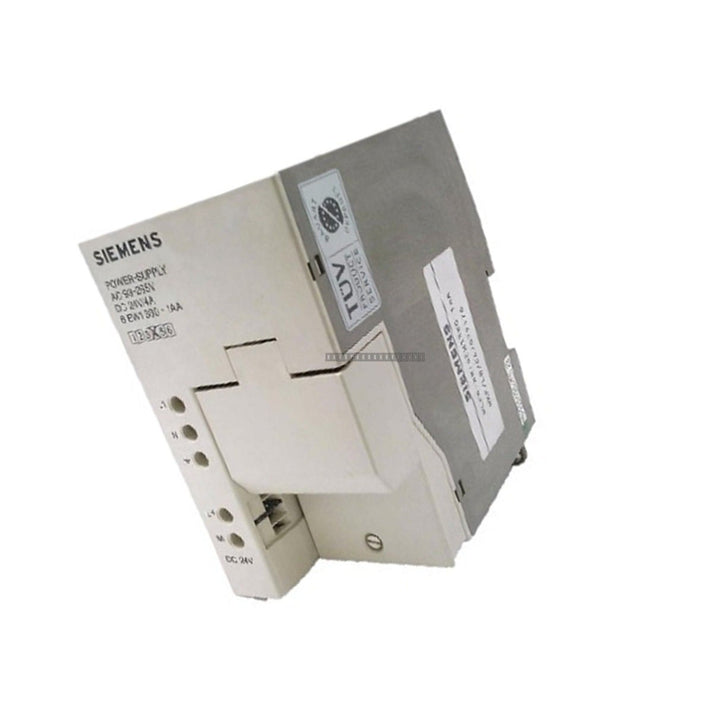

Siemens 6EW1380-1AA Power Supply Module

Siemens 6EW1380-1AA Power Supply Module

Description

The Siemens 6EW1 380-1AA is a robust, wide-range industrial power supply module engineered to provide a stabilized 24 VDC output at a continuous 4 A current rating. Designed for demanding...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: 6EW1380-1AA
Proveedora: Siemens
tipo: Industrial Power Supply
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6EW1 380-1AA is a robust, wide-range industrial power supply module engineered to provide a stabilized 24 VDC output at a continuous 4 A current rating. Designed for demanding industrial environments, this unit accepts a flexible single-phase AC input ranging from 93 to 265 VAC, ensuring reliable operation despite grid fluctuations. It is widely utilized in sectors such as petroleum refining, thermal power generation, and mining, serving as a critical power source for control systems, instrumentation, and fieldbus networks.

Features

  • Wide-range AC input: 93 to 265 VAC, 47 to 63 Hz.
  • Stabilized 24 VDC output with 4 A continuous current capacity.
  • High-efficiency switching topology for optimized thermal management.
  • Integrated EMI filtering and MOV surge protection.
  • Galvanic isolation between primary AC input and secondary DC output.
  • Built-in short-circuit protection, electronic current limiting, and overvoltage clamping.

Applications

This power supply is suitable for powering PLC control systems, distributed I/O, industrial sensing arrays, and communication gateways in harsh environments where stable DC power is essential for preventing downtime and protecting sensitive electronic components.

Technical Specifications

Model 6EW1 380-1AA
Brand Siemens
Input Voltage 93 to 265 VAC (Single-Phase)
Output Voltage 24 VDC
Output Current 4 A
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 95 percent non-condensing

Installation Guidelines

  • Ensure the module is installed in an environment with adequate ventilation to maintain operating temperatures below 60 deg C.
  • Verify that the input AC power is disconnected before performing any wiring or maintenance.
  • Use appropriate wire gauges for the input and output terminals to prevent overheating and voltage drops.
  • Maintain proper grounding connections to ensure effective EMI suppression and safety.
  • Keep the module away from high-EMI sources and ensure sufficient clearance for heat dissipation.
  • Handle with care to avoid damage to internal components; ensure the unit is securely mounted to the DIN rail or panel as specified by the system design.

FAQ

What is the input voltage range for this module?

The Siemens 6EW1 380-1AA accepts a wide-range single-phase AC input from 93 to 265 VAC, making it suitable for various global grid standards.

Does this unit include protection against electrical faults?

Yes, the module features independent short-circuit protection with automatic recovery, electronic current limiting, and overvoltage clamping to protect both the power supply and connected downstream equipment.
