Description

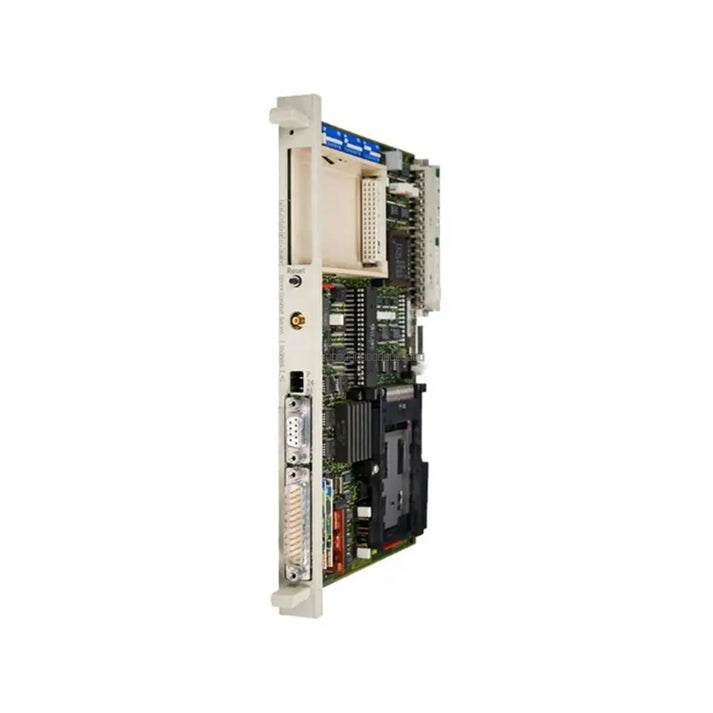

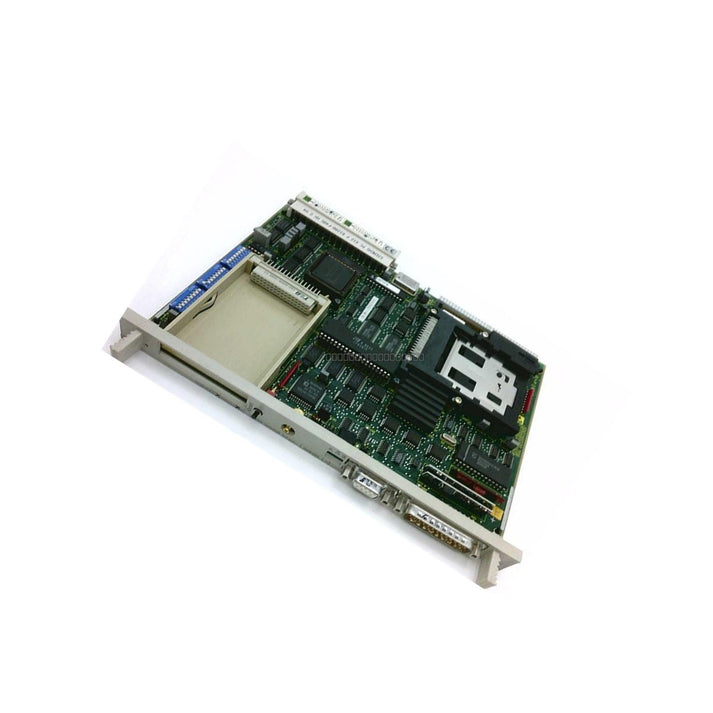

The Siemens 6FM1470-4AA25 is a specialized Video Display Interface module designed for the WF470 intelligent processor series within the SIMATIC S5 ecosystem. This monochrome interface module acts as a critical bridge between the programmable controller logic and human-machine interaction terminals. It is engineered for industrial environments where high-reliability monitoring is required, such as manufacturing lines, assembly automation, and legacy process control sectors. By facilitating real-time visual output of process variables and diagnostic data, this interface module assists operators in rapid fault identification, thereby significantly reducing downtime during critical production cycles. As a legacy hardware component, it maintains the integrity of established S5-based control loops by providing consistent and stable display signaling.

Features

• Designed specifically for integration with the WF470 intelligent processor module.
• Supports monochrome video signal processing for industrial display terminals.
• Robust bus interface for direct communication with the SIMATIC S5 backplane.
• Passive cooling design, suitable for standard rack-mounted industrial enclosures.
• Transparent data path allows for screen buffer updates without impacting CPU logic execution.

Applications

This module is primarily utilized in legacy SIMATIC S5 automation systems where visual monitoring of process variables, machine status, and alarm diagnostics is required. It is commonly found in older manufacturing lines, assembly automation cells, and legacy process control environments that rely on CRT or compatible monochrome industrial displays.

Technical Specifications

Installation Guidelines

• Ensure the SIMATIC S5 rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the module is correctly seated in the designated WF470 processor slot to ensure proper backplane communication.
• Maintain adequate clearance around the module chassis to allow for passive heat dissipation.
• Ensure all video signal cables are properly shielded and routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
• Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.

FAQ

Is this module compatible with modern LCD monitors?

The 6FM1470-4AA25 is designed for legacy monochrome industrial display standards. Compatibility with modern digital LCDs may require specific signal converters or legacy-to-digital interface adapters.

Does this module require external power?

No, the module is designed to be powered directly via the SIMATIC S5 backplane bus.
