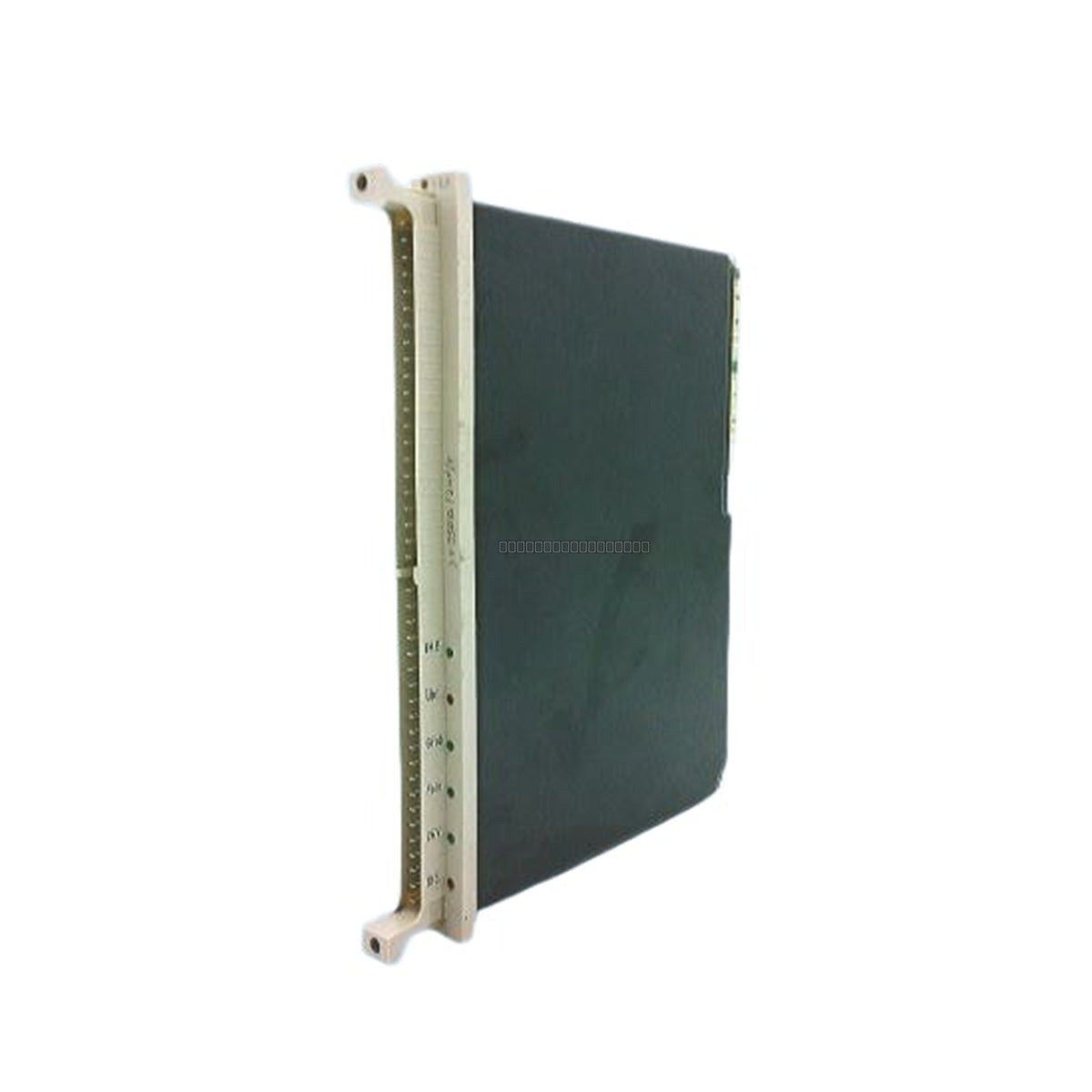

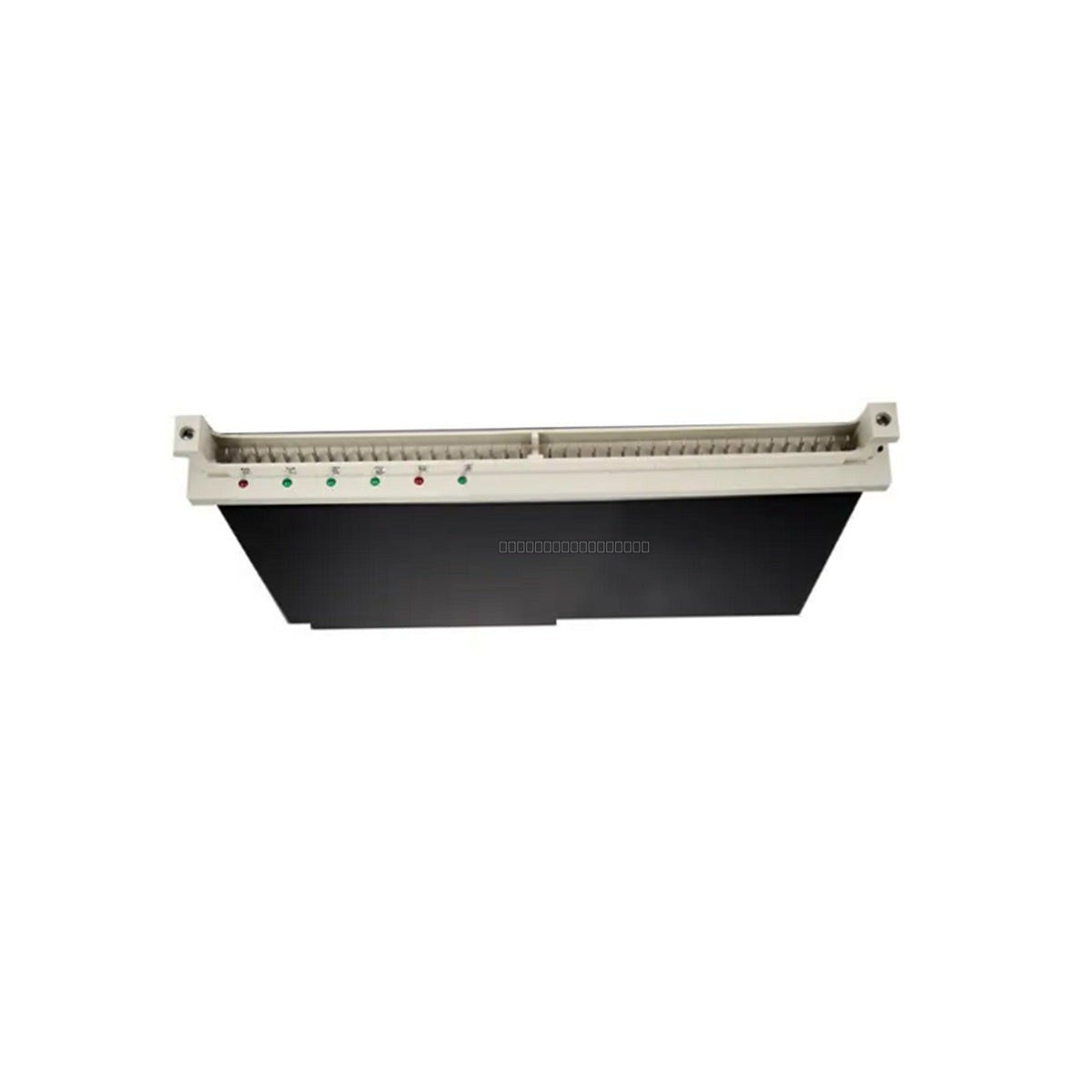

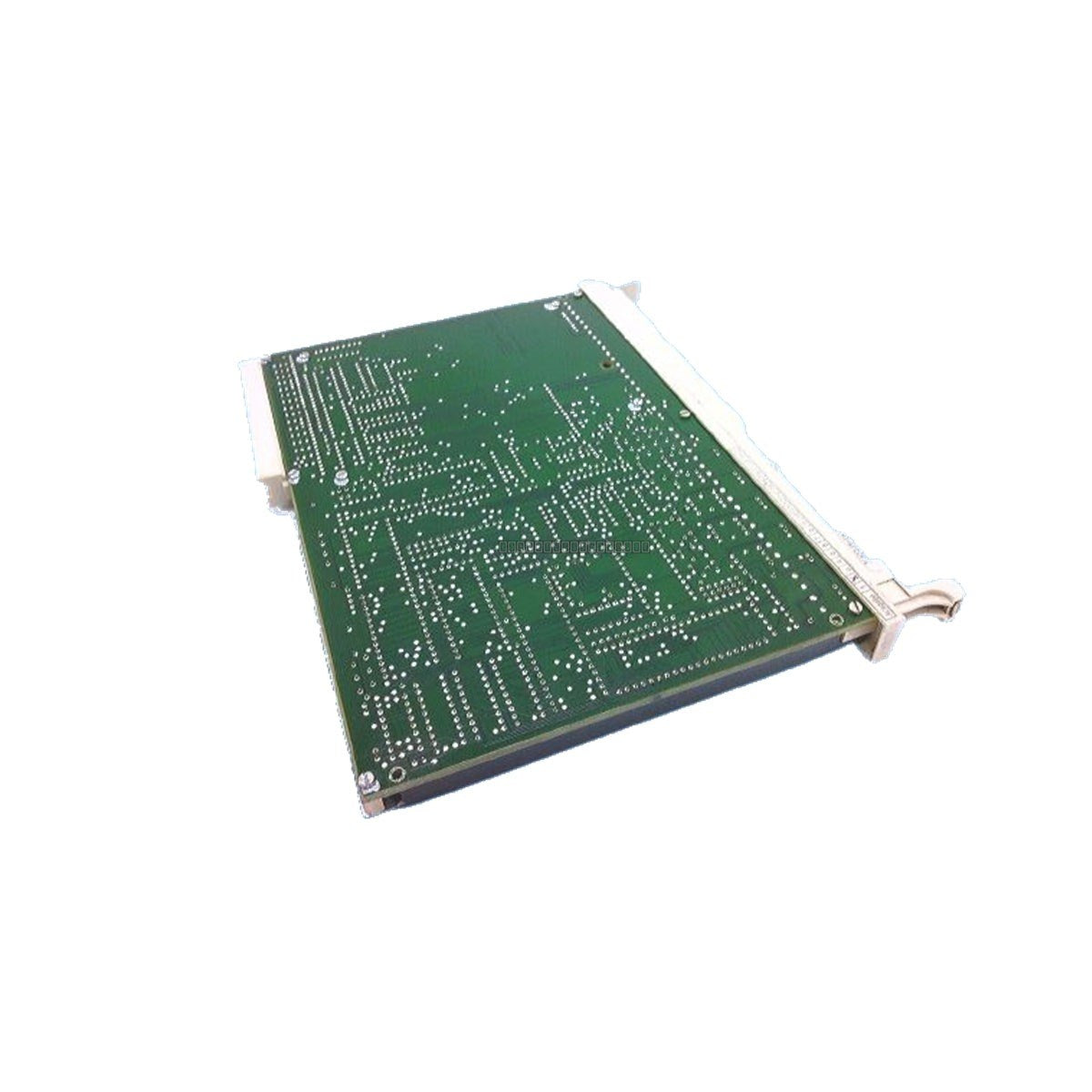

Siemens 7MH3305-1AB Simatic S5 Weighing Processor Module

Siemens 7MH3305-1AB Simatic S5 Weighing Processor Module

Description

The Siemens 7MH3305-1AB is an intelligent weighing processor module engineered for integration within the Simatic S5 automation architecture, specifically compatible with S5-135U and S5-155U rack systems. This module serves as...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 7MH3305-1AB
Proveedora: Siemens
tipo: Weighing Processor Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 7MH3305-1AB is an intelligent weighing processor module engineered for integration within the Simatic S5 automation architecture, specifically compatible with S5-135U and S5-155U rack systems. This module serves as a dedicated signal processing unit for force, strain gauge, and load cell transducers. By executing weight calculation algorithms locally, it offloads computational tasks from the central processor, ensuring real-time performance and high-accuracy measurement in demanding industrial environments.

Features

  • Dedicated microprocessor logic for independent signal filtering, tare compensation, and zero-point tracking.
  • High-resolution analog-to-digital conversion for precise load cell data acquisition.
  • Galvanic isolation between field sensor inputs and the system backplane to mitigate electromagnetic interference and ground loops.
  • Deterministic data transfer to the Simatic S5 backplane for seamless integration with control loops.
  • Optimized for continuous operation in environments requiring precise dosing, batching, and bulk material measurement.

Applications

This processor is widely utilized in industrial applications where high-precision weight monitoring is essential for process control. Typical deployments include automated cement batching, continuous mining operations, bulk chemical processing, and fuel measurement systems in power generation facilities.

Technical Specifications

Model 7MH3305-1AB
Brand Siemens
System Compatibility Simatic S5-135U, S5-155U
Module Type Intelligent Weighing Processor
Input Signal Strain Gauge / Load Cell Transducers
Power Consumption 5.5 W at 5 VDC
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the Simatic S5 rack is powered down before inserting or removing the module to prevent electrical damage.
  • Use shielded cabling for all load cell connections to minimize noise pickup; ensure the shield is grounded at the appropriate terminal.
  • Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the 0 to 60 deg C range.
  • Handle the module using ESD-safe practices to protect internal circuitry from electrostatic discharge during installation.
  • Verify that the module is securely seated in the backplane slot to ensure reliable communication with the CPU.

FAQ

Does this module require external power?

The module is designed to operate on the 5 VDC power provided by the Simatic S5 backplane bus, with a typical power consumption of 5.5 W.

Is this module compatible with S5-115U systems?

The 7MH3305-1AB is specifically designed for the S5-135U and S5-155U rack architectures. Please verify your specific rack type before installation.

What type of sensors can be connected?

The module is designed to interface with industrial strain-gauge load cells and force transducers.
