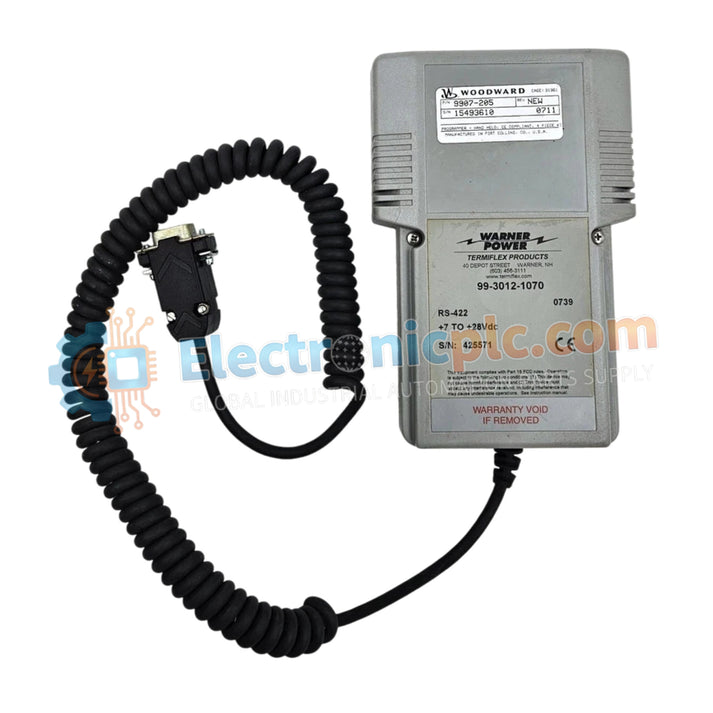

Configured for parameter configuration, firmware diagnostics, and real-time operational monitoring in industrial governor systems, the Woodward 9907-205 (9907-205 Hand Held Programmer) provides direct physical/electrical execution. This portable interface unit communicates directly with digital control modules to adjust tuning parameters, review alarm logs, and verify control loop performance on site.

Suffix Breakdown & Model Matrix

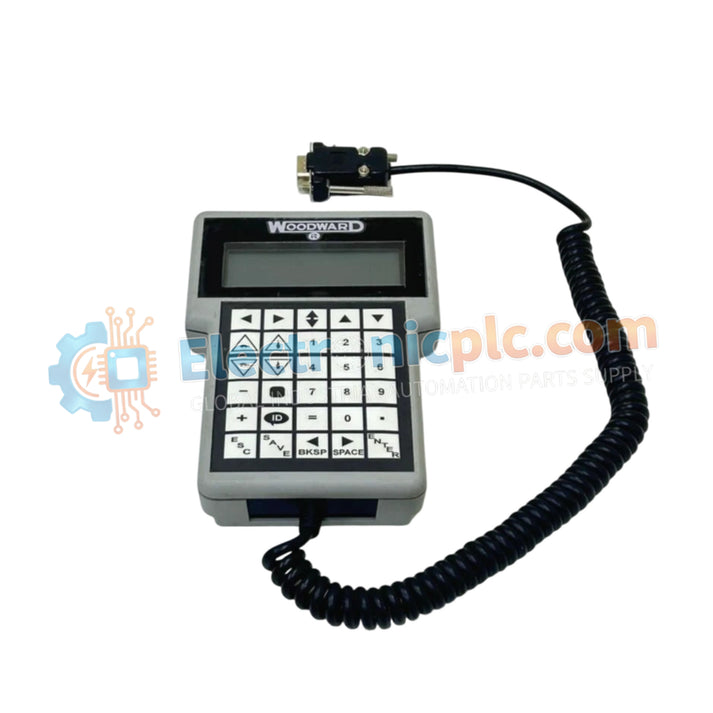

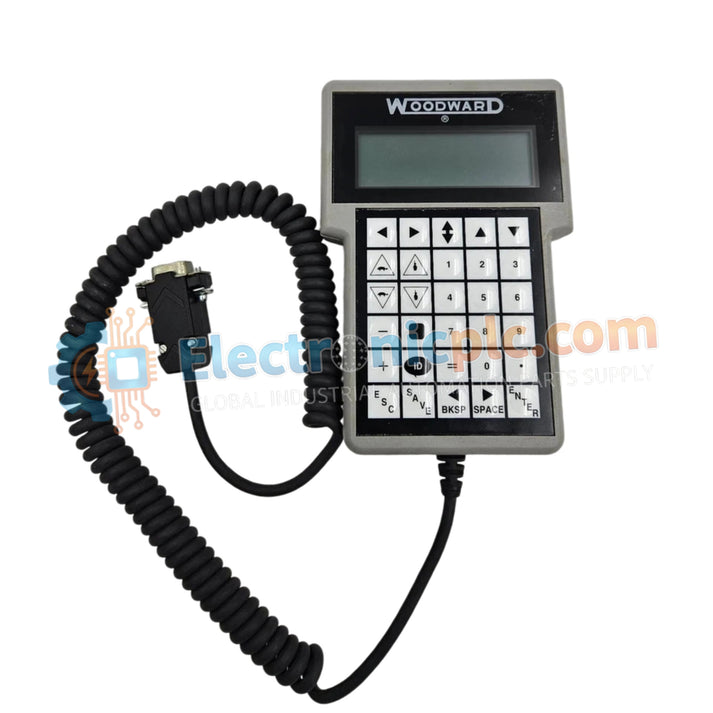

• 9907-205: Standard hand-held programmer configuration featuring an integrated alphanumeric display, tactile keypad interface, and dedicated communication cable ports for industrial prime mover controllers.

Hardware Specifications

Actuator Loop Feedback Response and Thermal Profiles

The unit executes fast serial data polling routines to track actuator loop feedback response parameters and internal controller variables without introducing latency into real-time governor execution loops. Internal component layouts feature robust thermal heat sink dissipation profiles designed to prevent overheating during extended diagnostic sessions in unconditioned field environments. Advanced harmonic distortion suppression on the communication lines ensures error-free data packet transmission across long cable runs connected to turbine control enclosures.

Frequently Asked Questions

Q: Can the programmer be connected to the control module while the prime mover is running in active service?

A: Yes, the unit is designed for online monitoring and parameter adjustment during active operation, provided that modifications are restricted to authorized tuning variables that do not compromise immediate safety control loops.

Q: What precautions should be taken regarding electrostatic discharge (ESD) during field connection?

A: Technicians must utilize an approved wrist strap connected to the control cabinet ground stud before plugging the communication interface cable into the target port to prevent static damage to internal logic components.

Field Installation Guidelines

• Inspect the communication cable and connector pins for any signs of physical bending or contamination prior to engaging the port on the target controller.
• Ensure the portable unit is held securely or placed on a stable surface during programming to prevent accidental tension or strain on the connected interface cable.
• Power down or isolate peripheral auxiliary connections if performing deep diagnostic routines that require physical bus reset sequences.
