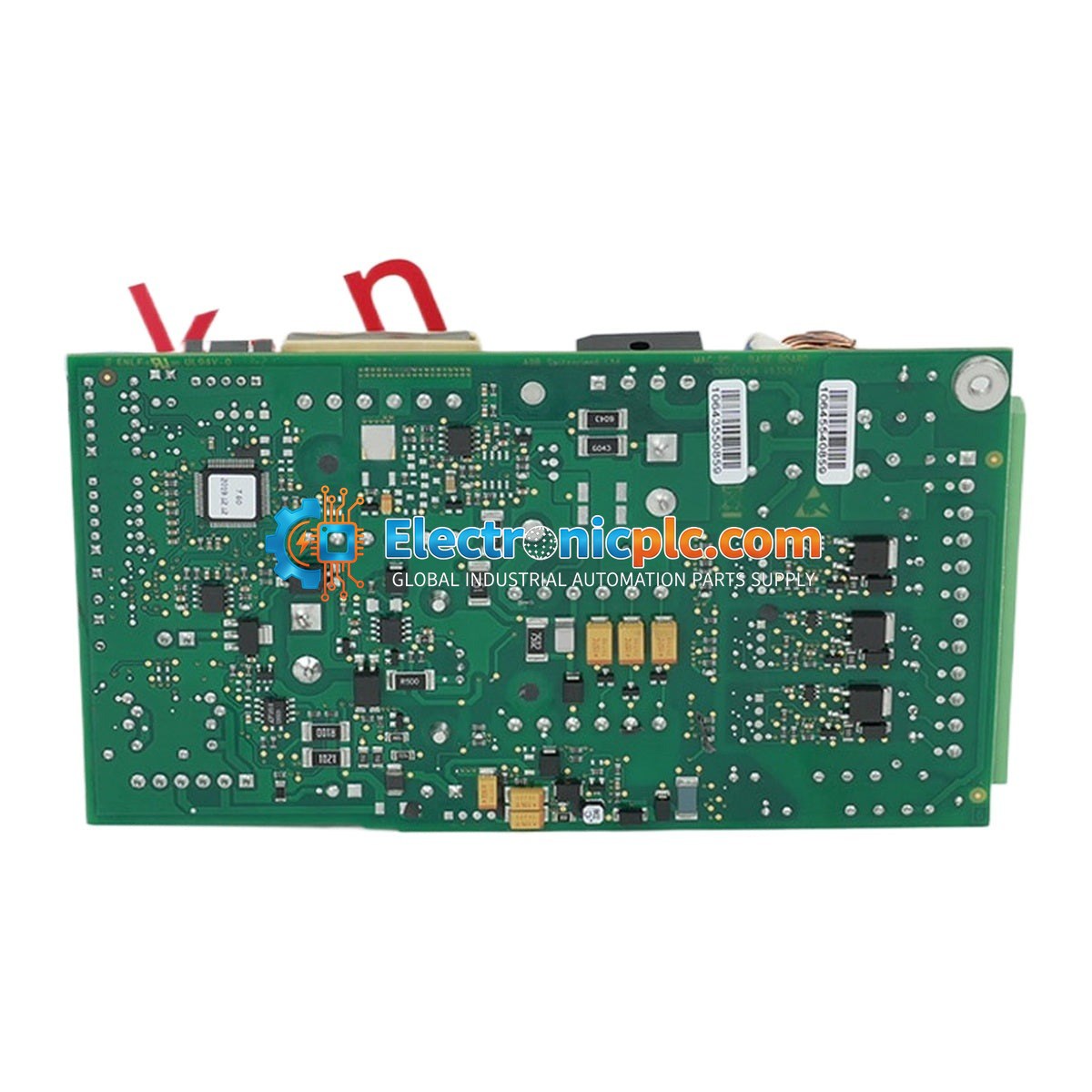

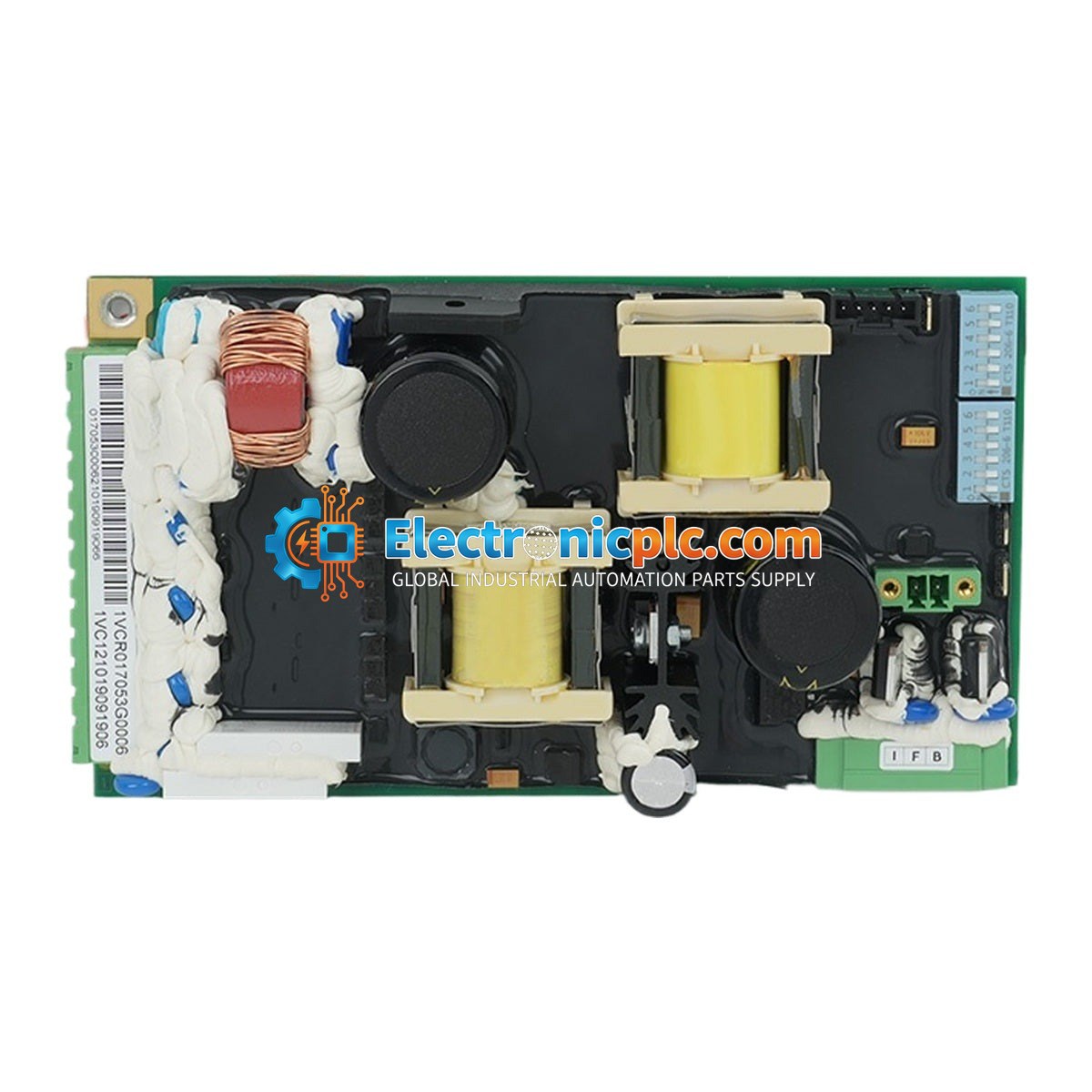

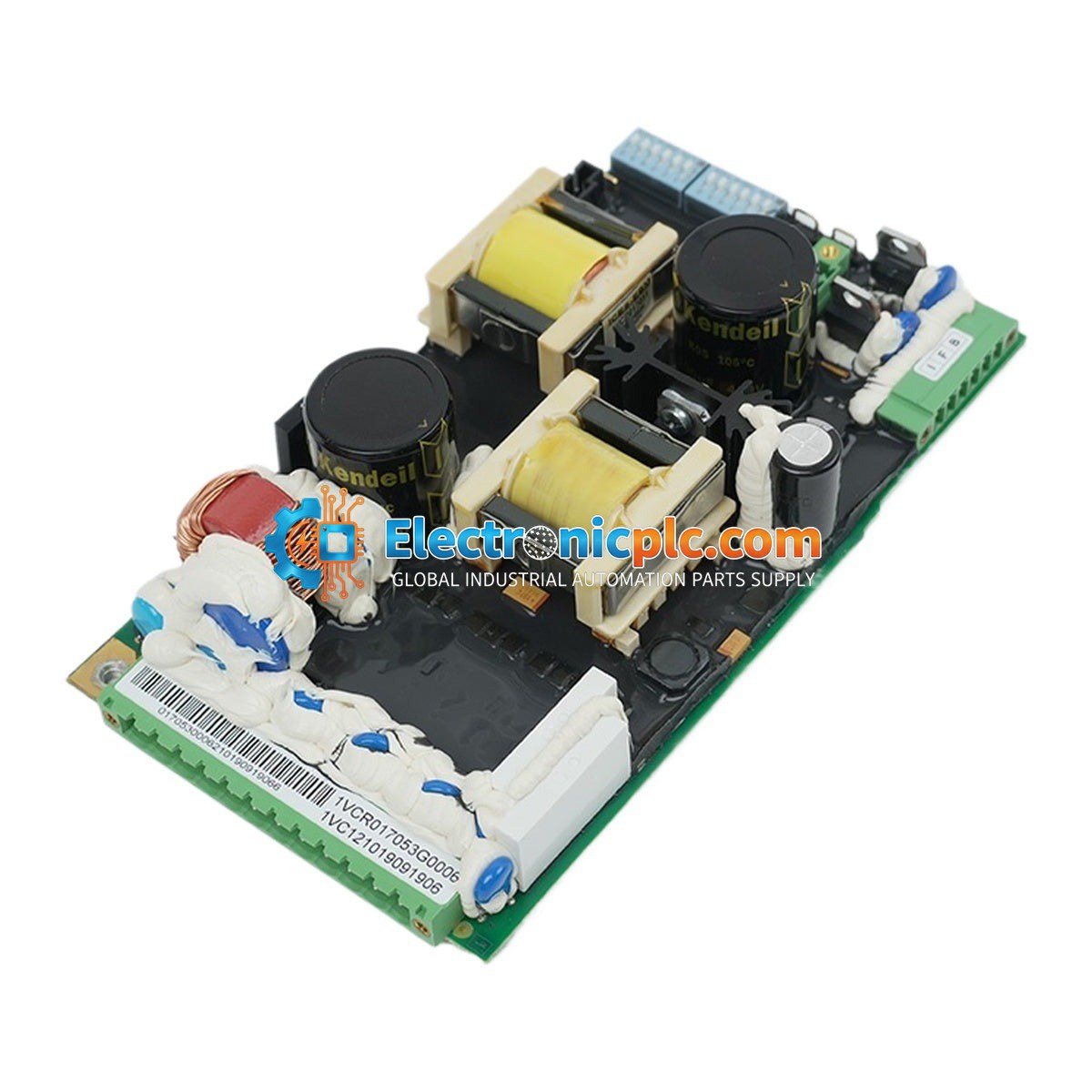

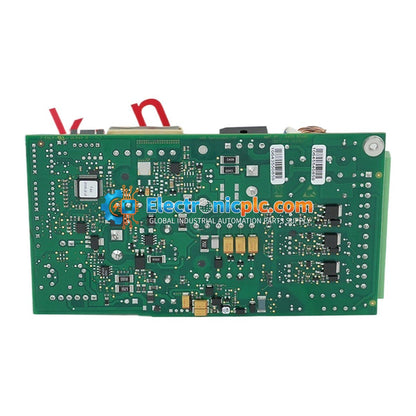

ABB 1VCR017053G0006 VSC Power Supply and Control Board

ABB 1VCR017053G0006 VSC Power Supply and Control Board

Description

The ABB 1VCR017053G0006 is a specialized power supply and control board engineered for the ABB V-Contact VSC series of medium-voltage vacuum contactors. This module serves as the electronic interface...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 1VCR017053G0006
Proveedora: ABB
tipo: Power Supply Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The ABB 1VCR017053G0006 is a specialized power supply and control board engineered for the ABB V-Contact VSC series of medium-voltage vacuum contactors. This module serves as the electronic interface for the contactor's bistable MAC drive, managing control signals and providing stable operating power for switching operations in medium-voltage distribution networks.

Features

  • Multi-voltage electronic feeder design for versatile input compatibility.
  • Capacitor energy storage drive for reliable actuation.
  • Integrated control coil continuity monitoring.
  • Optimized for high-frequency switching operations in industrial and marine environments.
  • Ultra-low power consumption during steady-state operation.

Applications

  • Industrial motor control and protection.
  • Transformer switching and power factor correction banks.
  • Marine propulsion and vessel power distribution systems.
  • Mining and petrochemical extraction machinery (pumps, compressors, conveyors).
  • Water treatment infrastructure and high-capacity aeration blowers.

Technical Specifications

Model 1VCR017053G0006
Rated Voltage Up to 12 kV
Rated Current 400 A
Breaking Capacity 6 kA (unfused); up to 50 kA with SCPD
Input Voltage Range AC 150 V – 280 V
Rated Frequency 50 Hz
Operating Temperature -40 degC to +70 degC
Humidity Up to 95% RH (non-condensing)
Ingress Protection IP20

Installation Guidelines

  • Safety First: Always isolate, rack out, and ground the circuit breaker or Motor Control Center (MCC) enclosure before beginning work.
  • Stored Energy: The VSC electronic board utilizes large internal capacitors. Wait at least 5 to 10 minutes after disconnecting auxiliary control voltage to allow residual energy to dissipate before accessing the control compartment.
  • ESD Protection: Always wear a grounded static-control wrist strap when handling the module to prevent damage to sensitive microprocessors.
  • Mounting: Designed for installation inside protected control cabinets. Ensure adequate ventilation to maintain ambient temperatures within the specified -40 degC to +70 degC range.

FAQ

What is the primary function of the 1VCR017053G0006?
It is a dedicated power supply and control board for ABB V-Contact VSC medium-voltage vacuum contactors, managing the bistable MAC drive and control signal processing.

Can this board be used in marine environments?
Yes, the module is suitable for marine sectors. DNV-compliant coating is available for corrosive or high-humidity environments.

What is the required maintenance for the capacitors?
The board uses high-reliability capacitors as part of its energy storage drive. Ensure the unit is kept free of dust and moisture, and verify that the control cabinet environment remains within the IP20 operating limits.
