ABB 3BHE027859R0102 DD C779 CE102 PCB Circuit Board

ABB 3BHE027859R0102 DD C779 CE102 PCB Circuit Board

The ABB 3BHE027859R0102 DD C779 CE102 is a specialized PCB circuit board designed for use as a retrofit interface module within ABB ACS 5000 and ACS 6000 medium-voltage AC drive...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 3BHE027859R0102 DD C779 CE102
Proveedora: ABB
tipo: PCB Circuit Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

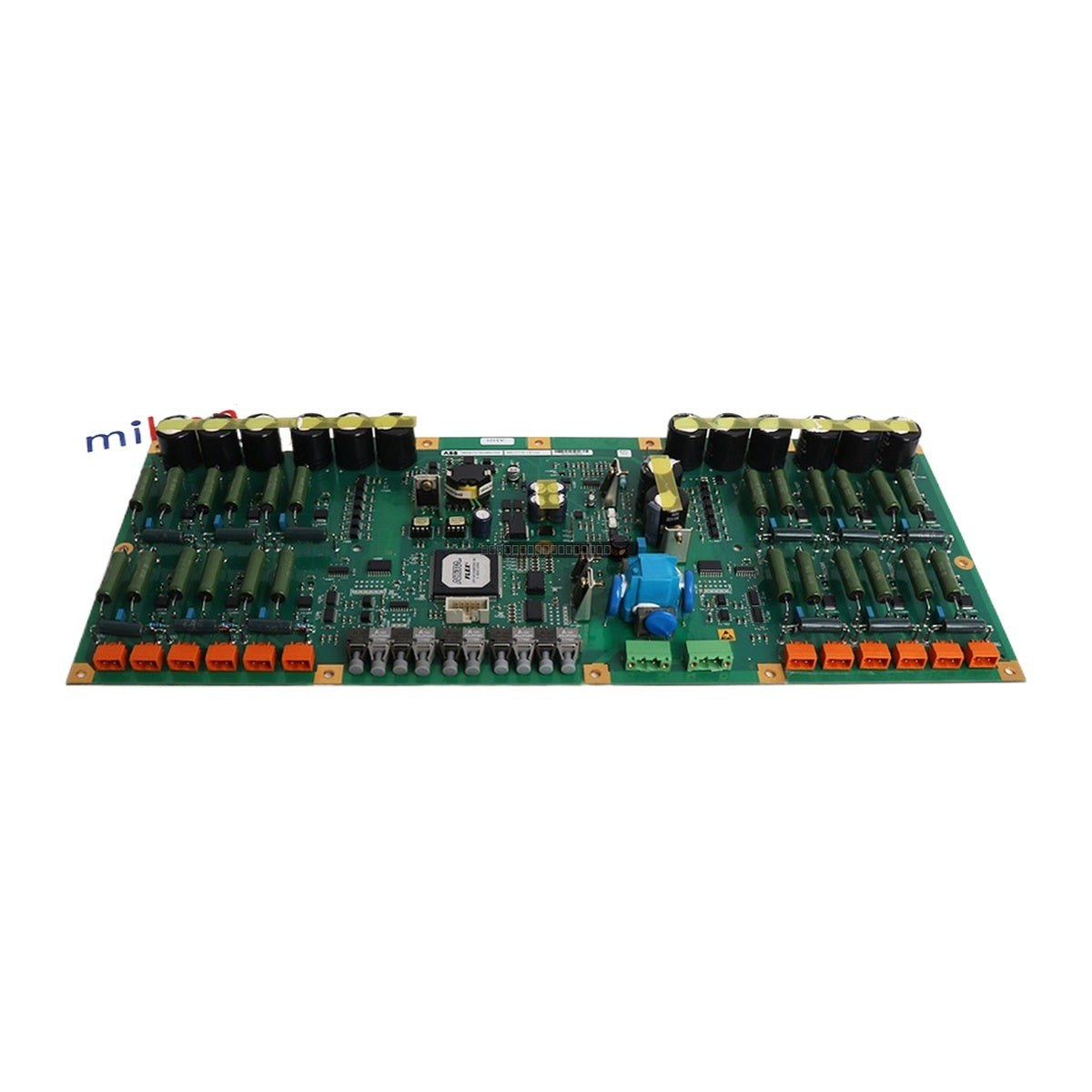

The ABB 3BHE027859R0102 DD C779 CE102 is a specialized PCB circuit board designed for use as a retrofit interface module within ABB ACS 5000 and ACS 6000 medium-voltage AC drive systems. This module functions as a critical control and communication interface, facilitating high-speed data exchange and signal processing between the drive controller and external system components.

Features

  • Industrial-grade multilayer PCB construction for high-density electronic reliability.
  • Integrated MPC866 processor with 64 MB memory for efficient control logic execution.
  • Dual redundant 24 V DC power input capability with a wide operating range of 9–30 V DC.
  • High-voltage isolation up to 1000 V DC and integrated reverse polarity protection.
  • Supports high-speed internal communication and real-time signal processing for motor control.

Applications

This module is primarily utilized in medium-voltage variable frequency drive (VFD) platforms. Typical industrial applications include:

  • Power Generation: Grid synchronization and utility control systems.
  • Oil, Gas, and Petrochemical: Pipeline control and hazardous process mitigation.
  • Marine and Mining: Propulsion control and heavy-duty motor management.
  • Water and Wastewater: SCADA and PLC-based flow control systems.

Technical Specifications

Model 3BHE027859R0102 DD C779 CE102
Power Supply 24 V DC (9–30 V DC range)
Power Consumption < 1.5 W
Processor MPC866
Memory 64 MB
Operating Temperature 0 degC to +55 degC (derate above 40 degC)
Storage Temperature -40 degC to +85 degC
Humidity 5–95% RH (non-condensing)
Voltage Isolation 1000 V DC

Installation Guidelines

  • Ensure the drive system is fully powered down and locked out before inserting or removing the PCB.
  • Verify that the board is correctly seated in the drive control cabinet backplane to ensure proper communication with processor and power modules.
  • Reconnect all fiber optic pulse (firing) cables to the designated PO ports, ensuring correct TX/RX polarity for IGBT/Thyristor bridge triggering.
  • Ensure all terminal blocks for power and digital I/O are firmly clamped and wires are properly ferruled.
  • Confirm the metal chassis of the board maintains solid contact with the cabinet frame to ensure effective EMC shielding and grounding.

FAQ

What is the primary function of this module?

The 3BHE027859R0102 DD C779 CE102 acts as a control and communication interface board for ABB medium-voltage drives, managing signal processing and data transmission between the controller and power electronics.

Does this board support redundant power?

Yes, the module is designed with dual redundant input capability, accepting a voltage range of 9–30 V DC.

What communication interfaces are supported?

The board supports 10/100 Mbps Ethernet, PROFIBUS DP, and RS-485 serial interfaces, including fiber optic repeater functionality for extended network reach.
