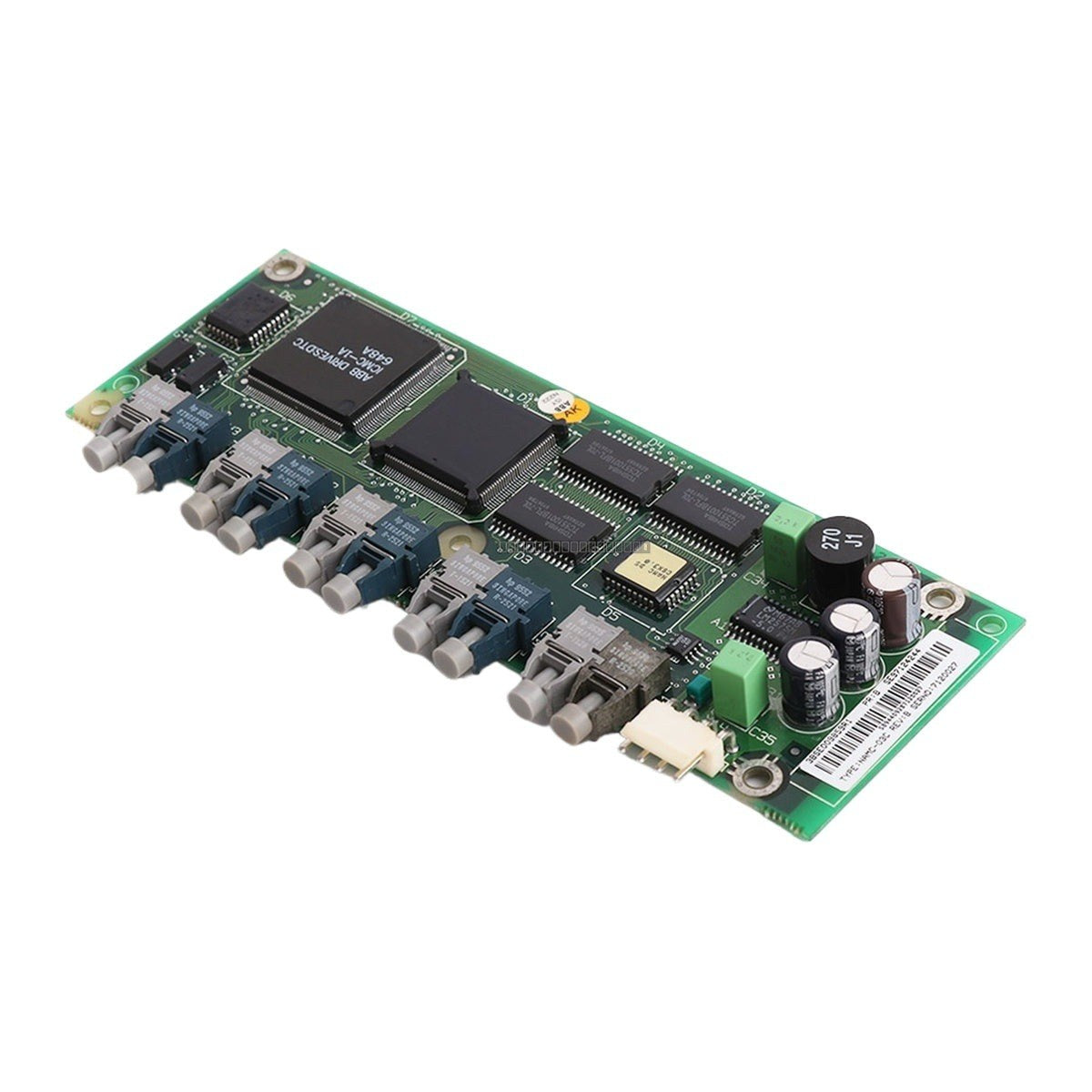

The ABB NAMC-03C (3BSE009859R1) is a high-performance application and control board designed for the ABB ACS 600 series variable frequency drives. This module serves as a central control unit, managing motor speed, torque, and coordinated system operations within industrial automation environments.

Features

  • Dedicated 32-bit motion processor for high-speed control logic.
  • Integrated communication interfaces including RS-485, CAN bus, and Modbus protocol support.
  • Fiber optic interface with ST port connector for reliable, noise-immune communication over distances up to 2 km.
  • Supports precise motor management including speed regulation, torque control, and multi-axis coordination.
  • Built-in diagnostic functions for monitoring signal integrity and module health.

Applications

  • Variable Frequency Drive (VFD) control for the ACS 600 series.
  • Pump and Fan Control (PFC) systems including pressure regulation and sequencing.
  • Crane and hoist systems requiring brake control and torque optimization.
  • Industrial process and motion control integration.

Technical Specifications

Model NAMC-03C 3BSE009859R1
Supply Voltage 24V DC (+/- 10%)
Power Consumption < 15 W (Typical)
Operating Temperature -25 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5-95% (non-condensing)
Isolation 500V AC

Installation Guidelines

  • Ensure the drive system is fully powered down before attempting to install or remove the board.
  • Carefully align the NAMC-03C board with the designated slot on the drive control unit chassis.
  • Press the board firmly into the edge connector slots until it is fully seated.
  • Secure the board using the mechanical retaining screws to ensure stability and maintain proper chassis grounding.
  • Handle with standard ESD precautions to prevent damage to sensitive electronic components.

FAQ

What is the primary function of the NAMC-03C?

The NAMC-03C acts as a core application and communication control board. In the ABB ACS 600 drive family, it provides central control functionalities, manages drive operations, and routes optical/fiber optic communications between various drive modules.

Which drive systems use the NAMC-03C board?

This board is predominantly used in ABB ACS 600 series industrial frequency drives, including variants such as the ACS601, ACS604, ACS607, and ACX 6xx series.

Is NAMC-03C exactly the same as NAMC-03?

While similar, the "C" variant (NAMC-03C) typically denotes a specific hardware or firmware revision tailored for specific optical communication interfaces within larger drive assemblies.
