Description

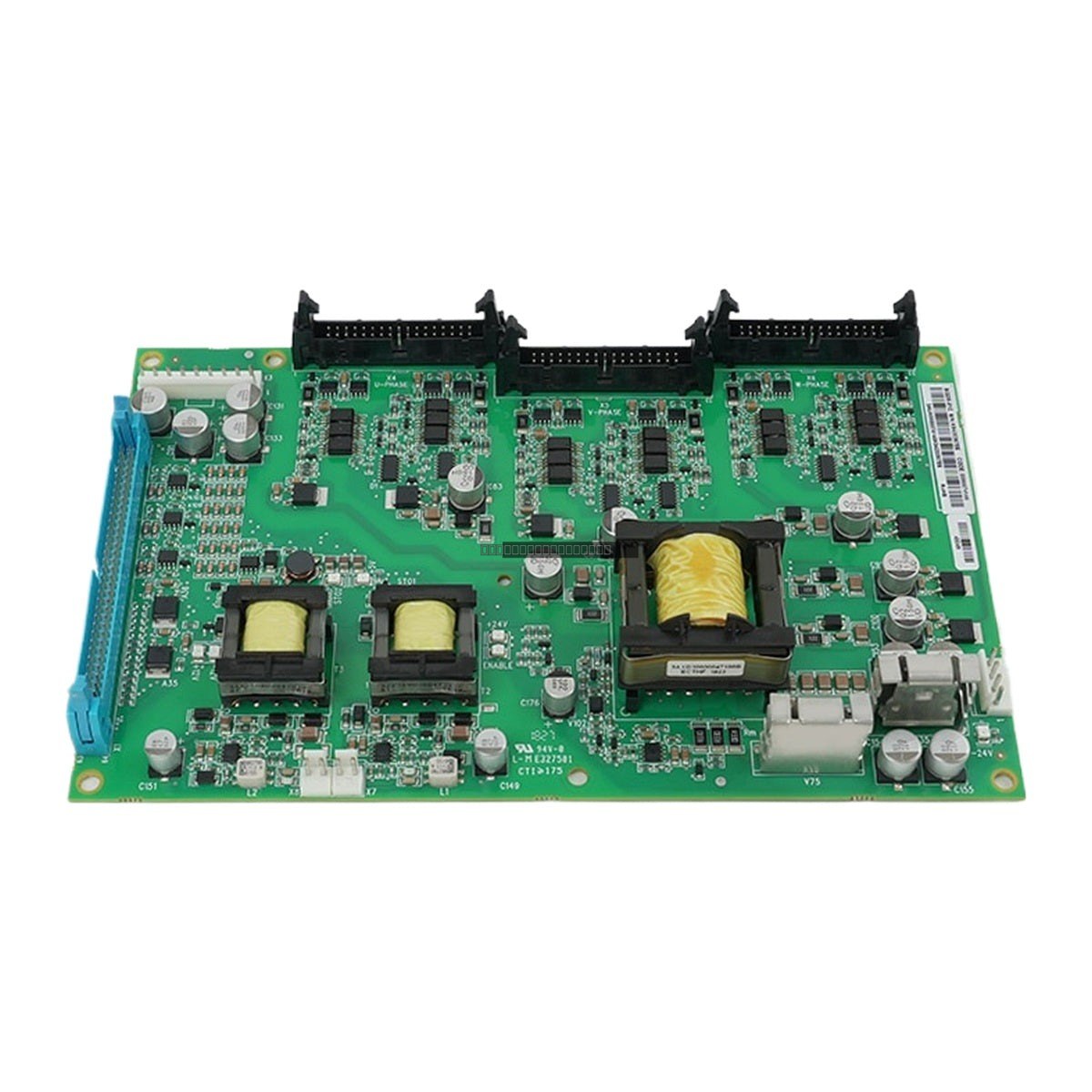

The ABB BGDR-01C (3AUA0000074145) is a high-performance gate driver board designed for industrial power electronics, specifically serving as a critical interface between low-power control logic and high-power semiconductor switches such as IGBTs or MOSFETs. This module is engineered to ensure reliable switching performance within ABB variable frequency drive systems, including the ACS880 and ACS580 series.

Features

  • Provides isolated, high-current pulses to drive gate-emitter capacitance of power semiconductors.
  • Supports rapid switching to minimize thermal losses and improve overall drive efficiency.
  • Utilizes high-speed signal processing to convert PWM signals from the control unit.
  • Designed for robust operation in demanding industrial environments.
  • Integrated fiber optic interface options for enhanced electrical isolation between control logic and the high-voltage DC bus.

Applications

  • Industrial cranes and hoist systems for precise load positioning.
  • Conveyor systems in mining, logistics, and food processing.
  • Marine and textile winches requiring accurate tension control.
  • HVAC, chemical processing, and wastewater treatment compressors and blowers.
  • Centrifugal pumps and large-scale industrial ventilation fans.
  • Extrusion and mixing equipment in plastics and rubber production.

Technical Specifications

Model BGDR-01C
Order Code 3AUA0000074145
Input Voltage 24V DC
Turn-on Voltage +15V typical
Turn-off Voltage -8V typical
Peak Output Current 10A
Isolation Voltage 2500V AC
Propagation Delay <500ns typical
Operating Temperature -25 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Relative Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Safety First: Before handling, disconnect the main breaker and all external power sources.
  • Capacitor Discharge: Wait at least 10 minutes after power-off to ensure DC link capacitors are fully discharged before accessing the drive internals.
  • ESD Protection: The BGDR-01C contains sensitive electronic components. Always utilize an anti-static (ESD) wrist strap and work at a grounded workstation.
  • Mounting: Ensure the board is securely seated in the designated drive slot. Verify that all fiber optic or electrical connectors are firmly engaged and free of debris.
  • Environment: Ensure the drive cabinet is properly ventilated to maintain operating temperatures within the specified range.

FAQ

What is the primary function of the BGDR-01C?

It acts as a driver board for controlling power devices like IGBTs and MOSFETs, ensuring the correct voltage and current levels are applied to the semiconductor gates based on PWM signals from the drive controller.

Which drive families is this board compatible with?

The BGDR-01C is primarily designed for use with the ABB ACS880 and ACS580 series inverter systems.

Is this part available if the manufacturer has declared it End-Of-Life (EOL)?

Yes, we continue to provide support and supply for this module even if it has been marked as EOL by the original manufacturer.
