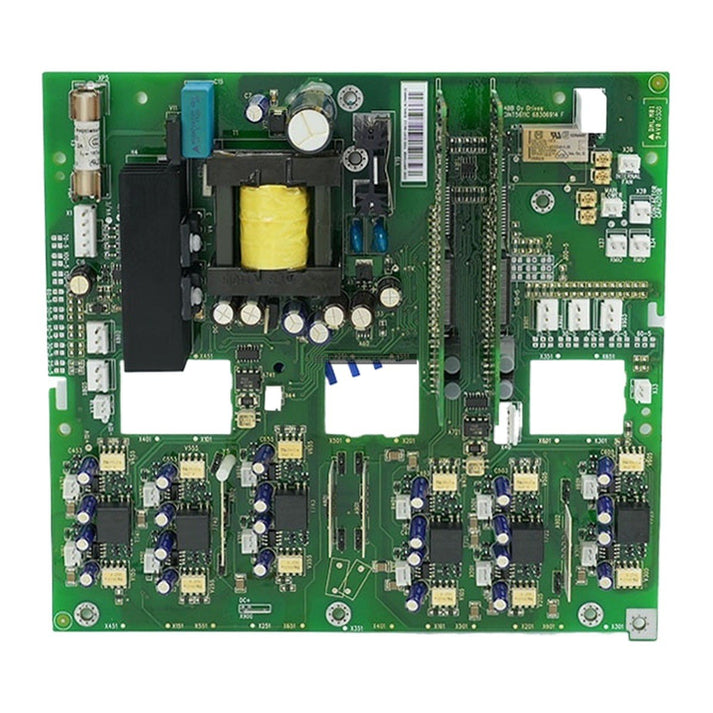

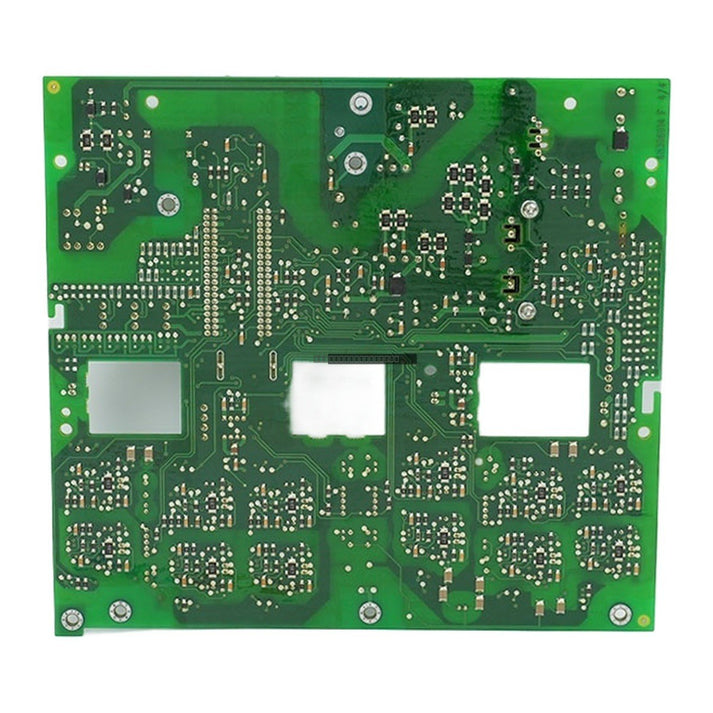

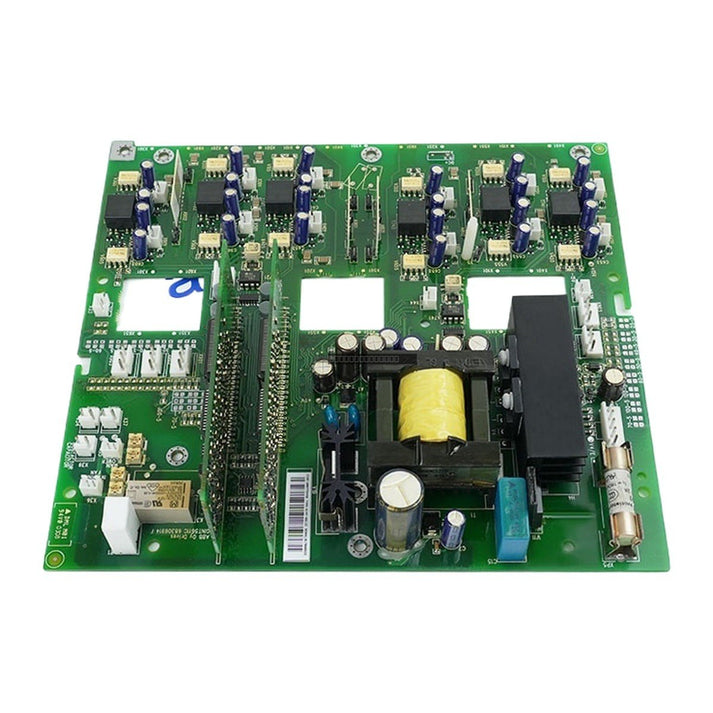

ABB GINT-6611C 68577349 Gate Driver Board

ABB GINT-6611C 68577349 Gate Driver Board

The ABB GINT-6611C (68577349) is a specialized gate driver and main circuit interface board engineered for the ABB ACS800 series of variable frequency drives. This component serves as the vital...

25 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: GINT-6611C 68577349
Proveedora: ABB
tipo: Gate Driver Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The ABB GINT-6611C (68577349) is a specialized gate driver and main circuit interface board engineered for the ABB ACS800 series of variable frequency drives. This component serves as the vital link between the drive's control unit and the power stage, facilitating precise IGBT switching, motor control, and power management within industrial drive systems.

Features

  • Designed specifically for integration within the ABB ACS800 drive family.
  • Manages critical real-time data exchange and control signals for power components.
  • Supports high-performance motor control and operational stability.
  • Facilitates accurate IGBT gate drive output.

Applications

  • Oil & Gas and Petrochemical processing lines.
  • Mining and metal processing, including hoisting and melting systems.
  • Water and wastewater management, specifically for pump control in treatment facilities.
  • Power generation, including traditional plant infrastructure and renewable energy systems.

Technical Specifications

Model GINT-6611C / 68577349
Manufacturer ABB
Control Voltage 24 V DC
Gate Drive Output ±15 V typical
Fault Response Time < 2 μs
Operating Temperature -40 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5 - 95% RH (non-condensing)

Installation Guidelines

  • Configuration: Boards may require manual configuration of current scaling solder pads to align with the specific frame size (e.g., R5, R6) and power rating of your drive. Incorrect scaling can cause current measurement faults.
  • Earthing: Ensure the board is properly earthed via the mounting screws. In cabinet assemblies, connect the module to the PE busbar using copper braid to maintain EMC compliance and personnel safety.
  • Handling: Always power down the drive and allow sufficient time for DC bus capacitors to discharge before attempting to install or remove the board. Handle with ESD-safe precautions.

FAQs

What is the primary function of the GINT-6611C?

It acts as the primary interface between the control unit and the power stage, managing the switching signals for the IGBTs to control motor speed and torque.

Is this board compatible with all ACS800 drives?

It is designed for specific ACS800 series configurations. Always verify your drive's frame size and power rating against the board's specifications before installation.

What should I do if my drive reports a current measurement fault?

Check the solder pad configuration on the board to ensure it is correctly scaled for your specific drive frame size and power rating.
