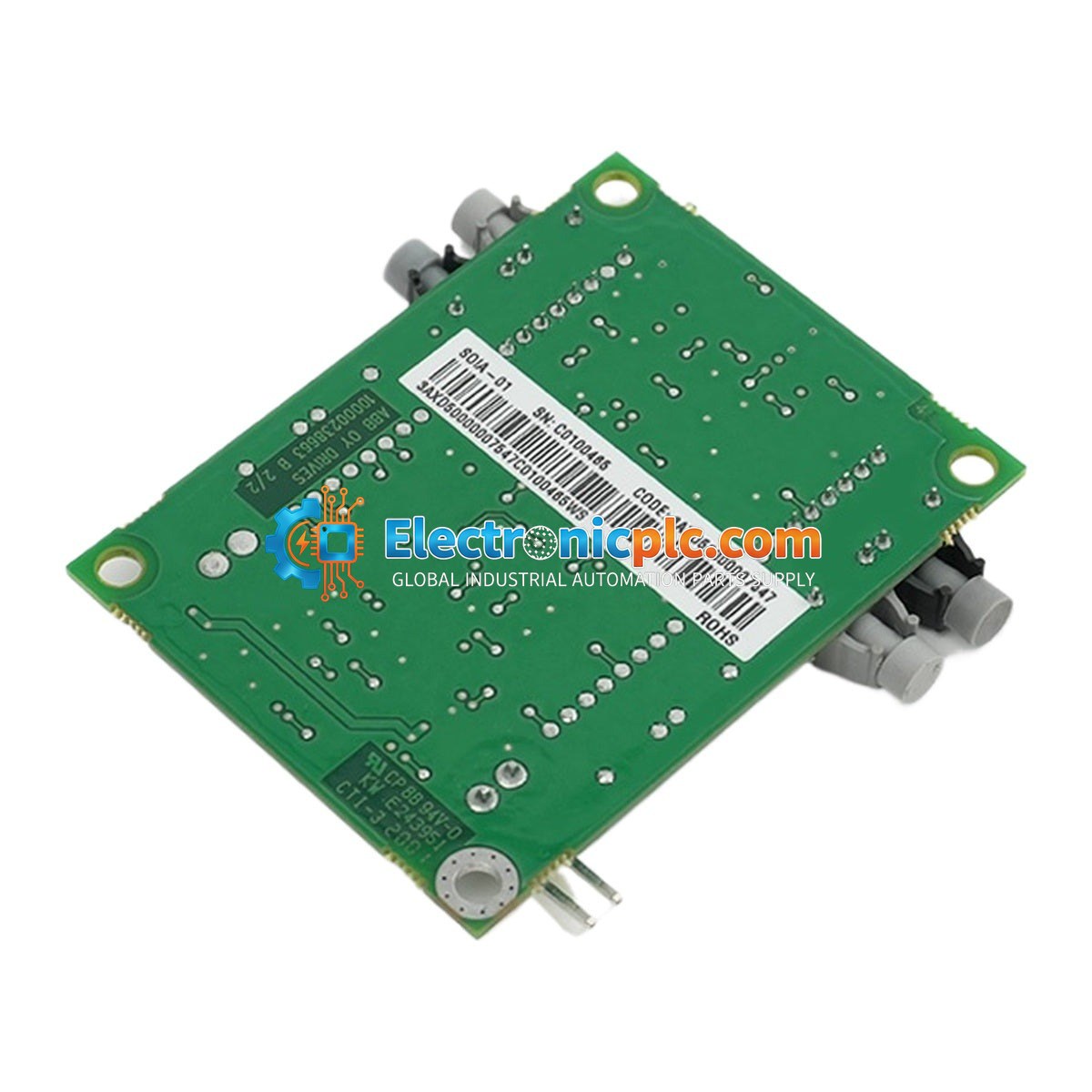

ABB SOIA-01 3AXD50000007547 Optical Interface Adapter Board

ABB SOIA-01 3AXD50000007547 Optical Interface Adapter Board

Description

The ABB SOIA-01 (Order Code: 3AXD50000007547) is a specialized Optical Interface Adapter Board engineered for the ABB ACS880 series industrial drive family. This module functions as a critical communication interface,...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: SOIA-01 3AXD50000007547
Proveedora: ABB
tipo: Optical Interface Adapter Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The ABB SOIA-01 (Order Code: 3AXD50000007547) is a specialized Optical Interface Adapter Board engineered for the ABB ACS880 series industrial drive family. This module functions as a critical communication interface, converting electrical serial signals into optical signals. By utilizing fiber optic transmission, it ensures high-speed, noise-immune data communication between the drive system and external control devices, effectively isolating the drive from electromagnetic interference (EMI) common in industrial environments.

Features

  • High-speed fiber optic communication interface.
  • Designed specifically for integration with ABB ACS880 drive systems.
  • Provides robust signal conversion for noise-immune data transmission.
  • Supports reliable connectivity in high-EMI industrial settings.

Applications

  • Oil and Gas: Used in drilling rigs, compressor stations, and pump sets.
  • Mining and Cement: Ideal for conveyor systems, crushers, and ball mills where electrical noise is prevalent.
  • Pulp and Paper: Integrated into complex paper machine drive systems.
  • Electricity and Energy: Supports power plant feedwater pumps, induced draft fans, and excitation systems.

Technical Specifications

Product Model SOIA-01
Order Code 3AXD50000007547
Manufacturer ABB
Supply Voltage 24V DC
Power Consumption 5-15W
Isolation 2500-4000V optical isolation
Operating Temperature 0 degC to +60 degC
Storage Temperature -40 degC to +85 degC
Humidity 5-95% RH non-condensing
Tariff Code 8537101190

Installation Guidelines

  • Power Down: Always ensure the drive system is fully powered down and capacitors are discharged before installing or removing the SOIA-01 module.
  • ESD Protection: Use standard electrostatic discharge (ESD) precautions, such as wearing a grounded wrist strap, when handling the adapter board.
  • Seating: Ensure the module is securely seated in the designated drive slot. Verify that all fiber optic connectors are clean and properly aligned before insertion.
  • Cable Routing: When using fiber optic cables, avoid sharp bends that could damage the internal glass or plastic fibers. Maintain the manufacturer's recommended minimum bend radius.
  • Grounding: Ensure the drive chassis is properly grounded according to local electrical codes to maintain the effectiveness of the optical isolation.

FAQs

What is the primary function of the SOIA-01?

The SOIA-01 acts as an optical interface adapter that converts electrical serial data into optical signals, allowing for high-speed, interference-free communication between an ACS880 drive and external controllers.

Is this module compatible with other ABB drive series?

The SOIA-01 is specifically designed for the ACS880 series. Please consult your drive's hardware manual to confirm compatibility before installation.

What are the environmental requirements for this board?

The module is rated for operation between 0 degC and +60 degC with a non-condensing humidity range of 5-95%.
