Description

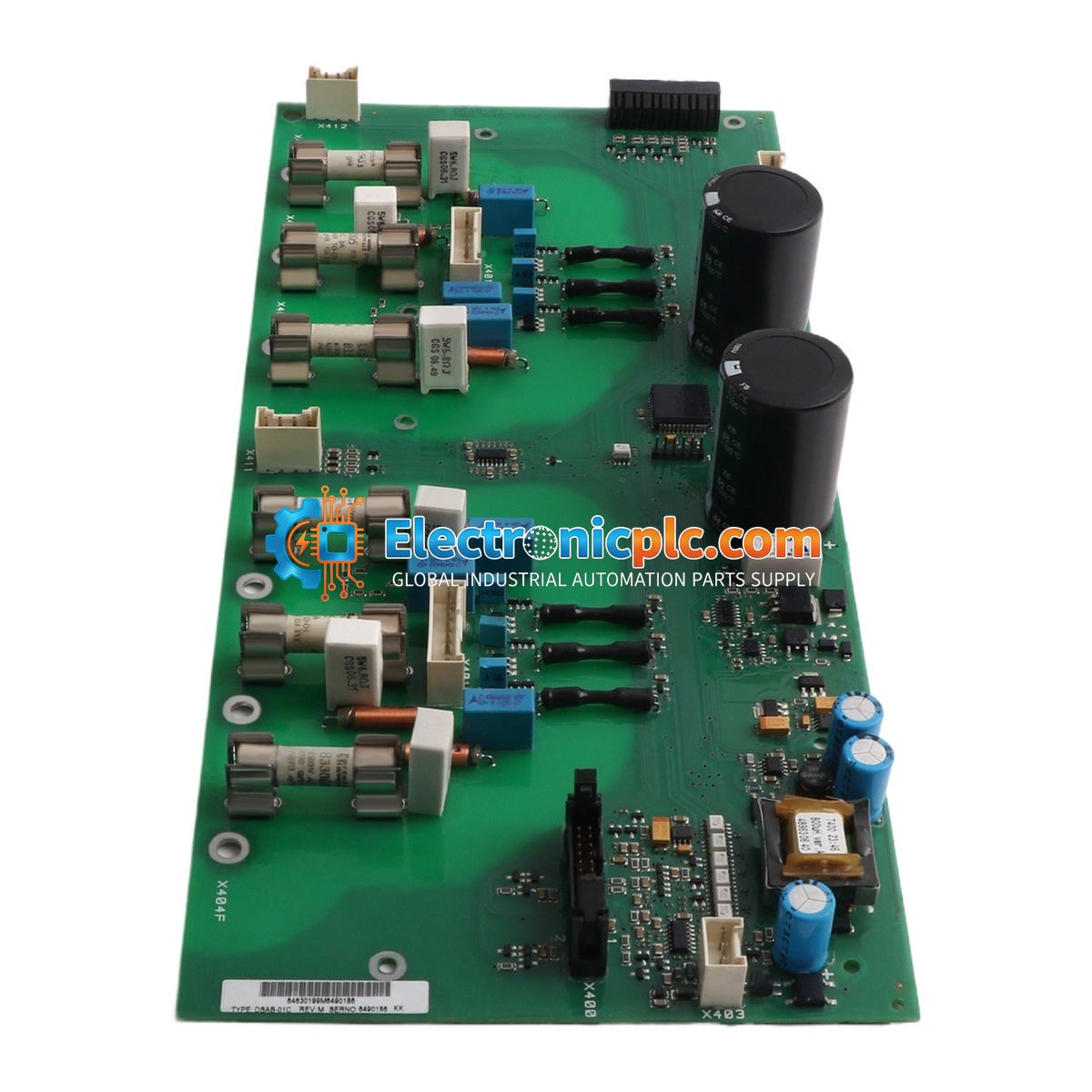

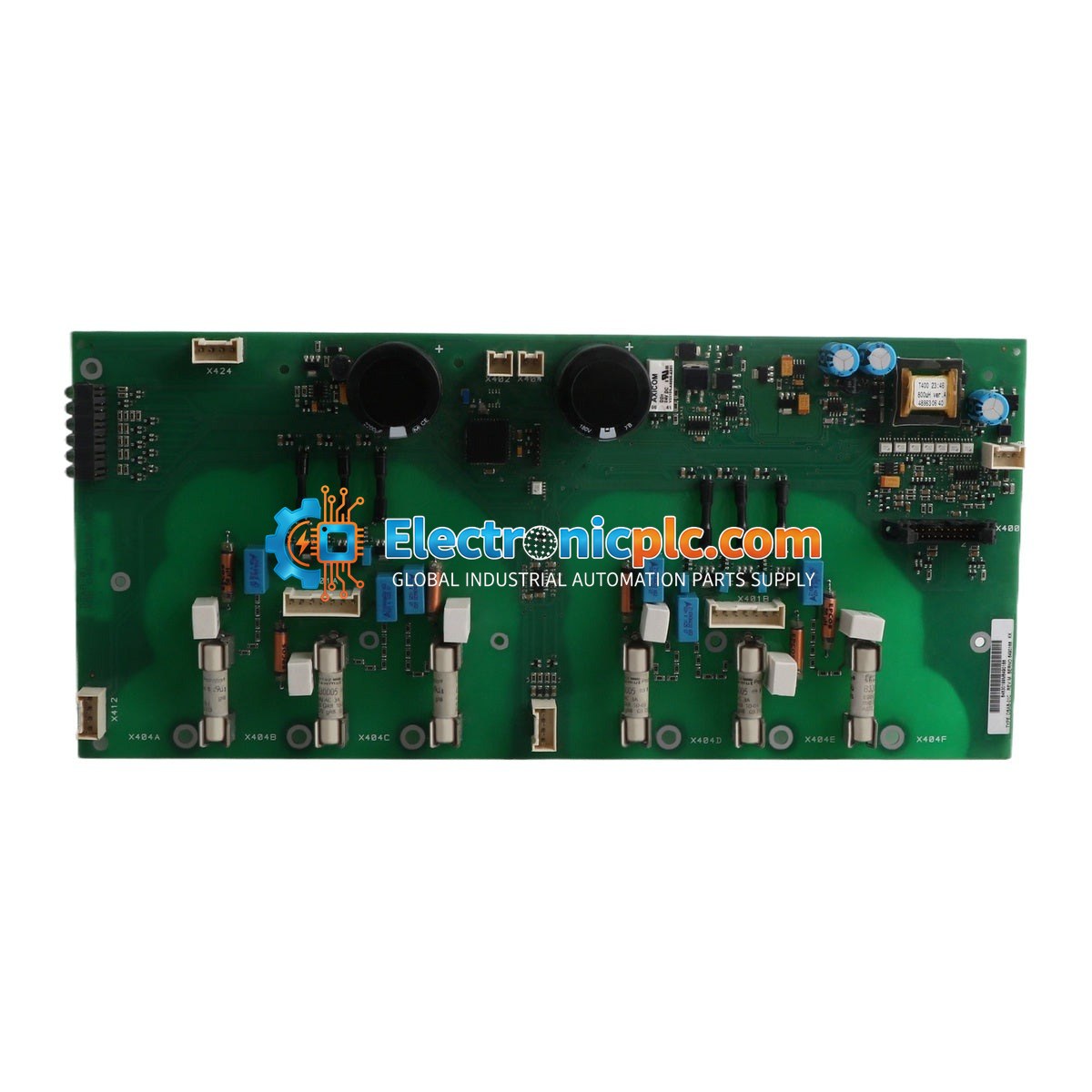

The ABB DSAB-01C is a specialized diode module designed for use within ABB industrial automation systems, including the Advant and AC800M series environments. This module functions as a critical interface component, often utilized in drive control applications to manage thyristor triggering or signal routing. It provides reliable diode-based logic or protection functions essential for maintaining the integrity of power electronics and control signals in demanding industrial processes.

Features

• Robust diode module architecture for industrial control applications.
• Designed for integration with ABB drive board and inverter systems.
• Supports reliable thyristor triggering and signal management.
• Engineered for high-availability industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module from the rack or backplane.
• Handle the module using ESD-safe practices to prevent damage to internal components.
• Verify that the module is firmly seated in the assigned slot to ensure proper electrical contact with the backplane.
• Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Ensure adequate ventilation in the cabinet to maintain the operating temperature within the specified 0 to 60 degC range.

FAQ

What is the primary function of the DSAB-01C module?
The DSAB-01C is primarily used as a diode module within ABB drive and inverter control systems to facilitate thyristor triggering and signal regulation.

Is this module compatible with the AC800M system?
Yes, the DSAB-01C is designed for compatibility with ABB Advant and AC800M series control architectures.

What are the environmental requirements for this module?
The module should be operated in an environment with a temperature range between 0 degC and +60 degC, ensuring the cabinet is free from excessive dust and moisture.
