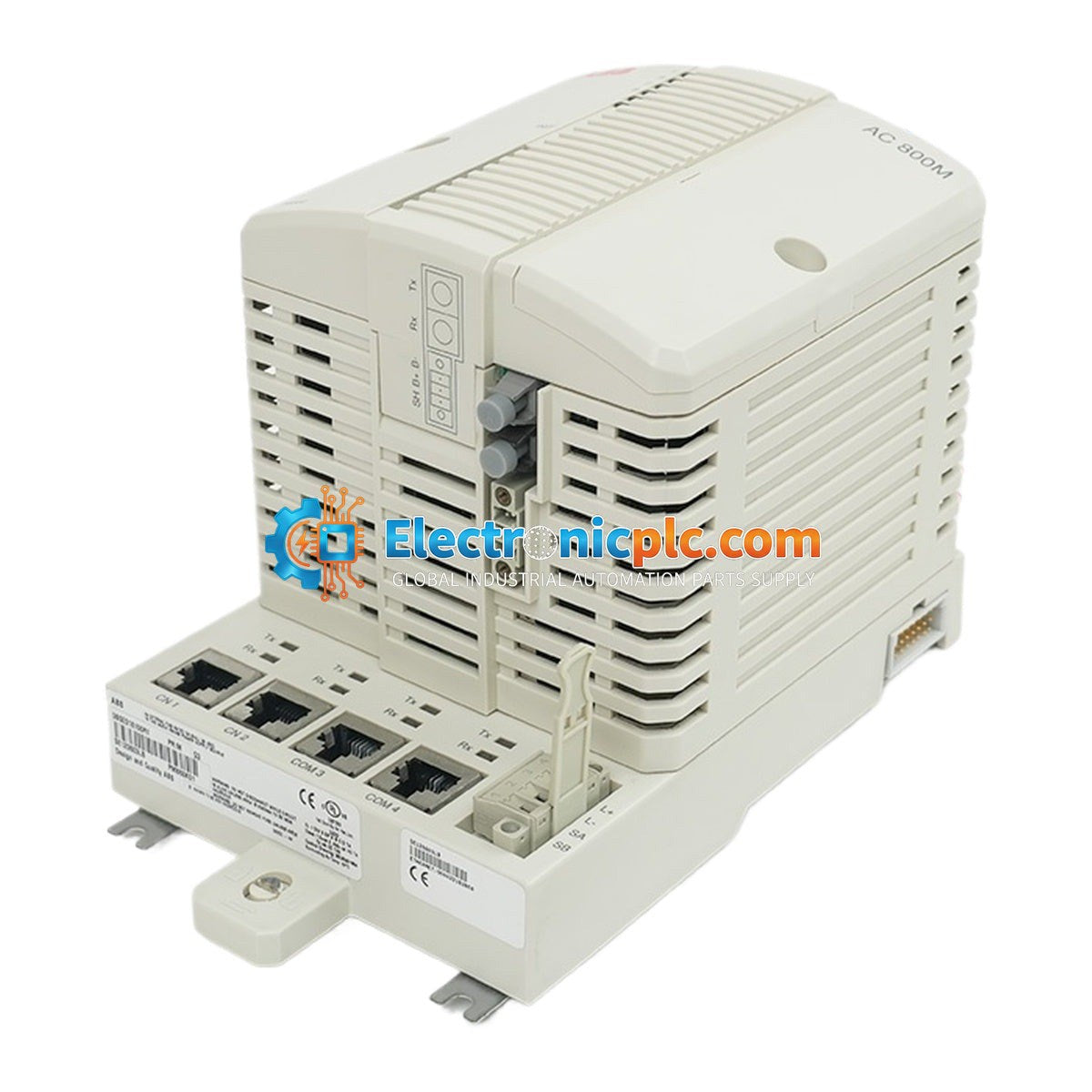

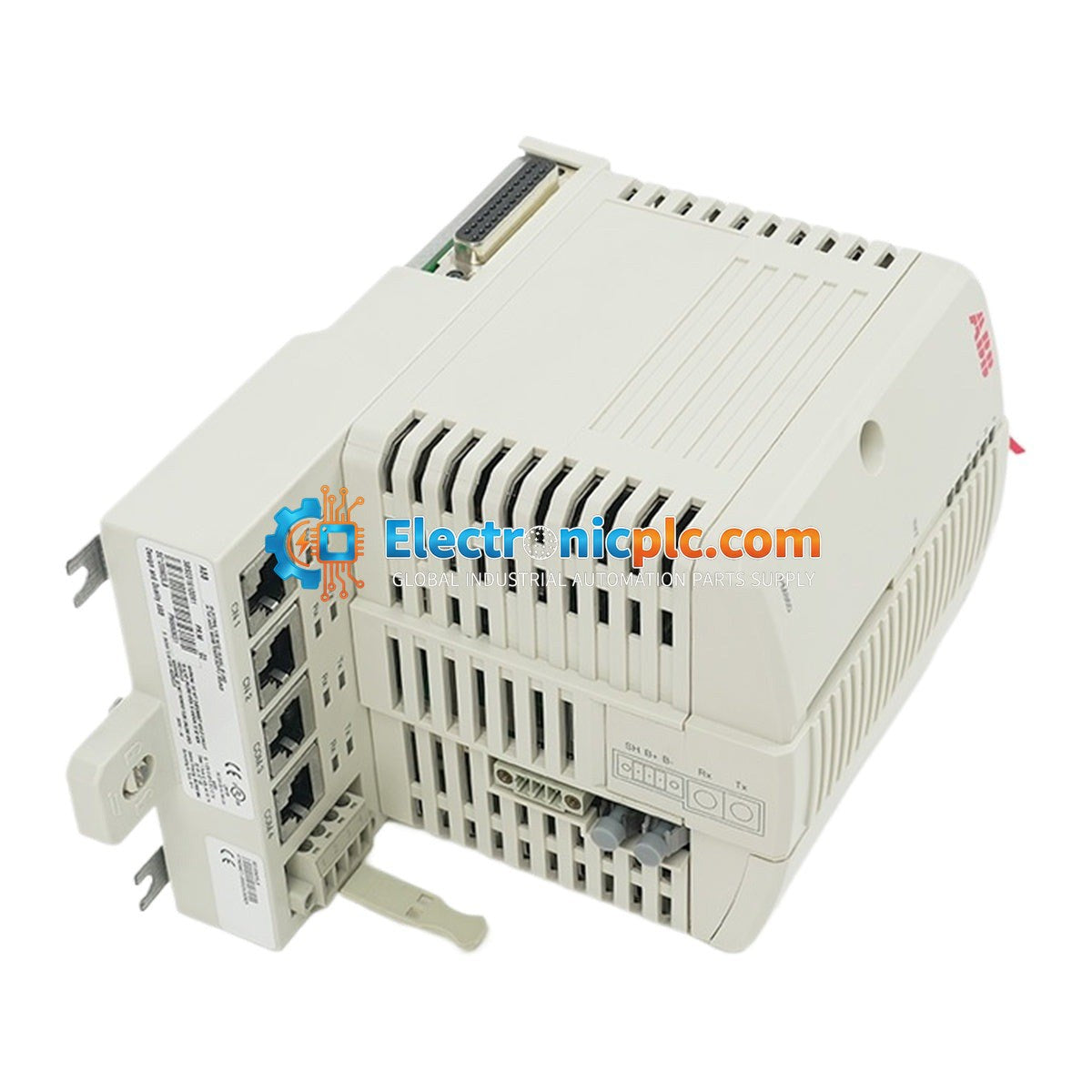

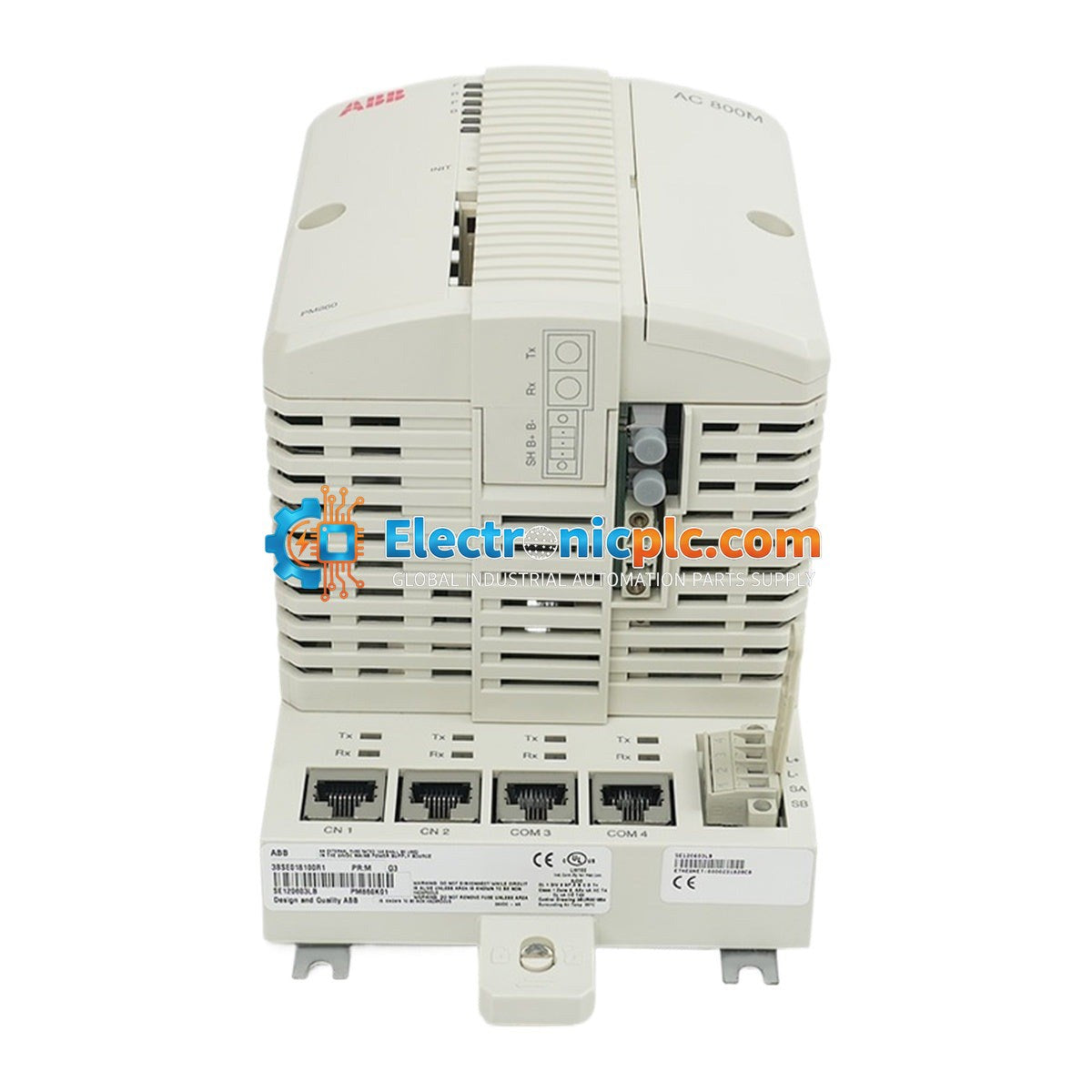

ABB PM860K01 3BSE018100R1 AC 800M Processor Unit Kit

ABB PM860K01 3BSE018100R1 AC 800M Processor Unit Kit

Description

The ABB PM860K01 (3BSE018100R1) is a comprehensive Processor Unit Kit designed for the ABB AC 800M control system, a core component of the Ability System 800xA. This kit provides a...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: PM860K01 3BSE018100R1
Proveedora: ABB
tipo: PLC Processor Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The ABB PM860K01 (3BSE018100R1) is a comprehensive Processor Unit Kit designed for the ABB AC 800M control system, a core component of the Ability System 800xA. This kit provides a complete, ready-to-deploy processing solution for industrial automation and process control. The package includes the PM860 CPU, TP830 baseplate (115 mm width), TB850 CEX-bus terminator, TB807 ModuleBus terminator, a memory backup battery, and the necessary 4-pin power connector.

The PM860 CPU utilizes an MPC860 microprocessor to deliver reliable real-time data processing and execution of complex control strategies. It is equipped with 16 MB of RAM and 2 MB of Flash PROM for firmware storage. The unit supports up to 32 applications per controller, making it suitable for demanding industrial environments.

Features

  • Complete Processor Unit Kit including CPU, baseplate, and bus terminators.
  • Dual RJ45 Ethernet ports (CN1, CN2) supporting MMS and IAC protocols.
  • Dedicated serial ports: COM3 (RS-232C with modem control) and COM4 (isolated for configuration tools).
  • Supports high-reliability redundant and non-redundant configurations.
  • Integrated LED status indicators and INIT push button for system management.
  • CompactFlash interface for external storage and data logging.

Applications

  • Petrochemical & Chemical Processing: Precise regulation of temperature, pressure, and flow rates.
  • Oil & Gas: Management of complex control loops for extraction and processing.
  • Water & Wastewater Treatment: Automation of treatment cycles and monitoring of remote I/O.
  • Manufacturing & Automotive: Robotic control and high-speed production line management.
  • Marine & Mining: Robust performance in high-EMI and harsh industrial environments.

Technical Specifications

Product Model PM860K01 3BSE018100R1
Processor Type MPC860
Clock Frequency 48 MHz
RAM 16 MB
Flash Memory 2 MB
Power Supply 24 V DC (19.2-30 V DC)
Power Dissipation 4.32 W
Operating Temperature +5 degC to +55 degC
Storage Temperature -40 degC to +70 degC
Relative Humidity 5% to 95% (non-condensing)
Max Altitude 2000 meters

Installation Guidelines

  • Ensure the control cabinet is properly grounded before installation.
  • The module is designed for standard DIN-rail or baseplate mounting using a slide-and-lock mechanism.
  • Verify that power is disconnected before inserting or removing the module from the baseplate to prevent electrical damage.
  • Route communication cables away from high-voltage power lines to minimize EMI interference.
  • Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified range.
  • Handle with ESD-safe precautions to protect sensitive internal circuitry.
