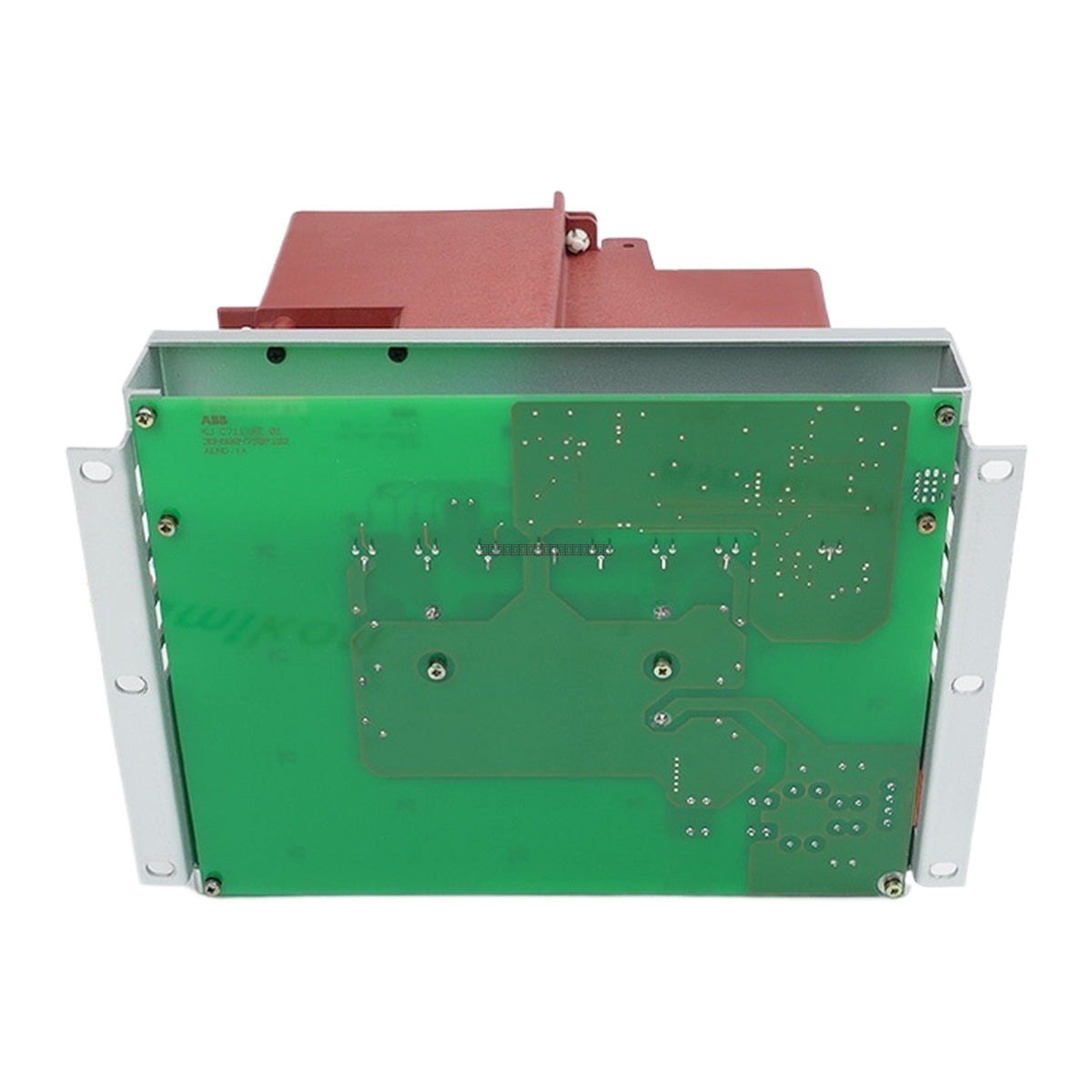

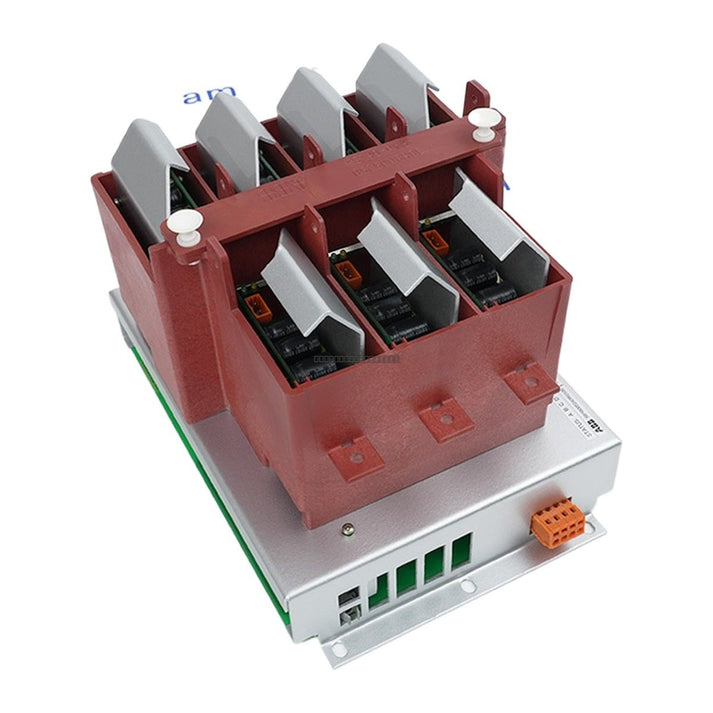

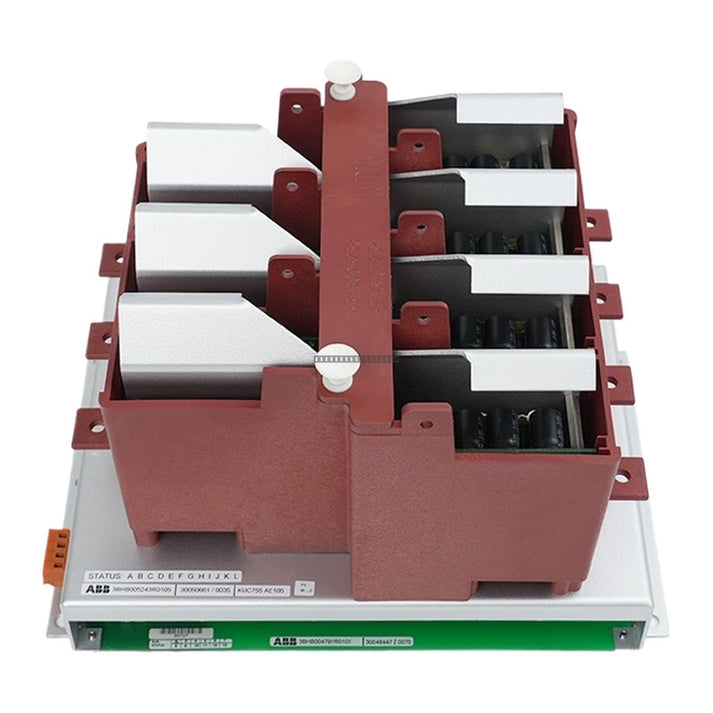

ABB 3BHB005243R0105 KUC755 AE105 Gate Unit Power Supply

ABB 3BHB005243R0105 KUC755 AE105 Gate Unit Power Supply

Description

The ABB 3BHB005243R0105 (KUC755 AE105) is a specialized Gate Unit Power Supply designed for high-performance industrial drive systems. This module provides essential power to the gate control units of power...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 3BHB005243R0105 KUC755 AE105 3BHB004791R0101
Proveedora: ABB
tipo: Gate Unit Power Supply
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The ABB 3BHB005243R0105 (KUC755 AE105) is a specialized Gate Unit Power Supply designed for high-performance industrial drive systems. This module provides essential power to the gate control units of power semiconductors, such as IGBTs and IGCTs, ensuring reliable operation in demanding motor control and power conversion applications. It is engineered to maintain stable output power within complex, high-voltage drive environments.

Features

  • Designed for integration with ABB ACS6000 drive systems.
  • Provides stable power supply for IGBT/IGCT gate driver circuitry.
  • Includes integrated overload and short-circuit protection.
  • Features precise voltage and current regulation for high-reliability applications.
  • Suitable for use in redundant control system architectures.

Applications

  • Power Generation: Frequency control for wind power plants and pumped storage stations.
  • Oil & Gas: Control for large compressors and pumping stations in refineries and offshore platforms.
  • Mining & Metals: Drive systems for rolling mills, grinding machines, and heavy-duty mine elevators.
  • Transportation & Marine: Propulsion systems for vessels and transmission control for port cranes.

Technical Specifications

Model 3BHB005243R0105 / KUC755 AE105
Alternate Part 3BHB004791R0101
Input Voltage 20 - 30V DC
Output Power 50W - 100W
Isolation > 2500V AC
Efficiency > 85% (typical)
Operating Temperature 0 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5-95% RH (non-condensing)

Installation Guidelines

  • Ensure the system is fully powered down before inserting or removing the module.
  • Mount the unit in a clean, dry environment, ensuring adequate airflow for heat dissipation.
  • Use shielded cabling for input and output connections to minimize EMI interference.
  • Verify that input voltage polarity matches the module specifications (20-30V DC) before applying power.
  • Handle with standard ESD precautions to prevent damage to internal sensitive electronic components.

FAQ

What is the primary function of the 3BHB005243R0105?

This unit serves as a gate unit power supply, providing the necessary power to the gate control units of power semiconductors like IGBTs and IGCTs within industrial drive systems.

Is this module compatible with the ACS6000 series?

Yes, this power supply is specifically utilized within the ABB ACS6000 drive family for gate driver power requirements.

Does this unit include protection features?

Yes, it features built-in overload and short-circuit protection to safeguard the module and connected gate drive components during abnormal operation.
