ABB 3BHE014185R0001 UUD148 AE01 Voltage Transducer Control Board

ABB 3BHE014185R0001 UUD148 AE01 Voltage Transducer Control Board

Description

The ABB 3BHE014185R0001 (UUD148 AE01) is a precision Voltage Transducer Control Board designed for integration within ABB's PCS6000 series medium-voltage full-power converters. As a critical component of the Converter Control...

24 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 3BHE014185R0001 UUD148 AE01
Proveedora: ABB
tipo: Voltage Transducer Control Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

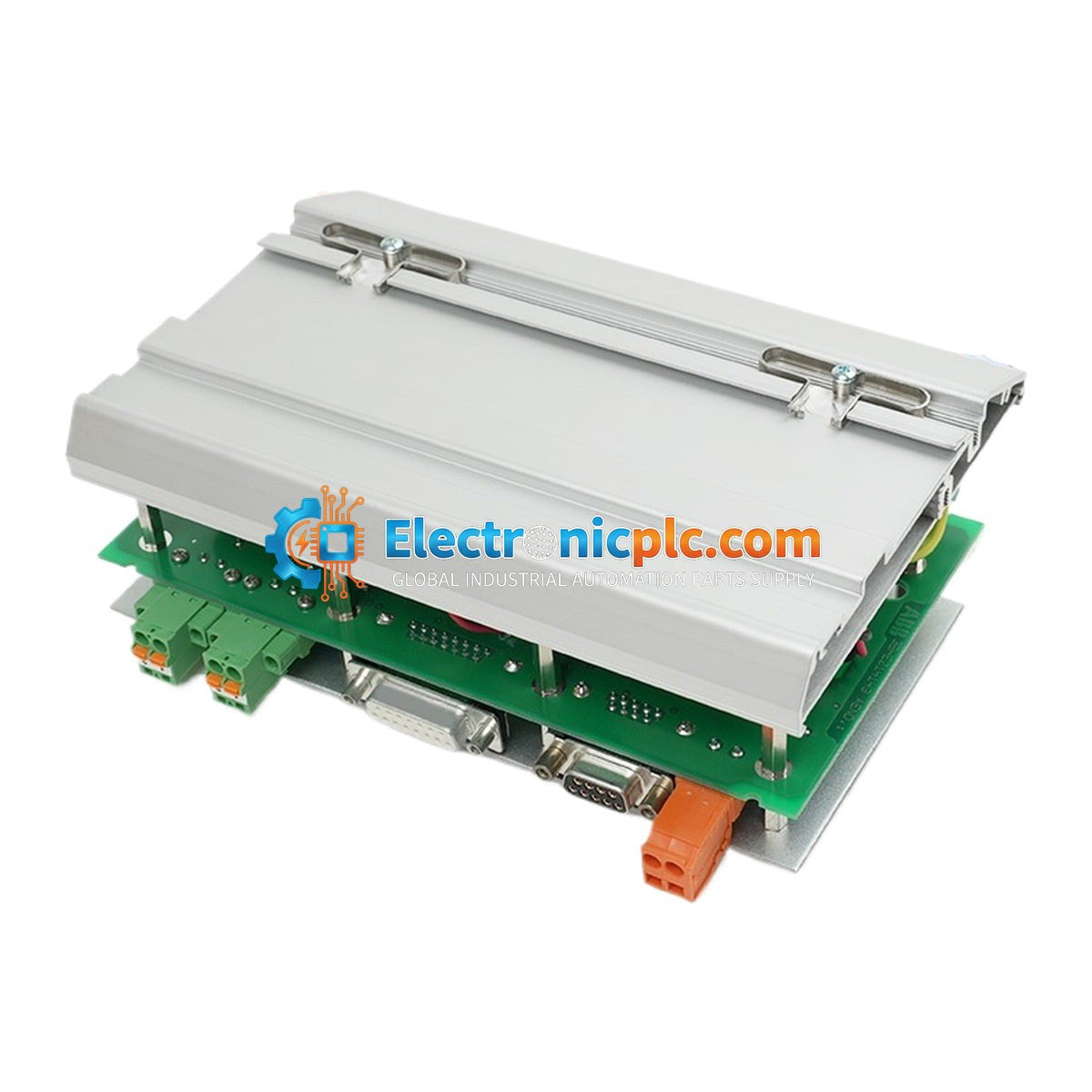

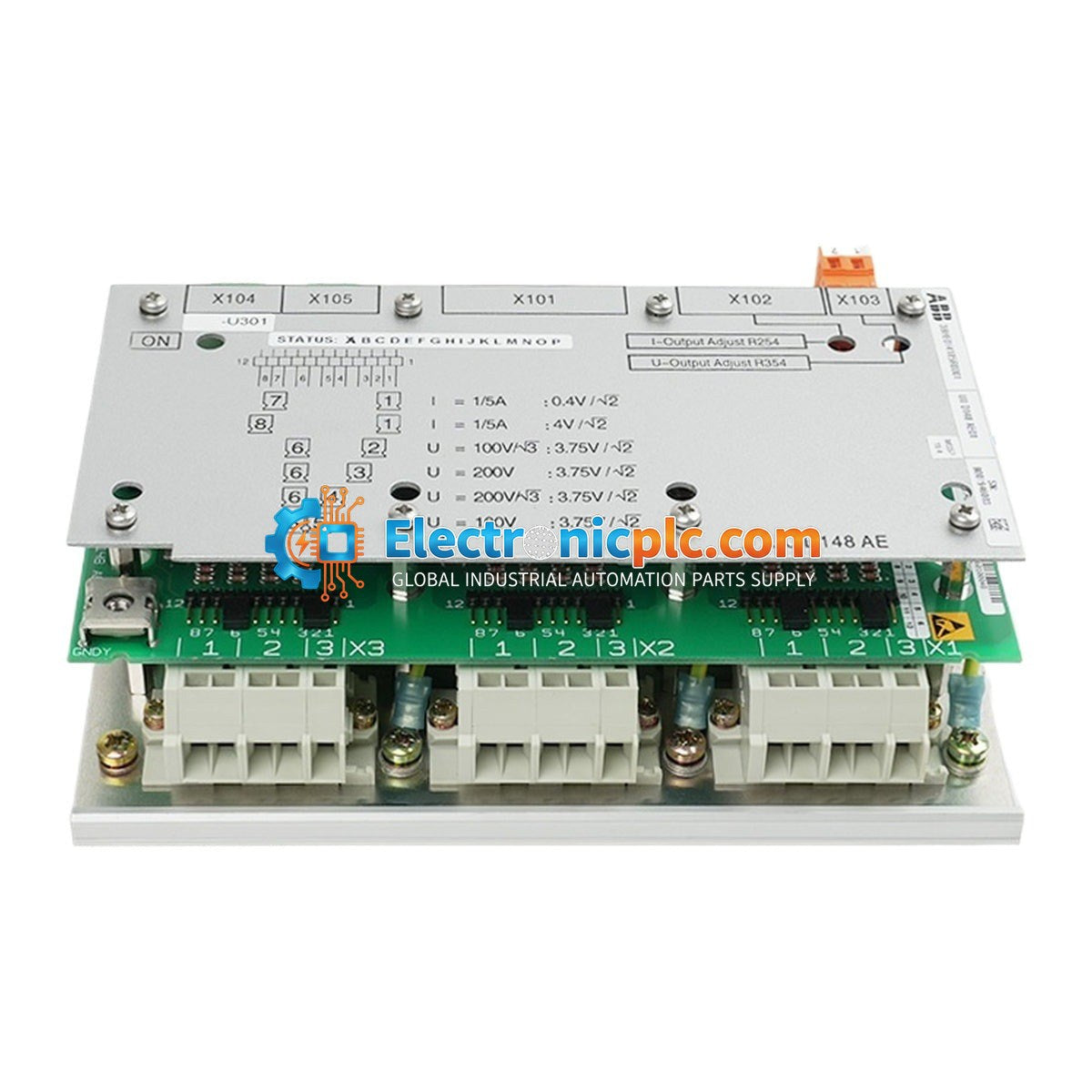

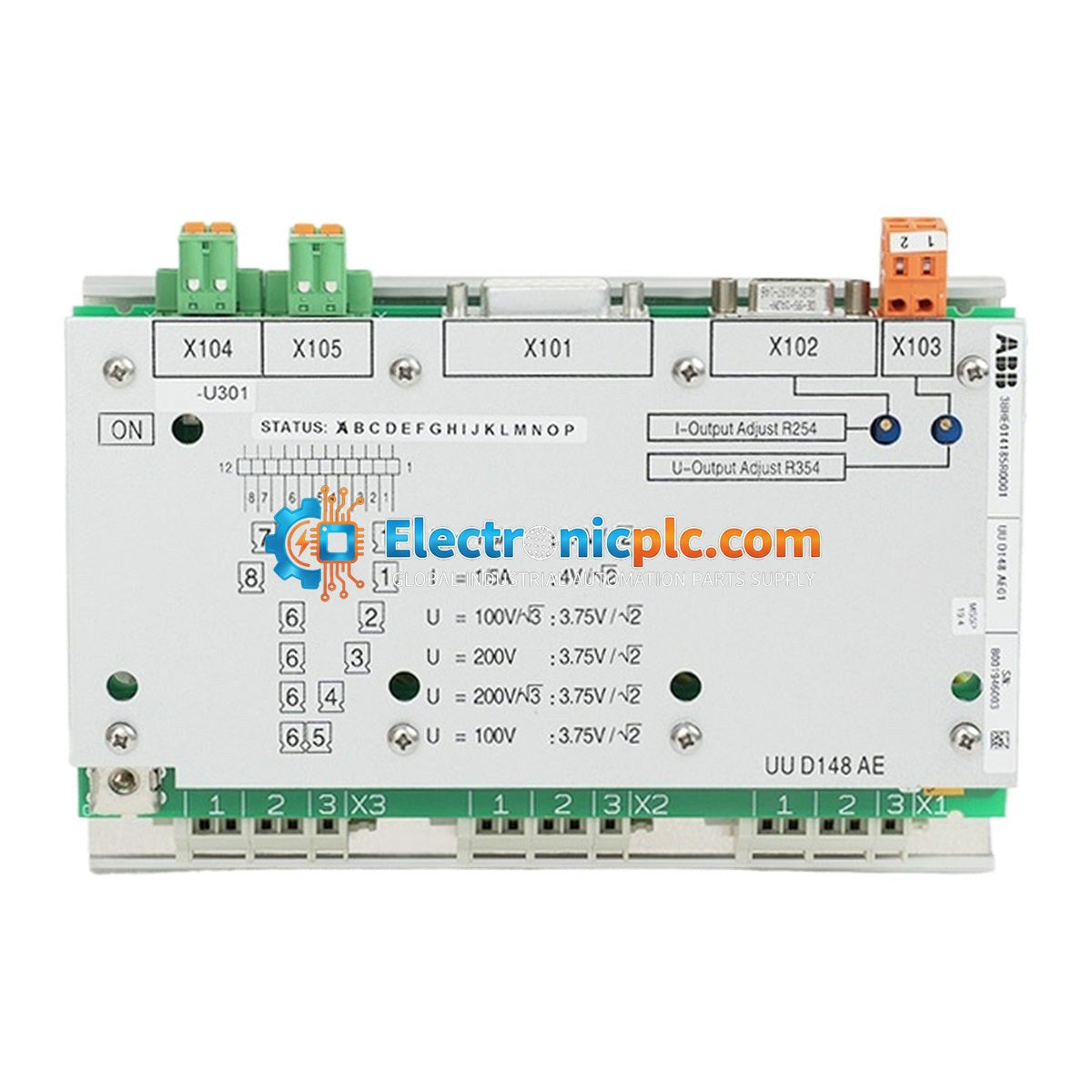

The ABB 3BHE014185R0001 (UUD148 AE01) is a precision Voltage Transducer Control Board designed for integration within ABB's PCS6000 series medium-voltage full-power converters. As a critical component of the Converter Control Unit (CCU), this module performs high-accuracy signal conditioning, measuring voltage and current parameters within the power stage and converting them into standardized analog signals for the drive control system. It is essential for maintaining grid compliance, operational efficiency, and equipment protection in high-power industrial applications.

Features

  • Designed for CCB-2 drive control systems.
  • Provides standardized 4–20 mA and 0–10 V DC analog outputs.
  • Integrated front-panel LED diagnostics for real-time internal voltage controller status monitoring.
  • Customer-replaceable design featuring jumper-based configuration for flexible setup.
  • High isolation rating of 2500 V AC for enhanced system safety.

Applications

  • PCS6000 Converters: Power conversion and signal monitoring within the PCS6000 framework.
  • Renewable Energy: Voltage monitoring and output control for wind and solar energy systems.
  • Power Industry: Substation, distribution, and generator monitoring.
  • Rail Transit: Traction and auxiliary power monitoring for locomotives.
  • Industrial Automation: Monitoring for large-scale motors, pumps, and compressors.

Technical Specifications

Product Model 3BHE014185R0001 / UUD148 AE01
Output Signal 4 – 20 mA
Accuracy +/- 0.5 % full scale
Resolution 16-bit
Isolation 2500 V AC
Operating Temperature -25 degC to +70 degC (derating above 55 degC)
Storage Temperature -40 degC to +85 degC
Humidity 5 % – 95 % RH (non-condensing)

Installation Guidelines

  • Safety First: Shut down the PCS6000 according to the official lockout/tagout procedure (3BHS600000 E22) before installation.
  • Power Isolation: Switch off MCB -Q306 to interrupt 3AC 400 V inputs and wait approximately 5 minutes for IPC shutdown.
  • Battery Handling: On the UPS -G302, turn the "Bat.-Select" switch to "Service" to interrupt the 24 V battery supply (ensure the yellow "Bat.-Mode" LED is dark).
  • Current Measurement: If replacing a current transducer board, ensure terminals -X900 are short-circuited.
  • Mounting: Install only inside a well-ventilated, sealed control cabinet (minimum IP20). Mount on a flat vertical or horizontal plane to optimize passive cooling.
  • EMI Protection: Maintain physical clearance from high-EMI sources such as large transformers or motors to prevent signal interference.

FAQs

What is this product?

It is an ABB Voltage Transducer Control Board, identified by part number 3BHE014185R0001 or UUD148 AE01.

What is the primary function of this module?

It serves as a transducer control board to process analog signals for voltage or current measurement within the converter power stage.

In which systems is this control board used?

It is used in the ABB PCS6000 converter architecture, including wind turbine grid connections, STATCOMs, and large-scale synchronous motor drives.
