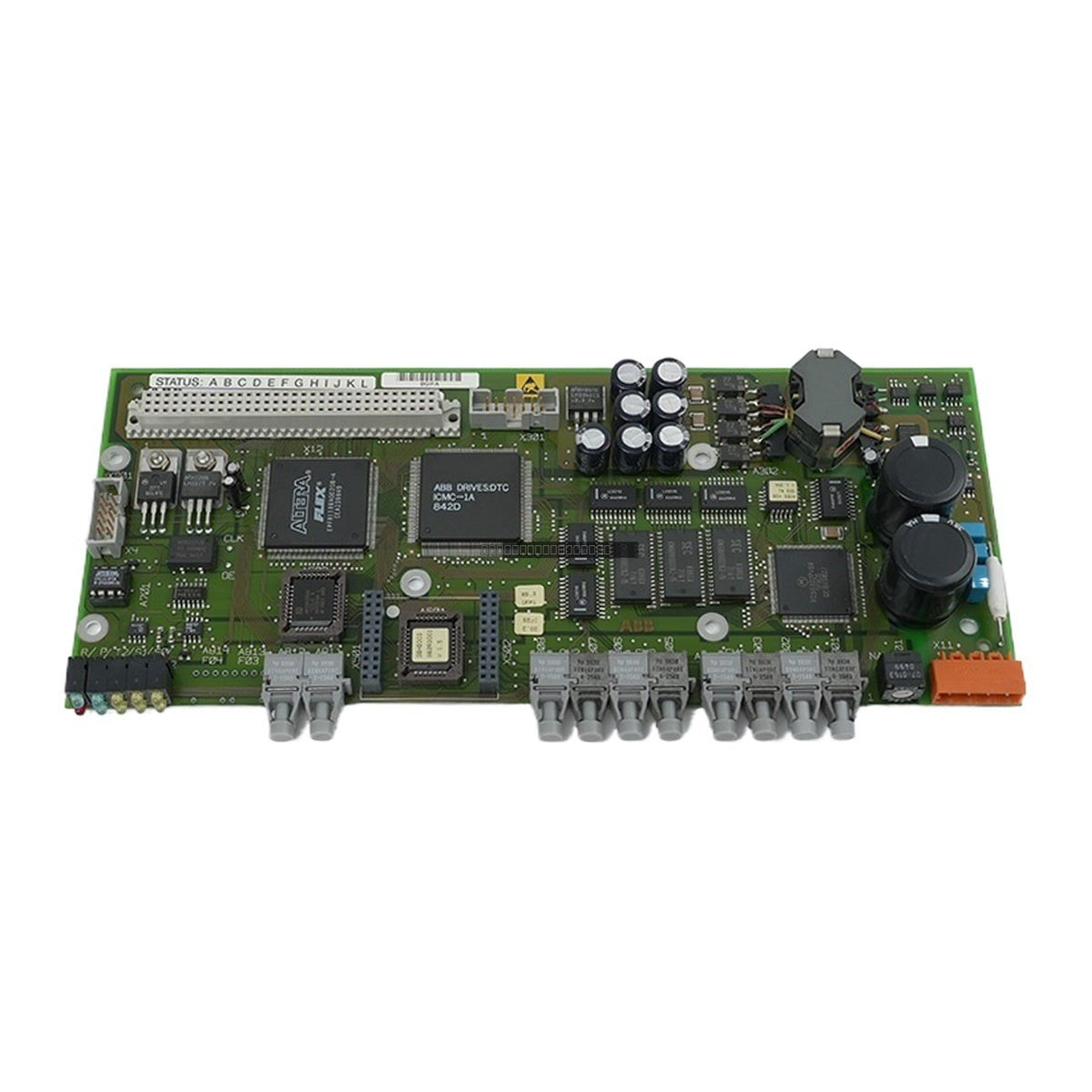

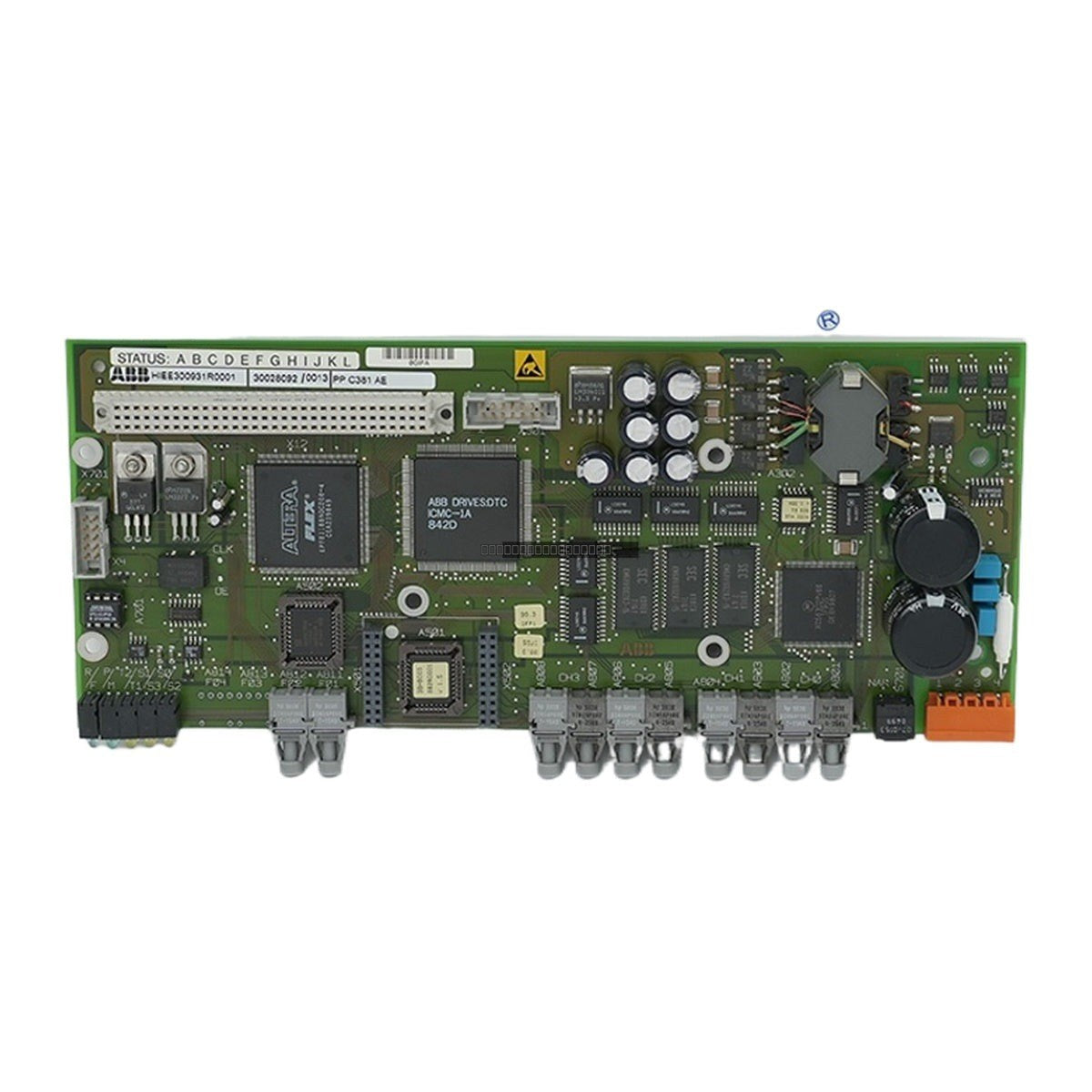

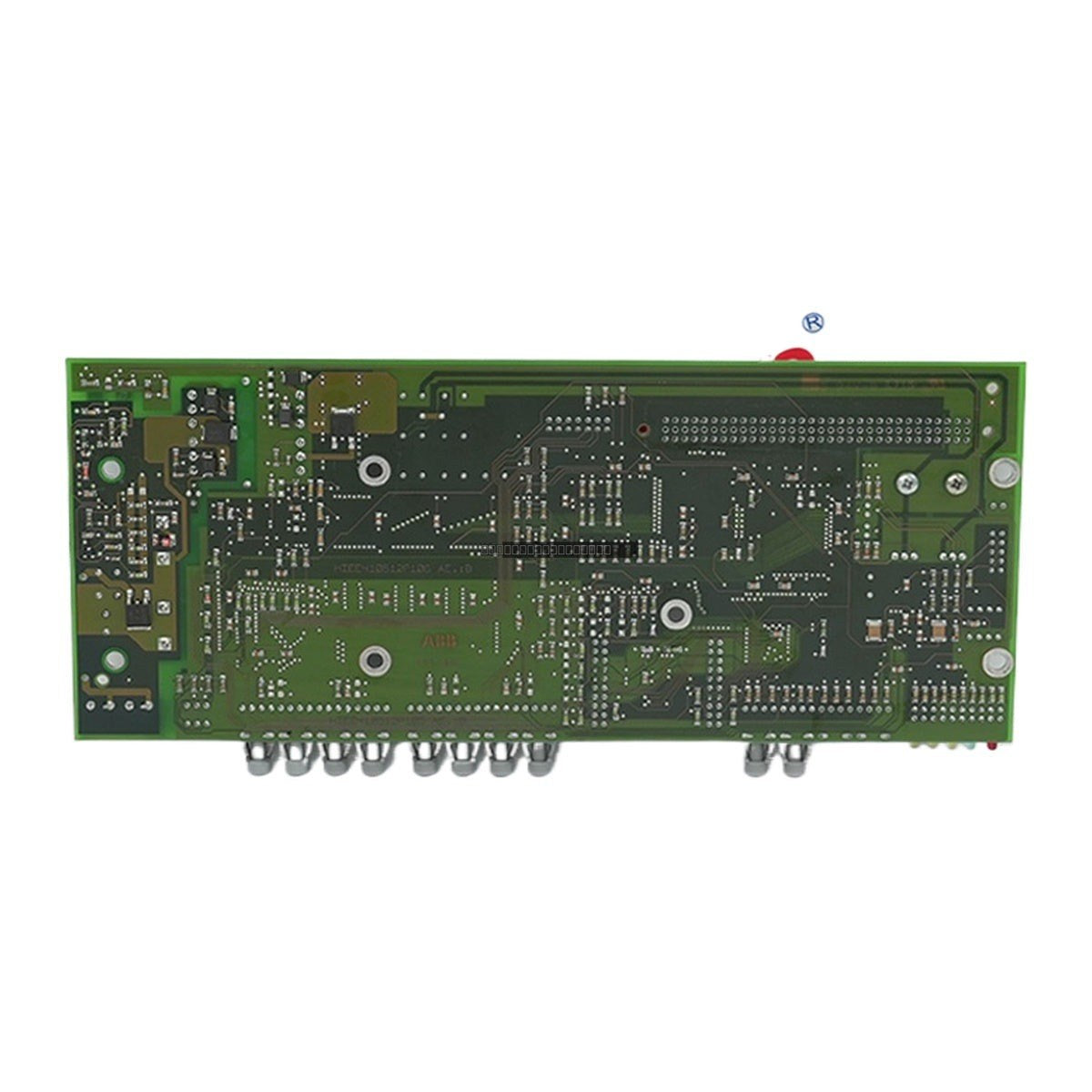

ABB HIEE300931R0001 PPC381 AE Converter Control Board

ABB HIEE300931R0001 PPC381 AE Converter Control Board

The ABB HIEE300931R0001 (PPC381 AE) is a high-performance Converter Control Board, also designated as the LD CCB-01. This module is a critical component within ABB industrial excitation and power conversion...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: HIEE300931R0001 PPC381 AE
Proveedora: ABB
tipo: Converter Control Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The ABB HIEE300931R0001 (PPC381 AE) is a high-performance Converter Control Board, also designated as the LD CCB-01. This module is a critical component within ABB industrial excitation and power conversion systems, designed to manage complex control logic, signal processing, and firing pulse generation for power electronics, including IGBT and thyristor-based drives.

Features

  • Core control functionality for industrial power conversion systems.
  • Supports high-speed digital processing for precise gate drive management.
  • Designed for integration within heavy-duty converter architectures.
  • Compatible with specific ABB medium and high-voltage drive platforms, including the UNITROL 1000 series.

Applications

  • Power Generation: Excitation systems and large-scale power conversion.
  • Metal & Steel: Precise torque and speed control for rolling mills and blowers.
  • Mining & Mineral Processing: Control of crushers, mills, and conveyor systems.
  • Water & Wastewater: Management of high-volume pumping stations.
  • Pulp & Paper: Section drives and high-capacity liquid pulp pumps.

Technical Specifications

Model HIEE300931R0001 (PPC381 AE)
Designation LD CCB-01
Operating Voltage Up to 400V
Output Frequency Up to 50kHz
Manufacturer ABB
Tariff Code 8537101190

Installation Guidelines

  • Ensure the system is fully de-energized before attempting to install or remove the control board.
  • Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive components.
  • Verify the orientation of all multi-pin connectors and ribbon cables to prevent pin misalignment during seating.
  • Route signal and control cables separately from high-power motor cables to minimize electromagnetic interference (EMI).
  • Post-installation, ensure all fiber optic links and terminal blocks are securely seated.
  • Note: Replacement boards may require firmware verification or system-specific parameter calibration to match the existing drive configuration.

FAQ

What is the primary function of this board?

It acts as a central control board (CCB-01) that processes commands, regulates voltage and current, and ensures the safe, efficient operation of industrial drive and excitation systems.

Which systems typically utilize this board?

This board is primarily utilized in ABB heavy-duty converter and protective systems, such as the UNITROL 1000 series.

Is this component plug-and-play?

While the hardware is a direct replacement, it often requires system-level parameter configuration or calibration to align with your specific firmware version and application requirements.
