ABB RINT-5611C 68718929 Main Circuit Interface Board

ABB RINT-5611C 68718929 Main Circuit Interface Board

The ABB RINT-5611C (Part Number 68718929) is a Main Circuit Interface Board designed for use within the ABB ACS800 series variable frequency drives. It is specifically engineered for ACS800-01 and...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: RINT-5611C 68718929
Proveedora: ABB
tipo: Drive Interface Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

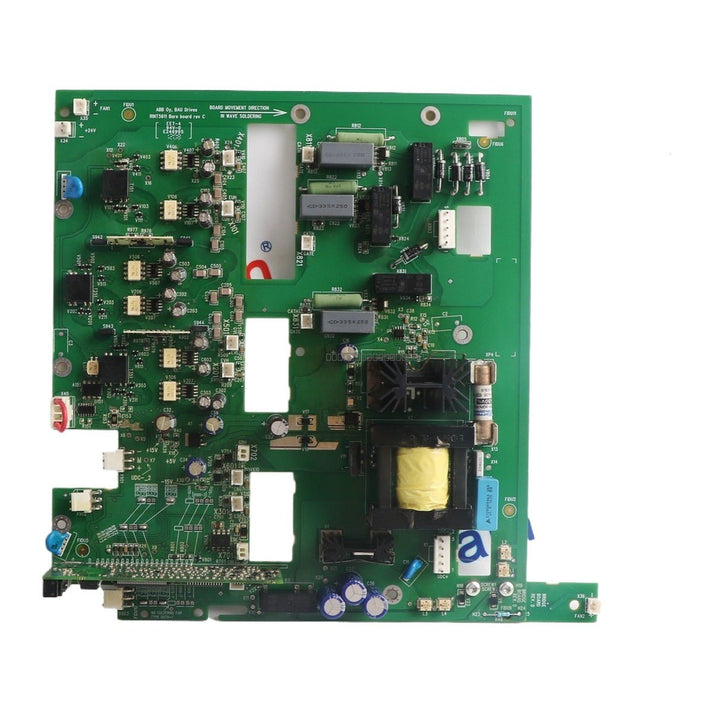

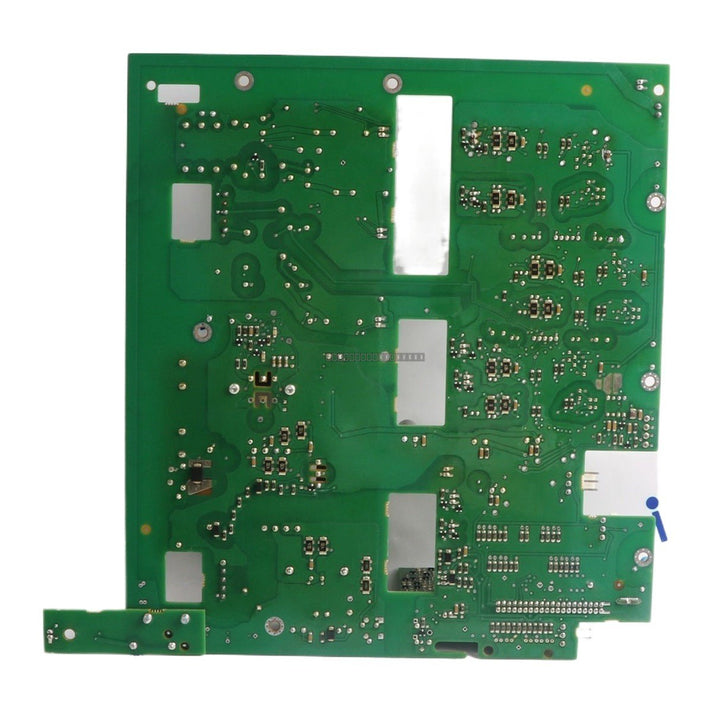

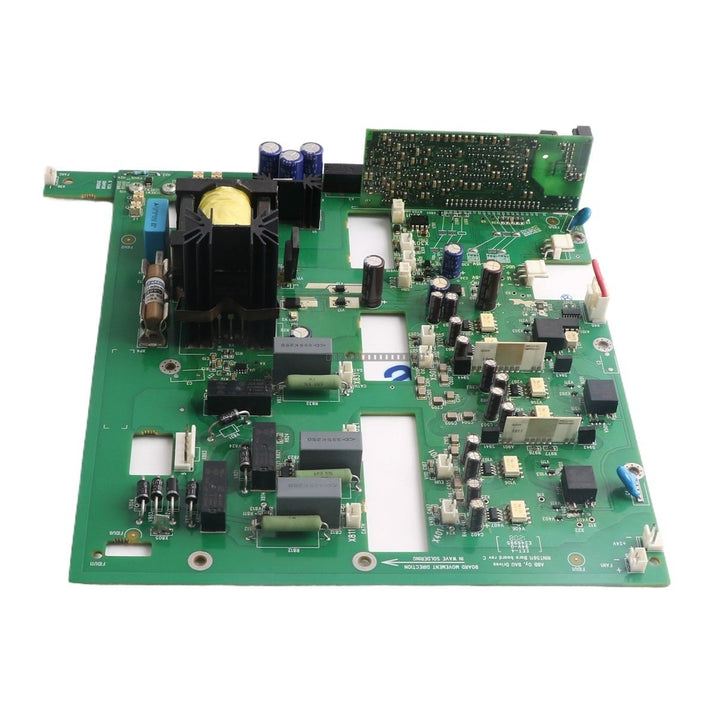

The ABB RINT-5611C (Part Number 68718929) is a Main Circuit Interface Board designed for use within the ABB ACS800 series variable frequency drives. It is specifically engineered for ACS800-01 and ACS800-04 units with an R6 frame size, operating on 380–500 VAC supply systems. This board serves as a critical interface between the drive's control electronics and the power section, facilitating signal processing, communication, status monitoring, and coordination of drive operations.

Features

  • Serves as the primary interface for conditioning, isolating, and transmitting signals between the main power circuit and control/protection systems.
  • Provides robust galvanic isolation between high-power primary circuits and sensitive low-voltage electronics to ensure measurement accuracy and system safety.
  • Integral component for fault management and stable drive performance.
  • Compatible with ACS800 R6 frame configurations.

Applications

  • Mining and Metallurgy: Hoists, conveyor belts, crushers, and steel rolling machinery.
  • Petroleum and Chemicals: Drilling pumps, injection pumps, centrifuges, and large-scale fans.
  • Electric Power Industry: Coal feeders, induced draft fans, and circulating water pump systems.
  • Shipbuilding: Propulsion systems and deck machinery including winches and cranes.
  • Papermaking and Water Treatment: Multi-drive control systems and large-scale pumping stations.

Technical Specifications

Model RINT-5611C (68718929)
Supply Voltage 24 VDC
Analog Input Accuracy +/- 0.1% FS
Operating Temperature -25 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5-95% (non-condensing)
Vibration Rating 5-500 Hz
Tariff Code 8537101190

Installation Guidelines

  • Qualified Personnel: Only licensed electricians should perform installation and maintenance.
  • Power Isolation: Isolate all main and auxiliary power supplies. Perform proper Lock-Out/Tag-Out (LOTO) procedures.
  • Capacitor Discharge: Wait at least 5 minutes after shutting off input power to allow intermediate circuit capacitors to discharge.
  • Voltage Verification: Measure voltage between terminals UDC+ and UDC-, and across phases U1, V1, W1, to ensure the potential is near 0 V before handling components.
  • Maintenance Note: The replacement kit includes an internal cooling fan (PN: 63998931); this fan must be replaced simultaneously with the RINT board to ensure proper thermal management.

FAQ

What is the function of the RINT-5611C board?

It acts as the main circuit interface board, primarily used in ABB ACS800 R6 frame drives to connect the control unit with the IGBT power stage.

Is this product brand new?

Yes, the ABB RINT-5611C is supplied as a new, original, and unused component.

Do you provide a warranty?

Yes, we provide a 12-month warranty for this component from the date of delivery.
